RF 250 propane tank build.

Discussion in 'Reverse Flow' started by matty0335, Oct 13, 2013.

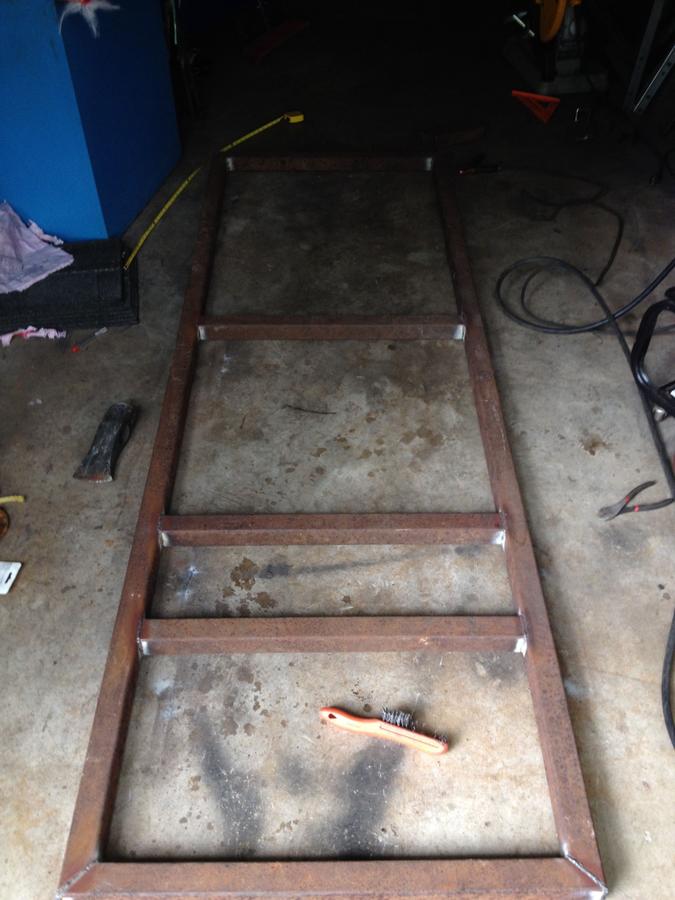

  1. Hey all, I'm new to the forums ran across them searching for ideas and really like it so I thought I'd post my build I just started today. Have the trailer frame built up need to finish the tongue and add axle and wheels. The tank still has some propane in it so I will have to get that remedied before I cut. Have built a backyard smoker but this will be my first on a trailer and first RF so I'm pretty excited.
    not the best picture but hopefully ok. The bottom end is going to be where the smoke box and the axle will be. Thanks for looking and hopefully for any advice.

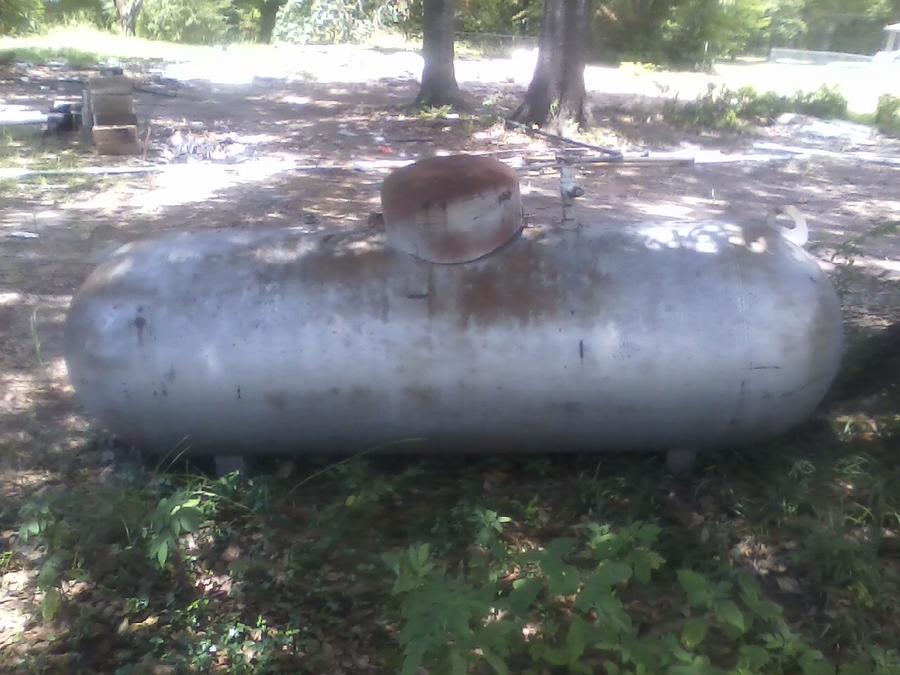

  2. here's the tank I'm going to be using, only had to give $50 and bought some wheels and an axle for $30 each! Have left over expanded metal from first smoker so the bulk of my cost will come from the smoke box metal
  3. First question if many I'm sure but would 1/8 inch be enough for the rf plate or should I go thicker? Thinking I'm going to put some angle in the middle and have 2 pieces for the rf plate angled for easy liquid flow

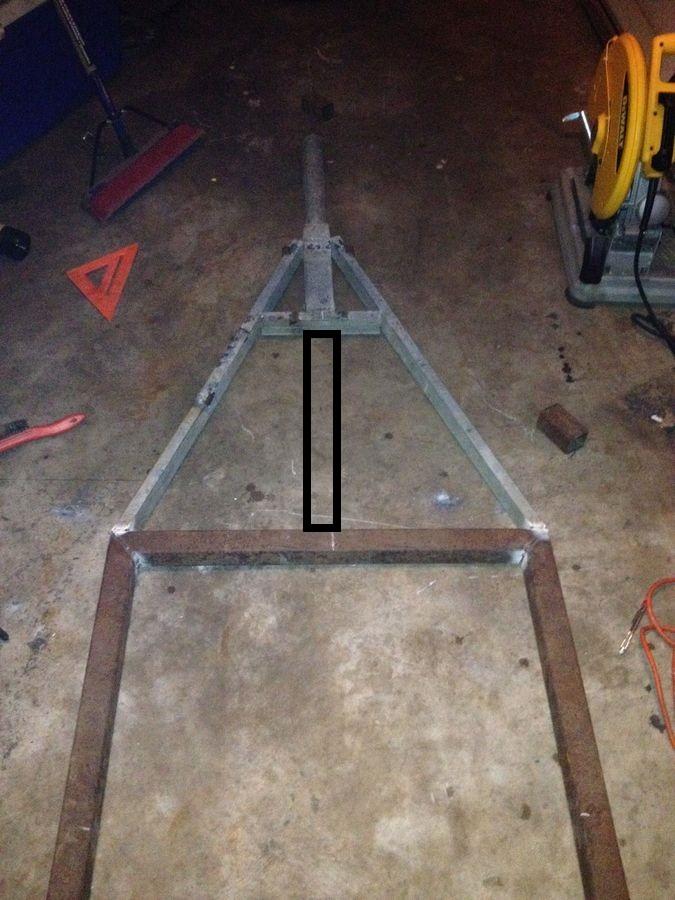

  4. so I was able to add the tongue off a boat trailer just don't know if it will be strong enough as is. I plan on adding a wood rack on top of the tongue and front of the trailer frame so this will help but will that be enough? I could add some angle under both for added support.
  5. shoneyboy

    shoneyboy Master of the Pit OTBS Member

    twl1229 likes this.
  6. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

    Off to a good start   How heavy material is the boat tongue ?

  7. It's only about an 1/8 channel, thinkin the wood box will be enough to tighten/strengthen it
  8. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

    I' m in Whitehouse

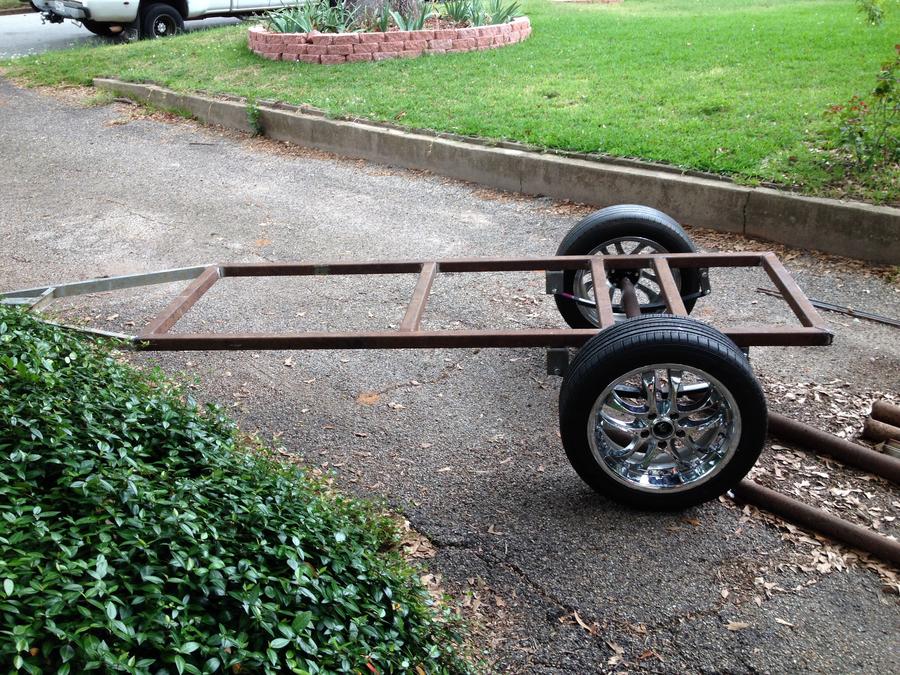

  9. . I'd say I'm abt 90% done w the trailer I still have to put the coupler on and beef up the tongue portion. Tires and wheels are a little big but for $30 I couldn't pass them up. Add a little flair too. What do y'all think?
  10. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

    I like it,  Tires and wheels look about right to me.

  11. gary s

    gary s SMF Hall of Fame Pitmaster OTBS Member

    More Pictures Please  !!!!

  12. Sorry been working nights havnt been able to do anything in a few days. I did get my tank emptied/burned off. Hooked a nice little fish fryer to it now I just need to wash and then cut
  13. boykjo

    boykjo Sausage maker Staff Member Moderator Group Lead OTBS Member

    I would add more support to the trailer up front

  14. U think that plus the wood rack will tie it in pretty good?
  15. boykjo

    boykjo Sausage maker Staff Member Moderator Group Lead OTBS Member

    You really shouldn't rely on the wood rack for support of the trailer tongue even though it will help a little..... I have seen and repaired trailer tongues that have snapped off when thing go seriously wrong.........
  16. I was able to get most of my metal supplies today so hopefully I'll be able to start on my firebox tomorrow!

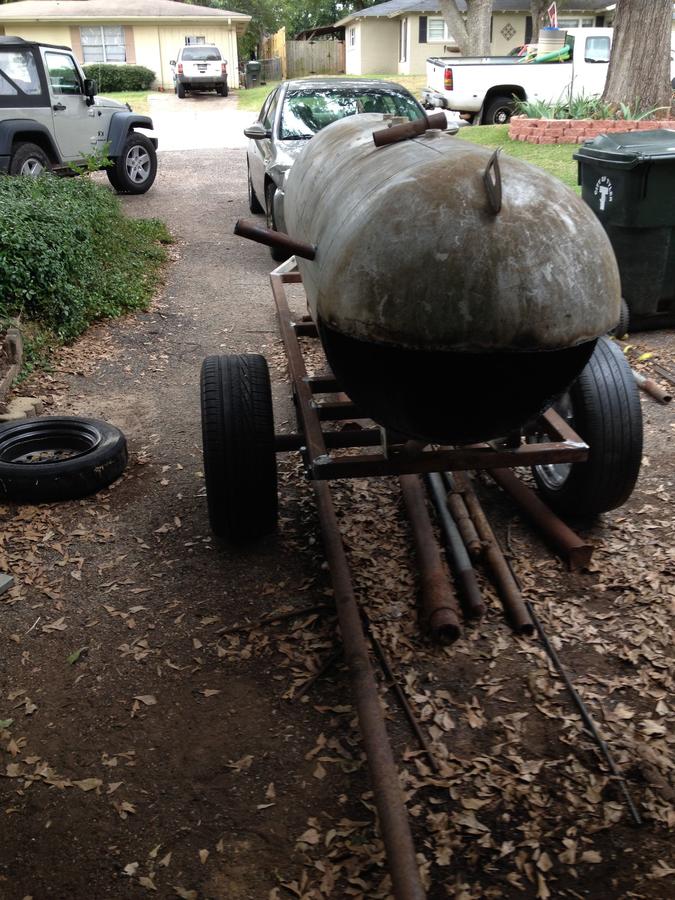

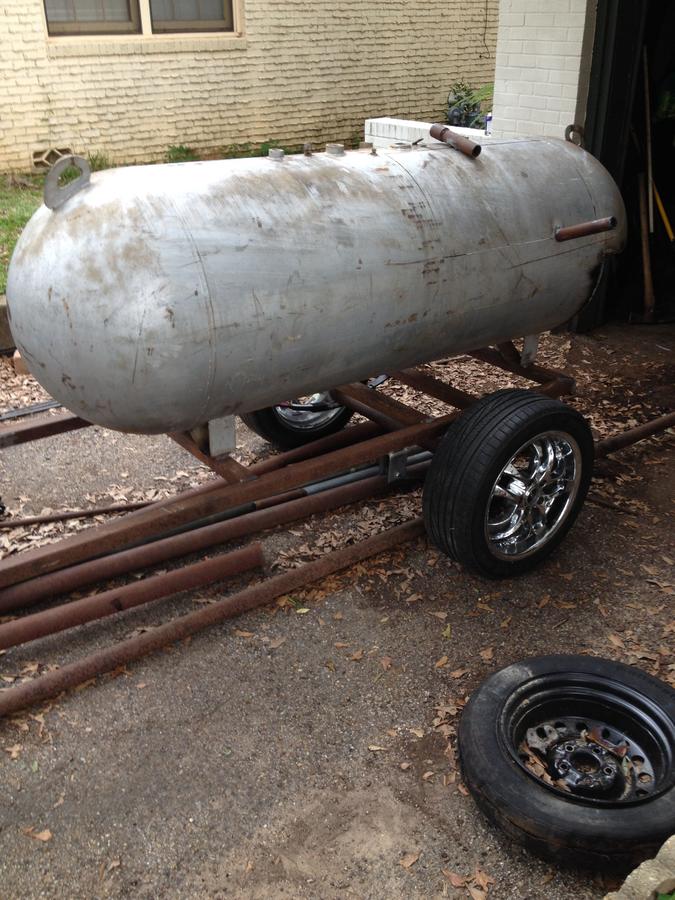

  17. Alright I've got the tank strapped down in place on the trailer have my doors drawn out ready to cut tomorrow and get all the gunk burned out. I plan on cuttin the fb hole and mounting the fb while the tank is on the trailer anybody have any tips besides make sure it's straight? Lol hope I can get a jack to do the heavy lifting for me
  18. JckDanls 07

    JckDanls 07 Smoking Guru Group Lead OTBS Member

    I strongly agree with this... actually.. I would go under the tongue and under the frame instead of butt joints....
    Last edited: Oct 20, 2013

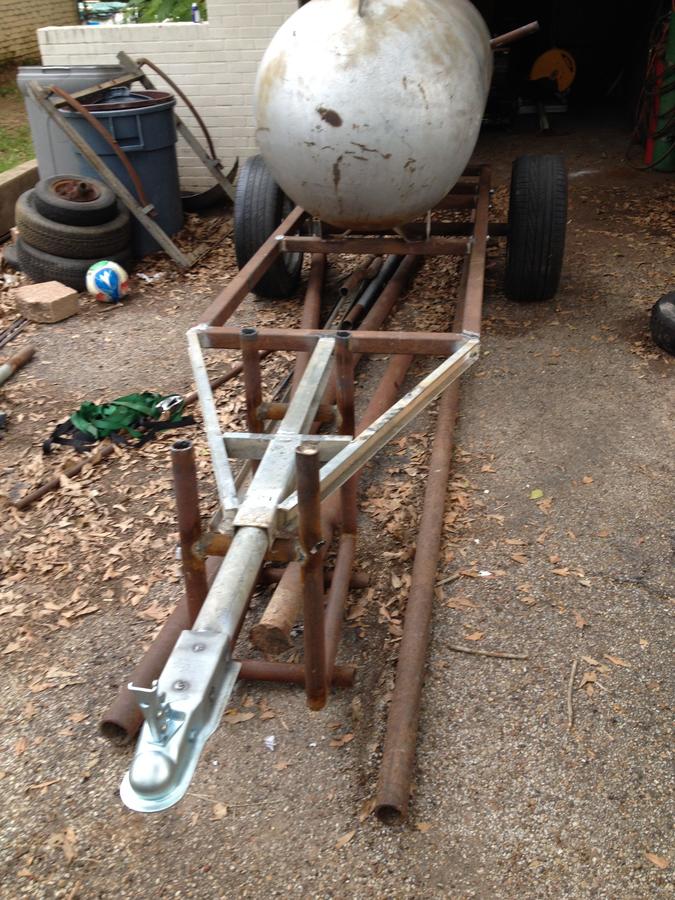

  19. . Added a piece of I beam to the middle of the tongue.

    . Got one of the cc doors cut out and the tank welded to the trailer.

    . This is not a very good pic but got the hole cut for the fb just have to clean it up and get it square and build and mount the firebox
  20. I plan on adding at least one more brace to each side connecting the trailer and cc for more stability and cutting out the other door hopefully Wednesday. Have also been flirting with the idea of just going with a traditional smoker instead of rf but can't make up my mind.
