Post A Picture of Your COMPLETED Mini-WSM Here ! (Mini Weber Smokey Mountain, MWSM)

Discussion in 'Mini-WSM' started by bdskelly, Jan 9, 2014.

  1. bdskelly

    bdskelly Master of the Pit OTBS Member SMF Premier Member

    Nice color!

    [​IMG]

  2. i6quer

    i6quer Fire Starter SMF Premier Member

    Thanks! I do have a charcoal basket and use the Minion method, but I tend to only get 4 to 4 1/2 hours at 250. Most of those runs were in the winter and we tend to get quite a bit of wind, so I'm anxious to see how it does in warmer calmer weather. It would be awful to have to smoke more meat in the name of science! I will try your thought on a half lit chimney. I added a half a chimney of unlit once and wasn't happy with how much white billowing smoke I got.

  3. brooksy

    brooksy Master of the Pit

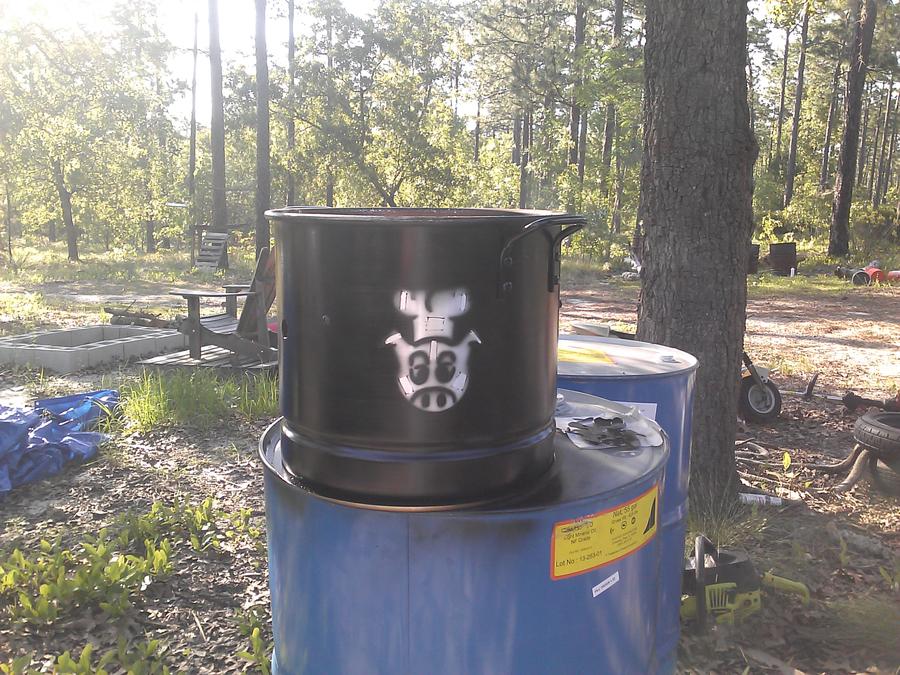

    The mini has been built for a while but just got a paint job on her! It's a self portrait :)

    bdskelly likes this.
  4. suie

    suie Meat Mopper

    OMG, I love this!!!

  5. brooksy

    brooksy Master of the Pit

    The guys that made the stencil works with me. I paid him 10 bucks I think to make it if your interested he could probably make another and I could mail it to you

  6. suie

    suie Meat Mopper

    Thanks I may take you up on that someday!

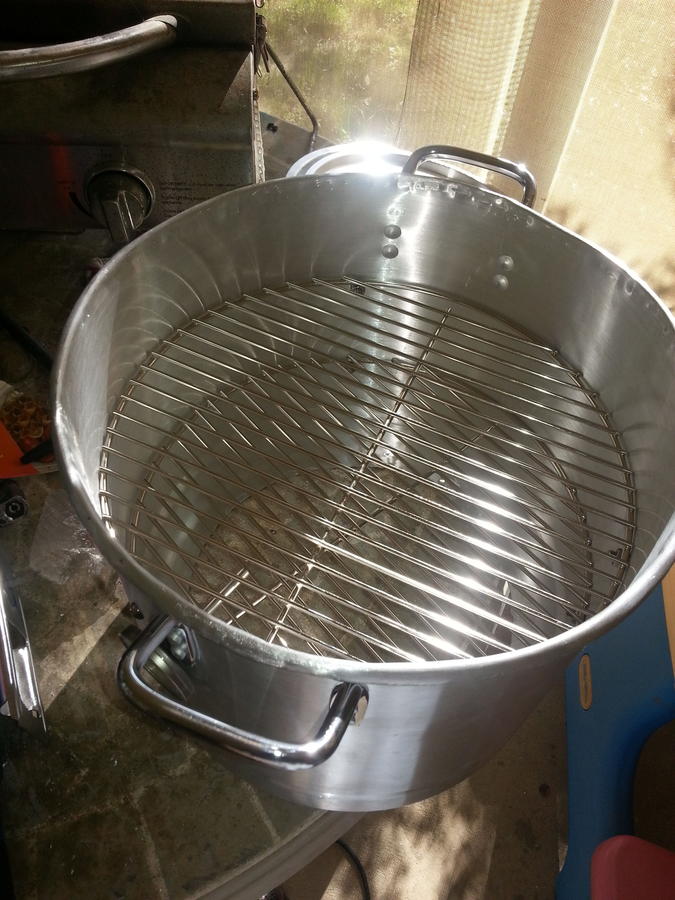

  7. Still needs some paint

    bdskelly likes this.
  8. sam3

    sam3 Smoking Fanatic

    Looks great Jaydog.

    I haven't painted mine yet either.

  9. jckdanls 07

    jckdanls 07 Master of the Pit Group Lead OTBS Member

    another mini is born... enjoy

  10. c farmer

    c farmer Smoking Guru Staff Member Moderator OTBS Member SMF Premier Member

    Mini's will rule the world someday. Lol

  11. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    They've already taken over my world [​IMG][​IMG]

  12. fwismoker

    fwismoker Master of the Pit

    Case you just have a sickness is all. [​IMG]

  13. bdskelly

    bdskelly Master of the Pit OTBS Member SMF Premier Member

    The mini flu is a good one to have! And is apparently highly contagious. Evident by all these new units we see posted weekly.  Keep em coming folks. No outdoor chef should be without one. b


  14. First off they look great guys and stepsister, where did you come up with the idea? I would love to build one. was wondering if anyone had a qview on the build of one. i probably not looking hard enough but this things look awesome and look easy to take camping!

  15. mdboatbum

    mdboatbum Master of the Pit OTBS Member

    I built mine in April 2012 using the steps from a thread on the Virtual Weber Bullet site. It's cheap, easy and worth 10x what you'll pay for the materials!

  16. fwismoker

    fwismoker Master of the Pit

    I built mine and used the basket idea out of the TVWB page but at the time i built mine i watched a video from man cave meals and john didn't mess with the   terracotta pot lots of people used.

    I'm glad i made mine simple with just the steamer in the pot, it get's hotter, better flavors because the drippings still flash on the coals.   My advice to the mini is  go simple.

  17. mdboatbum

    mdboatbum Master of the Pit OTBS Member

    I couldn't agree more. After the terra cotta saucer cracked, I stopped using it and the results improved.

  18. and mine

  19. bdskelly

    bdskelly Master of the Pit OTBS Member SMF Premier Member

    I use disposable aluminum pie plates.  Easy clean up and versatile.
    • Want to "hot smoke" for chcken wings ? Just use the pie plate by itself.
    • Need a heat diffuser for low and slow? Fill the pie plate with water or sand.
    • When you are done just toss it and replace with a new one.
    b

  20. nwdave

    nwdave Master of the Pit SMF Premier Member

    Been lurking on this forum since my return after a long hiatus and got bit by the mini bug.  Since I have a 22.5 WSM, it seemed natural.

    The build is complete.  I won't post pictures of the build because there's plenty here already and I copied most of what was done.  I don't believe in reinventing the wheel.  If you've seen the thread I posted about 3 years ago about modifications I made to my WSM, you'll know that I believe in modification to the ninth degree.  First off, couldn't find the appropriate steamer/cooker so I went big time with:


    Since I live on a major fishing port with access to the Puget Sound and all points north (Alaska), finding a Crab Cooker was no problem.  I found this beauty and toyed with the recommended 34 qt but went for the 44 qt.  Stainless Steel, of course.


    You'll have to pardon the blue tint.  Camera was doing funny things.  Anyway, this is the finished product.  You'll notice a few mods already.  Like:


    I have the snaps taped up so you can see the lower catch.  Not exactly square, but, then I'm not building a piano and it works just fine.  Why snaps?  Simple, there's snaps on it's big brother and I like the unit being in one piece.  Went with two ball valves:  One for the Mail Box smoker and one for the Digi Q, that I already have and may as well use it.


    In this photo, I changed the plumbing to the Mini with a Uni.  Makes it much easier to disconnect and I just leave half the uni on the Mini with the ball valve closed.


    And here we are connected.  Ran this setup for over 5 hours with a AMNPS tray in the mailbox, just to make sure it all worked.  Of course, it did.  Neat setup that will find use with the big brother.  A few years ago, when we were testing the various AMNP trays for Todd, we ran into a road block with using it in the WSM.  This trick answers that problem.

    Since this cooker has an overall height of 17 inches, there was plenty of room to adjust the measurements and add a grate level.  Consequently, there's a "middle" grate added, when needed.


    The instrumentation ports are brass, of course.  All nuts and bolts hardware are Stainless Steel.

    Oh, and I used four bolts per level, just because I had them to do with.


    Mailbox smoker, of course.  Added the handle on top for ease of movement.  Bungee cord keeps the door closed.  I get plenty of air flow through the 8 holes in the bottom of the box.


    For the price of a few steaks, conned the brother-in-law to weld up the charcoal basket.  The vent can contents ended up in a fattie I cooked this evening.  Everything gets used or saved around this house.

    Next mod will be looking at the support legs.  I'm not really pleased with them and may modify them.  Got this old Crab Pot cooker/burner plate (propane) that no longer works for that purpose.  I may make that work.

    Well, that's about it.  I'll post the first real smoke in a few days.

    ~Dave
