    Hello everyone, I would like to use this thread as a platform for my first smoker build. I have taken several pictures and will continue to update as the build progresses.

    Build Info:

    Propane heat
    Cedar siding
    Plywood construction
    3' x 3' footprint with 2' overhangs off each end
    1 smashed thumb and 3 semi serious splinters

    Stay tuned,
    Dirty Don

    Last edited: Feb 1, 2016
    maplenut likes this.
  2. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Checking in to see the build.

  3. redheelerdog

    redheelerdog Master of the Pit SMF Premier Member

    I like it Don - what are your plans for smokage? Sausage?

    Keep up the good work!

  4. dirty don

    dirty don Fire Starter

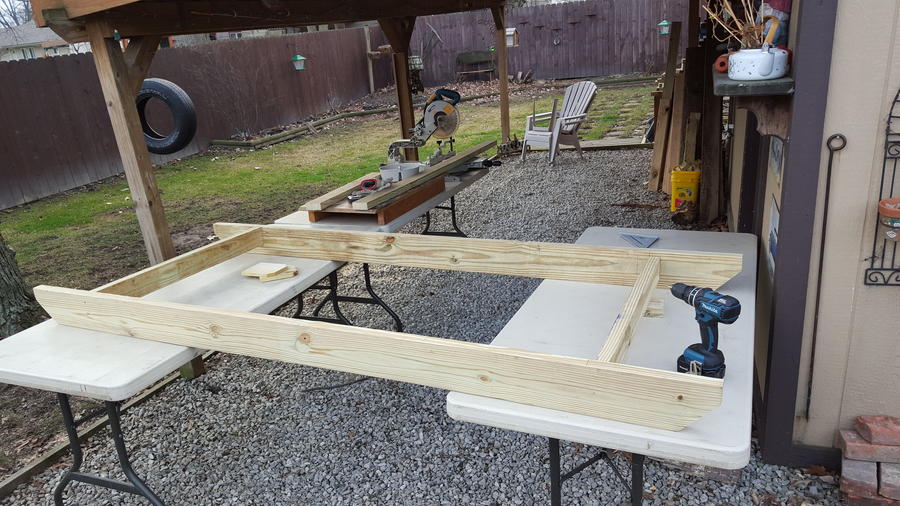

    Starting with the pressure treated frame, the overall size is 3 x 8.

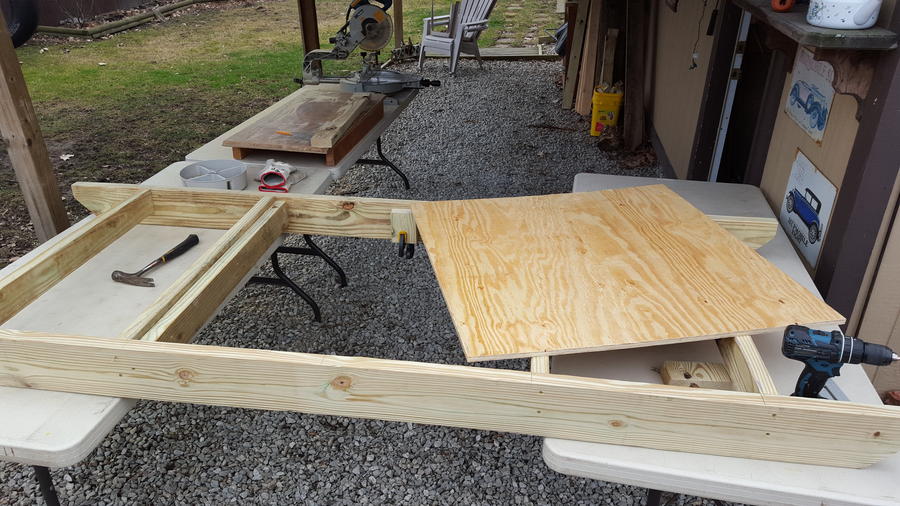

    Framing in the nontreated lumber for the floor of the smoker.

  5. dirty don

    dirty don Fire Starter

    I want to keep things simple at first... pulled pork and smoked cheeses. The wife really enjoys cast iron cooking so hopefully we will also be able to smoke up some baked beans too!!

  6. dirty don

    dirty don Fire Starter

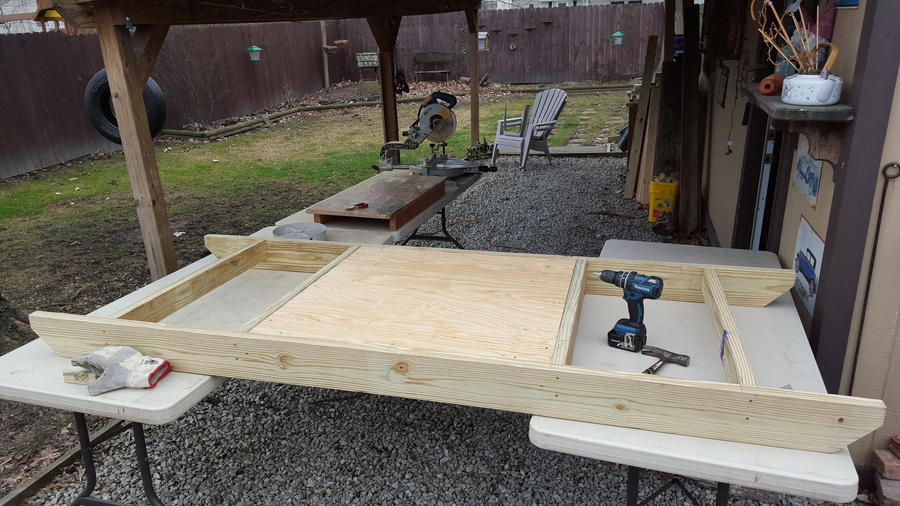

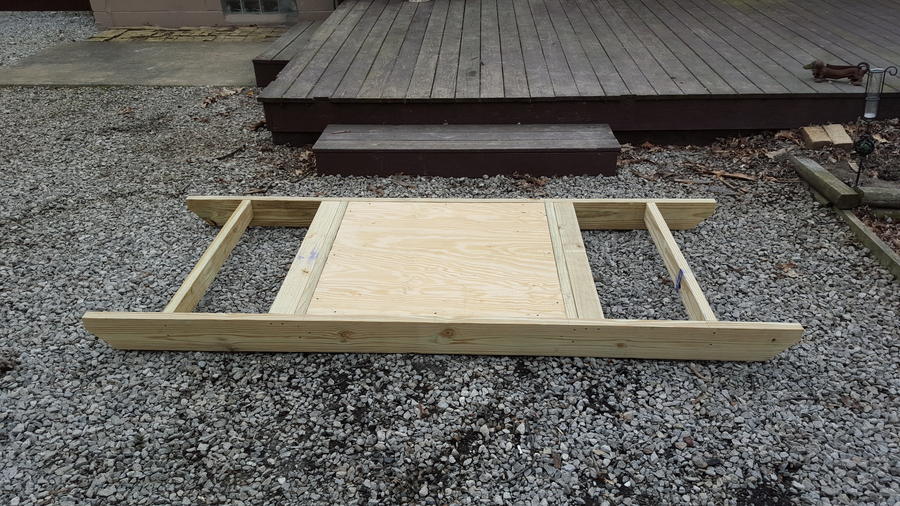

    The floor is framed in and we will be starting on the walls next.

    The floor side rails have been cut at an angle, this will allow me to pull the unit with the tractor much like a sled.

    maplenut likes this.
  7. dirty don

    dirty don Fire Starter

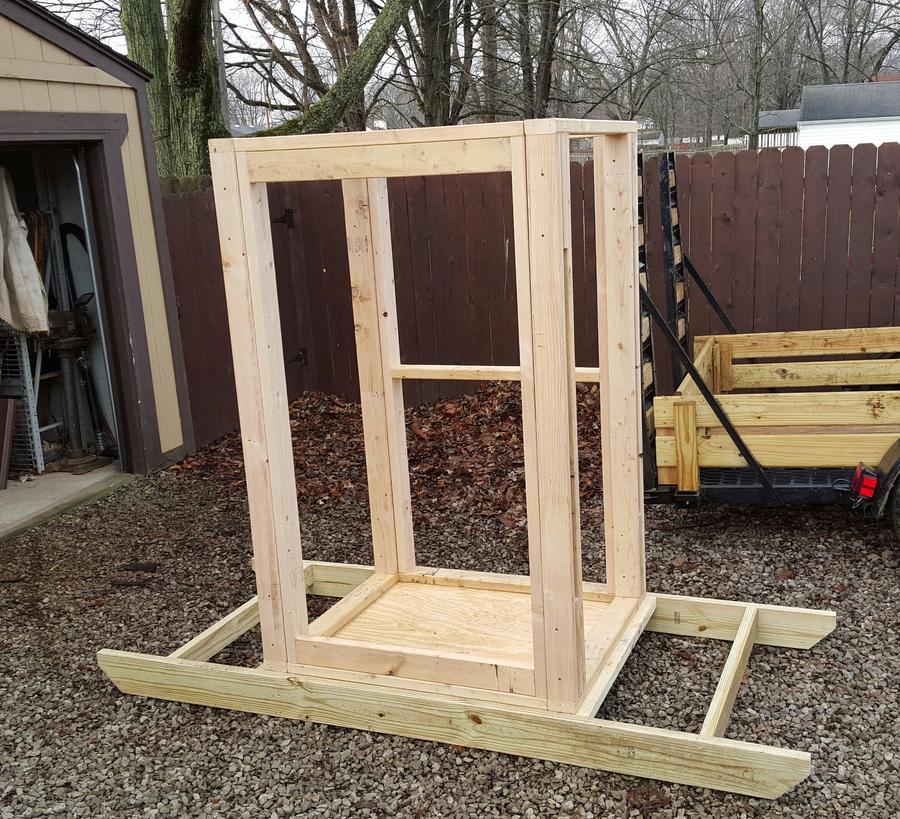

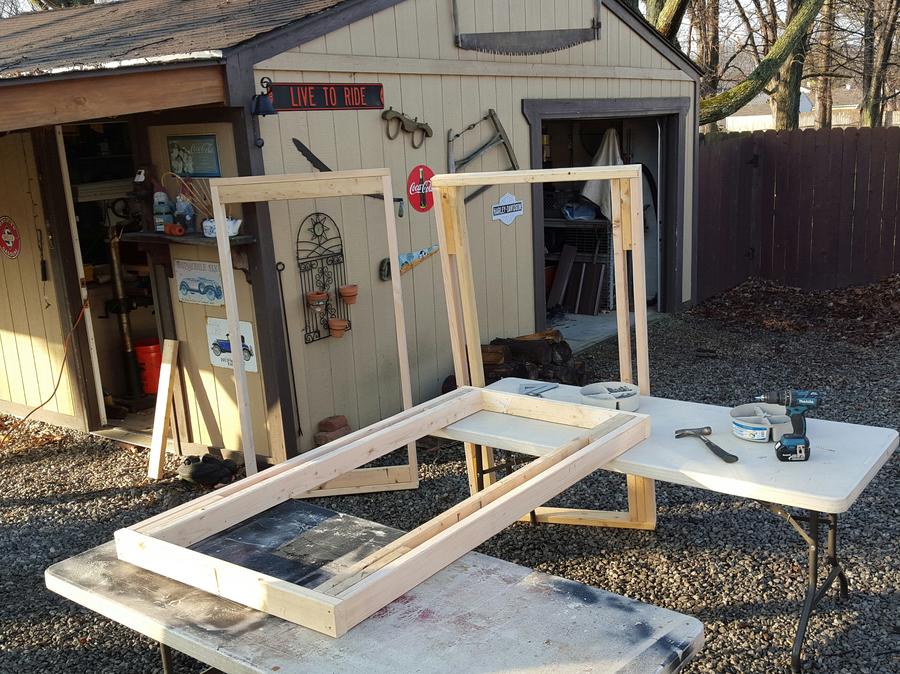

    Framing the walls and getting ready for the insulation.

  8. dirty don

    dirty don Fire Starter


    The walls have been insulated with Roxul insulation. Both Home Depot and Lowes in my area carry this product.

  9. dirty don

    dirty don Fire Starter

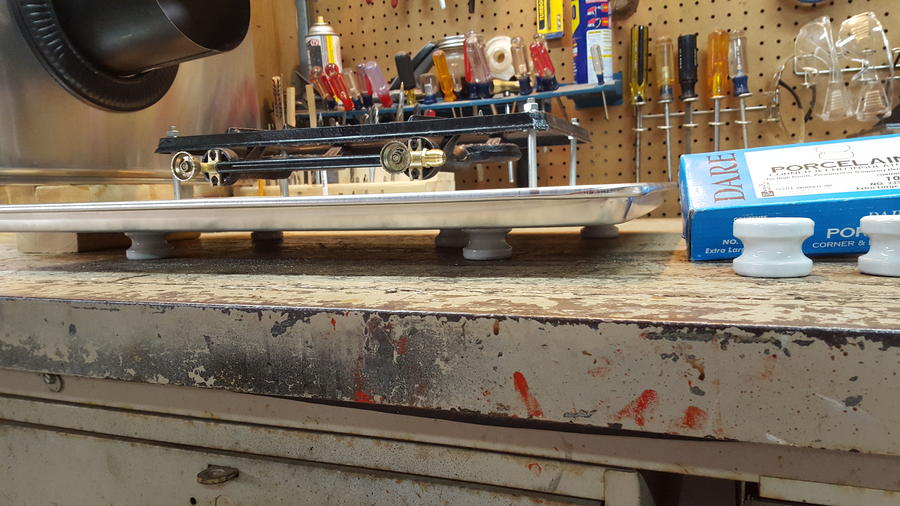

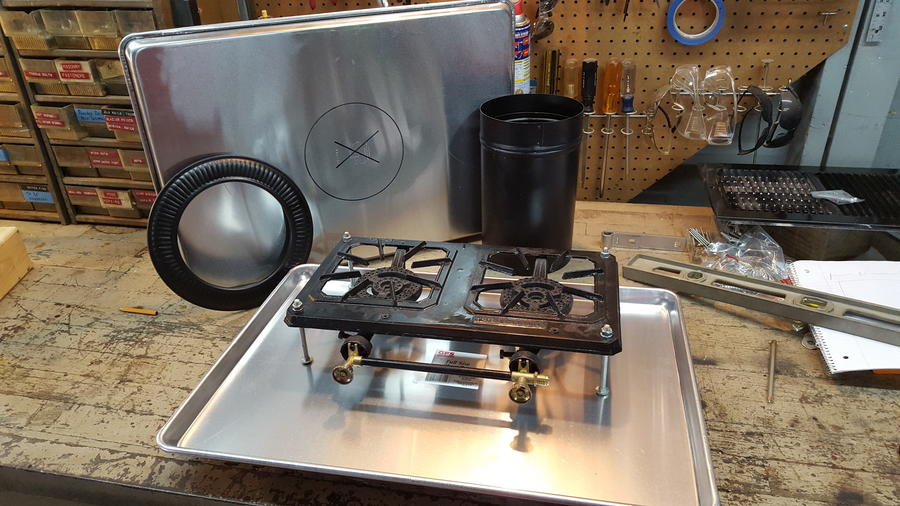

    The heat source is this 30,000 btu double propane burner. I found this one on clearance for $11. It was missing a leg... carriage bolts fixed that problem.

    The unit will be protected with heat shields. Full size 18x26 restaurant grade sheet pans will be used as heat shields.

    Ceramic fence insulators will bolt to the walls and hold the heat shields. This product is cheap, 10 for $5, and provide the proper offset between the shield and the wall.


  10. dirty don

    dirty don Fire Starter


    2x12's are used for the roof trusses.
    The entire smoker will be skinned in cedar planks.

  11. dirty don

    dirty don Fire Starter

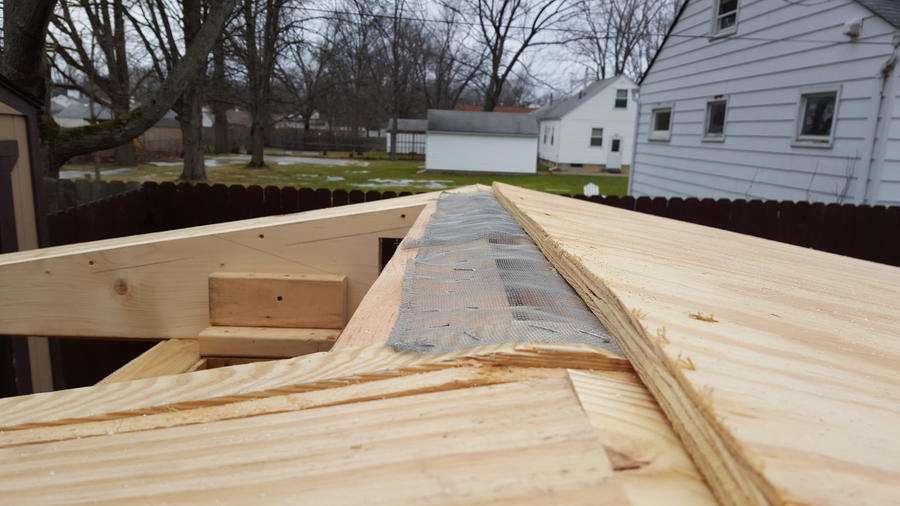

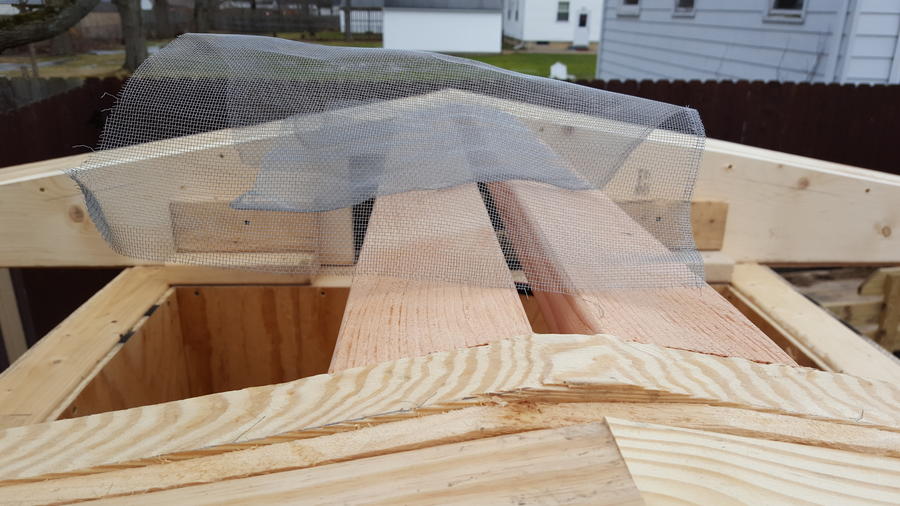

    I've opted to leave a small opening in the roof. This should allow the smoker to breath well and is in addition to the vent that will be installed in the rear truss. I will also be able to close this opening should the need arise.

    The metal screen is to keep the bugs out.

  12. dirty don

    dirty don Fire Starter


    I think this picture is kinda cool.

  13. dirty don

    dirty don Fire Starter

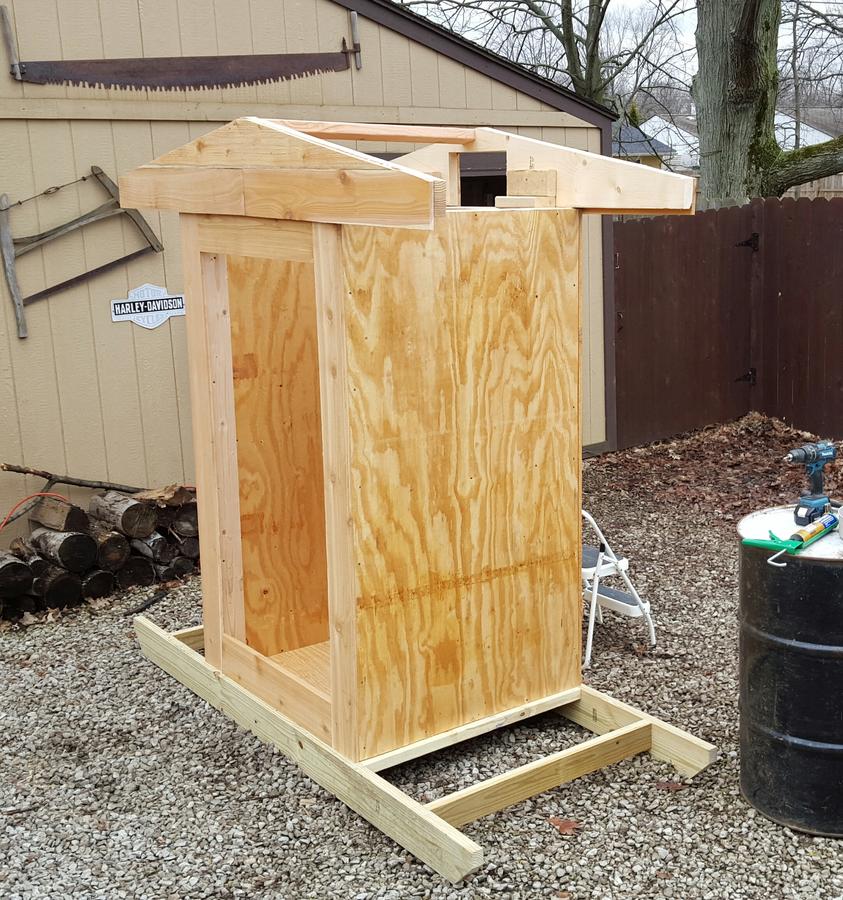

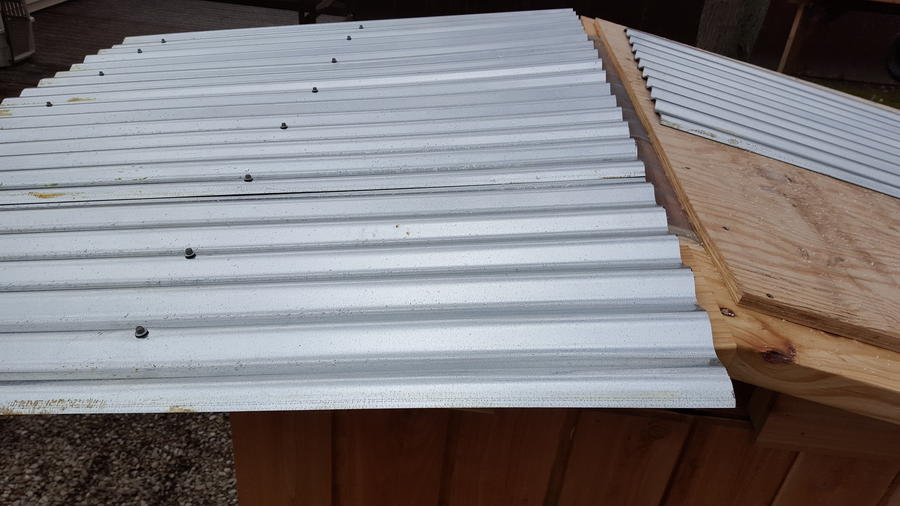

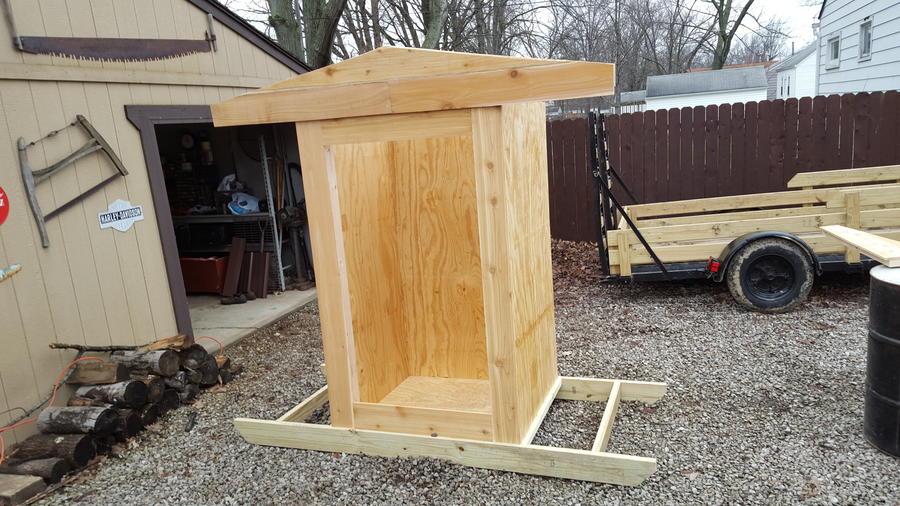

    Installing the roof and ridge cap.

  14. smokinal

    smokinal Smoking Guru Staff Member Moderator OTBS Member ★ Lifetime Premier ★

    Very impressive Don! Excellent job! Looking forward to seeing it in action!

    Al

  15. dirty don

    dirty don Fire Starter

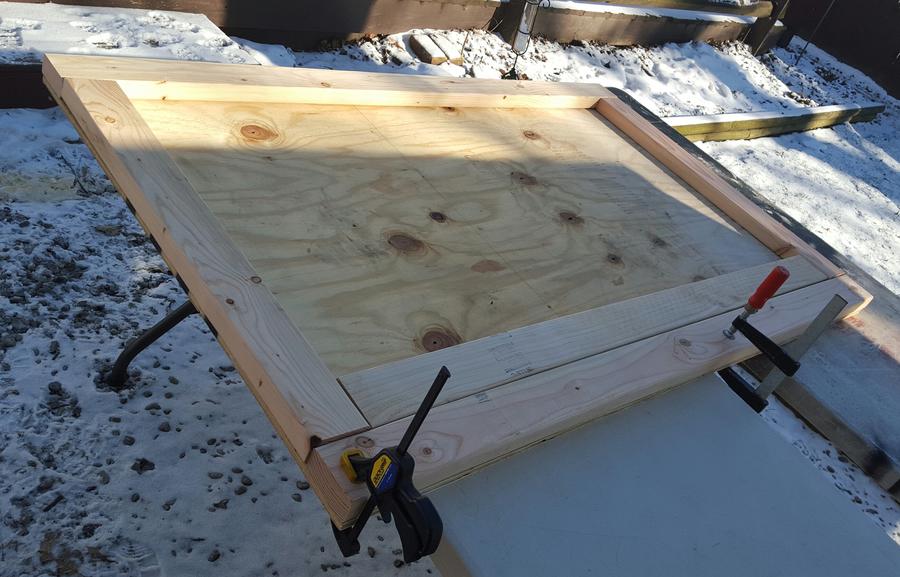

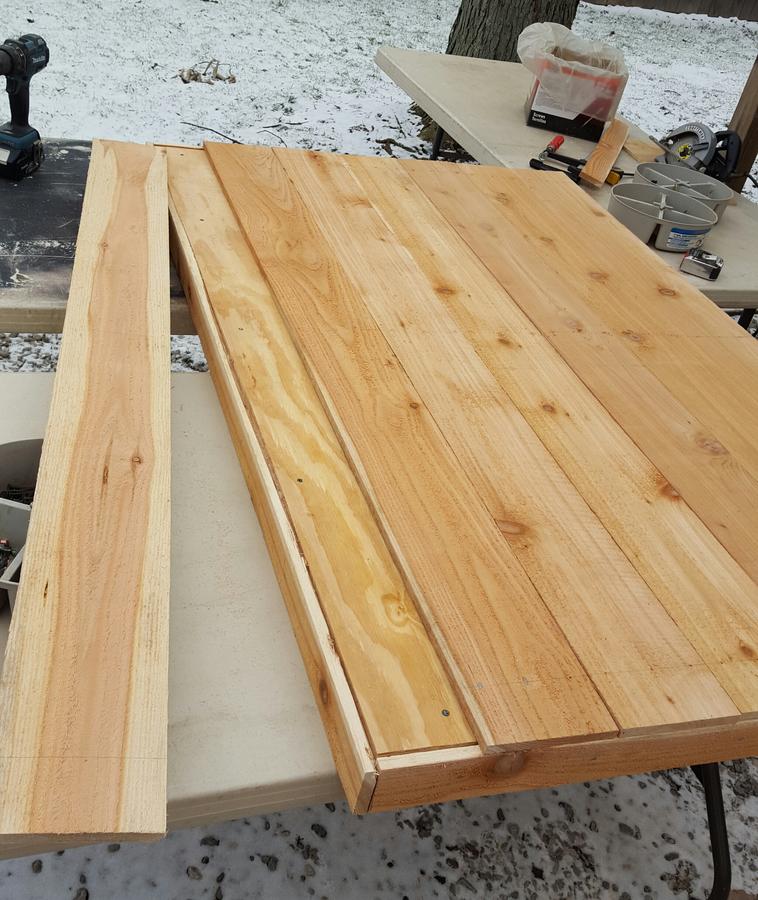

    Thank you Al! It was awfully cold today here in Ohio but I got a good start on the door.

  16. dirty don

    dirty don Fire Starter


  17. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    [​IMG]....  And your smokehouse looks very good...

    Dave

  18. dirty don

    dirty don Fire Starter

    Thank you Dave!

  19. dirty don

    dirty don Fire Starter

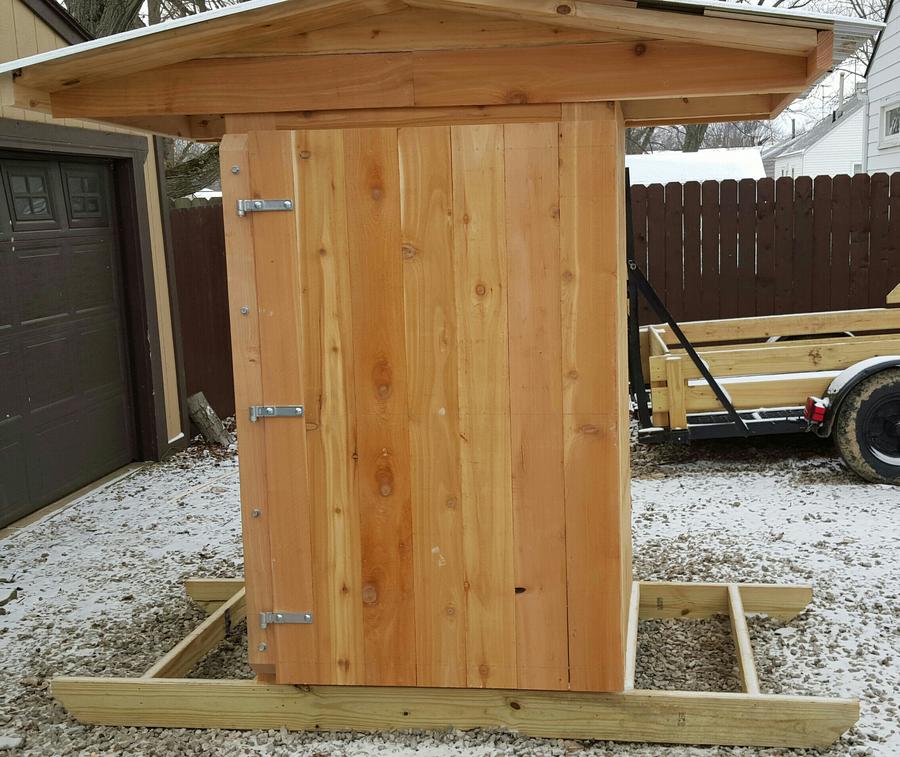

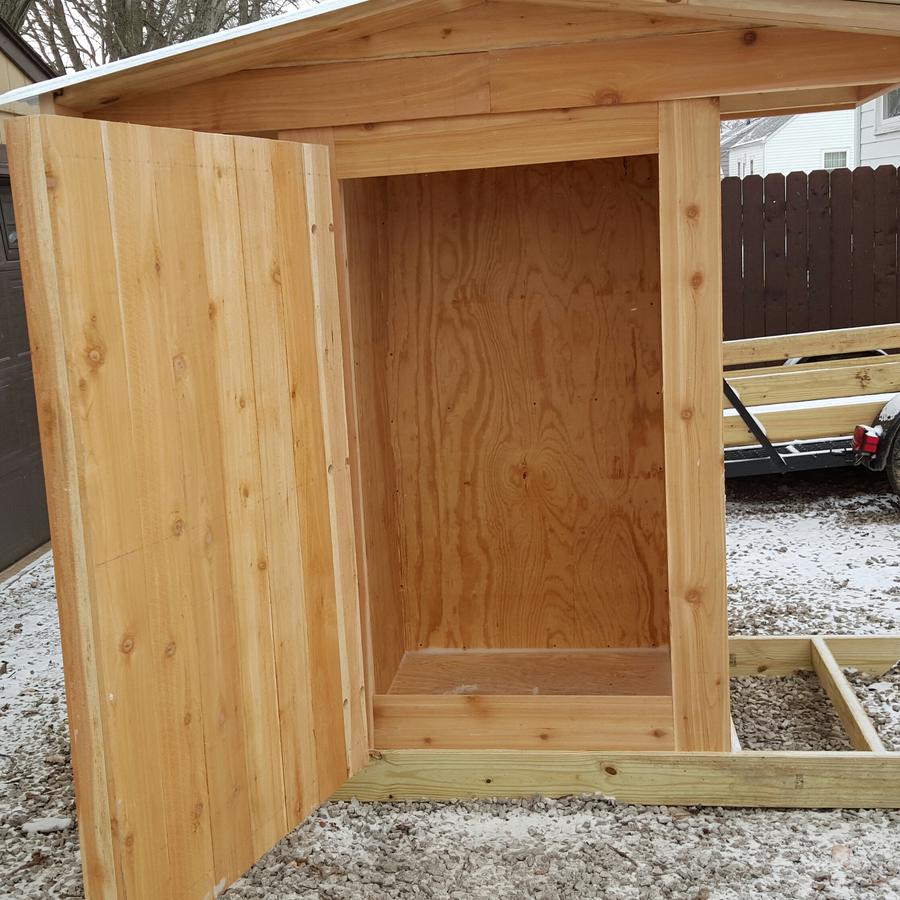

    The hinges were installed and the door hung today.

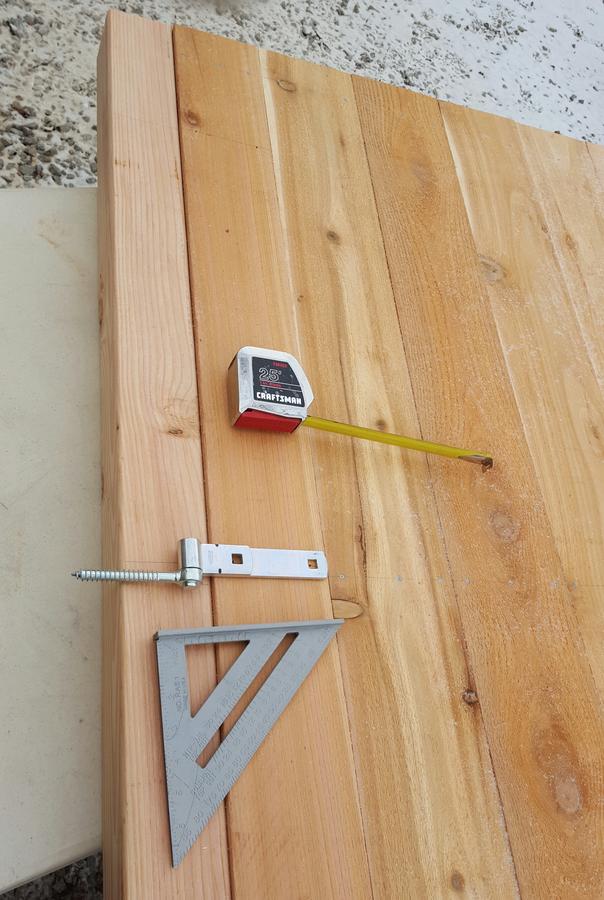

    I used 8" lag bolts to anchor the 4x4 to the wall, the door is very heavy. I may have a problem with it sagging in the future. If that happens I will install a small block of wood for the door to rest on when it is closed.

    I need to find some good heat resistant gasket material. Preferably something that I can screw mount, D shaped gasket perhaps?
