The "Lil Joe" offset vertical smoker

smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013

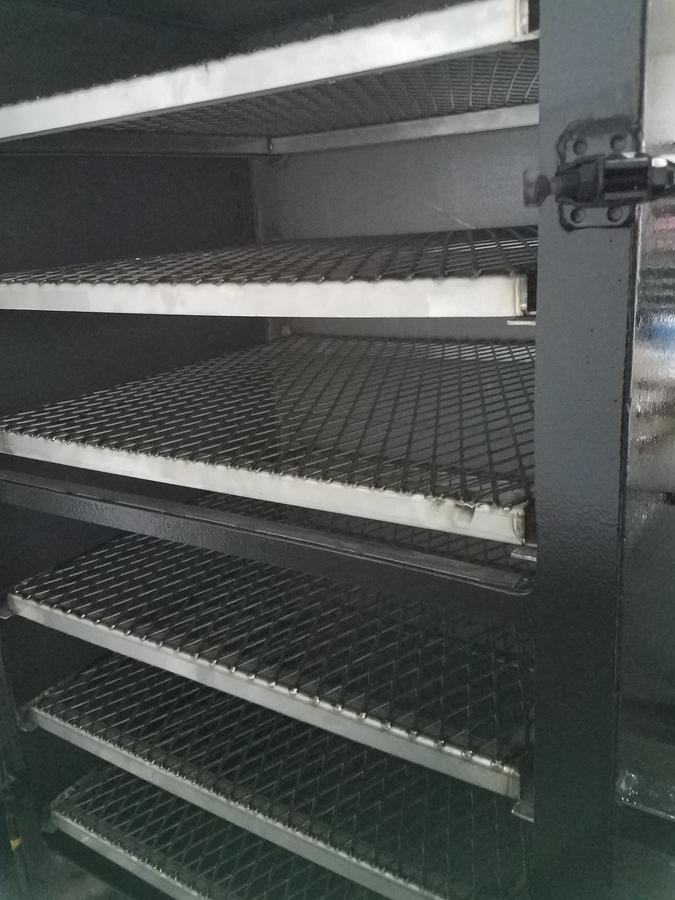

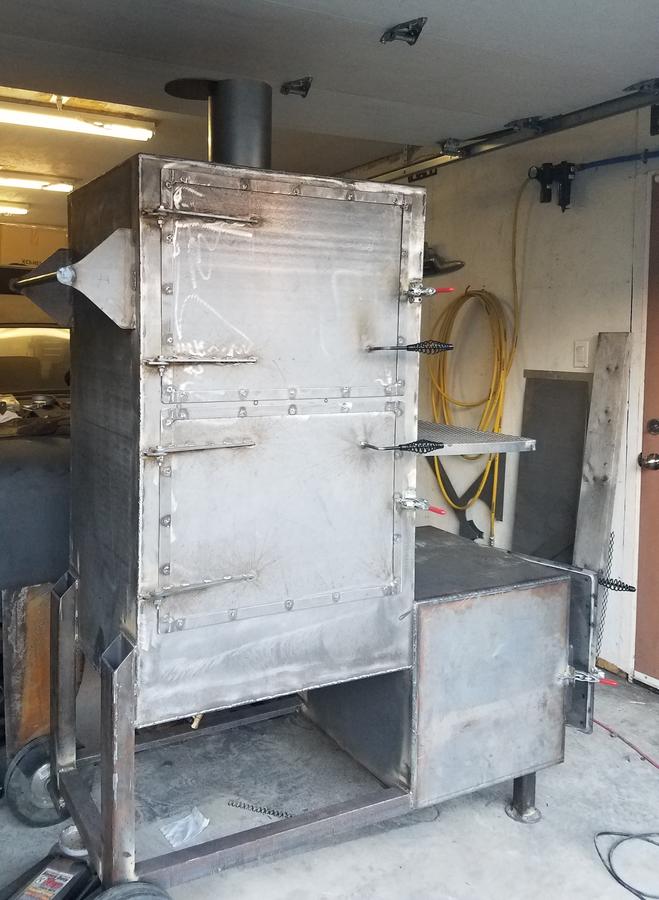

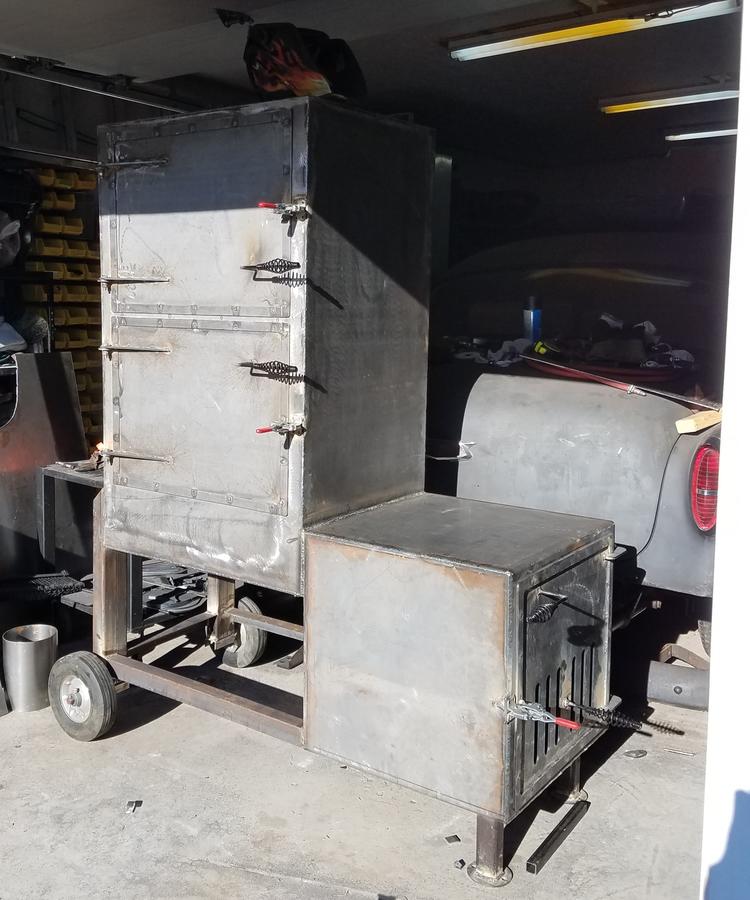

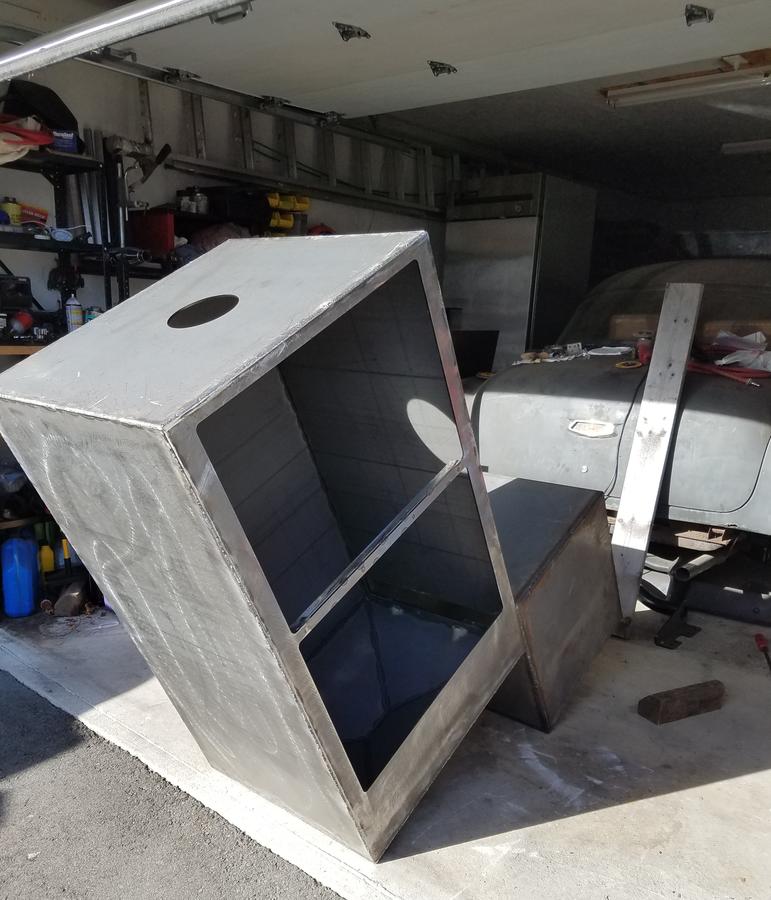

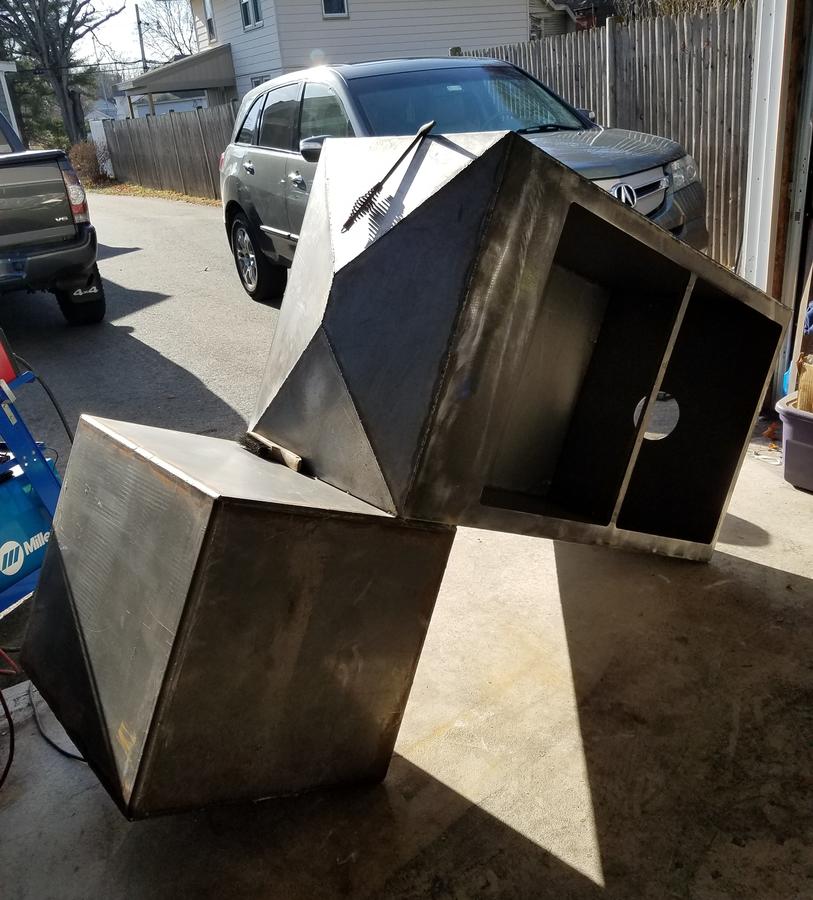

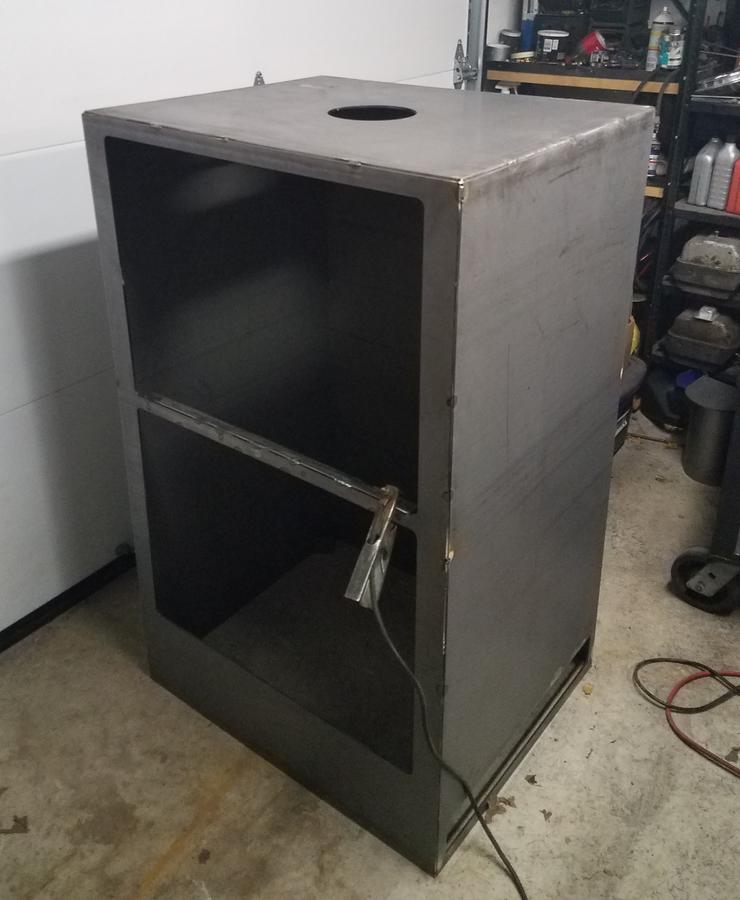

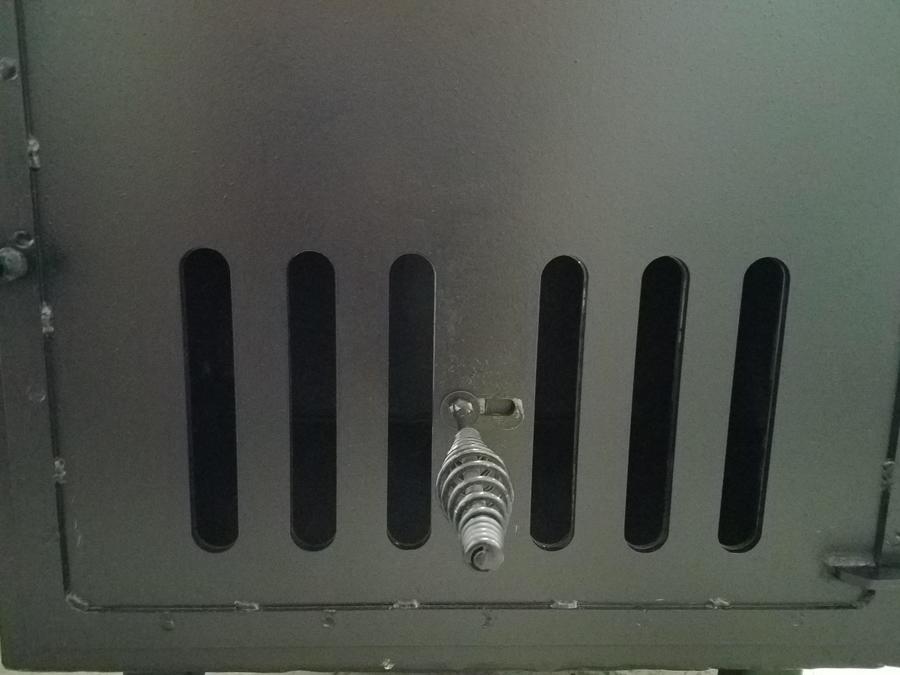

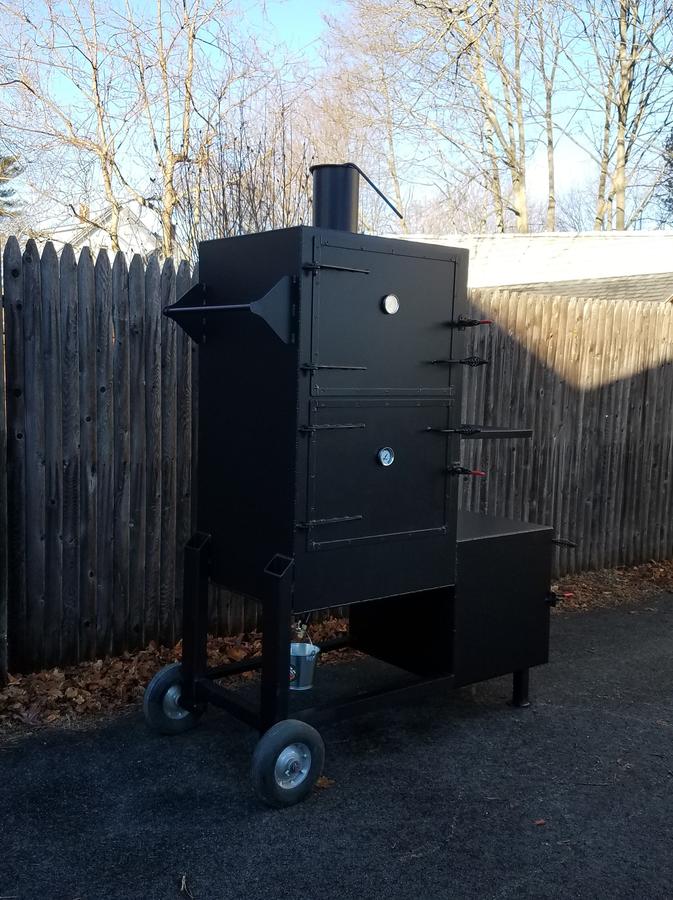

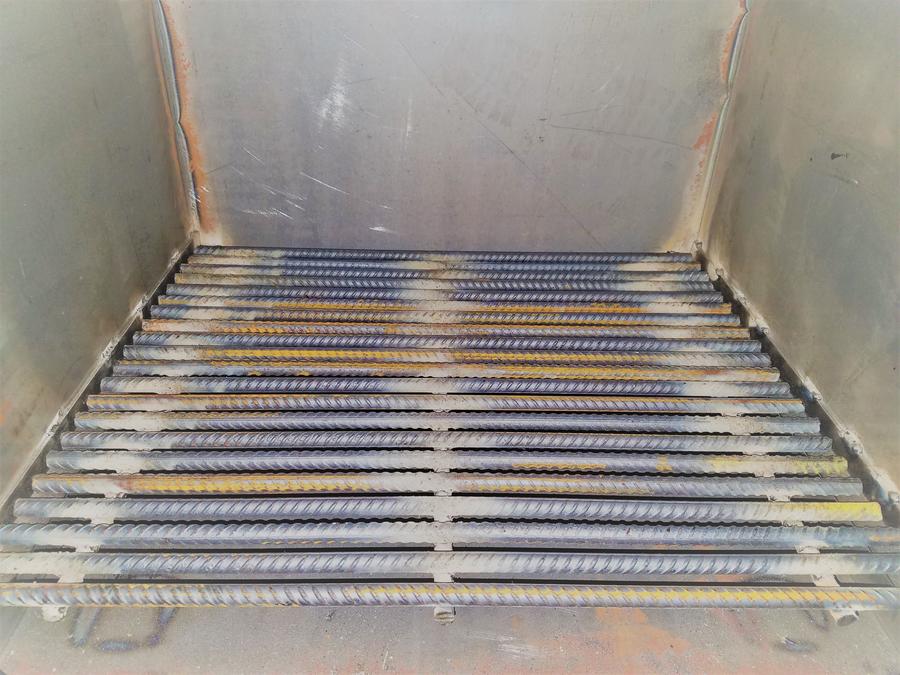

After building the last two smokers I have decided to build a smaller one. The "Lil Joe" an offset vertical smoker. I started the build last friday with a goal of smoking a brisket for new years eve. There will be 3 racks behind each door 24"X24". Making some good progress, and hoping to be ready for paint by tomorrow night.







SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
44,606
6,284
Joined Jun 22, 2009
Looks like it's coming along nicely!

Al


smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013

wimpy69

Smoking Fanatic
889
119
Joined Aug 4, 2014
Really nice piece there. Will you have tuning plates also or is the baffle enough to even temps across bottom racks? Like to see how you fabricated your side rack if you ever get a chance. Good luck breaking it in. Have a Happy New Year.


smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013

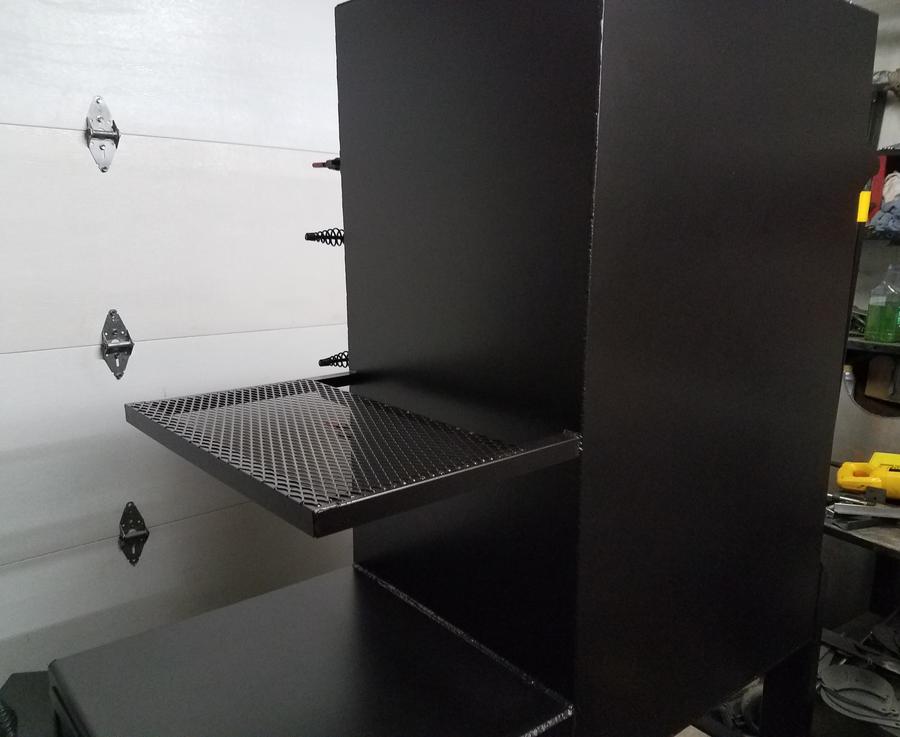

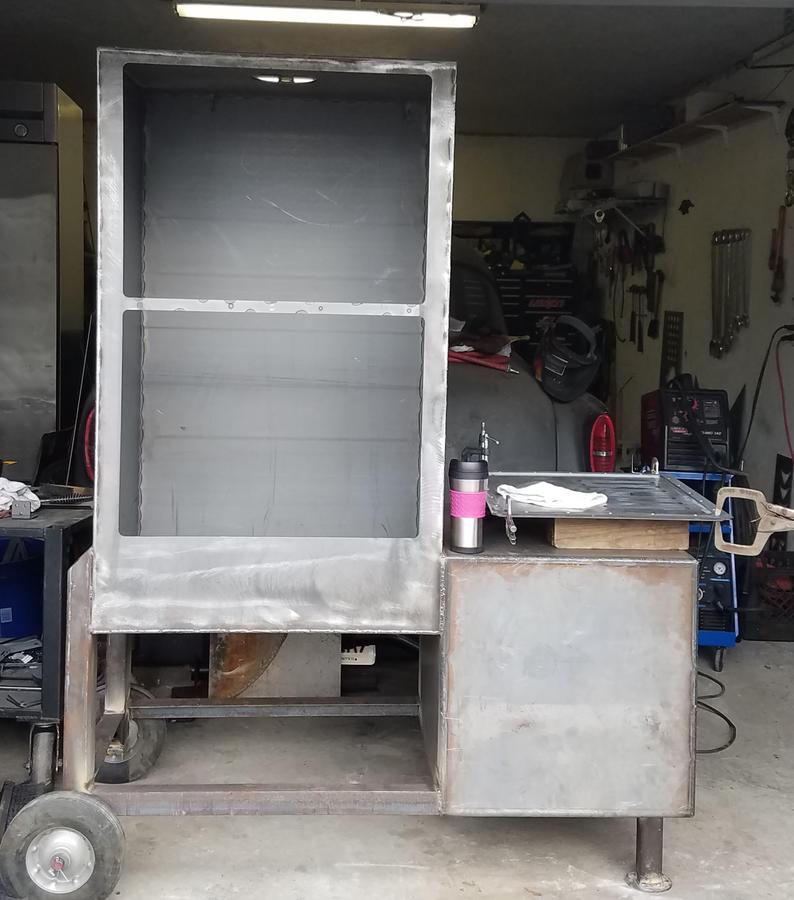

Since the racks are only 24X24 I don't think baffles/ tuning plates will be needed. As for the side rack it is just 1-1/2" sheet metal angle with a 12X24" piece of expanded metal. I spaced it 4 inches off the side to help keep anything on the shelf from getting to hot. I will give an update on both baffle and shelf if I find any issues with them.


wimpy69

Smoking Fanatic
889
119
Joined Aug 4, 2014

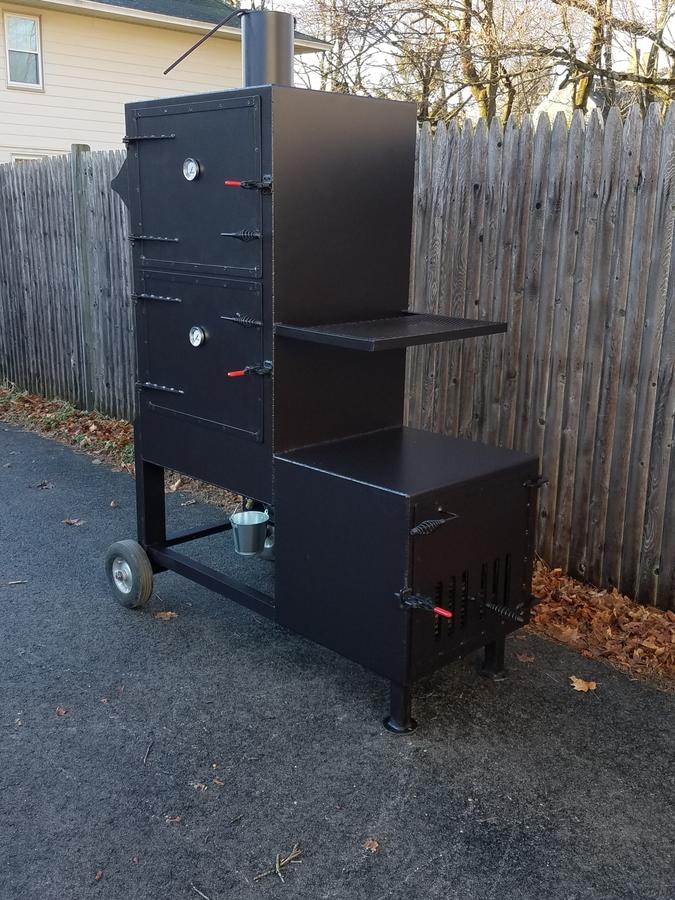

Thanks, thought maybe you made it so it could collapse flat, all ways looking for ideas. The one pic looked like there is a baffle coming off fb outlet. Again, nice job.Later

Last edited:

smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013
You are right. There is a small deflector, baffle plate. it is primarily to divert drippings away from the firebox opening and push the heat down before it goes up. I did think about making the shelf fold but didn't see a need for it since the shelf is over the firebox and can't hit anything when moving it.


jhamm

Newbie
15
33
Joined Nov 17, 2016
so what would a smoker like this cost to build. I don't weld but may look at buying the material and having the metal shop in my school build one for me. This one looks better than any I've seen.


icyhot

Smoking Fanatic
410
27
Joined Aug 6, 2014
I'm building one similar to yours. Was wondering how high you mounted the fire box, and how big is your opening to the cook chamber.


smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013
I'm building one similar to yours. Was wondering how high you mounted the fire box, and how big is your opening to the cook chamber.

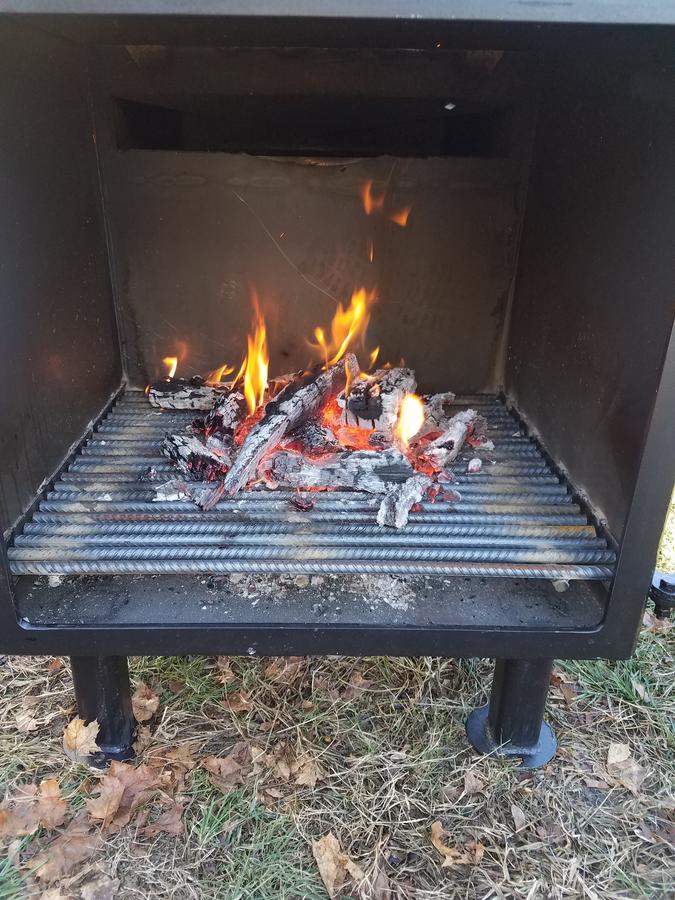

I welded the firebox  6" up the smoker. The opening is 3"X22".

Last edited:

smokedstanley

Meat Mopper
181
24
Joined Oct 5, 2013

so what would a smoker like this cost to build. I don't weld but may look at buying the material and having the metal shop in my school build one for me. This one looks better than any I've seen.
Thank you, and I think I spent around $700 in materials. 1/4" on the firbox, 3/16" on the body, 304 stainless for the racks, plus all the misc.
