Progress Report

alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Got the frame mostly finished today. Still gets casters and a shelf at the bottom. Test fit the CC and she fit like a glove!



Sent from my iPhone using Tapatalk


SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
44,588
6,273
Joined Jun 22, 2009
Looks like it's coming along nicely!

Al


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Looks like it's coming along nicely!



Al
Thanks Al! Today was tough. Got my plates cut today to cap off the ends and it took all my fab time for the day. Felt like nothing got done. But I came home to my new River Country Thermos and Spring handle in the mail so it perked my spirits!


Sent from my iPhone using Tapatalk


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
I usually cut the door and weld in the guides before putting on the end plates.  That way you can easily weld the back side of the guides.


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Thanks for the tip! I'm constantly thinking about the build, always fearing that my order of operations is going to screw me. Tips like this are super helpful!


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Made some great progress on the Smoker today. Clockwise from top left: Brackets for lid handle. Welding in the front of the fire box. Plasma cutting the lid on the Cook Chamber. Opening to the firebox welded and ground smooth.



Sent from my iPhone using Tapatalk


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
Looking good!.. Looks like your pretty slick with the welder (Although you use that ancient wleding helmet).

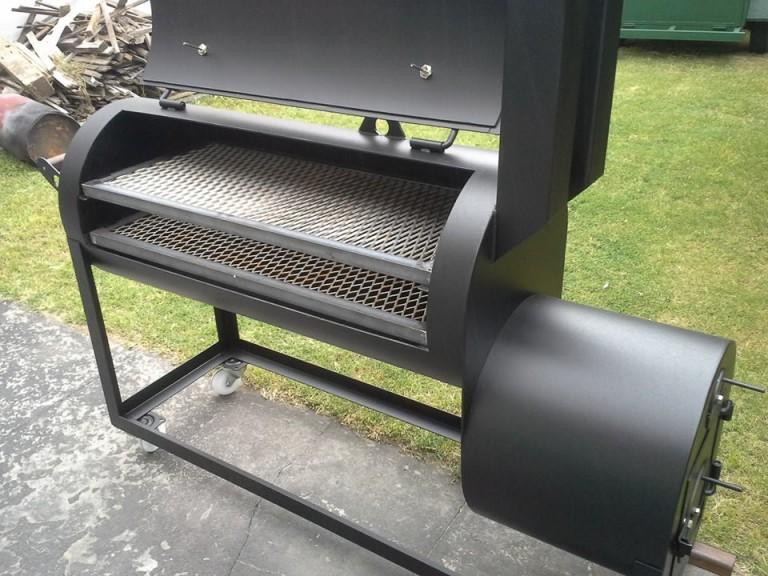

If you have not done it already since you have a perfect cut on the pipe, think about welding the firebox to cook chamber on the inside to give you a clean look. (See photo)

I weld 1/2 on inside and the lower half of the firebox on the outside.



alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
PROGRESS REPORT! Monday Funday! Glad to get back at it after the weekend! So stoked as it's actually looking like a smoker now! Fabbed up the hinges, handle and finished the outer gasket. Gonna need to plan a counterweight...that lid is HEAVY!



Sent from my iPhone using Tapatalk


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
Ahh I see you suffer from FLOCCINAUCINIHILIPILIFICATIONTHATFUCKENDOORFLANGEAINTFALLINOFF    .

I guess you like welding. I am a bit concerned about the door handle though, looks like those welds may break if someone jerks really hard on it.  Better run another couple of passes over it ;)

Whats next?  Are you going to machine the firebox out of a 5' square piece of billet?


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Ahh I see you suffer from FLOCCINAUCINIHILIPILIFICATIONTHATFUCKENDOORFLANGEAINTFALLINOFF    .



I guess you like welding. I am a bit concerned about the door handle though, looks like those welds may break if someone jerks really hard on it.  Better run another couple of passes over it ;)



Whats next?  Are you going to machine the firebox out of a 5' square piece of billet?
And to think that I held back and decided NOT to use .045 FCAW[emoji]128514[/emoji]. I really do love welding and fabricating though. After looking at so many cheaply slapped together big box smokers, I knew that I was going big or not at all. I like the FB idea! I'll check in to it[emoji]128516[/emoji]


Sent from my iPhone using Tapatalk


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Just a small update. Finished up my Fire Grate and welded in the back plate of the FB.



Sent from my iPhone using Tapatalk


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
You may want to add some support under the grate to stop it bending.  ;)   WTF!


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
The Smoker Build is coming right along. Capped off the two ends of the Cook Chamber. Installed an inner gasket. Got the grease drain put in. Got the exhaust in. Welded the Cook Chamber to the base and added casters. Got the damper on the Fire Box door done. Just a few more finishing touches before paint!



Sent from my iPhone using Tapatalk


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
The Smoker Build is coming right along. Capped off the two ends of the Cook Chamber. Installed an inner gasket. Got the grease drain put in. Got the exhaust in. Welded the Cook Chamber to the base and added casters. Got the damper on the Fire Box door done. Just a few more finishing touches before paint!



Sent from my iPhone using Tapatalk


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016

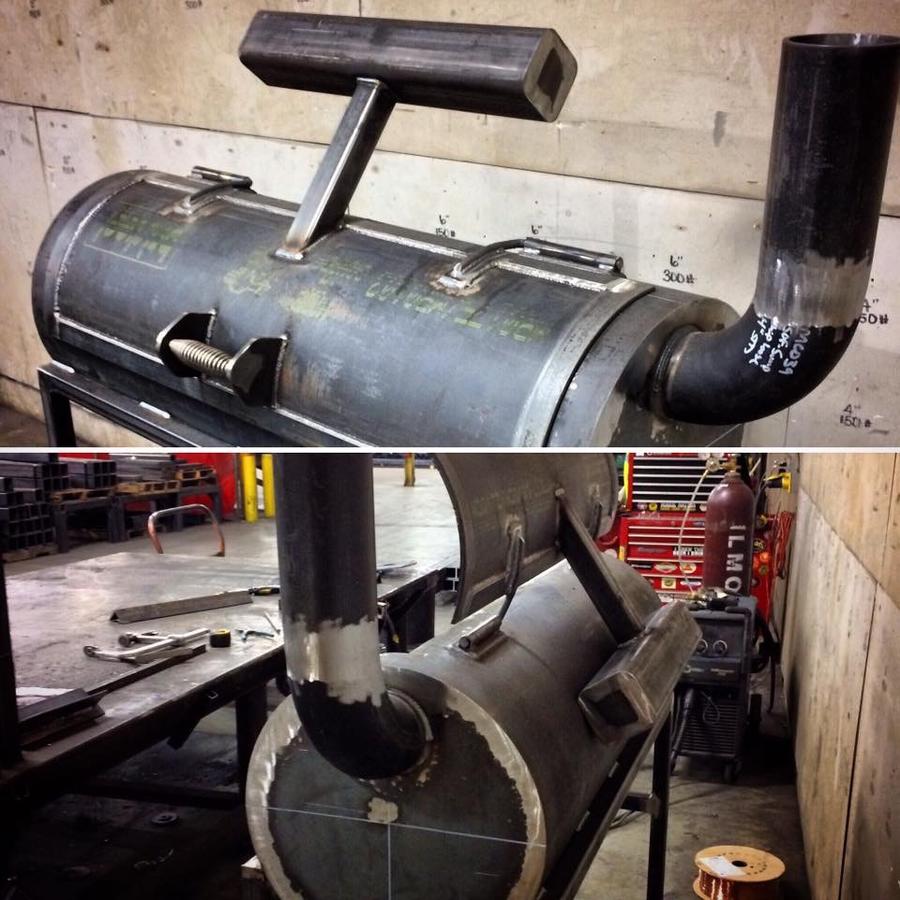

Got the much needed counterweight fabbed up and welded in place. There was a bit of guesswork involved here but the lid is now much easier to open. BONUS: The counterweight pulls double duty as my lid stop!


sxfxz

Smoke Blower
138
78
Joined Oct 16, 2016

alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Got the power plant for this beast fit and welded today! Hinges and latch for the firebox door done. She's really starting to look great! Also added a shelf on the front. Almost there!!



Sent from my iPhone using Tapatalk


alesmoker

Fire Starter
70
100
Joined Nov 21, 2016
Just a small update but progress is progress! Got the Cook Chamber grates fabbed up and installed. All that's left is to install the thermometers, fab up the damper on the exhaust, then it's off to paint!



Sent from my iPhone using Tapatalk
