Italy calls for help

stiggia

Newbie
13
0
Joined Aug 25, 2018
Hi I'm Stefano from Italy. I love american bbq and i built a UDS myself because is hard to find a smoker in italy and it was kinda cheap for starting smoking.
I did lot of reading and research, and after some harsh time working on the gall i managed to make my UDS, i'm kinda proud of it.

I used to think it work quite good, but after some reading and trail i'm starting to think i have some problem build up the temperature.

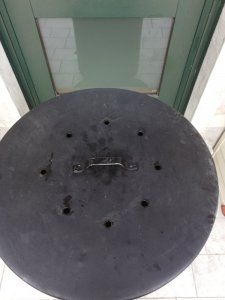

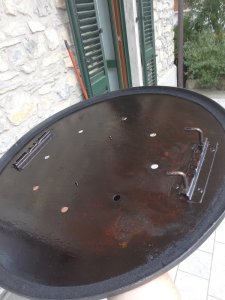

I have 3 3/4 intakes (2 ball valves and a cap) and 8 1/2 exhaust on a flat lid (i made it with a road sign).

i keep reading of people have 250 F with 1 open 1 closed and a valve to regulate.
Mine stay on 225 F with all open or 2 open and a valve half closed....

Any clues on what is wrong?

Sorry if the english is a bit poor


mike243

Master of the Pit
OTBS Member
SMF Premier Member
2,962
1,326
Joined Feb 25, 2018
I don't own 1 or been around 1 that was being used but the exhaust sounds a little large to me,somebody will be along today and help,this may help keep you up here til they see it ,your English is fine,my hillbilly version maybe not so good ;)


tropics

Epic Pitmaster
OTBS Member
★ Lifetime Premier ★
14,618
6,341
Joined Jun 25, 2014

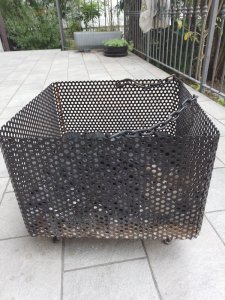

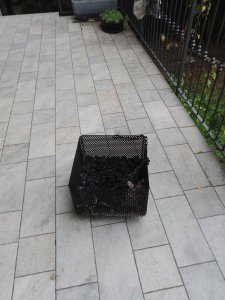

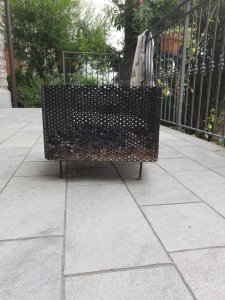

stiggia If you can post some pics it would help someone,show how your fire basket is made also.Sorry I can't help any more.
Richie


HalfSmoked

Epic Pitmaster
OTBS Member
SMF Premier Member
Group Lead
11,310
3,596
Joined Jun 11, 2015
They all build them different. What I have doesn't even have a bottom in it and about a 4" hole in the lid. Not shore what you are asking like Richie says some photos would help.
Warren


bassman

Gone but not forgotten. RIP
OTBS Member
SMF Premier Member
4,332
57
Joined Dec 15, 2007
Bien venuto Stefano. Mia moglie e da Verona. Tu da dove vieni il nome della tua citta? Mi dispiace che non potevo rispodere la tua questione.


MeatSkull

Meat Mopper
179
17
Joined Jul 4, 2018
I would check your thermometer/s I find that most are way off, when I had mine the temp from the top was way off from the cooking level of the smoker.


stiggia

Newbie
Thread starter
13
0
Joined Aug 25, 2018
Bien venuto Stefano. Mia moglie e da Verona. Tu da dove vieni il nome della tua citta? Mi dispiace che non potevo rispodere la tua questione.
Vivo a Como
I would check your thermometer/s I find that most are way off, when I had mine the temp from the top was way off from the cooking level of the smoker.
termometer is fine i checked today just befor openin the post.


JckDanls 07

Smoking Guru
OTBS Member
SMF Premier Member
Group Lead
6,515
1,078
Joined Sep 10, 2011
I'm not so sure that all the small holes in the lid was the way to go... Wonder if just one big hole with short stack on it would be better ?? Might have to go bigger on intake/s ??


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,825
4,310
Joined Nov 12, 2010
Drill those existing holes out to 25mm.... those 1/2" holes have an effective area of about 1/4" due to the vena contracta effect...


stiggia

Newbie
Thread starter
13
0
Joined Aug 25, 2018
Drill those existing holes out to 25mm.... those 1/2" holes have an effective area of about 1/4" due to the vena contracta effect...[/QUOTE
I'm gonna try and I'l let u know ad soon as i find some ribs for try.

what's the best ratio between intake and exhaust? i red something about.


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,825
4,310
Joined Nov 12, 2010
I don't know the perfect ratio between intake and exhaust... I do know it changes as the temperature rises in the CC due to expansion of the air etc..
With the holes drilled out, run the smoker and get it in balance with the temp required.. Then plug 1 hole at a time and let it equilibrate... When the temp starts to drop, you'll know you've closed 1 too many holes... The exhaust reduction will have constricted the natural draft capability of the inlets..


stiggia

Newbie
Thread starter
13
0
Joined Aug 25, 2018
With the holes drilled out, run the smoker and get it in balance with the temp required.. Then plug 1 hole at a time and let it equilibrate... When the temp starts to drop, you'll know you've closed 1 too many holes... The exhaust reduction will have constricted the natural draft capability of the inlets..
Is this just for answer my own question about ratio or i need to do this for use my drum?


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,825
4,310
Joined Nov 12, 2010
I was trying to answer your question... If you feel the exhaust / intake ratio needs adjusting, that is one solution... As far as I know, there is no perfect ratio because of the change in smoker temperature as I have previously noted... Smoking is not an exact science....


MeatSkull

Meat Mopper
179
17
Joined Jul 4, 2018
Is this just for answer my own question about ratio or i need to do this for use my drum?
My old drum I used one hole on the bottom with a valve and three holes on the lid. Was it right, probably not according to the three thousand variations here. My answer is build it and burn some pig and learn that smoker.


stiggia

Newbie
Thread starter
13
0
Joined Aug 25, 2018
I drilled the holes to 24mm, because the power drill make is 24 or 26, and tomorrow I'll test it.
Another question that bother me, should i use new briquettes every cook or can i leave leftovers in the basket, dump some ashes and add some?


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,825
4,310
Joined Nov 12, 2010
I use old briquettes... Put new in the bottom, light, add the old to the top so they don't fall through the grate... Remove all the ash...


HalfSmoked

Epic Pitmaster
OTBS Member
SMF Premier Member
Group Lead
11,310
3,596
Joined Jun 11, 2015
Yup waste not want not. Always use left overs.

Warren


stiggia

Newbie
Thread starter
13
0
Joined Aug 25, 2018
Smoker is running very stady from some hours now.
It set to 250F with 1 valve open one closed and 1 half closed.
Smoke come out much more haze like then like a stream.
Seams it did the trick.

thank u guys!


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
26,825
4,310
Joined Nov 12, 2010
Good... Sounds as if it's running correctly... Time for some pics of great food..
