Traulsen Commercial Refrigerator build

Discussion in 'Fridge/Freezer Builds' started by nevrsummr, Dec 22, 2015.

  1. nevrsummr

    nevrsummr Meat Mopper


  2. nevrsummr

    nevrsummr Meat Mopper

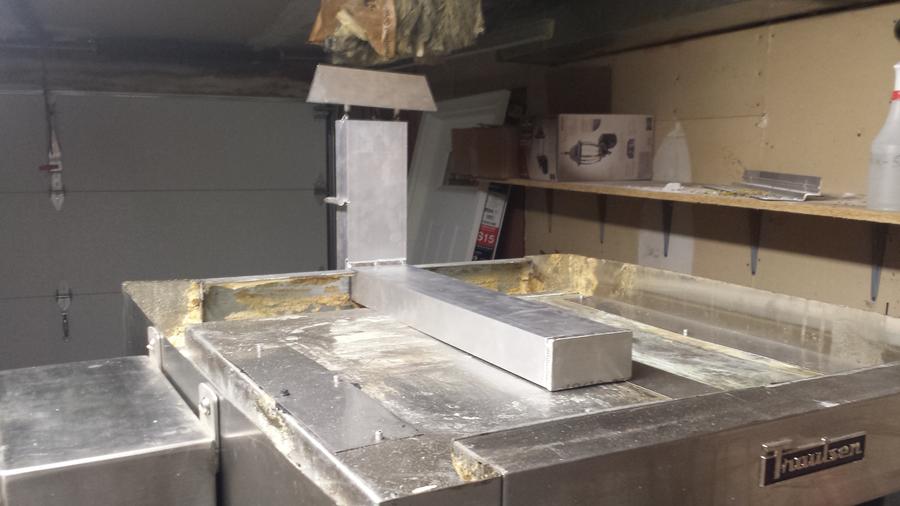

    roof is finally done

  3. nevrsummr

    nevrsummr Meat Mopper

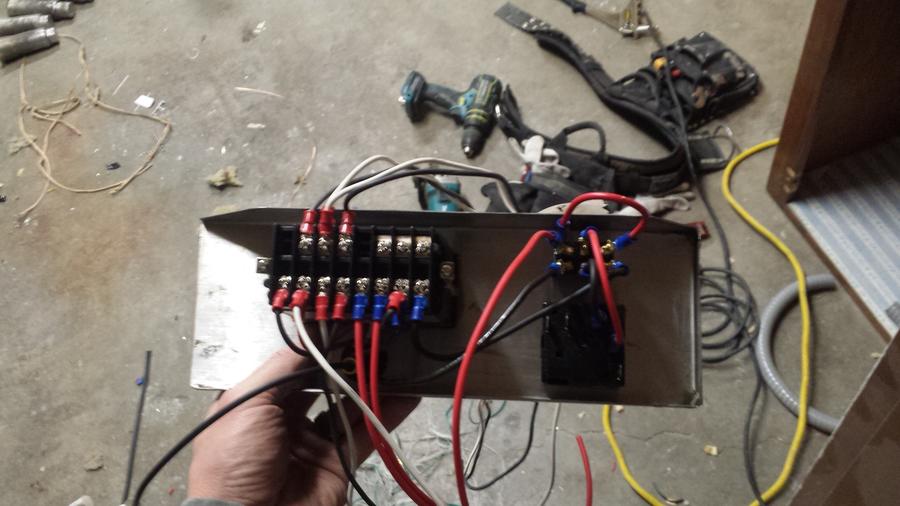

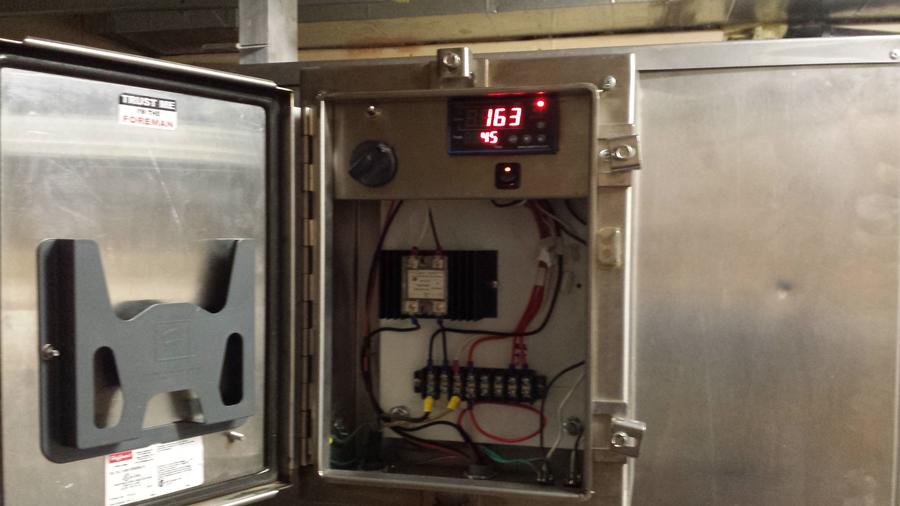

    wiring up the electronics

  4. nevrsummr

    nevrsummr Meat Mopper

    wired in the probe connectors.

  5. nevrsummr

    nevrsummr Meat Mopper

    cut in 6 - 3/4" nipples for air intake

  6. nevrsummr

    nevrsummr Meat Mopper

    inside view with added air intake

  7. nevrsummr

    nevrsummr Meat Mopper

    Ok Dave, I slept on it and have an idea. There are 2 relay outputs on the SMD100, a person could program one to come on at start and go off at say 300, then you could use that as a secondary control for your heat element. It's only rated for 10 amps, but an ice cube relay would fix that. You could pull an extra set of contacts on the ice cube relay for alarm.

  8. nevrsummr

    nevrsummr Meat Mopper

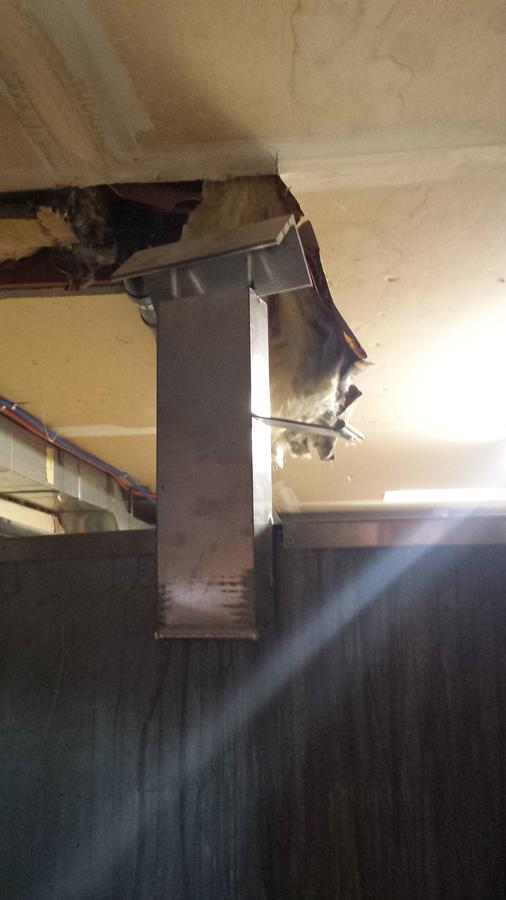

    Any math gurus out there who could tell me what the volume on my chimney (2x4) would be in comparison to a 3" pipe?

  9. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    2x4=8" = 6.2 sq. in. hydraulic volume or close...

    3" = 7" sq. in. hydraulic volume...

    Last edited: Jan 2, 2016
  10. nevrsummr

    nevrsummr Meat Mopper

    Thankyou! Probably a stupid question, but will the 3" move more than "8" or will the 3" just move more than "7"? I was going for 3" volume but that is what was available in the scrap bin. And I think it turned out great. I was able to fit it into the top instead of my original plan of going out the back. This saves me about 4 inches of head room for hanging sausage. I built a condensate trap into the back so hopefully there won't be any problems with dripping.

    Also, I cut 2-2" holes into the top of the smoker and into the chimney. Is that enough for 2x4 or is it choking it down?

  11. nevrsummr

    nevrsummr Meat Mopper

    Gotchya. Thanks so much Dave

  12. nevrsummr

    nevrsummr Meat Mopper

    was requested to fix a water heater today, the problem... a thermal cutout. This would be another option in preventing flare ups. Which, btw I had my first one yesterday. I was outside shoveling the deck and started smelling plastic burning. Ran to the smoker and the heat element was basically on fire, I think some wiring underneath must be burnt (plastic smell) I had already pulled the turkey, so just the potatoes were affected. The cause was my fault, I put the chips on the heater element instead of the smoker element. ( smoker is on a rheostat)

  13. nevrsummr

    nevrsummr Meat Mopper

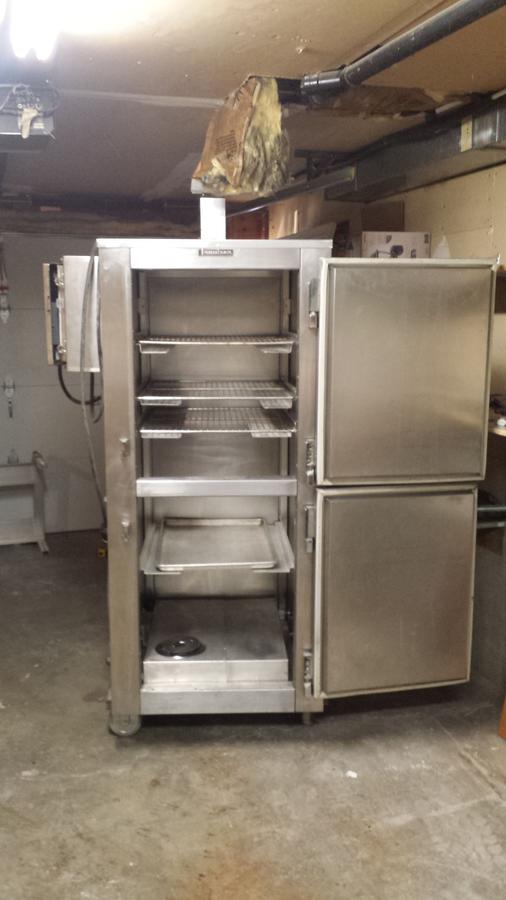

    well, she's ready to fire. Cleaned up nice I would say.

    dirtsailor2003 likes this.
  14. nevrsummr

    nevrsummr Meat Mopper


  15. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Nice, lays see some smoke!

    POINTS!

  16. nevrsummr

    nevrsummr Meat Mopper

    managed to do a burn in last night. Ramped it up slowly to watch for problems. Took it to 250 for about 4 hours. This will be the max temp on my smoker so I didn't want to risk taking it higher. The original door seals seemed to hold up fine at 250, so hopefully that will last. Overall I was very pleased with the performance and I am starting to make sense of the programming.

    It is so cool to be able to set a temp and know it will be accurately reached and held within 5 degrees. Even low temps!

    The smoker was in my garage (not recommended for burn in) and the garage temp was about 43 degrees. Much colder outside. At 250 the outside of the smoker was cold to the touch, the roof and floor were not warm but not cold. Tepid I would say.

    I did have 1 scare with the SMD100 control. When I first turned it on, it read an error code of "H".it also smelled like it was burning up. I did some reading and found that it's set up from the factory for K type thermocouples. Went into code 155 and changed that for the RTD probes that I am using, and it worked fine after that. As for the smell, must have been a first time use thing.

  17. nevrsummr

    nevrsummr Meat Mopper

    Forgot to mention, about 2 hours after I turned it off I went to check on it. When I opened the door it was very warm inside. I turned it on to check temp and it was still 143* probably 153 before I opened the door. That's after 2 hours of sitting in a 43* garage. So I think it's going to be very efficient.

  18. nevrsummr

    nevrsummr Meat Mopper

    Still looking for suggestions on sausage racks. If anyone has any.

  19. madman mike

    madman mike Smoking Fanatic

    1/2" or 3/4" wood dowel works great, or get some 20g bent into a 90degree smoking sticks. they only need to be 3/4"x3/4" x width of smokehouse so the rest on the shelving racks.

  20. nevrsummr

    nevrsummr Meat Mopper

    Well, I wish I could say it's up and running great, but having problems with off gassing from the insulation. Now I don't trust the insulation so it has to go. Which means dismantling the whole project. Wish I used screws instead of rivets. Pretty bummed right now, haven't touched it in days.
