SanJuanSmoker

Newbie
Original poster
Dec 4, 2024
13
3

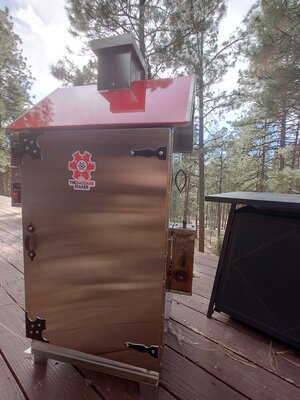

Yesterday, I played a little game called "it can't be that bad" with my new TSM red roof. I just wanted to see how it works 'as is'. I made a batch of Sheboygan brats with roasted Pueblo green chiles, high temp cheddar cheese, c-binder and cure #1.

I purchased this appliance knowing I would have to make some modifications to get the unit i desired. I have read all the questions, reviews, Google search results, Facebook posts and BGKYSmoker's posts here and in other groups. I knew this smoker had issues but I purchased it because of the design, top loading feature, and USA build quality with the insulated double wall construction. I knew that this unit did not come with a PID controller and had a completely separate inkbird Bluetooth thermostat.

Now, to yesterday's adventure. As soon as I woke up I started the smoker and set the temp to 170 so i could do an initial burn off and monitor the heat cycles. As i finished with my brats, everything looked really good with maintaining temps for the first few hours. I was empty but everything was looking good.

As I finished up my batch of brats, I turned the temp down to 100° to do a hour drying cycle, everything went well. After an hour, all was dry but my internal temp was still a little low so I bumped the temp to 115. Then, when my internal temp was where I liked, i added the smoke pan just as the instructions stated....let the fun begin!!! The temp shot to max the burner was maxed and everything was soaking wet from the humidity. With the smoker controller temp at 130, I was getting internal chamber temps over 160. Condensation was dripping from the roof and the brats were covered in moisture. The chimney couldn't get the moisture of fast enough so i had to pop the top and let everything air out. Before anyone asks,yes the saw dust was barely moistened, no excess water in the pan.

At this point, I'm scrambling to get water to stop dripping and trying to control the temperature spikes because not only did i have water dripping from the roof, I started to have fat dripping from the lowest sausages. I grabbed my Bella cold smoke generator from my other smoker and had to cut the insulation and drill out the inner panel through the side port that is partially prepared for a cold smoke generator. Once I get that installed, I go back to my sausages that were hanging and cut and transfer them all to the racks. I put the low hanging sausage on the top rack. I started the smoke generator, removed the sawdust pan on the burner, closed everything up and tried to stabilize everything.

Temp at 150, spikes to 180+. Some cheese and grease dripping. I rotate racks constantly. Removed ones that were done and rotated lesser cooked one's down. 10 hours of fighting this smoker to keep the sausage from over cooking. Eventually set to 165 to finish the last batch but was getting spikes into the 190s. Even though the internal temp was under 150 on some, i called it a night and shut it down. There was grease and cheese dripping from some and others were around 130 internal, all on the same rack.

Did i save the sausage, yes. The only reason is probably because this isn't my first rodeo. The temp swings were impossible to predict. This appliance is sold as an electric sausage smoker, purpose built for the sausage maker. That is what should be delivered. Again I knew what it came with but the temperature spikes are unacceptable. There is better technology out there, why not install it at the factory so you really are building an appliance that produces great sausage, consistently?

If you've made it this far you were probably looking at this smoker for a couple of years, waiting till it went on sale and you had a little extra money, just like me. Realize you will have to spend even more money after the purchase to get what you actually wanted;

Circulation Fan Kit for Electric Smokers: $90
Auber WIFI Electric Smoker Controller: $250
Bella's Cold Smoke Generator-GEN2: $190

Hope this helps someone make a more informed decision.

Michael

Today i removed the factory controller and heating element. Temporarily installed a 1500w 120v hotplate along with my new Auber AW-1520 WIFI PID. Max temp on the hotplate was ≈220f. Set the PID to 200f then 210f and this is a screenshot. Why couldn't TSM install this in the first place? This is what sausage makers want! Of course, this is a test, no meat to affect the temperature. I suspect there is a high temp limit switch in the hotplate circuit because 1500w 'should' be enough to get over the 220f mark. I will take more pics of the setup later.

Any additional advice or input is greatly appreciated.

Michael


Attachments

  • 20241213_130355.JPG
    161.8 KB · Views: 13
Last edited:
I don't remember how I bypassed the controller on mine, I do know I found the info here. Mine works great with the Auber PID, I just wonder what the max safe temp is for the box.

  • Like
Reactions: SanJuanSmoker
I don't remember how I bypassed the controller on mine, I do know I found the info here. Mine works great with the Auber PID, I just wonder what the max safe temp is for the box.
I believe TSM states absolute max temp is 250 but max setting with supplied controller is 225. I could be wrong. I am not looking for anything over 250 but don't want to know I'm running maxed out every time at 225-250 if that makes sense. And, everything will definitely act differently with sausage hanging.

Eric on 2guys&acooler did a test to find the right temp to take a sausage without cure and get it through the danger zone and up to finished, safe temp of 155 or 160 (can't remember off hand). He found the smoker set at 200°f was the best and safest method, again, without cure. Having a capable smoker with this type of precision, and capable of holding anywhere in between, is exactly what I am looking for.
