My Wood and Concrete Block Smokehouse build

[s9601694]

Well.. decided that is was time for a new project and to jump on the smokehouse bandwagon..

First things first:

the concrete slab:

395DC22A-2721-43E6-8116-A06030A08593_zpseu6qsdsh.j

• s9601694
• Jan 23, 2017

My 6yr old helped me and got to write his name in the concrete.. A little larger than planned and i had to redo the design a little, but no problem!

I played around with the concrete blocks for a while and ended out with this design for the lower part (firebox and base):

50F9B4F4-B63C-4F65-9507-3F1504D69FBC_zpsiluzdtw8.j

• s9601694
• Jan 23, 2017

half blocks on their side to connect the firebox to the smokehouse:

8E31D6F2-B968-4C52-BA73-0A41BFE6F7E6_zps9jn6oraq.j

• s9601694
• Jan 23, 2017

After an afternoon of masonry work (which i am not good at), this was the result:

A56D9572-2FCD-49B0-BEEA-3379A84B9C2D_zpsycqe1eam.j

• s9601694
• Jan 23, 2017

ADE11445-0AFD-4185-AEEB-6CE86EAF3A9B_zpstc1bx2my.j

• s9601694
• Jan 23, 2017

I am pretty happy with how this first phase turned out! I am currently putting together the wood frame which i am pretty much designing as i go and I asked a friend of mine to weld  up a door with adjustable vent for the firebox which will be pretty big..

CFDBC4F7-3E7F-43A2-AAD9-F29A92EF8683_zpsgbfwar5o.j

• s9601694
• Jan 23, 2017

thanks for watching and i'm happy to receive feedback or answer any questions!



[link]

I have never built a smokehouse but that looks like it s going to be awesome. Nice work.

Link



[killerque]

Be careful bringing up to temp. That style mortar blocks hold moisture and will break if you get them hot to fast. Is that going to be a fire box or will you transfer coals into it? Great looking build I like the idea.



[daveomak]

Think about an upper air inlet in the Fire Box door....   That will allow you to add air flow to the smoke house without adding air to the fire and overheating the smoke house....

Below is what folks "normally" use for smoker pits......

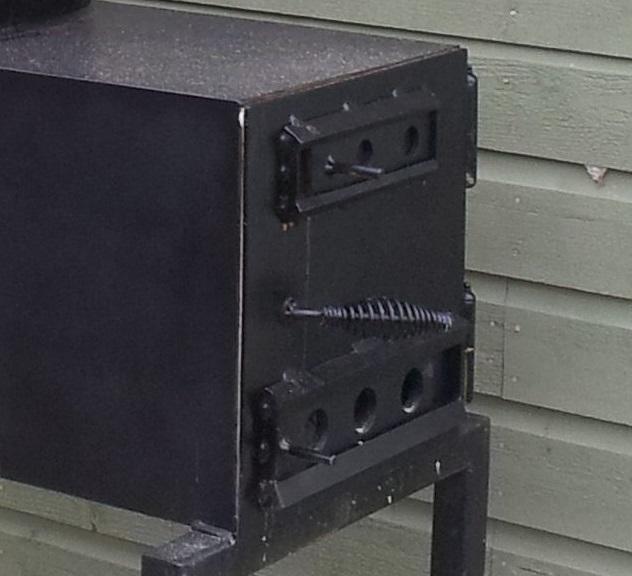

Smoker Exh and Intakes 2.jpg

• daveomak
• Jan 8, 2017



[s9601694]

Be careful bringing up to temp. That style mortar blocks hold moisture and will break if you get them hot to fast. Is that going to be a fire box or will you transfer coals into it? Great looking build I like the idea.

I'm thinking that i'll try to not go over 250F in this smokehouse.. Especially in the summer of South Texas that will be a hard thing to achieve.. So i think i will be sticking with coals and wood chips or chunks.. Try not to get i too hot!



[s9601694]


Think about an upper air inlet in the Fire Box door....   That will allow you to add air flow to the smoke house without adding air to the fire and overheating the smoke house....

Below is what folks "normally" use for smoker pits......

Smoker Exh and Intakes 2.jpg

• daveomak
• Jan 8, 2017

Thanks for the suggestion! I'll let my door maker know



[daveomak]



[ab canuck]

  Looks like a good start. I am watching this progress as well. That was the reason I joined, for building a smoker. Welcome to SMF and enjoy. Keep up with the pics.



[SmokinAl]

Boy that looks like your going to have a great smokehouse!

Al



[s9601694]

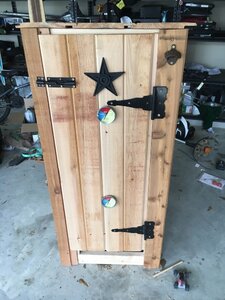

Firebox door is almost finished!

Sent from my iPhone using Tapatalk



[s9601694]

Door is done! Now some high heat paint and bolt it in.

Sent from my iPhone using Tapatalk



[s9601694]

This is how far I got with the wood structure last weekend. Using regular premium studs for the frame and will probably use cedar for the outside.

Sent from my iPhone using Tapatalk



[s9601694]

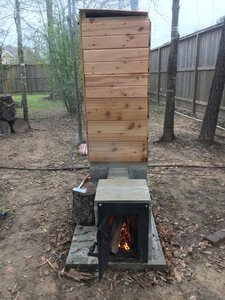

Fire box door installed and I lit a little fire! The smoke is going where it's supposed to and it has good heat coming out of it.

Sent from my iPhone using Tapatalk



[ab canuck]

Right on, Another step down.....



[boomerangg22]

looking very nice.



[dirtsailor2003]

Looking good! Can't wait to see some smoke!



[Bearcarver]

Very Nice!!

This is gonna be Cool !!

Be Back---

Bear



[s9601694]

Well finally got to work on the smoke house!

Sent from my iPhone using Tapatalk



[ab canuck]

Coming along..... Looks good, Another step down....



[s9601694]

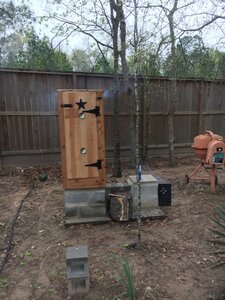

Pretty much done! I blew my back out putting it on the concrete blocks but oh well.. now let's see what I can produce..
