My latest creation....

gary s

SMF Hall of Fame Pitmaster
OTBS Member
26,259
4,683
Joined Jan 6, 2011
Now that's a nice smoker, grate job !!!

Gary S


humdinger

Master of the Pit
OTBS Member
Group Lead
1,686
90
Joined Jun 27, 2012
Man that rig looks good. You should bring that to the Michigan Members gathering in July! You'd be the talk of the party for sure!


humdinger

Master of the Pit
OTBS Member
Group Lead
1,686
90
Joined Jun 27, 2012
Would love to come out  and play, if I can get some time off work Ill be there.
Oh yeah, I hear ya on that. Work always seems to get in the way of a good time. I would just love to see that pit. Do you have rigs on display at your place? I'm up in Harbor Beach quite a bit during the summer and fall and wouldn't mind checking out your handywork in person.


qwikrnu bbq

Fire Starter
73
16
Joined Dec 13, 2013
My old stomping grounds! Ill be doing a few BBQs over that way in mid may at the in-laws.


humdinger

Master of the Pit
OTBS Member
Group Lead
1,686
90
Joined Jun 27, 2012
Cool, if I get up there for Memorial weekend I'll keep an eye out for ya!


qwikrnu bbq

Fire Starter
73
16
Joined Dec 13, 2013

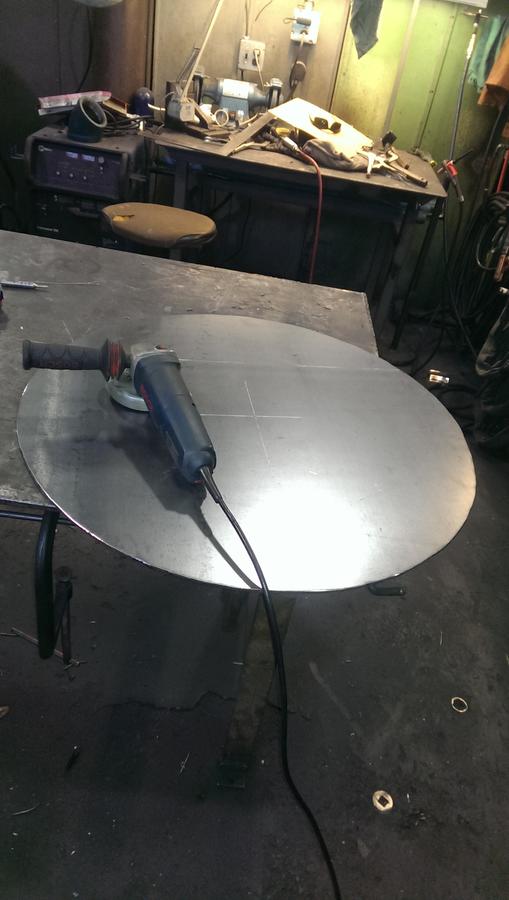

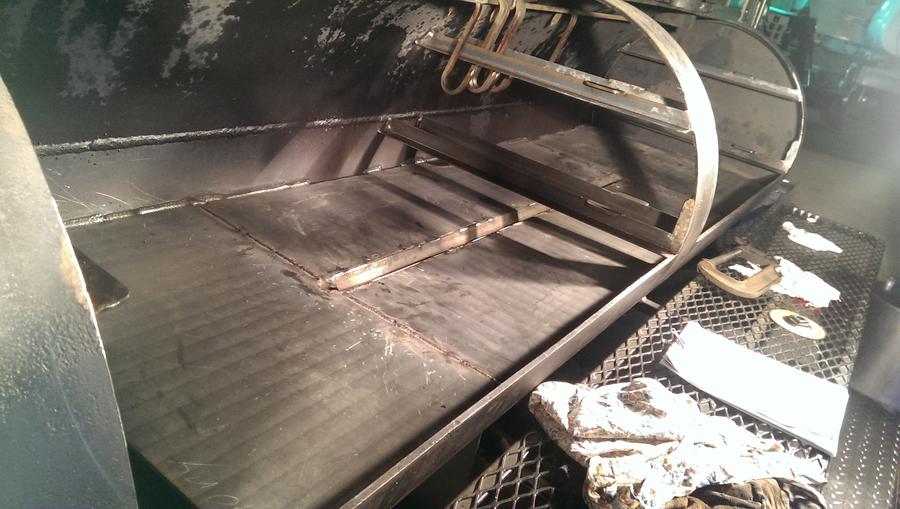

Finished off the reverse flow plate and the plate to separate the grill chamber from the BBQ side. I tried a few different designs before coming up with this. Several practice burns were used to learn the temp and flow differences.




I did put a radius on the bottom of the divider plate to assist with air flow. The plates are all welded solid.


qwikrnu bbq

Fire Starter
73
16
Joined Dec 13, 2013
Fund raiser / Test burn...

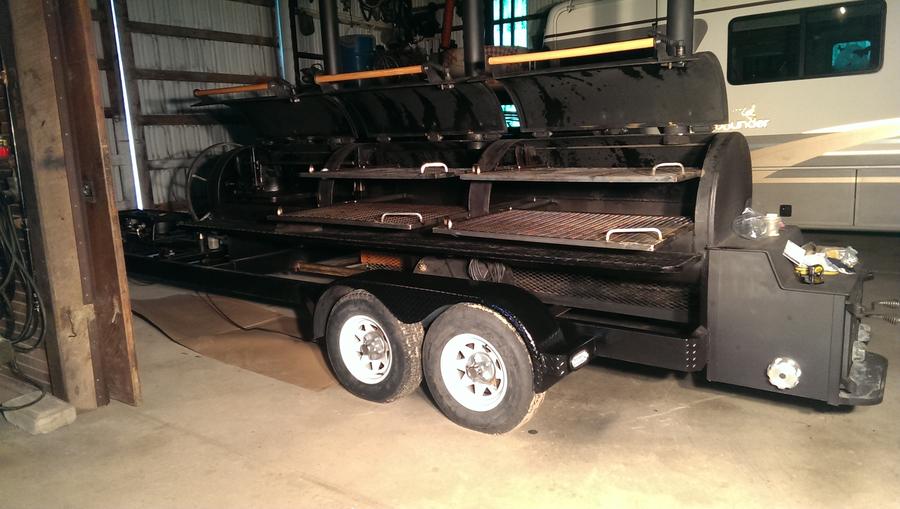

Loaded down. ready to roll...


4:30 AM Arrived on site....Ohhhhh-Yeeaaahhhh! In my best Randy the Macho Man voice.....

I ran it across the scales on the way up north. No idea what the pit weighs, but the whole deal weighed 16,840 Lbs. (truck and trailer) As usual, the Superduty towed like a dream. Cruise was set at 78 MPH on I-75. Trailer handled AWESOME!!

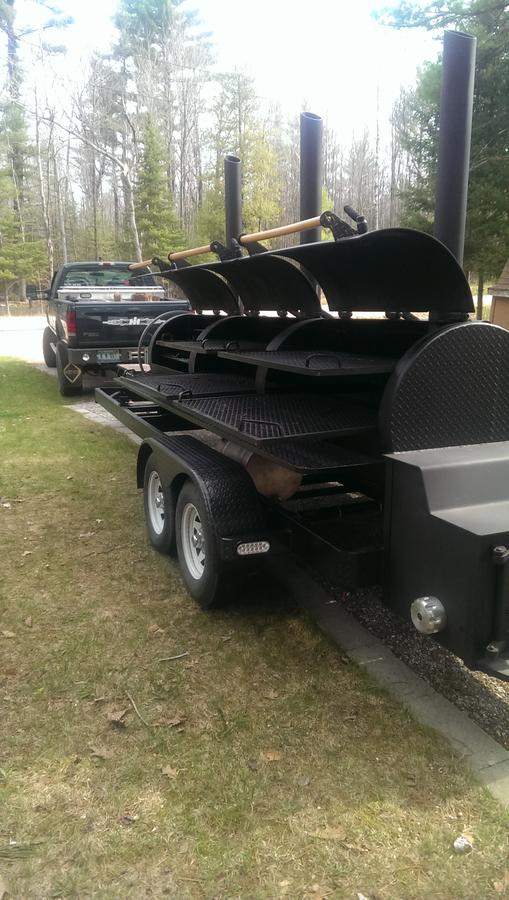

Here she is about 4 hrs into a 10 hr burn....

Temps are very easy to hold / adjust; and are within 5 degrees from end to end.(Rear BBQ Chambers) Opening the front grill chamber to cook breakfast had no effect on the temps in the rear chambers. Temps were taken with both digital probes and a Fluke IR therm. Still need three matching gauges for the doors. But hey, this economy sucks, it'll come with time...Held this temp in breezy wind all day. Had to put wood in every 2-1/2 hrs or so. I used hickory for this burn.


A little peek..I normally wouldn't open these doors, but every one wants to know whats inside right??


The final product...


Still a few loose ends to tie up, but just about to call this one finished.


dirtsailor2003

Epic Pitmaster
OTBS Member
21,887
3,999
Joined Oct 4, 2012
Fund raiser / Test burn...



Loaded down. ready to roll...

4:30 AM Arrived on site....Ohhhhh-Yeeaaahhhh! In my best Randy the Macho Man voice.....
I ran it across the scales on the way up north. No idea what the pit weighs, but the whole deal weighed 16,840 Lbs. (truck and trailer) As usual, the Superduty towed like a dream. Cruise was set at 78 MPH on I-75. Trailer handled AWESOME!!



Here she is about 4 hrs into a 10 hr burn....
Temps are very easy to hold / adjust; and are within 5 degrees from end to end.(Rear BBQ Chambers) Opening the front grill chamber to cook breakfast had no effect on the temps in the rear chambers. Temps were taken with both digital probes and a Fluke IR therm. Still need three matching gauges for the doors. But hey, this economy sucks, it'll come with time...Held this temp in breezy wind all day. Had to put wood in every 2-1/2 hrs or so. I used hickory for this burn.

A little peek..I normally wouldn't open these doors, but every one wants to know whats inside right??

The final product...


Still a few loose ends to tie up, but just about to call this one finished.
All that for one sandwee???

Looks great and it looks like you'll be able to handle some massive crowds!


gary s

SMF Hall of Fame Pitmaster
OTBS Member
26,259
4,683
Joined Jan 6, 2011
WOW   nice looking rig,  and Q

Gary S


humdinger

Master of the Pit
OTBS Member
Group Lead
1,686
90
Joined Jun 27, 2012
Wow that thing is sweet! Very nice build. With the right care I bet it'll last a hundred years! Glad the first test run was "up north" in true MI style!

Last edited:

gary s

SMF Hall of Fame Pitmaster
OTBS Member
26,259
4,683
Joined Jan 6, 2011
That really looks nice, Let me make sure you have my address for shipping !!!!

Gary S
