HELP my smoke generator don't smoke !

Discussion in 'Info and Practices' started by titi cold smoke, Dec 21, 2017.

  1. Hi!
    I made this generator, and I use it with oak wood chips.
    The problem is that the wood chips go out very fast.
    And there is very little smoke.

    What is the problem? The pump? The chips? the pipes?
    Thank you for your answers.




    SonnyE likes this.
  2. tropics

    tropics Epic Pitmaster OTBS Member ★ Lifetime Premier ★

    2nd pic looks like the copper pipe goes into the black pipe
    is that so?
    Richie

  3. the copper pipe stops just in front of the black steel pipe.
    thnaks Richie

  4. SonnyE

    SonnyE Master of the Pit OTBS Member SMF Premier Member

    Nice build!
    You did put a port in for it to suck the smoke with the venturi, right?
    From what I can see, the copper pipe looks like it might be a little snug in the outlet pipe.

    Other than that, maybe try some pellet fuel. I've been experimenting and with a round screen cylinder I can put in some Hickory pellets and light it with a torch (at the bottom corner) and they will continue to smolder completely.
    So, as long as your venturi is right, I'd try some pellet fuel for go. The chips might need some help because they don't always pile up tight enough for the 'fire' to catch the other pieces.

    Edit in: I think you need a smaller tube feeding in the air at the tip. In a picture, simular to this:

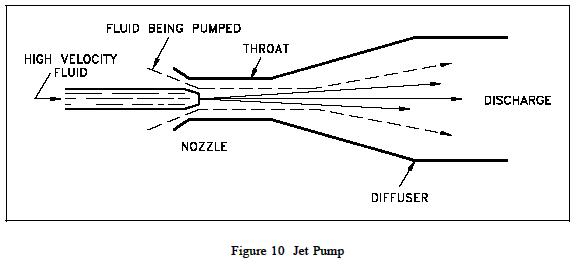

    http://4.bp.blogspot.com/-hwAUQP6TKn4/TY9r4fgH_YI/AAAAAAAAAKk/ecPX5Dhz7t4/s1600/ejector__.JPG

    Last edited: Dec 21, 2017
  5. tropics

    tropics Epic Pitmaster OTBS Member ★ Lifetime Premier ★

    You would get more smoke using a Tee on the copper with a small piece of pipe facing down,and going into
    the black pipe for the venturi to work.The air from the pump will go straight and suck the smoke up with it
    Nice buils
    Richie

  6. daveomak

    daveomak Epic Pitmaster OTBS Member SMF Premier Member

    The copper pipe needs to be smaller.... inserted into the black pipe with space around the copper pipe.. Air turned on... pressure drop sucks in the smoke... air flow pushes the smoke out...

    Look up "venturi" and how to make...

  7. Numériser 3.jpeg

    Thanks
    Are you talking about a Tee like that?
    Do you think that the problem comes from the copper pipe too big?
    thank you very much guys

  8. tropics

    tropics Epic Pitmaster OTBS Member ★ Lifetime Premier ★

    That should work just get the copper into the black a little more
    Richie

  9. Thanks Richie, I tried but it doesn't work.

  10. tropics

    tropics Epic Pitmaster OTBS Member ★ Lifetime Premier ★

  11. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Welcome to SMF
    Didn't see you introduce yourself in roll call..
    Hope you get your smoke generation going..
    Happy Holidays.

  12. daveomak

    daveomak Epic Pitmaster OTBS Member SMF Premier Member

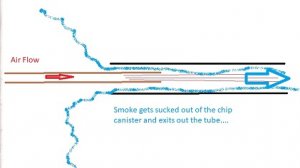

    This adaptation will make the smoke generator work....

    Venturi smoke generator.jpg

    Last edited: Dec 22, 2017
    SonnyE likes this.
  13. Ok, thank you, it's very nice. I'll test this when I go home in a few days.
    To introduce myself, I'm French I and I'm a new cold smoker.
    Here is my smoker. It's built in Montpellier maple (french maple). On this pics, it's the first smoke generator : it's a simple metal box in which I put charcoal and wood chips. I will adapt the new system instead of this one.
    To smoke, I use juniper, oak, plum tree and french maple.
    I can also show you a little video if you want.
    I smoke salmon, trout, hadock, duck magret. And I cook fish soups with leftovers, and other fishes of course.





  14. daveomak

    daveomak Epic Pitmaster OTBS Member SMF Premier Member

    titi, Welcome... Nice looking set up....
