GOSM Big Block Door Gasket Mod Results

Discussion in 'Propane Smokers' started by igolf2, Dec 1, 2010.

  1. I recently bought some self-adhesive ceramic smoker gasket off eBay and installed on the door of my recently purchased GOSM Big Block - I cut to fit and cleaned the door rim very well with cleaner and Isopropyl alcohol then installed gasket and closed the door for 24 hrs. to set the gasket.

    Before :  quite a bit of smoke and heat leakage - unit still cooked great "Q" but I was curious if sealing the door would help.

    After : Zero smoke leakage around the dooor - temps much more stable- less wood used - able to achieve higher temp than before - still great "Q"

    The 16lb fresh turkey I smoked for Thanksgiving was done in much less time then the one I did prior to installing the gasket.

    For $12 and 10 minutes I could not be happier with the results - well worth the few dollars and time.

  2. tjohnson

    tjohnson Smoking Guru Staff Member Moderator Insider OTBS Member SMF Premier Member

    how about a pic of the gasket.

    I think it's a great mod for many vertical smokers

    TJ

  3. seenred

    seenred Legendary Pitmaster Group Lead OTBS Member

    This is a good idea, I've been wanting to try it on my GOSM.  How 'bout a little more info on the gasket?  What brand, how much, what's it look like, etc?  I've had a suspicion for a while that this mod would really improve temp control and wood chunk usage.  Thanks in advance for any more info.

  4. mudduck

    mudduck Smoking Fanatic

    i would like to know about it to the name where on ebay to go can you post a link to one on ebay thanks


  5. tom37

    tom37 Master of the Pit OTBS Member SMF Premier Member

    This sounds like it may be an option on all kinds of smokers. Thanks for sharing.

  6.
     [​IMG]

    Here is the eBay item # for the gasket - #390267162568 or search "Primo Charcoal Grill Replacement Gasket"

  7. phlunkie

    phlunkie Newbie

    thanks for the heads up. Ordered 2.  1 left.


  8. Thanks for the info, I need to put a gasket on my plywood propane smoker.

  9. Not sure if the peel-and-stick gasket I used will adhere to wood - you might have to add some additional adhesive.

  10. mudduck

    mudduck Smoking Fanatic

    not anymore i order the last one yesterday thanks for the info igolf2

  11. ecodork

    ecodork Fire Starter

    I guess it's one of those constantly renewing things as I just ordered a couple rolls too.

  12. phlunkie

    phlunkie Newbie

    Mine should be here today.  Will be setting it up and testing tomorrow.

    1/7/11- A little late, but it does make all the difference in the world doing this. I still have to "level" the door out.  Not a consistent diameter.  I would highly recommend sealing the door like this to anyone.

    Last edited: Jan 7, 2011
  13. rickypro

    rickypro Smoke Blower

    After running all over town looking for gasket rope today I came home to find this post and this looks like a great way to seal the door.  I also have a GOSM wide body.  I know this is an old thread but if anyone that has done this mod sees this, does the magnet on the door still close the door or did you have to install a latch of some kind to get door to stay closed?

  14. Hi,

    I'm the original poster and the big block is still working perfect - the gasket is still working after almost 2 years. My Big Block had the spring handle latch that I never liked so I installed a De-Sta-Co #323   2 piece clamp ($12 at Amazon) - it's adjustable and really latches the door tight.

    Hope this helps you out

  15. rickypro

    rickypro Smoke Blower

    Boy this is weird.  After seeing this thread and posting in it above,  I ordered and received a roll of this about an hour ago.  While testing it out and telling my wife I might have to replace the gasket every year or so your reply popped up on my phone.  Great minds think alike I guess!

    No leakage around the door and it seems to work great.

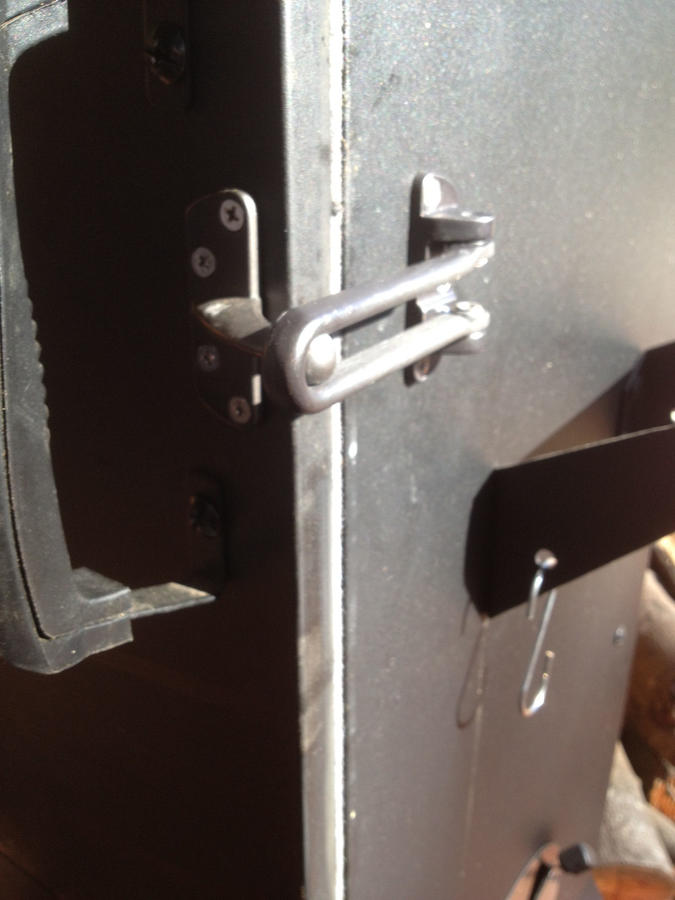

    Here is the latch I am using.  Not really made for the application but it is working great.  There is not much room for error when installing it though since it is not adjustable like yours.  I had to grind off two sides of the ball on the end of the latch so it would fit in the slot.  I may wind up switching it out for the adjustable one you have but this will get me through Thanksgiving for sure!


  16. rickypro

    rickypro Smoke Blower

    This may be a dumb question but did you put the gasket material on the door and the smoker itself?  I only put gasket on the door and it seals great but the fibers are sticking to the smoker itself when I open the door.  Not bad so I don't think it will be a problem but I will have to order another box of gasket to do the smoker itself.

    Thanks!

  17. Ricky,

    I attached to the door only,  the self adhesive gasket fit perfectly around the Big Block door and I have not had any problems with fibers. Guess having gaskets on both surfaces will work just fine.

    Your latch looks fine - as the gasket compresses the adjustable helps to compensate.
