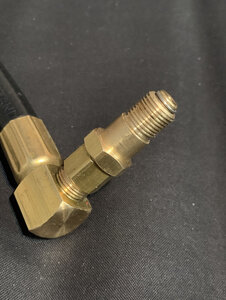

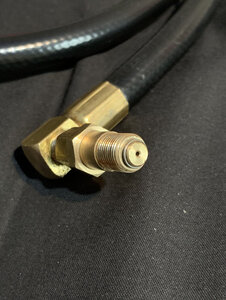

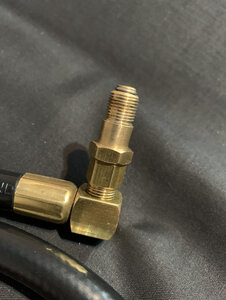

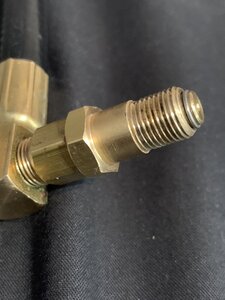

Anyone know what connection this is please?

rosra

Newbie
29
1
Joined Jul 27, 2020
sorry if posting in wrong area

i have been looking for weeks now and i cant find any info for this

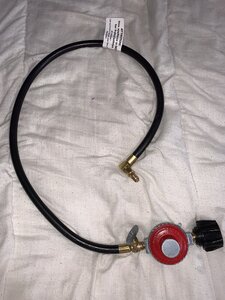

all i wanna know is what connection this is or where i can buy a new one or how i can extend our hose as its only around 3ft

any help really appreciated

i did ask manufacturer but really havent been any help and now im really not sure where else i should check

cheers


Attachments

smokin peachey

Master of the Pit
OTBS Member
★ Lifetime Premier ★
1,580
2,703
Joined Aug 1, 2016
Welcome to SMF. Have you checked Tractor supply or a hardware store for a longer hose?


Brokenhandle

Master of the Pit
★ Lifetime Premier ★
1,370
838
Joined Nov 9, 2019
Yep, a good place to start with smokin peachey smokin peachey said. Sometimes hard to find exactly what you need depending on how well stocked the store is and how knowledgeable they are.

Ryan


rosra

Newbie
29
1
Joined Jul 27, 2020
no sorry i havent because we dont really have a place like that for UK



i did however check and email loads of companies but no one know what connection this is

i did however buy this item originally from US thats why i thought it might be a good idea to ask here

many thanks


smokin peachey

Master of the Pit
OTBS Member
★ Lifetime Premier ★
1,580
2,703
Joined Aug 1, 2016
You could also try a shop that makes hydronic hoses they might be able to make you a hose.


rosra

Newbie
29
1
Joined Jul 27, 2020
if i can find a store for US i can ask if they will ship internationally but so far i havent found anywhere



this is for a wok burner but i look everywhere but i find nothing


smokin peachey

Master of the Pit
OTBS Member
★ Lifetime Premier ★
1,580
2,703
Joined Aug 1, 2016
Where are you located? Have you tried searching the internet for wok burner parts?


indaswamp

Smoking Guru
OTBS Member
5,090
1,822
Joined Apr 27, 2017

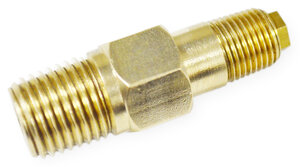

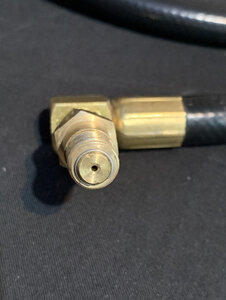

The connection fitting is an orifice nozzle. The small hole is metered and the diameter is precise. this the the jet where the propane or natural gas flows into the venturi of the burner to mix with air prior to coming out of the jets for combustion.


indaswamp

Smoking Guru
OTBS Member
5,090
1,822
Joined Apr 27, 2017
You can buy orifice nozzles online...Tejas smokers has them, but you need to know what size the one you have is....they also have longer hoses so you can just change out the one you have..
https://tejassmokers.com/


Winterrider

Master of the Pit
OTBS Member
SMF Premier Member
2,611
1,204
Joined Sep 29, 2018
Take fitting to propane dealer. They have books with 1000's of fittings, they could order for you


rosra

Newbie
29
1
Joined Jul 27, 2020
The connection fitting is an orifice nozzle. The small hole is metered and the diameter is precise. this the the jet where the propane or natural gas flows into the venturi of the burner to mix with air prior to coming out of the jets for combustion.

Yes your right its from a wok burner


Attachments

indaswamp

Smoking Guru
OTBS Member
5,090
1,822
Joined Apr 27, 2017
That complete hose, regulator, and fittings can be used on a number of different burners, it's the orifice that determines the amount of gas and hence the number of BTU's the burner will have.


JJS

Smoking Fanatic
SMF Premier Member
336
243
Joined Mar 17, 2019

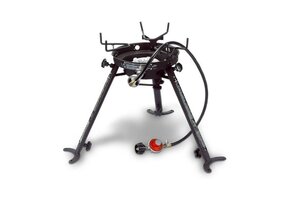

Something like this would be easiest if you are just looking for a longer hose, can get shorter ones too



rosra

Newbie
29
1
Joined Jul 27, 2020
Something like this would be easiest if you are just looking for a longer hose, can get shorter ones too

View attachment 455950

Yes i agree would be a good idea and easier, but if you look at images i posted you will see its got a connector which isnt like the one you posted unless there is an adaptor?


bill1

Smoking Fanatic
316
86
Joined Apr 25, 2015

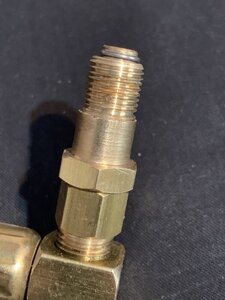

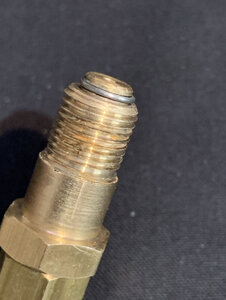

Indaswamp might be right, but the end with the orifice looks to me like a straight, not a tapered thread. It appears to seal on the burner/orifice end with an O-ring slightly larger than the orifice insert, so the threads needn't be tapered to create a seal.

So I'd assume that end could be any weird thread and proprietary connector, so take good care of it...might be hard to replace. But the other end of that short brass burner fitting is almost certainly 1/4 NPT female. So you really just need an extension from 1/4 NPT male to female, in the added length you want, to insert between your hose and the somewhat unique brass fitting with the orifice.

Will 5-foot do the trick? Note male-to-male hose is much more common so a 1/4 NPT coupling will be needed if you get one of those.
