another first fridge build

Discussion in 'Fridge/Freezer Builds' started by chipmunk, Mar 17, 2015.

  1. chipmunk

    chipmunk Newbie

    Howdy ya all, my name is gona be chipmunk, and I'm a newbie to this forum. First let me say that folks like scooter magoo (sorry if I mis spelled) and a lot of other brothers and sisters of bbq on this site have helped enormously on my build. It seems to me that I have to ask a stupid question which is has any one out there ever built a smoker thas uses a pellet pooper for higher temp. smoking, and a electric element with a separate pid controller for low temp smoking. Got myself a pellet pro hopper system from Smoke Daddy (looks killer) ,thinking  that would cover most all of my smoking needs, but as everyone knows,building your own smoker makes you smarter, so now I'm wandering  since the pellet pro in my 50's era Frigidare  sounds like it probably wont be able to get down to the temps I'm looking for to do salmon proper, is there something I'm missing, or am I regressing to my pre-build stupidity?

  2. bluewhisper

    bluewhisper Master of the Pit OTBS Member

    Welcome to the board, aaaaaaaand I can't offer any advice since I run a stick burner.

  3. Same Here another stick burner    Good Luck Though

    Gary

  4. chipmunk

    chipmunk Newbie

    Thanks for that , I'm JAZZED!

  5. hugestapedius

    hugestapedius Fire Starter

    Thats exactly what i did pellet hopper for 200 plus temps and brinkman with auber dual pid for colder smokes. Ill post pics when im done with paint

  6. chipmunk

    chipmunk Newbie

    Now that's what I'm talkin about!  In a former life I was in the custom paint world, murals, graphics and such, but a lot has changed over the years,not so sure i'll go down that road, but what I'm considering is a camo wrap, pretty spendy though!

  7. madman mike

    madman mike Smoking Fanatic

    Why don't you just go electric with the smoke daddy or amzn for all your smoking need. I have a dual auberins controller and an 1500w element and it gets as hit as I want or it stays at ambient temp. Sounds complicated to have 2 heating sources in the same unit.

  8. chipmunk

    chipmunk Newbie

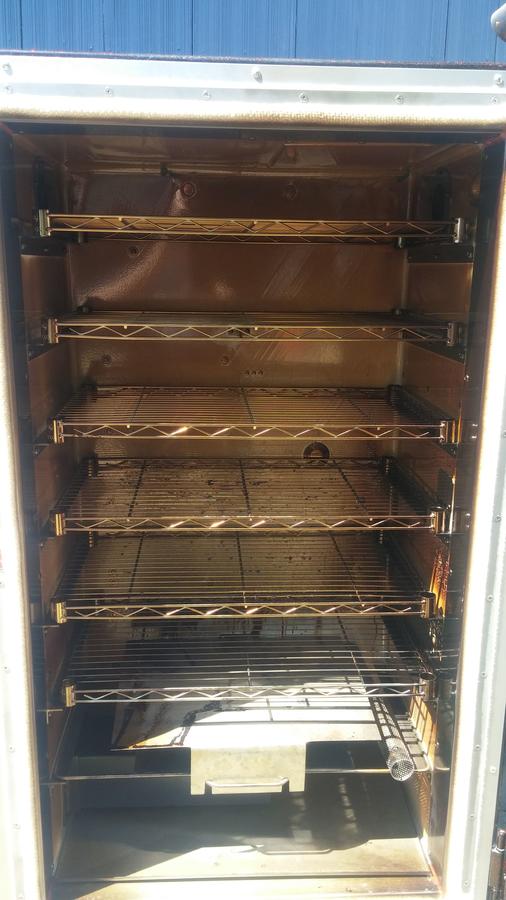

    In this shot of the inside of the beast, you would have to look close, but I have a cover over the heat shield over the burner, it's fabbed out of a 1/4" piece of S.S. plate that also acts as a support for a 1500 electric element that I use for ultra low temp smokes, using a auberins  controller which works extremely well for step type temps. also you can see a tube of perforated S.S. that I made a quasi smoke tube, seems to smoke for between 4- 6 hrs using pellets.

    I have to apologize for the post, not good with this kind of technology  I think I got this all backwards, but you get the idea, I do have to thank all the folks on the site who have given me the inspiration to proceed with this project, people like  Scooter Magoo, and such, maybe if the folks out there like what they see, I can try to post some more pics or info, well see if this works, GOOD SMOKES EVERYONE!

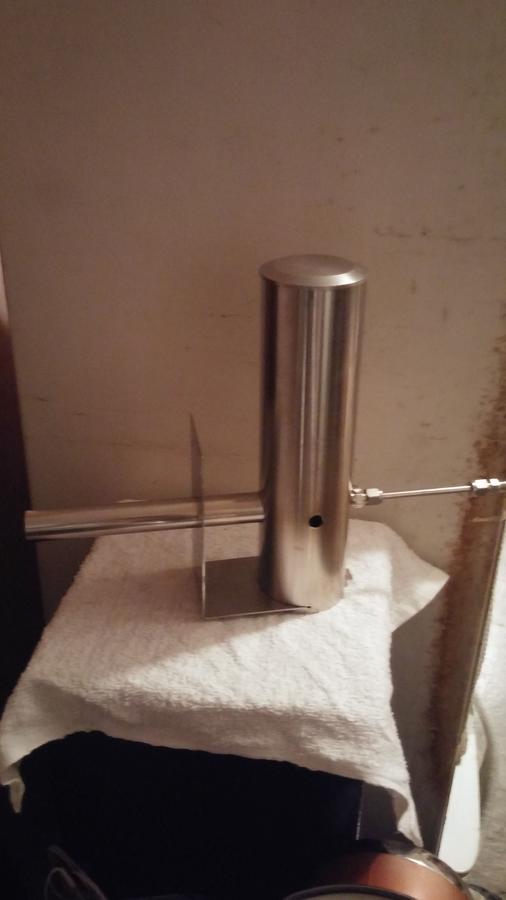

    Built a smoke generator, not sure I'm gona use it tho!

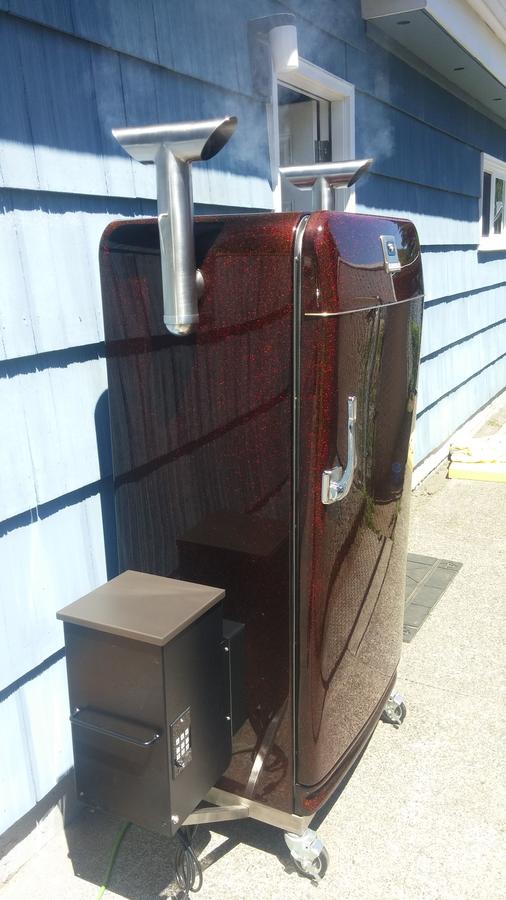

    Here is a better shot of the color, the thing is wicked in the sun, it flashes the rainbow as you move around it! also in this pic you can see the S.S. smokestacks that I welded together, A lot of work sanding the seams! plus it really really  works! if you look close you can see that I added a spacer between the PelletPro and the side of the fridge to center the burner in the fridge, OCD I guess!


    Here's old ugly himself doing the final wet sanding before the polishing began.

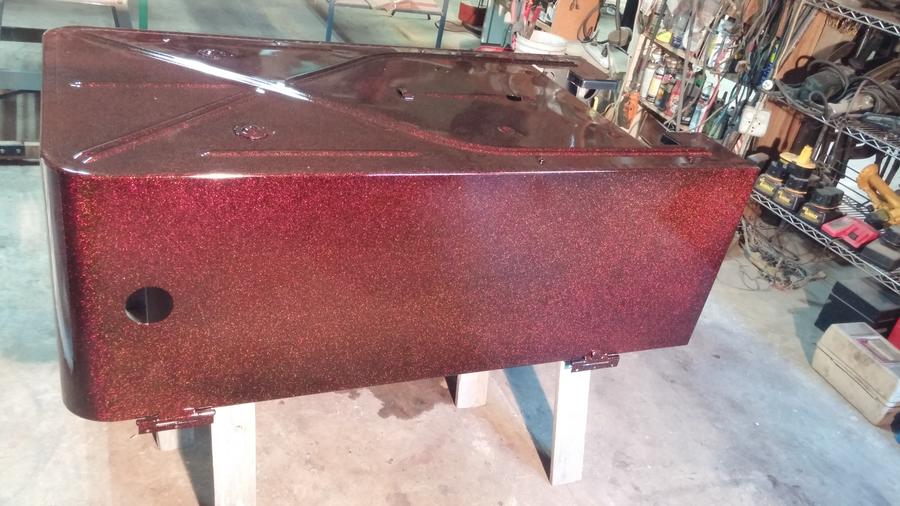

    Here is what it looked like between several coats of clear. To get a decent finish, one needs to wet sand between coats.


    Well,I finally decided what to shoot on the beasty, Black base coat, and burnt orange holographic 4 mil metal flake, TO COOL!


    When doing a custom paint job the devil is in the details!

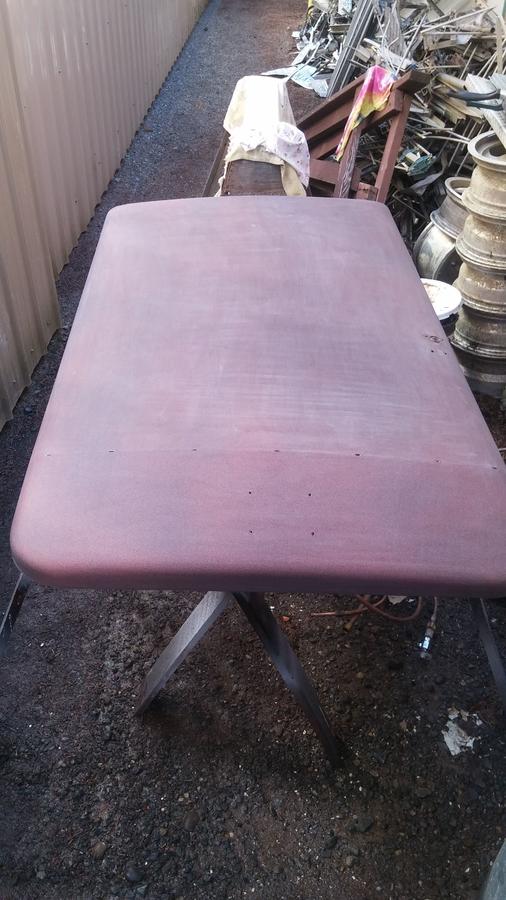

    epoxy primer was applied to seal everything up.

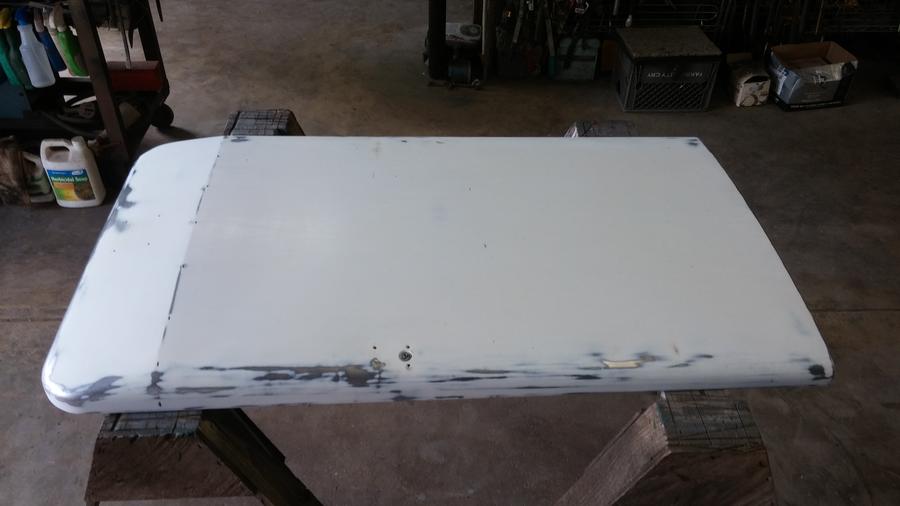

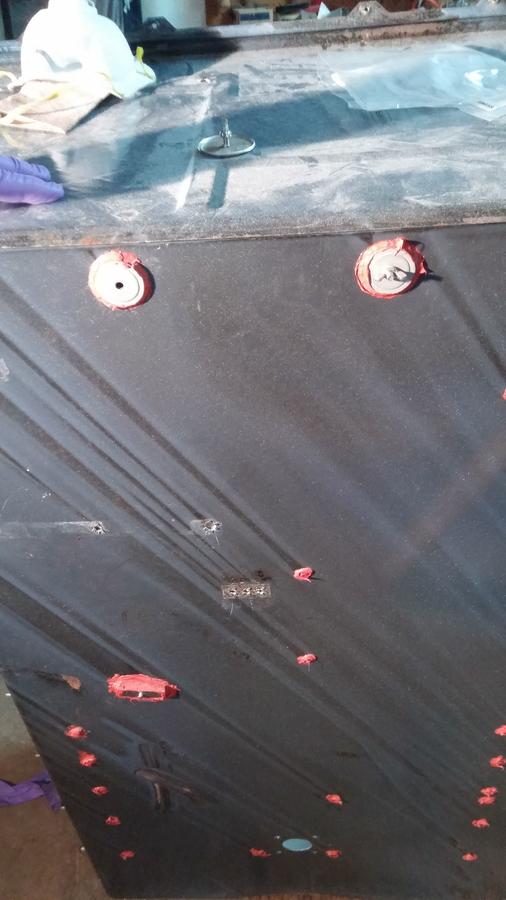

    OK, back to the bodywork, the door being patched up before primer.


    Something like this.

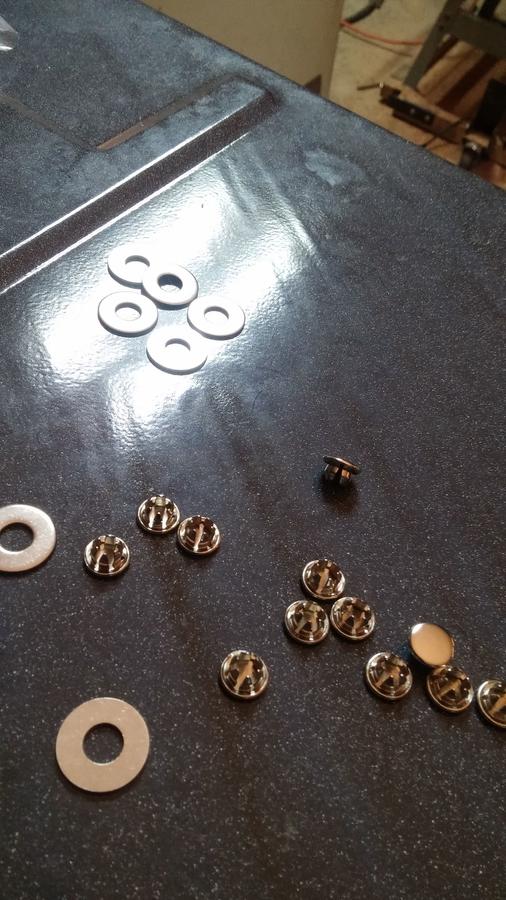

    I'm going to drop back and punt for a moment, these are what I used to fill all the holes in the inner liner of the fridge, to make sure they wouldn't come out, I put a dap of high temp rtv on the back of each one.

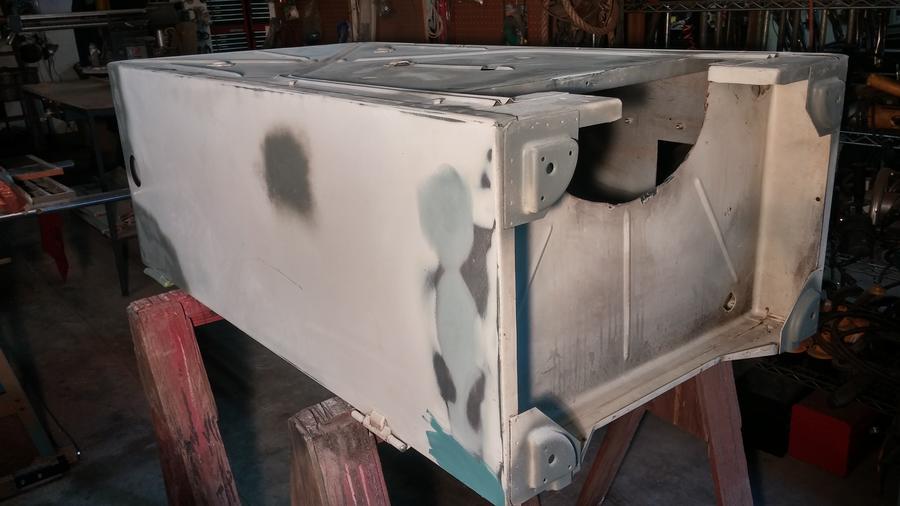

    This is pretty typical for most paintjobs I would imagine, In a former life I was in the custom painting world, and at this point I wasn't quite sure where I was heading with this thing! I had at one point considered a camo vinyl wrap, but at about $300- $400, na!

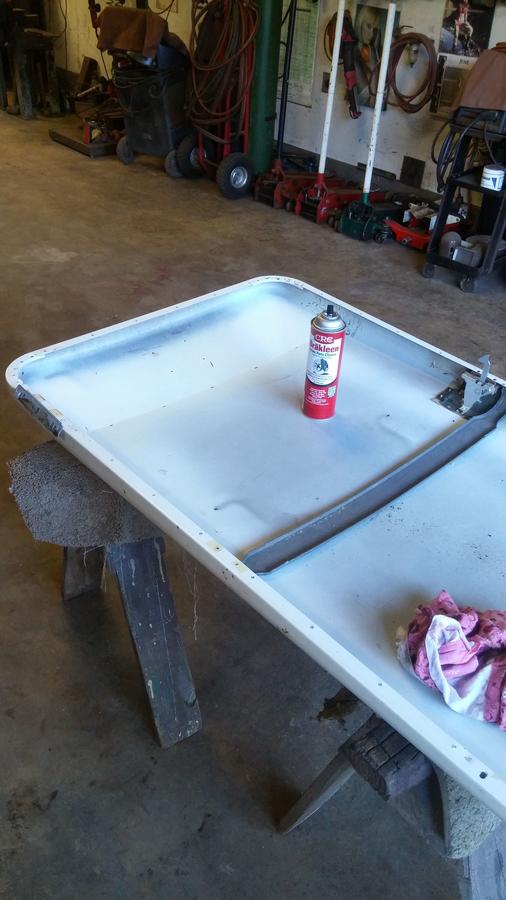

    TADA! Brake clean to the rescue, knocks the dog snot out of a messy situation! Next the body work begins!

    [​IMG]

    As you can see in this pic, the tar seemed to be everywhere!


    After most of the fitting process had been completed, I decided I would replace all the insulation with roxul, when I had removed the inner liner of the fridge I found copious quantities of tar that had been used as a seam sealer, sure was glad to find this out before moving on, but was a pain to remove.it was a along the back wall, and in the floors also in the door!


    Well her you can see the process of fitting the door seal to the flashing ( which does not have the protecting plastic removed yet)


    Here is a picture of the flange that the smokestacks will slide onto from the outside.

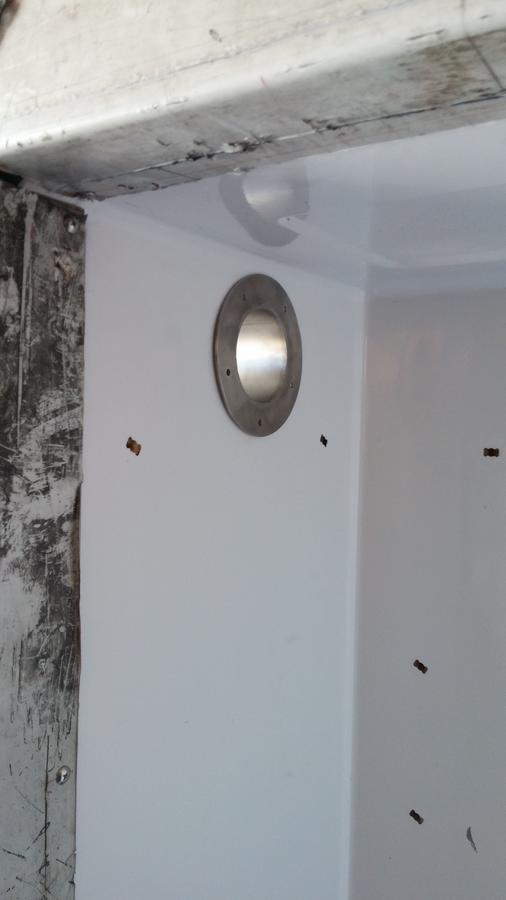

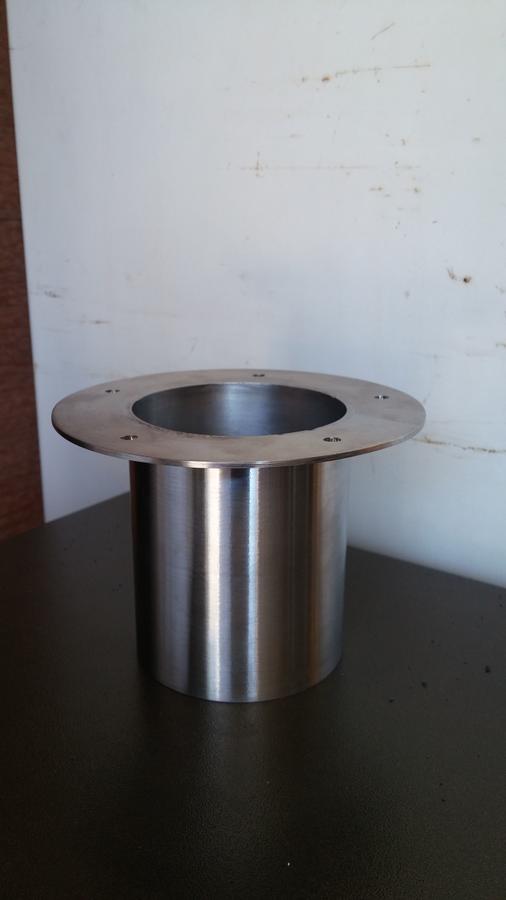

    Not sure what I did for this photo, seems to be extra large, but you can see the inner smokestack flange, that is going to be used as a insert type of fitting which will allow me to remove the smokestacks for cleaning/ removal for storage.

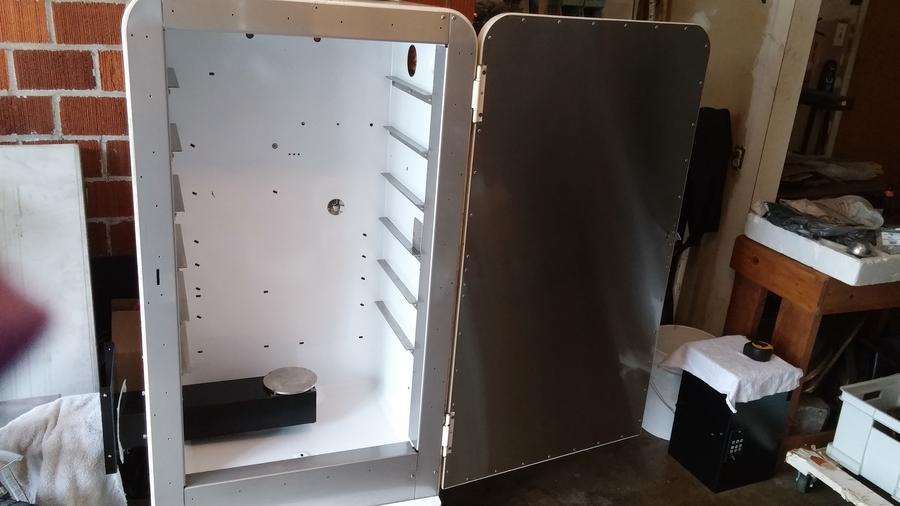

    Here you can see that I have added the tray racks and S.S. flashing. Also the holes for the smokestacks can be seen.


    In this photo, you can see my lay out before I started the cutting process.

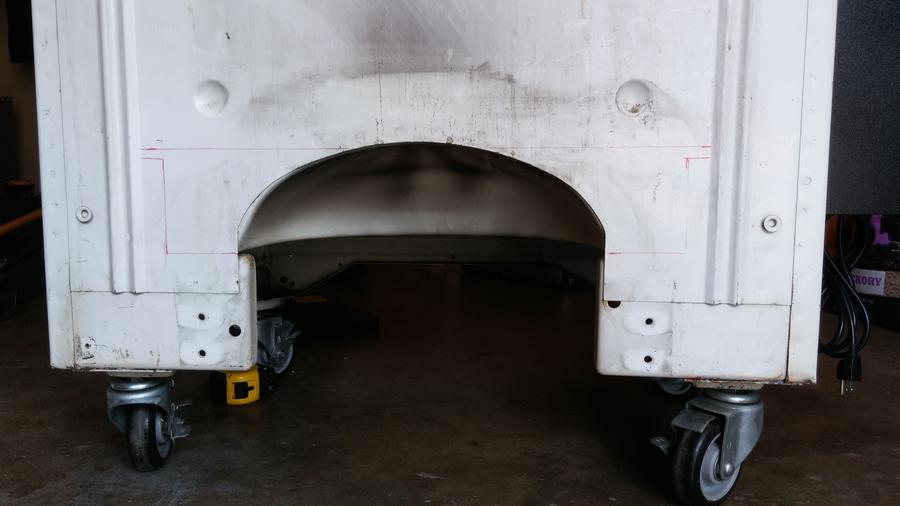

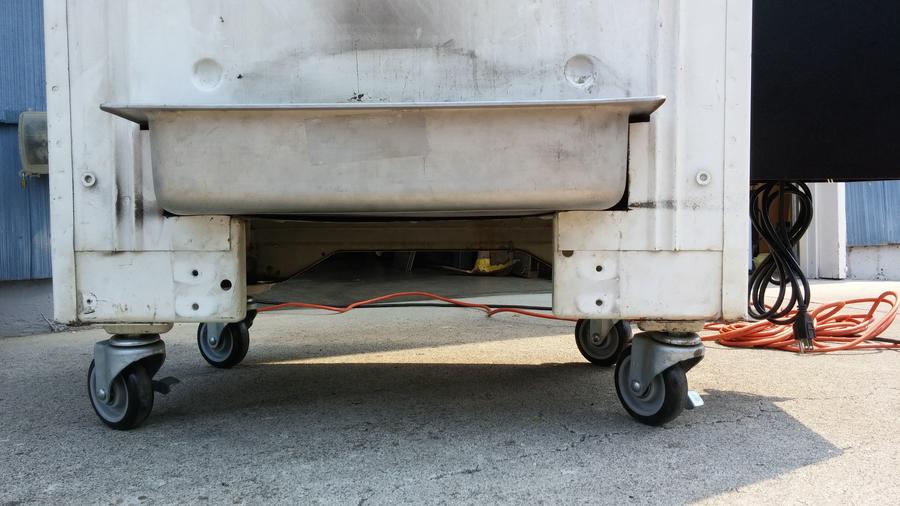

    In the photo above, you can see where I have cut in a tray for whatever drips out of the smoker, later I will add a hinged door.

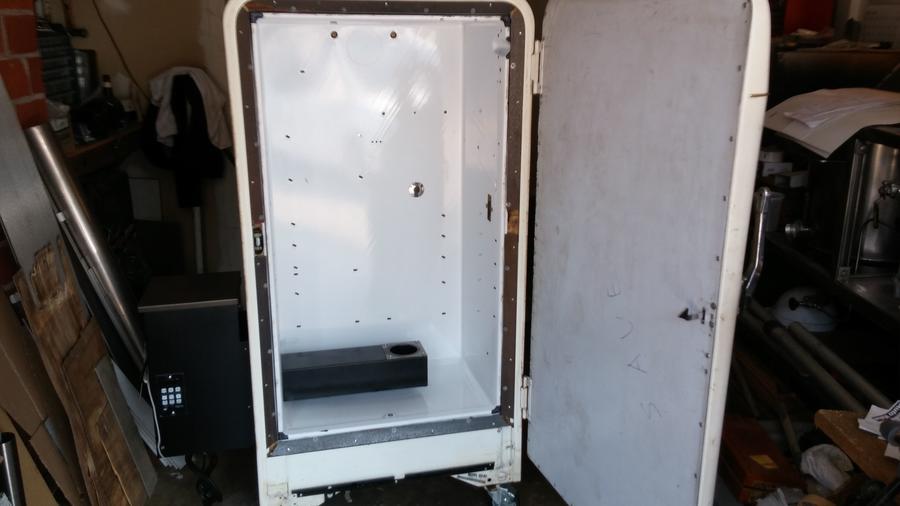

    I'm going to give this a go and start pretty much from the beginning  of my smoker build, as you can see in the photo, I've already have the inside of the door skinned with S.S. have a pellet pro installed from SmokeDaddy, which are some fine folks to deal with!

    pit 4 brains and wade like this.
  9. Man that thing is pretty

    Gary

  10. pit 4 brains

    pit 4 brains Master of the Pit Group Lead OTBS Member SMF Premier Member

    That thing is super cool! Points to ya.

    [​IMG]

    Wonderful paint job man.. I barely have the patience for a rattle can.

  11. wade

    wade Master of the Pit OTBS Member SMF Premier Member

    Looking good [​IMG]

  12. pit 4 brains

    pit 4 brains Master of the Pit Group Lead OTBS Member SMF Premier Member

    This is like antique fridge meets car show with a semi at a truck pull during a bbq competition...

    I can't get enough of this build!

  13. Curious where you got that flange from?

  14. chipmunk

    chipmunk Newbie

     the inner flange was a piece of pipe that I turned down on a lathe, then welded a flange onto that to be able to mount it from the inside. The reason that I turned down the pipe was to facilitate the smoke stack being able to slide onto it from the outside, with a nice snug fit, the tubing I used on the smoke stack is 3" O.D. .065 wall S.S.  what it comes down to is that it pretty much was all hand built. hope that helps

    corbylove likes this.
  15. c farmer

    c farmer Smoking Guru Staff Member Moderator OTBS Member SMF Premier Member

    That's one beautiful looking smoker.

    Great build.

  16. greyape

    greyape Fire Starter

    Absolutely gorgeous.  I'm trying to get my paint work done on mine and was floored by the cost of paint.  Congrats on a beautiful fridge!

  17. chipmunk

    chipmunk Newbie

    Well, truth be told, painting the beast was defiantly spendy, but I was fortunate enough to get some of the paint and primer from my eldest brother who had been given some of what I used .The black base was a straight enamel, while the primer, the carrier for the metal flake, and the clear used a hardener, by the time I was done it cost more than I had planed, but the end result was worth it!

  18. adam42

    adam42 Newbie

    Wow that is pure talent. Great job

  19. scout110

    scout110 Newbie

    Any idea where an exhaust flange like that could be purchased? Love that idea.

  20. chipmunk

    chipmunk Newbie

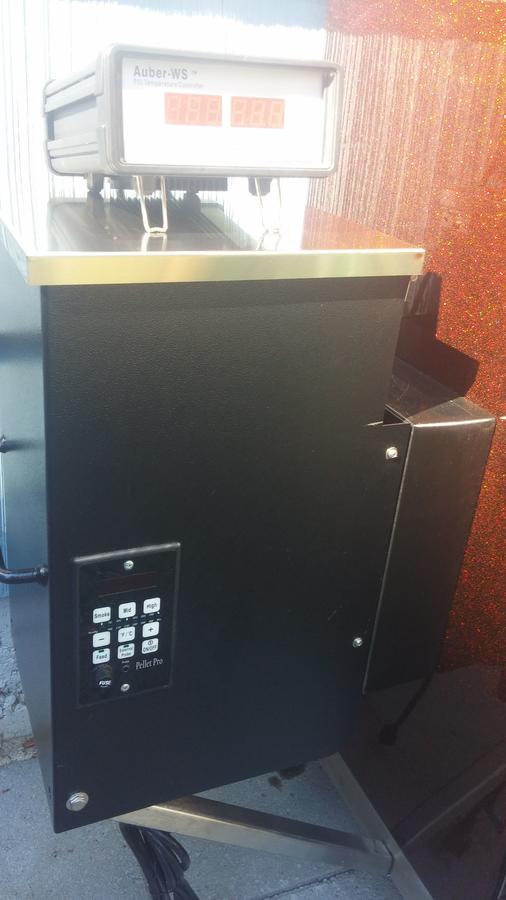

    this is how I run the controller, when I use it as a electric smoker
