Ordered the TSM Country-Style Digital

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.

LoydB

Meat Mopper
Original poster
SMF Premier Member
May 31, 2022
246
351
After a lot of looking around, the TSM Country Style Digital seems to be the smoker with the tallest interior (for big salami, etc.) available. I would be happier if they offered it in analog and I could wire in my own PID, but this will at least be a good starting spot for customization.

Now the wait begins.


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
Dec 30, 2016
6,551
3,596
Texas
After a lot of looking around, the TSM Country Style Digital seems to be the smoker with the tallest interior (for big salami, etc.) available. I would be happier if they offered it in analog and I could wire in my own PID, but this will at least be a good starting spot for customization.

Now the wait begins.
Looking forward to see what you make!

  • Like
Reactions: LoydB

BGKYSmoker

Epic Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
Group Lead
Dec 25, 2010
12,266
7,742
Vine Grove, KY
You're going to like it. Good thing also is TSM carries parts when needed.

As Keith and the others said my original digital control took a dive so with some help from forum members I was able to rewire direct from the element with HD cord and 3 prong high to the plug and play to an Auber pid. I went with the Auber WS-1510DPMS with the thermo couple. If you go with Auber (don't get the pid for Bradley smokers)

Enjoy


Tinner340

Newbie
Nov 18, 2022
6
3
You're going to like it. Good thing also is TSM carries parts when needed.

As Keith and the others said my original digital control took a dive so with some help from forum members I was able to rewire direct from the element with HD cord and 3 prong high to the plug and play to an Auber pid. I went with the Auber WS-1510DPMS with the thermo couple. If you go with Auber (don't get the pid for Bradley smokers)

Enjoy
I'm curious, I just ordered the ws-12llh pid controller is there a problem with these?


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
Dec 30, 2016
6,551
3,596
Texas
I'm curious, I just ordered the ws-12llh pid controller is there a problem with these?
Hi there and welcome!

The WS-1211H supports a max of 1440Watt element.
Taking 10% for electrical slop that means 1296Watts of maximum support.
The MES40's have a 1200Watt element.
If the MES40 runs at or near 1200Watts then you are running right at the max supported wattage of the WS-1211H limit. This is the concern.

The WS-1211H itself is fine, it's just better to go up to the beefier WS-15xx series of Auber PIDs since they have a max of 1800Watts.

It's never good to run anything near max if you can avoid it.
If you have a Bradley or an MES30 they have 800Watt elements so the WS-1211H is perfectly fine for those.


Let me know if this info helps and makes things clear :)


Tinner340

Newbie
Nov 18, 2022
6
3
Hi there and welcome!

The WS-1211H supports a max of 1440Watt element.
Taking 10% for electrical slop that means 1296Watts of maximum support.
The MES40's have a 1200Watt element.
If the MES40 runs at or near 1200Watts then you are running right at the max supported wattage of the WS-1211H limit. This is the concern.

The WS-1211H itself is fine, it's just better to go up to the beefier WS-15xx series of Auber PIDs since they have a max of 1800Watts.

It's never good to run anything near max if you can avoid it.
If you have a Bradley or an MES30 they have 800Watt elements so the WS-1211H is perfectly fine for those.


Let me know if this info helps and makes things clear :)
Thanks tallbm, thought there may be problems with that particular model. bgk mentioned not to buy it in his post, I wasn't sure what he meant. I use my 30" for smaller batches, the 1211 is on sale for $129, thought I'd give it a go.


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
Dec 30, 2016
6,551
3,596
Texas
Thanks tallbm, thought there may be problems with that particular model. bgk mentioned not to buy it in his post, I wasn't sure what he meant. I use my 30" for smaller batches, the 1211 is on sale for $129, thought I'd give it a go.
You should be good to go with your MES30. You are going to love being a part of the PID club :D


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
Dec 30, 2016
6,551
3,596
Texas

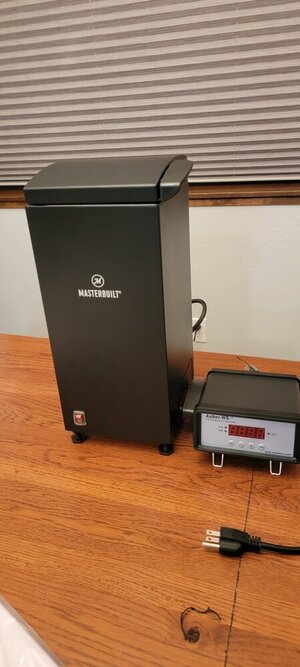

I'll let you know how it goes, first time using one. Hopefully it "cures" the unstable temps I'm experiencing. :D
It should. After a little tweaking and dialing in the temps should be very consistent and reliable :)


Tinner340

Newbie
Nov 18, 2022
6
3
It should. After a little tweaking and dialing in the temps should be very consistent and reliable :)
Thanks, I'm hoping it will keep consistent temps below 170°F. I like the MB-30" size as it doesn't have a large heat loss. The MB-30" is well insulated and comes right up to temp in very cold ambient temps. I used a Bradley 40" for years but because of it's undersized heating element for my climate, making sausage in the winter was just impossible. Ultimately, the problem with the Masterbuilt is the controls and with that comes fat-out and or dried out sausages so hoping this will work.
