Newbie here, some help with ECB mods please.

Discussion in 'ECB Owners Group' started by tayogs, Mar 15, 2015.

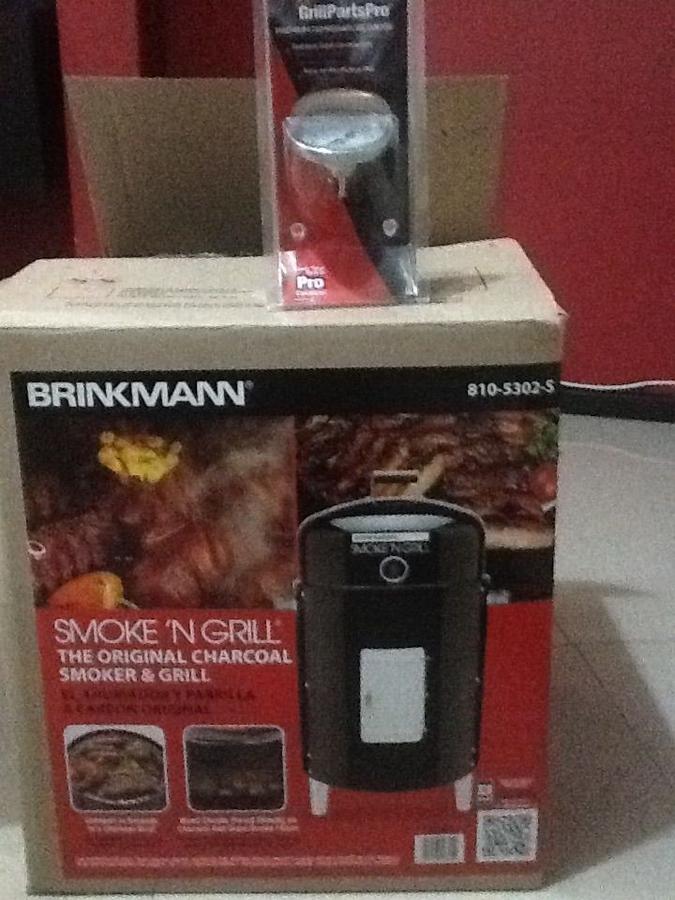

  1. hi, just back yesterday from home depot with my new ECB, im completly new in the art of smoking, after some research and reading ill start with the mods to the ECB, but if you can help me with the list of the essential mods and some links with the better options to do this ill really appreciate that.
    Planning to do some ribbs next saturday. Thx

  2. timberjet

    timberjet Master of the Pit

    I suggest you type ECB mods into the search bar at the top of the page. Happy reading. I started out with that smoker and don't miss it one bit. But that said I made some damn good grub on that baby. It is in the backyard now with flowers growing out of it. Don't expect to be able to set it and forget it. It will take constant attention  to make it perform no matter how many mods you do to it. First thing I did was put the legs on the outside of the unit. After reading some of the mods other people made you will understand why. Second thing was to drill more holes in the fire pan and add a grate for the ash to fall through. Third thing I did was to build a UDS and I have never looked back. It cost about the same to do that then it did to buy the ECB and all the modifications I did to it. I hope I don't offend anyone who has love for their little R2D2 smoker but I just figured I would let you know what you are in for.

    tayogs likes this.
  3. thinblueduke

    thinblueduke Meat Mopper

    0. Looks like you've already got the thermometer

    1. Holes in the charcoal pan and a few bricks or cinder blocks to set it on

    2. Grate for the charcoal pan

    3. Legs on the outside

    4. Vent holes in the top of the lid

    5. Rope or gasket around the rim of the lid

    6. Search bar

    7. Add your location to your profile

    Welcome and good luck!

    Last edited: Mar 15, 2015
    tayogs likes this.
  4. Welcome to a lifetime of disappointment! Just kidding, but in all seriousness, this thing will make a smoking champ with the amount of work it involves. This site is a good resource. Right off the bat I drilled holes in the firepan and mounted legs on the outside, also put a grill thermometer on the lid. I did a couple of practice smokes then did a beer can chicken, it was a major success. Next I removed legs and set it on the lava rock pan and installed a lid dampener, I'm using less charcoal now, but struggling to get temp to 225 for the slow cook. I did ribs today, which were pretty darn good I must say, lots of complements to the chef from the guests as well. Next I will install rope gasket, carriage bolts to suspend firepan and some dampener to the lava pan, all in do time. Do one mod at a time and learn what works for you. The minion method is where it's at for charcoal, and rial oak lump works great. Good luck! And keep us posted!

    tayogs likes this.
  5. bpinmi

    bpinmi Fire Starter

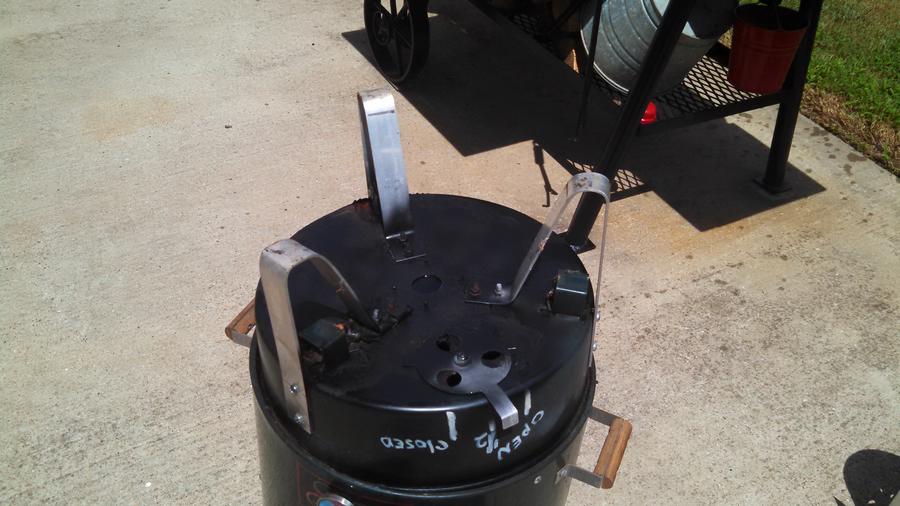

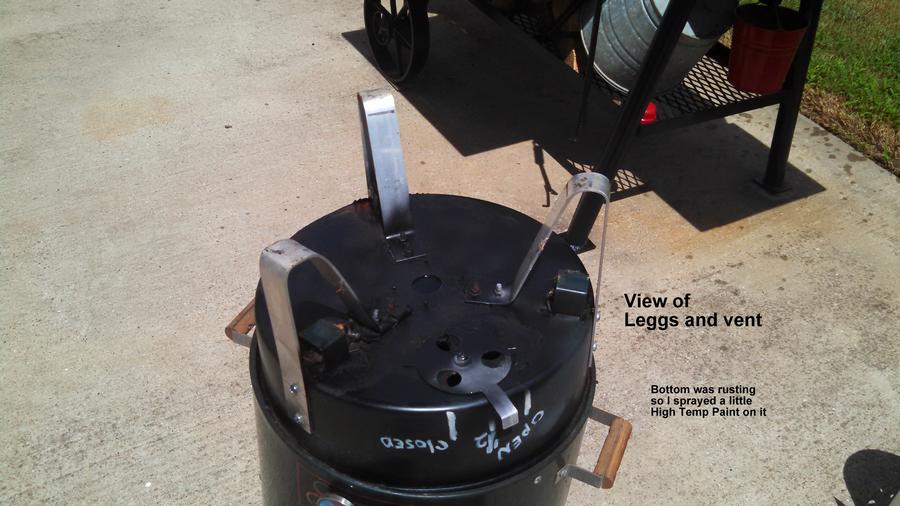

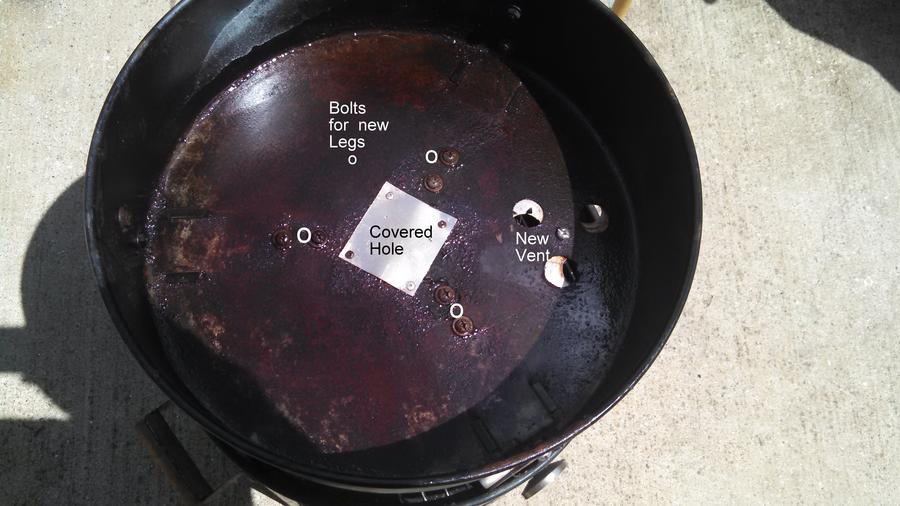

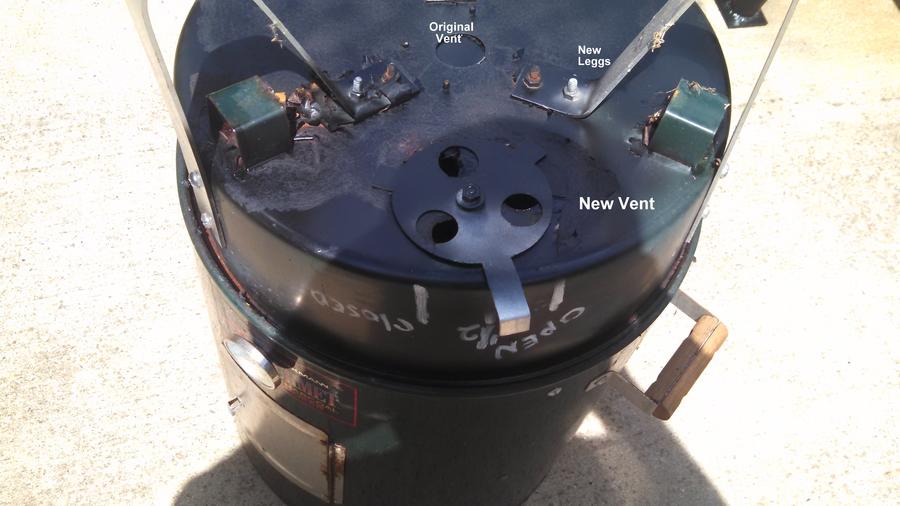

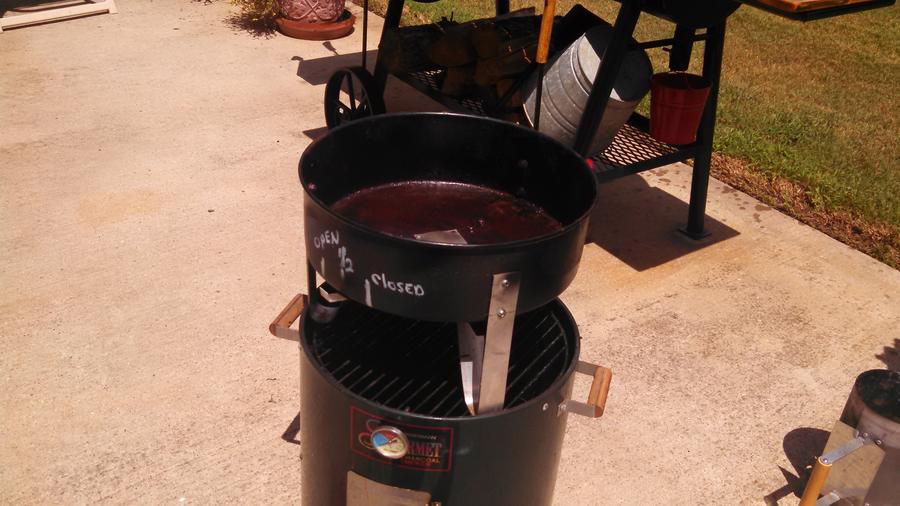

    Here's my thread from my ECB mods last year. I've since added some holes to the bottom of the charcoal pan. Other than that it's worked out great as I learn the ropes of smoking meat. Will probably stick with the ECB another year before upgrading to a new unit. One thing I haven't done yet is add rope around the base of the lid. Not having it hasn't affected anything much from what I can tell.

    http://www.smokingmeatforums.com/t/169807/ecb-mods-complte-with-pics

    tayogs likes this.
  6. Just start the assembly and mods of this ECB, but today i go to the beach with my familiy and make some ribeye in my portable Brikman grill, how do you think about remove the lid of the grill put the smoker on bricks and use this grill as charcoal pan, do you think it will work? The size of the grill is exactly the diameter of the smoker. Thx

  7. thinblueduke

    thinblueduke Meat Mopper

    If the portable grill has ventilation on the bottom, and the ECB fits smoothly over the top, I'd say that would work really well.  Many ECB owners have used a similar portable Weber to do the same thing.

  8. Yes it have the classic 4 hole ventilation with lid and fits in the ECB, i think i'll ty this in my first attempt with the ribs. Thx

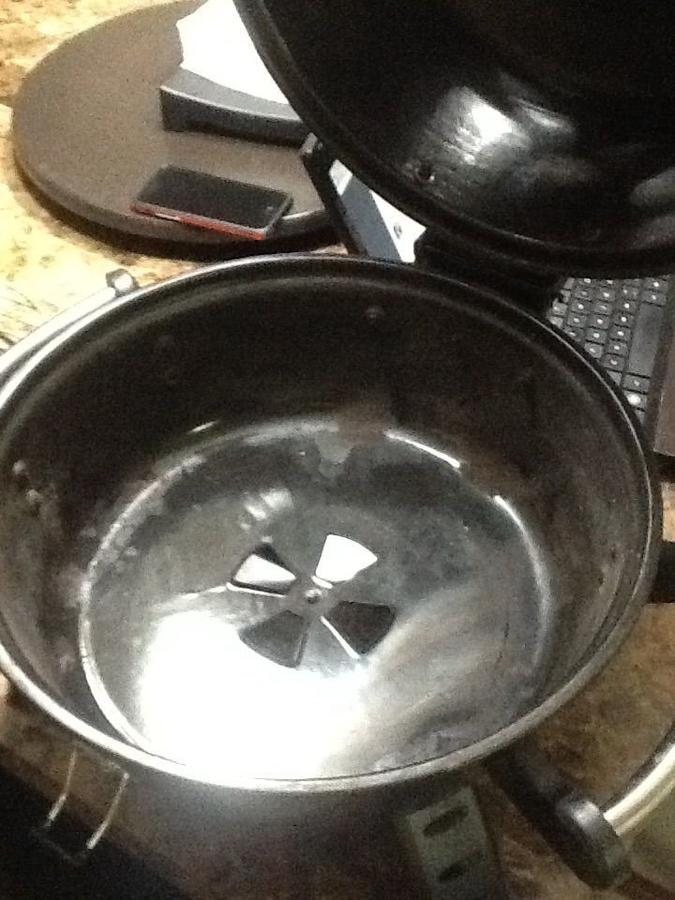

    And this is the way i use it when grilling

    Last edited: Mar 17, 2015
  9. thinblueduke

    thinblueduke Meat Mopper

    Looks good.  Make sure to post some Q-view (pictures) of your finished ribs.  Good luck and happy smokin'!

  10. thinblueduke

    thinblueduke Meat Mopper

    So does the portable grill have an upper grate, a lower grate, and a pan under the lower grate?  If so, I would remove the pan under the lower grate.  It should give you better control of the airflow.

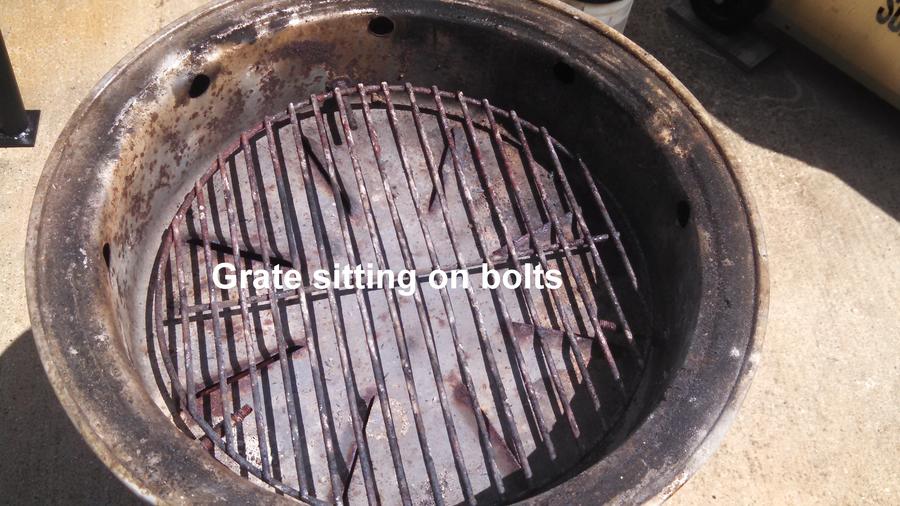

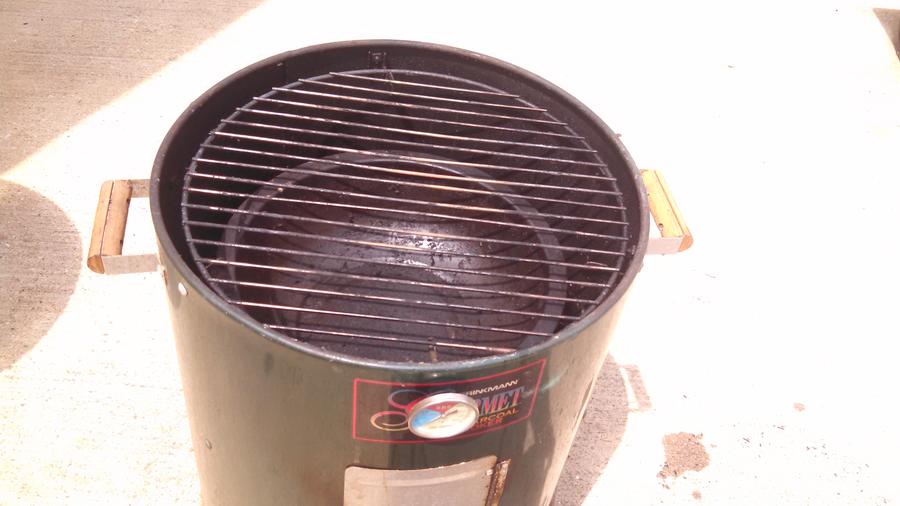

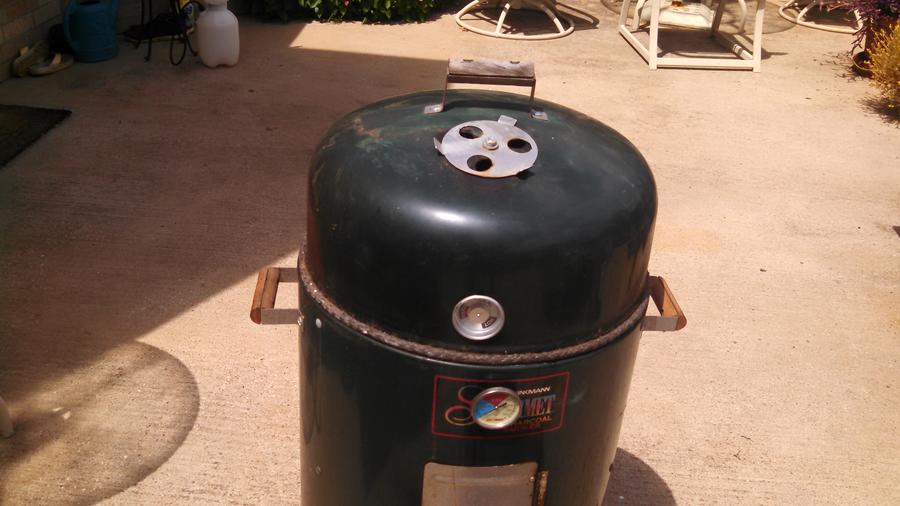

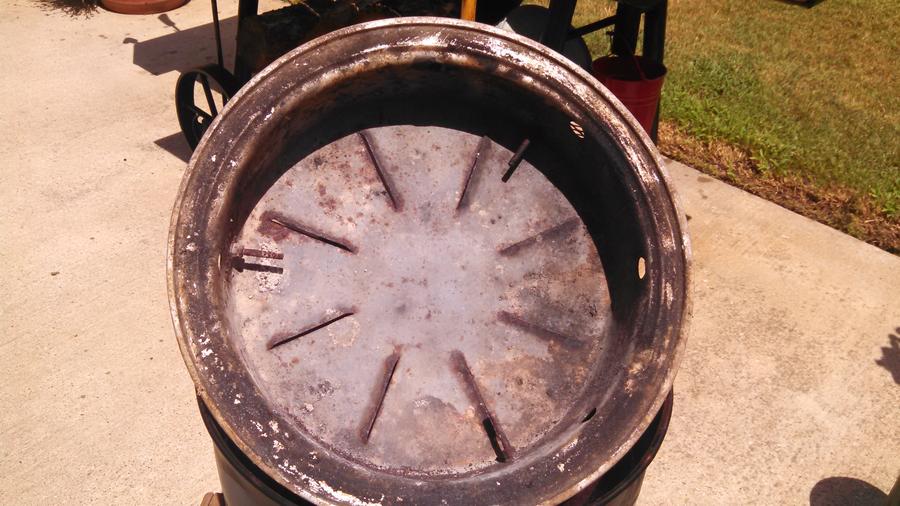

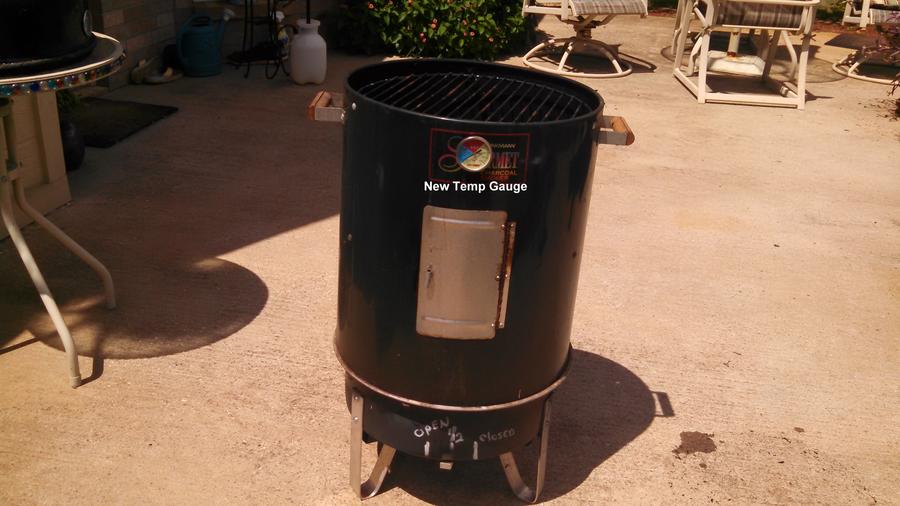

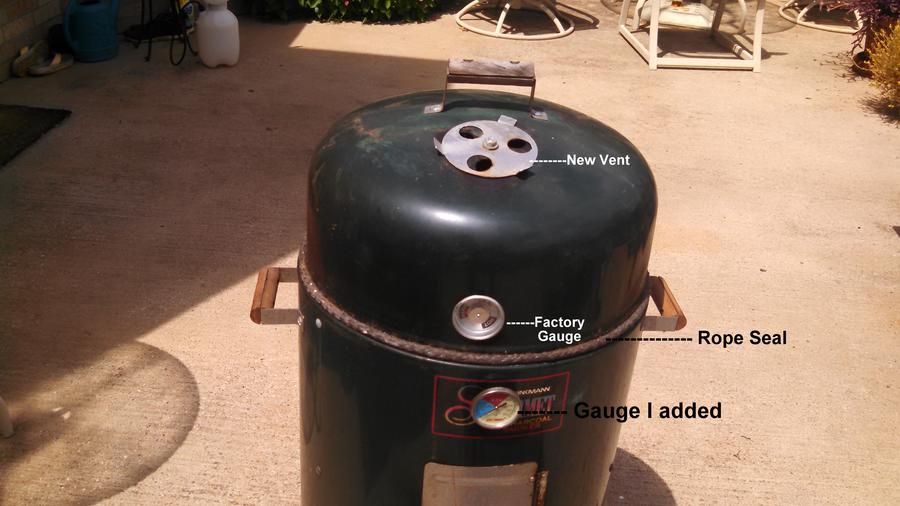

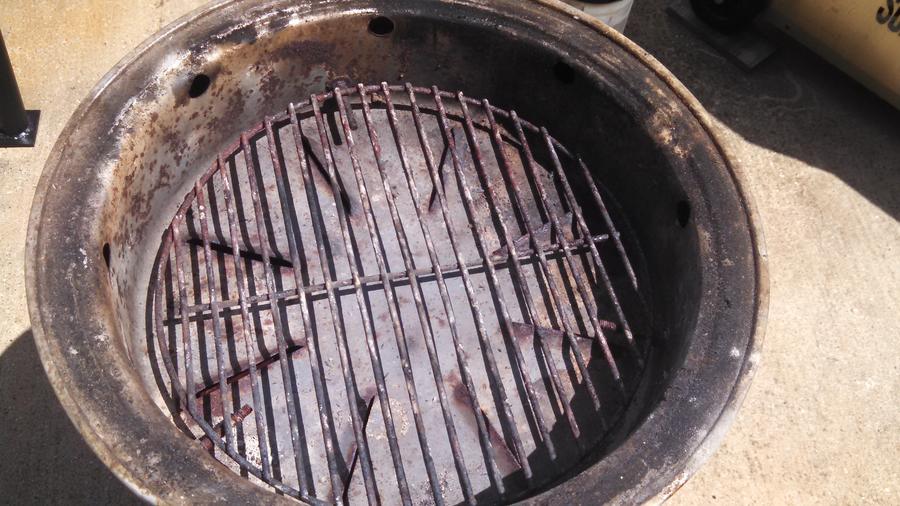

  11. Here you go    This is one I did


















    tayogs likes this.

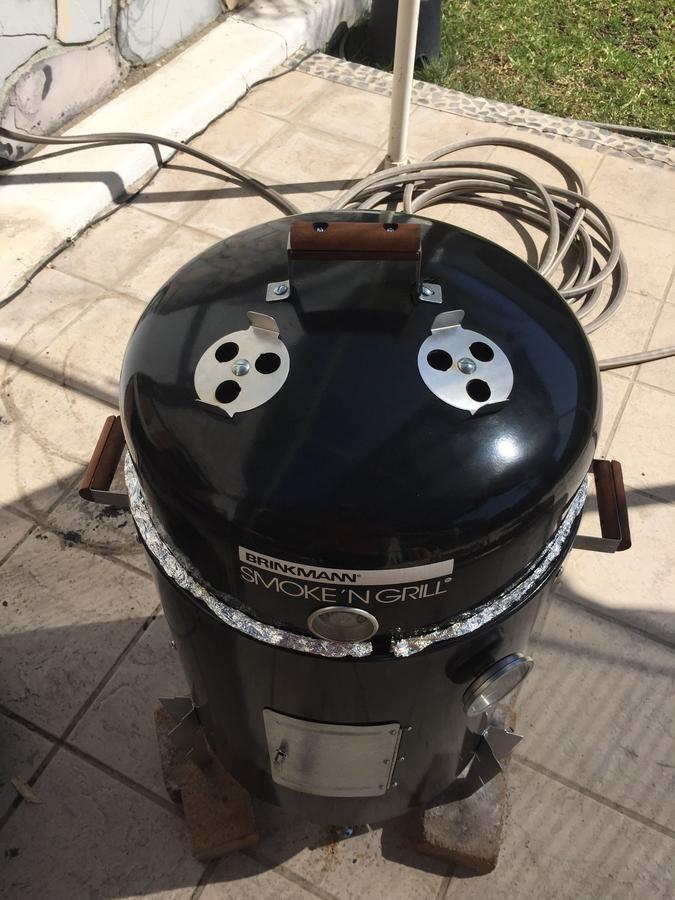

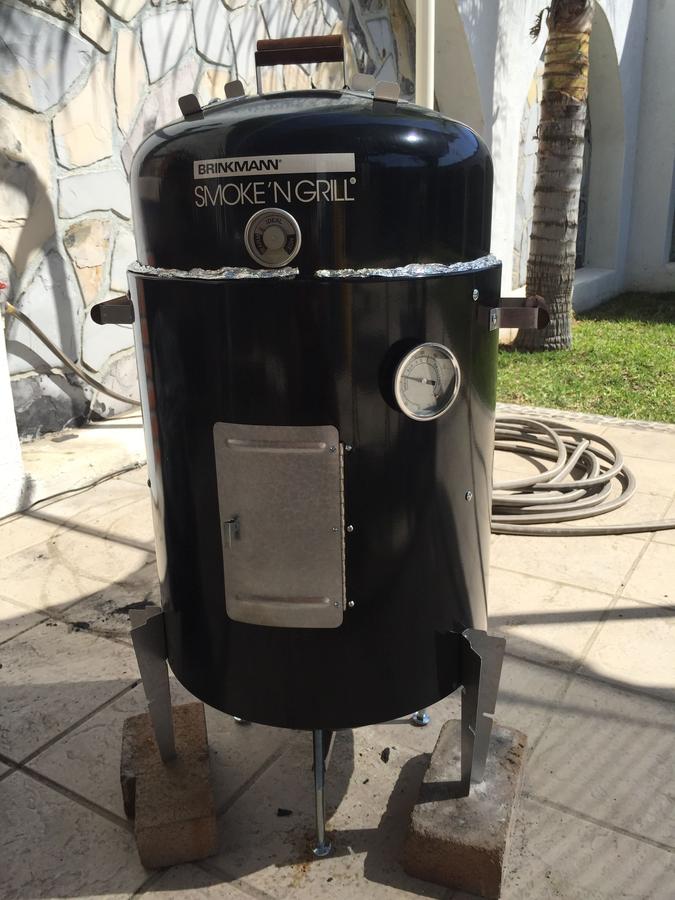

  12. Here is my ECB in it first smoking session

  13. And here is my first try of ribs, I think it was very good for a newbie my wife and kids liked it a lot



  14. I used the 3-2-1, pecan chips the first two hours, sprayed Apple juice each hour, some problems to keep the temperature al 220 all the time, some times 200 and after adding charcoal 250, after all that excellent taste, need a little more cook

    gary s likes this.
  15. Nice Job, They look good to me, Takes a smoke or two to get comfortable     [​IMG]

    Gary

  16. thinblueduke

    thinblueduke Meat Mopper

    Looks nice... thanks for the Q-view.  An occasional temp spike up to 250 is no big deal.

    Keep up the good work.

  17. bpinmi

    bpinmi Fire Starter

    Nice job on the ribs!

  18. Those ribs do look great, your figuring it out. I did ribs as my second cook, smoker hovered around 210 for an average over the entire smoke and they turned out great. I plan on rocking out this modified ecb for a couple years and then buying a weber smokey mountain. I hope by then smoking will be a walk in the park.
