New smoker build

backtroller

Fire Starter
30
10
Joined Feb 5, 2014
Hello from balmy -15 below zero South Dakota

I started my new smoker build this weekend, thanks to all of your plans and advise. Dimensions are 3x3x6 and will use 3/4" plywood on the exterior and interior walls. I have a few questions--I was planning on using 1 1/2" insulation board, will this be food safe and what kind of calking do you use to seal of the interior--I have had trouble finding a high temp/food approved calking. I will heat the smoker with the Northern Tool burner and smoke generated with the AMNPS. I will post some pictures soon---Thanks


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
BT, welcome.... Consider un-faced fiberglass insulation.... It has a much higher temp rating than foam, if that is the type of insulation board you are using....

:popcorn ..... I'm in.....


backtroller

Fire Starter
30
10
Joined Feb 5, 2014
Dave, Thanks for the advice--I kind of thought that maybe the case, any suggestions on the high temp/food grade calking


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
Any high temp silicone will work.... check the max temp on the tube... After curing and the first couple heats, there is no problem with the silicone.....

Dave


backtroller

Fire Starter
30
10
Joined Feb 5, 2014
getting close to completion, but need to find a longer probe thermometer, any suggestions. I have put ceramic tiles on the floor, would that be good enough or do I need to cover walls of the fire box also.  Thanks in advance. Have pictures just need to figure out how to post them


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
Place the burner on a non flammable surface and elevate it above the ceramic tile with an air gap.... wooden floors have been known to burn from heat transfer from the burner even with a non flammable material sitting directly on them... the material will transfer heat.....

Last edited:

backtroller

Fire Starter
30
10
Joined Feb 5, 2014

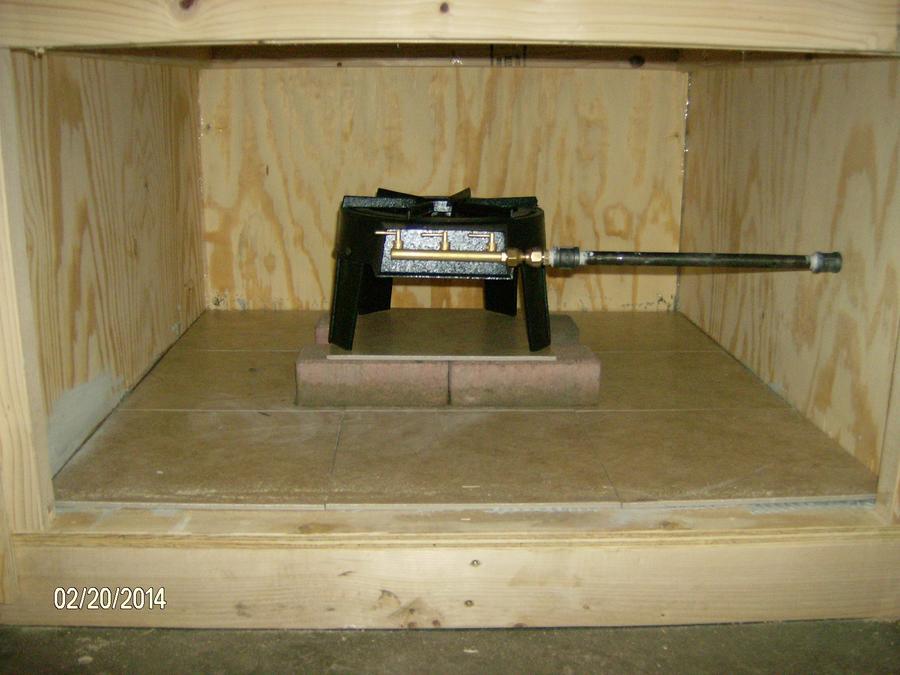

Dave, would  2 or 3" bricks work built in a square with the center open for an air gab


ndhunter

Fire Starter
41
10
Joined Jan 26, 2014
You have probly already insulated, but I thought Id throw my two cents in. Id use a spun mineral wool insulation such as roxul. I found a cheaper version and my local menards. Any spun mineral wool will work. Im currenly building a fridge smoker out of a 1950 International Harvester Fridge. Find it and check it our. Let me know what you think. Oh, and please post some pics of your smoker.


daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,630
3,114
Joined Nov 12, 2010
Dave, would  2 or 3" bricks work built in a square with the center open for an air gab

The burner or element or whatever heat source needs to be on a non flammable surface like a piece of steel or a ceramic tile or cement board..... and that surface needs to be elevated above the tile you have installed on the wood floor of the smoker... 1-2" air gap is all that is needed..... Folks have placed a heat source on cement board, as an example, and after several hours, the plywood floor was smoldering and burnt through from the continuous heat that was transmitted.... Somewhere on here is a picture of a smokehouse a member built and that picture is enlightening....

If someone knows the picture, if you would post it here, that would be awesome..... Dave


backtroller

Fire Starter
30
10
Joined Feb 5, 2014
Dave, I got it now---thanks again for the info, wouldn't want to burn down the new smoke house (money pit) going to be nervous enough with the first couple of burns

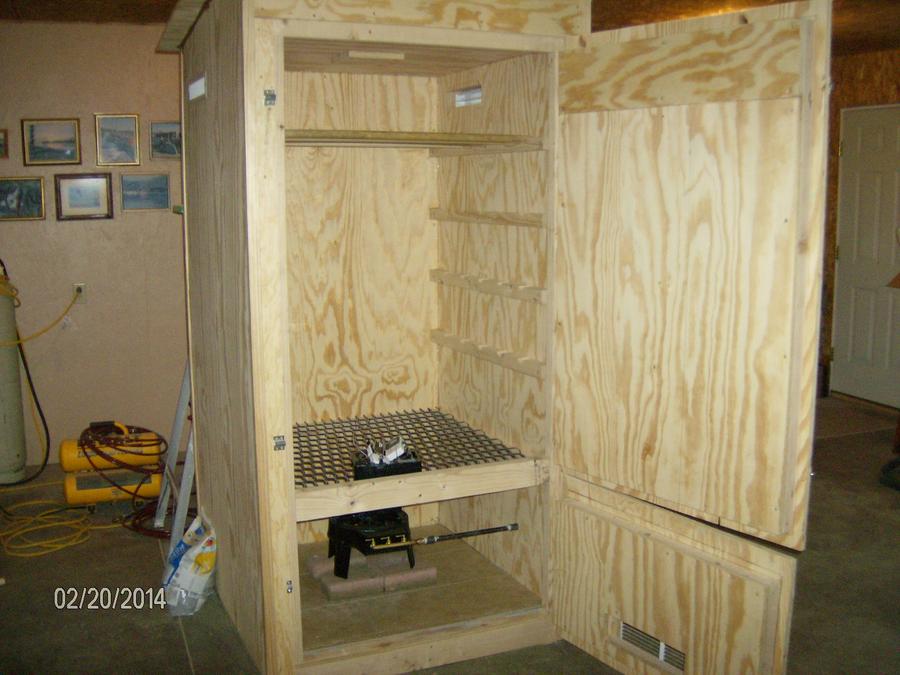

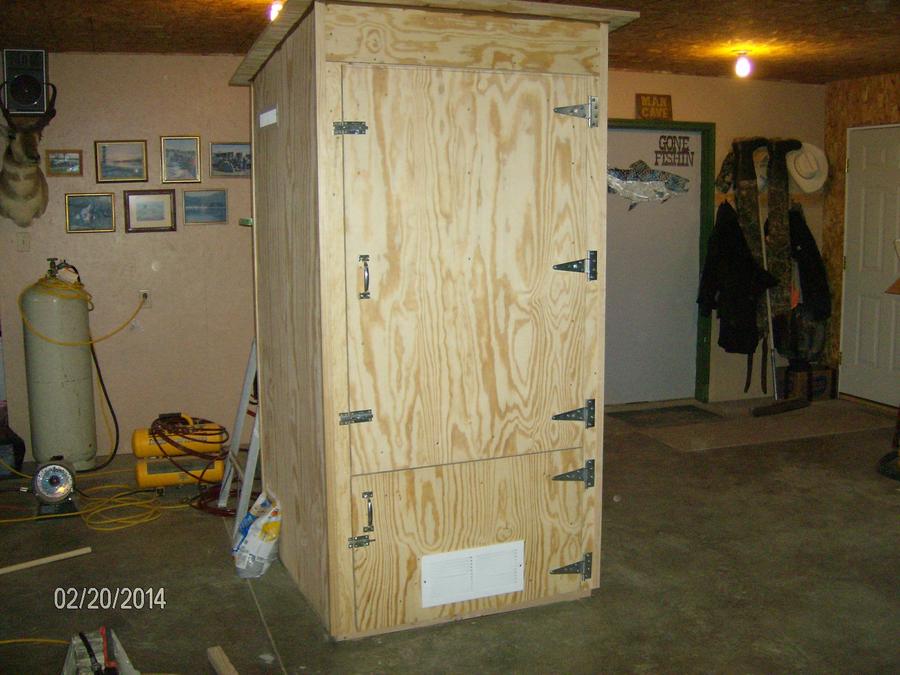

backtroller

Fire Starter
30
10
Joined Feb 5, 2014

bbryon

Newbie
23
10
Joined Feb 15, 2014
looks good. I built one real similar in size but am using electric heat. Not sure yet if my 1500watt element is going to cut the mustard.Takes one hour to reach 158 degrees. I don't know what it will do when it is loaded with cold meat.


ndhunter

Fire Starter
41
10
Joined Jan 26, 2014
A buddy had the same issue. He added a second heating element at the top of the unit. After that he never had an issue reaching temps.


backtroller

Fire Starter
30
10
Joined Feb 5, 2014
Thanks for the comments. With the Northern Burner I can get it up to 160 in about 15 minutes on med setting. Going to try and move it out of garage tonight--going to take some BL and muscle. I will post some pics when I get the smoke roll'n


emon1

Newbie
8
10
Joined Mar 15, 2014
looking  nice .can you share how much is cost for build it??

Last edited:

backtroller

Fire Starter
30
10
Joined Feb 5, 2014
I haven't totaled it up yet, but will be close to $800.00 after I had three grates built---about 200.00 over budget, but it sure is nice to put 30 3# SS sticks in at one time


backtroller

Fire Starter
30
10
Joined Feb 5, 2014
I suppose it would be less if you can buy the lumber from one of the big name outlets, but have to buy it here from local lumber yard and they are quite a bit higher. It takes a lot of lumber when you use 3/4" plywood inside and out, ceramic tile in the burn chamber and insulation not to mention the racks, burner, AMNPS, gas fittings and needle valve. When you get it full of meat candy it's worth it IMO
