Masterbuilt 40" electric smoker control panel replacement

Firemedic911

Newbie
6
0
Joined Nov 21, 2020

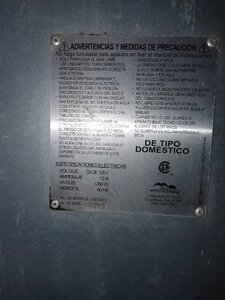

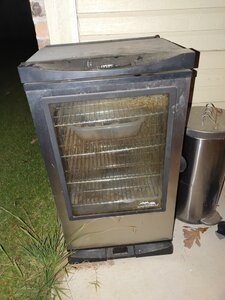

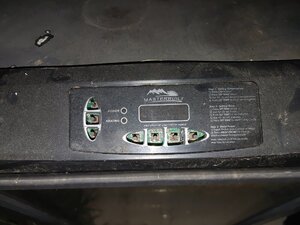

I have a Masterbuilt 40" electric smoker (model# 20072612). I restored it from father in laws backyard. I gave it some attention (replaced the element and a few cosmetics) and was able to smoke a rack of ribs on it. After that, the control panel quit working. It was missing the button covers already (see pics). I have tried to find a replacement for the control panel and have struck out all together. Not sure if masterbuilt is just not making it anymore amd if that means this smoker i have is obselete. Im really hoping not. Do any of you smoking veterams have Amy suggestions or advice? Im willing to pay for one if I can find one. Would like to get back to smoking some stuff soon.


Attachments

smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
4,550
1,899
Joined Jan 14, 2014
Sounds like a great time to switch to a pid, check out tallbm's post on them


Braz

Master of the Pit
SMF Premier Member
1,252
701
Joined Jun 25, 2017
Sounds like a great time to switch to a pid, check out tallbm's post on them
What he said. $150 or so for an Auber PID controller and a simple rewiring job and you will have a smoker better than the original ever was.


MJB05615

Master of the Pit
1,904
802
Joined May 12, 2018
Exactly. I switched last year and haven't looked back. Made it into an entirely better smoker. Upped my smoking game tremendously.


Firemedic911

Newbie
6
0
Joined Nov 21, 2020
Awesome. Thanks guys. I found tallbm's post you were referring to. Im definitely going to be picking me up one of those!


AdamHu

Newbie
3
0
Joined Dec 29, 2020
I had some problems with the electric smoker, when I turned it on I just couldn't control it, like for real


Firemedic911

Newbie
6
0
Joined Nov 21, 2020
I had some problems with the electric smoker, when I turned it on I just couldn't control it, like for real
I have since solved my problem thanks to tallbm tallbm on here. He has been a life saver. Get you an Auber PID. Problem solved. Tallbm has a rewire guide that is step by step easy and makes your smoker better anyway. Do it man.


tallbm

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,006
2,050
Joined Dec 30, 2016
Can you link that guide?
Hi there and welcome!

Here you go:

Long story short. The simple rewire makes the MES so that the cord directly feeds power to the heating element completely UNCONTROLLED.
You then plug the MES plug into something like an Auber PID controller. You plug the PID into the wall and throw the temp probe into the smoker.
You set the temp in the PID controller and the PID will feed power on/off to the MES to hit the set temp and hold the temp.

When you step back and look at it, it's simple but just has some areas to understand first to then become simple :)
