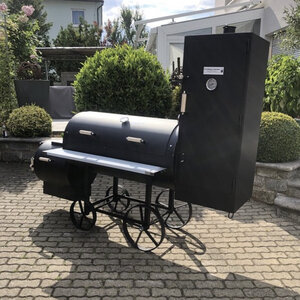

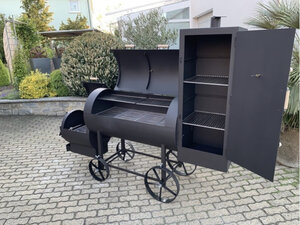

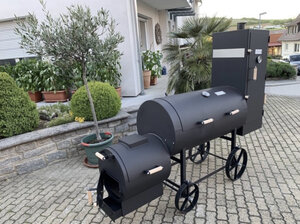

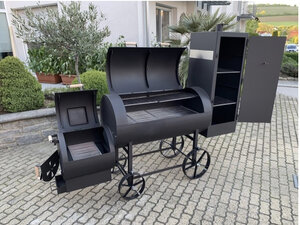

This smoker is new and has never been used. This smoker with smoking cabinet includes a door with a ventilation slide for the fire box, an ash box and a hotplate on the SFB as standard.
Highlights:
- Large grill area 600 x 12.00 mm corresponds to approx. 24 "smoker
- Ash box under the fire box
- Doors with ventilation slides
- 2 x M8 screws on the oven lid for cable entry
- Prepared for the 2nd grill level, grill racks can be purchased later.
Smokehouse:
- Ventilation slide between smoke tower and smoker
- Rods to hang up e.g. fish or ham
- every 200 mm grid for stainless steel grids
Technical specifications:
Dimensions: length 2,180 mm, width 700 mm, height 1,850 mm
Weight: approx. 310 kg
Sheet thickness: 5 mm material thickness
Grill grate: stainless steel D = 5 - 8 m, 4 parts (1 piece 295 x 580 mm)
Grilling area: 590 mm x 1,190 mm
Smoker cabinet dimensions: 490 x 490 x 1250 mm
2 x cooking grids 480 x 470 mm, grid 200 mm, 2 bars on top,
Flue gas thermometer, flap flue pipe
Fire box: D = 500 mm x 500 mm, with fire grate and door with ventilation slide
Ash pan: 250 mm x 450 mm x 95 mm, t = 4 mm
Thermometer: 0 - 500 ° C
Painting: heat-resistant up to 600 ° C
Handles: round wood beech
Chimney: pipe D = 88.9 mm x 650 mm, with flap flue pipe
Wheels: steel wheels 2 x D = 300 mm and 2 x D = 400 mm
Fat Drainer: Galvanized
Highlights:
- Large grill area 600 x 12.00 mm corresponds to approx. 24 "smoker
- Ash box under the fire box
- Doors with ventilation slides
- 2 x M8 screws on the oven lid for cable entry
- Prepared for the 2nd grill level, grill racks can be purchased later.
Smokehouse:
- Ventilation slide between smoke tower and smoker
- Rods to hang up e.g. fish or ham
- every 200 mm grid for stainless steel grids
Technical specifications:
Dimensions: length 2,180 mm, width 700 mm, height 1,850 mm
Weight: approx. 310 kg
Sheet thickness: 5 mm material thickness
Grill grate: stainless steel D = 5 - 8 m, 4 parts (1 piece 295 x 580 mm)
Grilling area: 590 mm x 1,190 mm
Smoker cabinet dimensions: 490 x 490 x 1250 mm
2 x cooking grids 480 x 470 mm, grid 200 mm, 2 bars on top,
Flue gas thermometer, flap flue pipe
Fire box: D = 500 mm x 500 mm, with fire grate and door with ventilation slide
Ash pan: 250 mm x 450 mm x 95 mm, t = 4 mm
Thermometer: 0 - 500 ° C
Painting: heat-resistant up to 600 ° C
Handles: round wood beech
Chimney: pipe D = 88.9 mm x 650 mm, with flap flue pipe
Wheels: steel wheels 2 x D = 300 mm and 2 x D = 400 mm
Fat Drainer: Galvanized
