FB/CC advice

NASJ

Newbie
5
4
Joined Aug 31, 2020
Hi all,
Sorry for the repeated question regarding FB/CC configuration but I've hit a bit of a wall and hoping someone can shine a light on what to do next.

My questions are :
1. Does it matter that the FB/CC opening is significantly larger than the opening at the opposite end of the CC?

2. Does it matter that the FB/CC opening is significantly larger than what is suggested by the calculator?

3. Should the FB be the same width as the RF plate that divides the CC? Or are the two independent of the other?

Thanks in advance

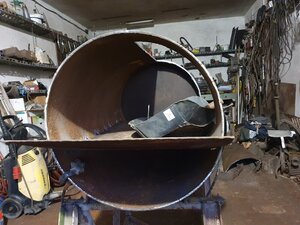

I've put together the CC, RF plate and have created the following....
*Note : there is a slight slope from the entry to the CC to the RF plate which is the difference in sq. inch area below*


CC : 20" x 40" @ 5/16 steel

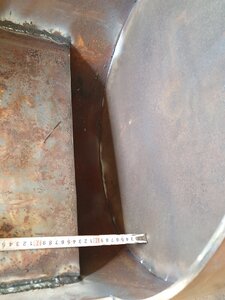

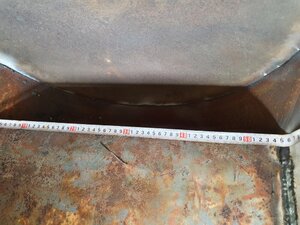

Opening from FB to CC : 158sq. in. (A - B = 22.6in & CC radius = 11.5in)
Sector area under RF Plate : 118 sq. in. (A - B = 21.6in & CC radius = 11.5in)
Opening at opposite end to FB : 21.6in x 5.3in = 114 sq. in

The Calculator suggests for the :
FB/CC opening to be 72sq.in ( possibly increased by ~20/30% being square)


Attachments

Last edited:

Winterrider

Master of the Pit
OTBS Member
SMF Premier Member
2,917
1,461
Joined Sep 29, 2018
I'm sure daveomak daveomak will be able to assist you soon. Still 4:30 Am in his neck of the woods.


flatbroke

Master of the Pit
OTBS Member
★ Lifetime Premier ★
2,223
1,979
Joined Sep 16, 2007
I wish i could help but cant, im along for the ride as i too want to build a smoker someday


flatbroke

Master of the Pit
OTBS Member
★ Lifetime Premier ★
2,223
1,979
Joined Sep 16, 2007
PS, Welcome to SMF and im glad you got away from all those poisonous snakes and spiders.


NASJ

Newbie
5
4
Joined Aug 31, 2020

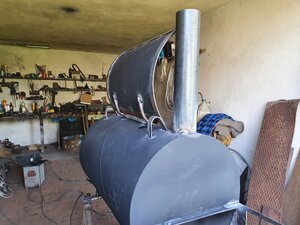

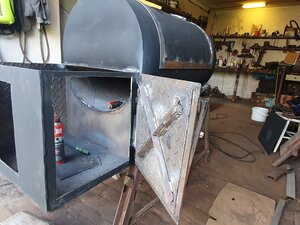

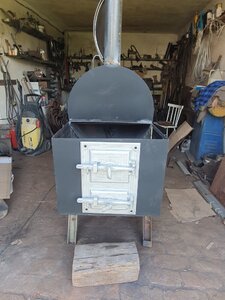

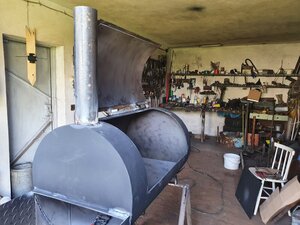

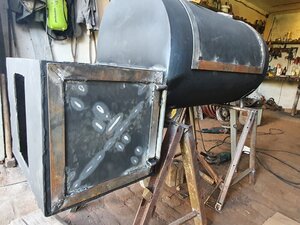

Progress from a few weeks ago. Main door on, one of three doors on the fire box and the chimmny is standing! Next is to fit the silver door and fashion a door that gives access to a conventional grill at the top of the firebox. Coming together slowly...lets hope it works when its finally finished
