DaWeber Lowboy project

bluewhisper

Master of the Pit
OTBS Member
3,587
454
Joined Apr 1, 2014
Here's a project I've had in mind since I rescued this 1990 (date code M on the top vent) 22-inch Weber kettle. I wanted to set up a short version, to be at a convenient height for people sitting in chairs. I'll keep the original legs.

First, since the front leg had no tip on it, I got a 1-inch crutch tip for it. I wanted this because my previous kettle (code C) had a failing weld on the front leg socket, because the leg would bang on the pavement when I moved it.

So I assumed that 1-inch steel "EMT" conduit would fit the kettle leg sockets. It was too big, so that conduit went to a clothes hanging rod project for the basement.

Then I got some 3/4-inch conduit, and cut off three 11-inch sections. For some reason, I just love to play with tube cutters. It's similar to a C clamp, with a set of rollers facing a sharp cutting wheel.



round and round we go



I polished/washed the conduit with soapy steel wool, then painted the legs with dark gray gloss enamel. I used the Weber and the Masterbuilt as hanging points for beaded chain to hold the legs.



Then I got some aluminum foil tape, as is used on furnaces and duct work, to bring the conduit up to a diameter that would easily slip in and out of the sockets, but be snug enough that I could carry the kettle without the legs falling out. Back to the medical supply place to get some 3/4-inch crutch tips.

I have almost the entire roll of that tape left, so maybe I'll toy around with trying to seal the offset with it.



And here we are. The rim comes to 21 inches off the ground. (Stock height is 29 inches.) It happens to be almost exactly the same height as this patio fire table. When I sit in a chair, the kettle is the same height as an end table would be to a sofa.



Twelve hours after this pic was taken, we got an inch of snow.


bdskelly

Smoking Guru
OTBS Member
★ Lifetime Premier ★
5,741
1,674
Joined Feb 3, 2013
Great idea. Just the right height for a hotdog roast or s’mores with the grandkids. Like!


gmc2003

Epic Pitmaster
OTBS Member
11,752
6,600
Joined Sep 15, 2012
Nice modification. We got about an inch or so of sugar snow yesterday.

Chris


hillbillyrkstr

Master of the Pit
OTBS Member
Group Lead
2,610
789
Joined Jun 11, 2013
The rest of the world sees something like this and they call us lazy. But Americans see this and one word comes to mind... genius! Why get up to tend to the grill? It makes no sense. It makes me angry I’ve been doing it for all these years!

Fine job!

As for the snow the Great Lakes State got some yesterday to. About an inch by me. A lot more up north. Friends packed up after work and raced up so they could get on the sleds one more time this year.

Scott


motocrash

Master of the Pit
OTBS Member
4,018
1,858
Joined Aug 25, 2017
Nice.Now you need an office chair with larger casters for grass:D
I'll have to post a pic of my "side table" that hooks on to a 22 and holds a SJ.


bluewhisper

Master of the Pit
OTBS Member
Thread starter
3,587
454
Joined Apr 1, 2014
Yes I want some kind of side table. I can see pictures of a curved wire condiment shelf/rack but apparently Weber doesn't sell it anymore.


chopsaw

Epic Pitmaster
OTBS Member
★ Lifetime Premier ★
11,543
8,215
Joined Dec 14, 2013
Yes I want some kind of side table. I can see pictures of a curved wire condiment shelf/rack but apparently Weber doesn't sell it anymore.
I have one , but have the bracket .


motocrash

Master of the Pit
OTBS Member
4,018
1,858
Joined Aug 25, 2017
I made this in the mid 90s. It folds when not in use. I don't presently have a Smoky Joe to drop in for pics. The surface is 16x27. The SJ drops in and is held by it's rolled lips. My vintage Weber hinged CI grate can be seen also.
BW,sorry for the highjack.I should have started a thread.:oops:


SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
48,955
9,115
Joined Jun 22, 2009
Very cool idea!
Al


chopsaw

Epic Pitmaster
OTBS Member
★ Lifetime Premier ★
11,543
8,215
Joined Dec 14, 2013

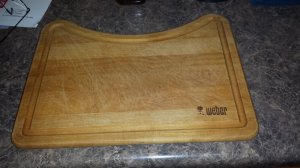

Original Weber cutting board / side shelf for a 22.5 inch kettle . I bought it in the early 80's . Had a bracket that attached to the kettle , but the board was removable . I don't have the bracket anymore .


motocrash

Master of the Pit
OTBS Member
4,018
1,858
Joined Aug 25, 2017
Original Weber cutting board / side shelf for a 22.5 inch kettle . I bought it in the early 80's . Had a bracket that attached to the kettle , but the board was removable . I don't have the bracket anymore .
View attachment 359905
I had one of those,it's what gave me the idea for my side table/burner.As I recall,the part the board fit into was chromed steel and the "kickstand leg" was aluminum.


chopsaw

Epic Pitmaster
OTBS Member
★ Lifetime Premier ★
11,543
8,215
Joined Dec 14, 2013
I had one of those,it's what gave me the idea for my side table/burner.As I recall,the part the board fit into was chromed steel and the "kickstand leg" was aluminum.

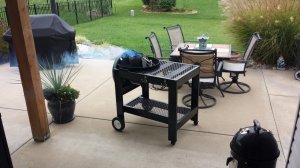

I believe mine was all chrome rod . I never trusted it to hold weight . The support leg always slid down . Here's a cart I made for an old kettle I had .


motocrash

Master of the Pit
OTBS Member
4,018
1,858
Joined Aug 25, 2017
Nice.I like the TBS rockin' too!:D
