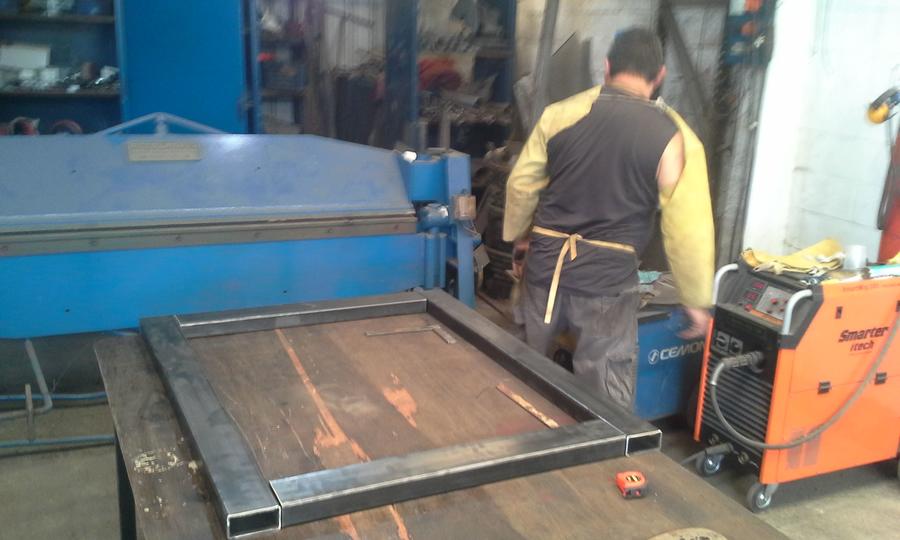

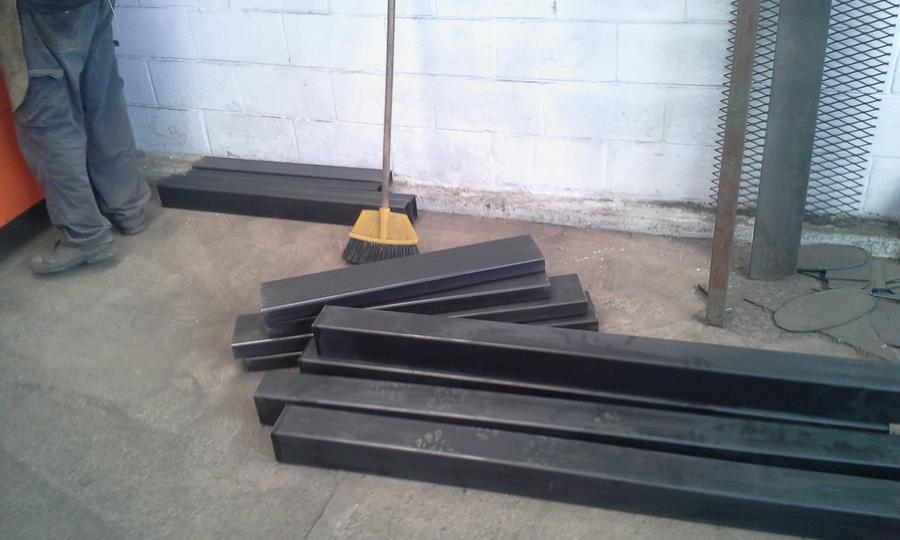

I started another commercial smoker build today.  The client wants one where he can cook once a week and sell it from his roach coach.

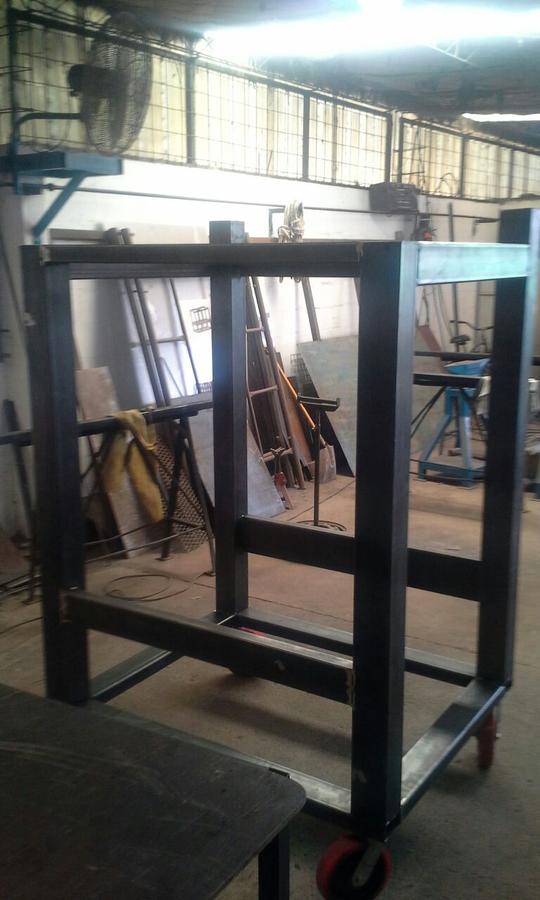

1200mm wide x 1000 deep x 1500 high + the casters.

By the time I got my act together we started at 11:30am and stopped at 5pm for beers as it was 32c today.

Starting at 6 am tomorrow to beat the heat, so should progress fast this week.


• ahumadora
• Jan 18, 2016


• ahumadora
• Jan 18, 2016


• ahumadora
• Jan 18, 2016


• ahumadora
• Jan 18, 2016


• ahumadora
• Jan 18, 2016


• ahumadora
• Jan 18, 2016



[SmokinAl]

I'll be following this!

Al



[ahumadora]


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016


• ahumadora
• Jan 19, 2016

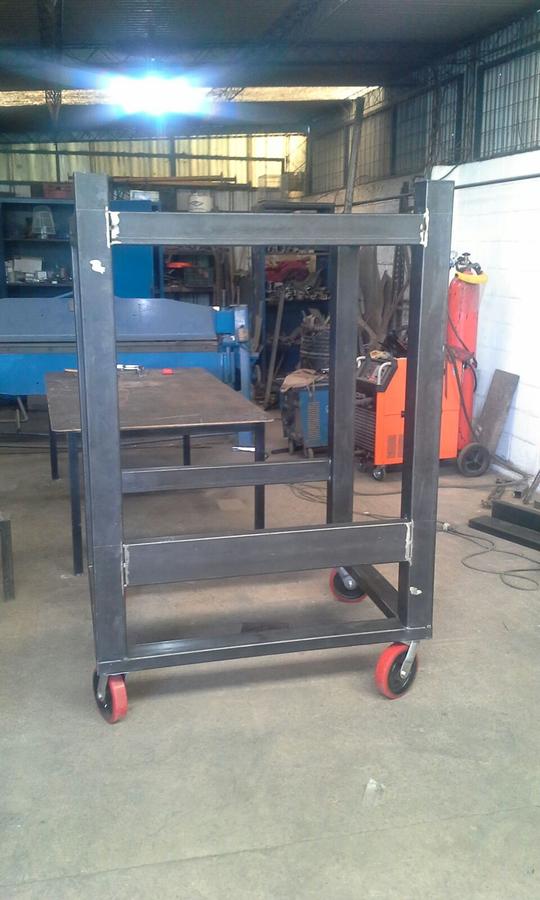

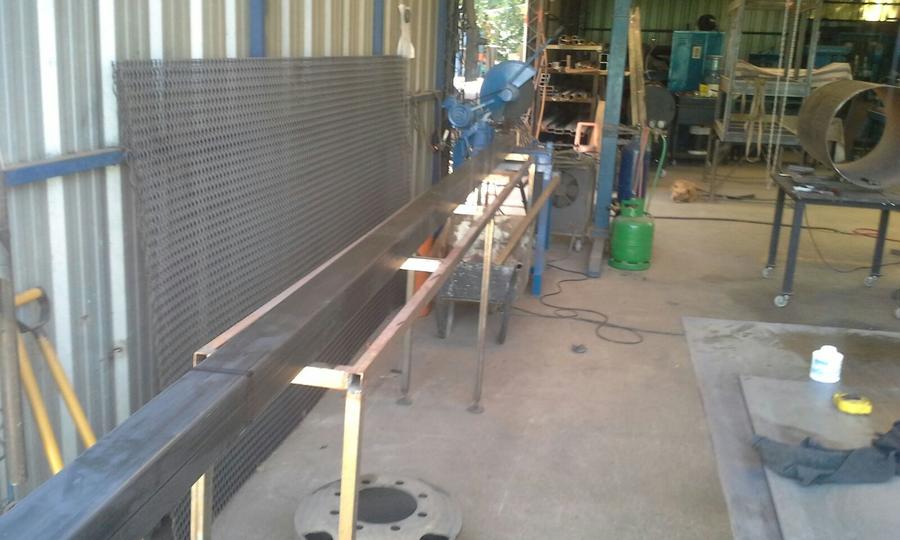

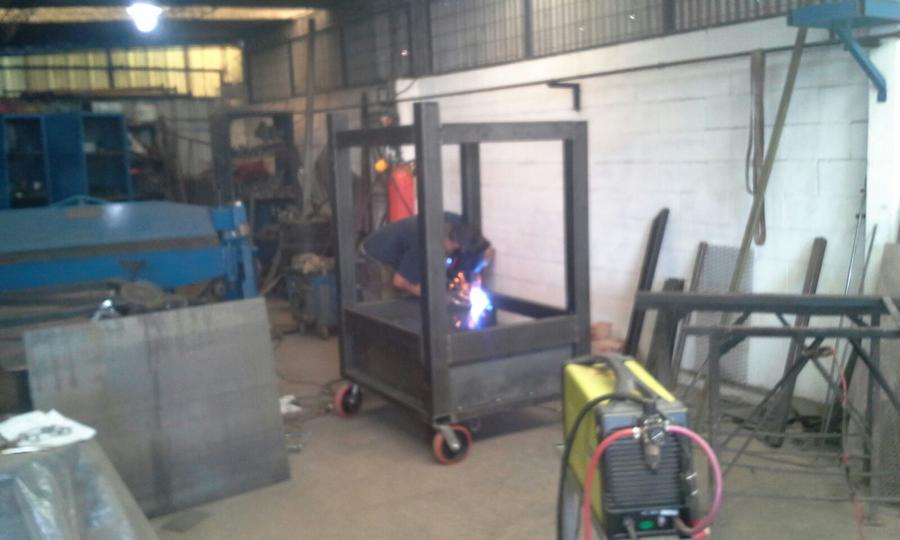

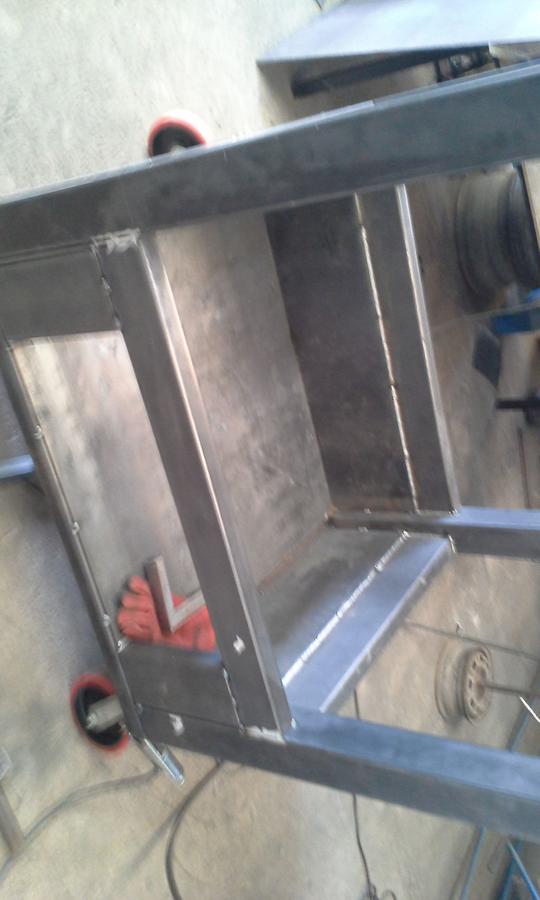

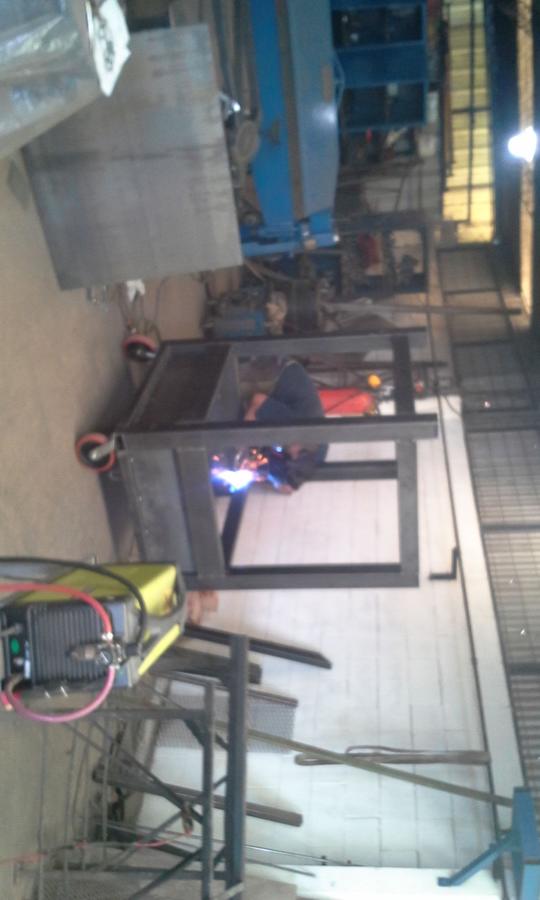

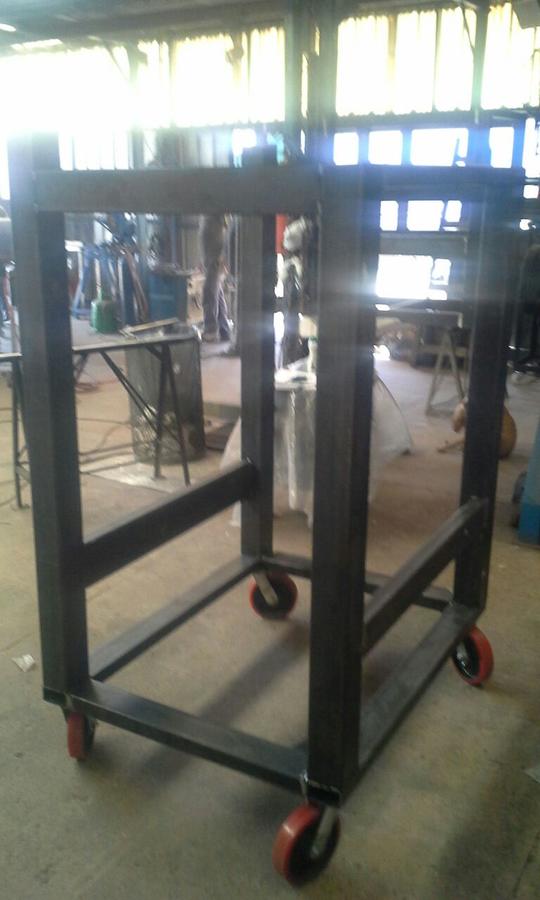

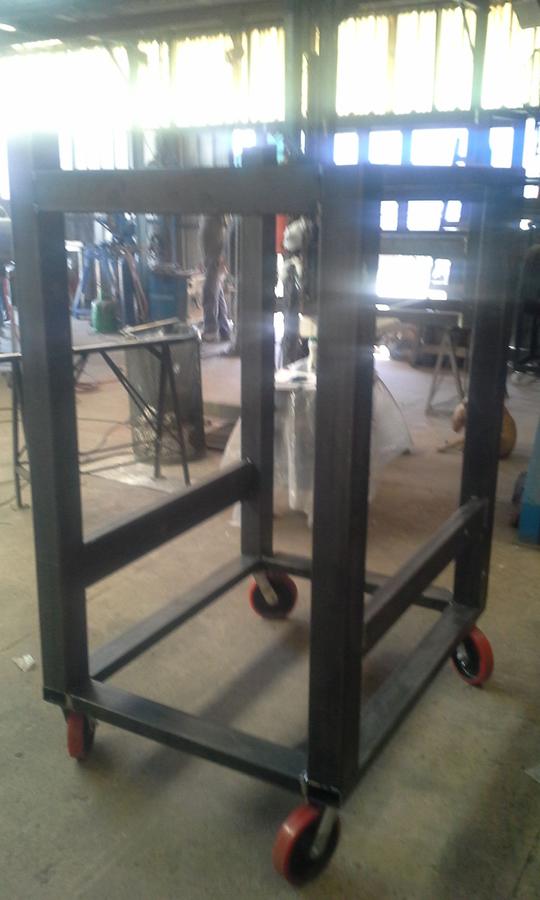

Damm hot   30c welding in the shop today   I spent the morning on the plasma cutter cutting the 1/4" plate     Gettin it done!



[ahumadora]


• ahumadora
• Jan 20, 2016

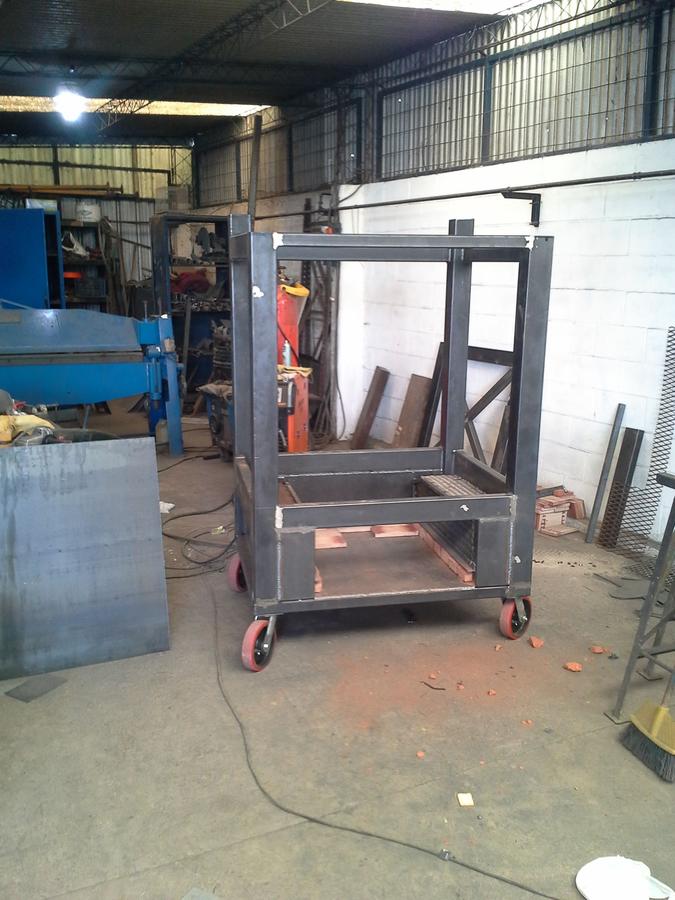

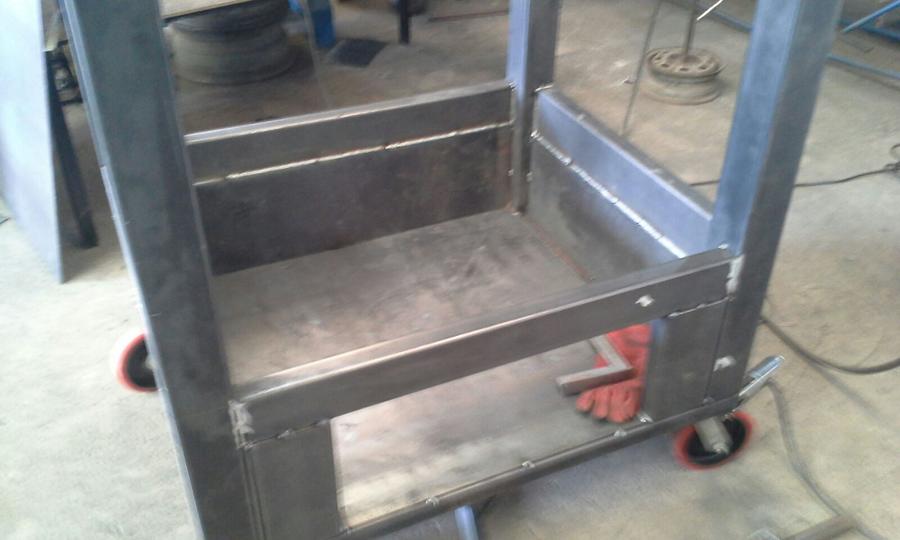

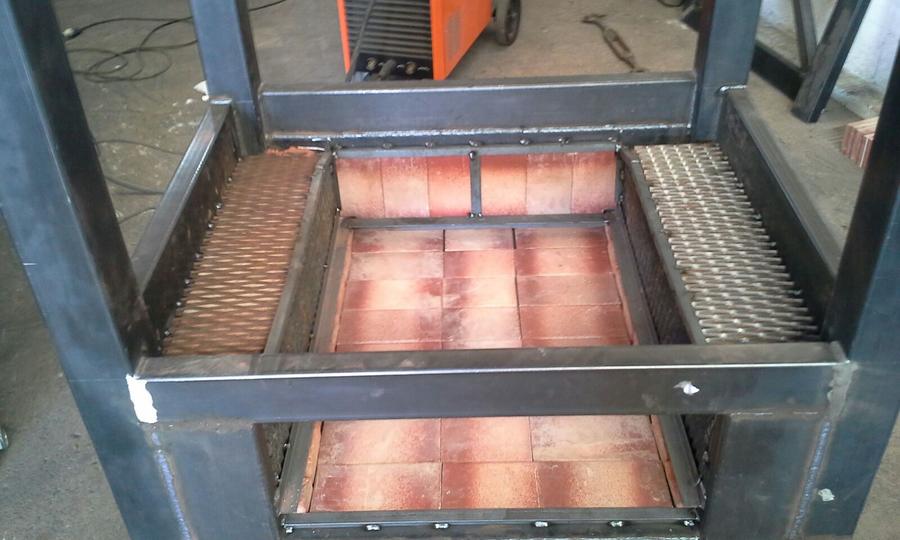

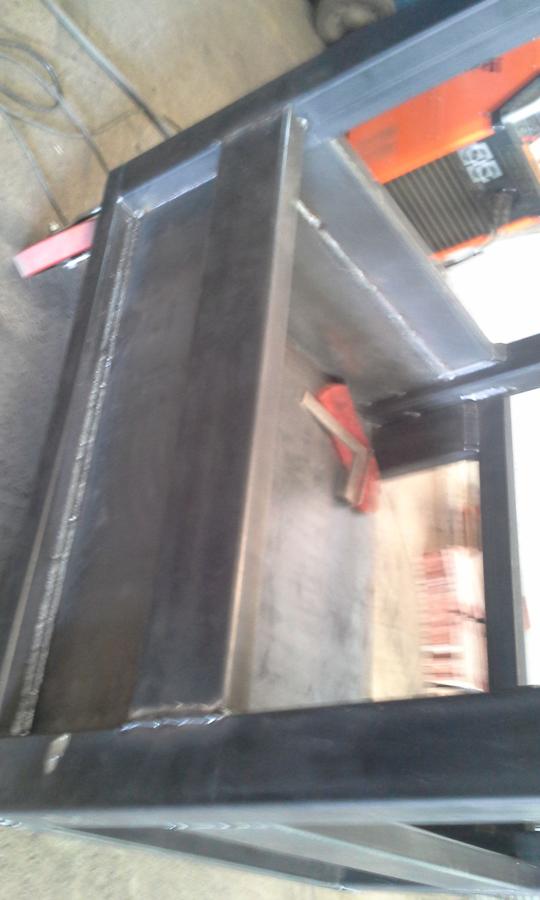

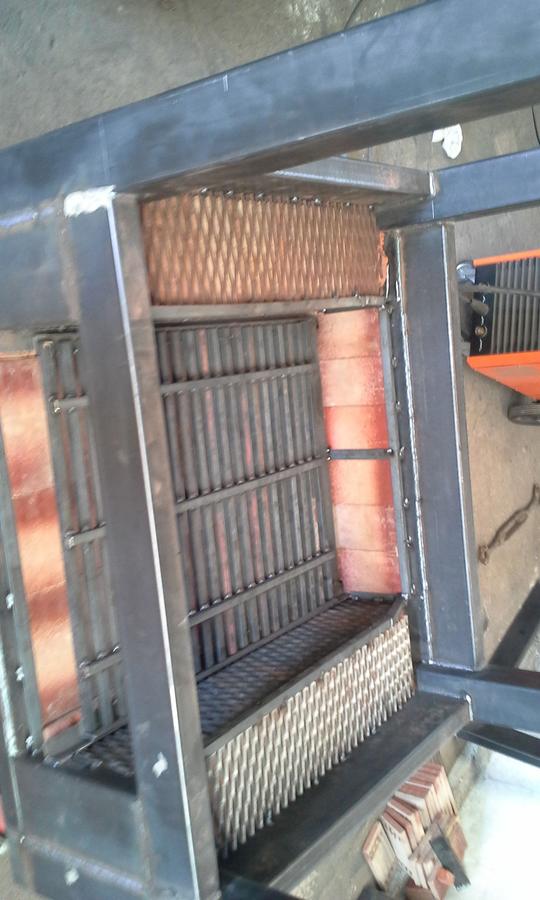

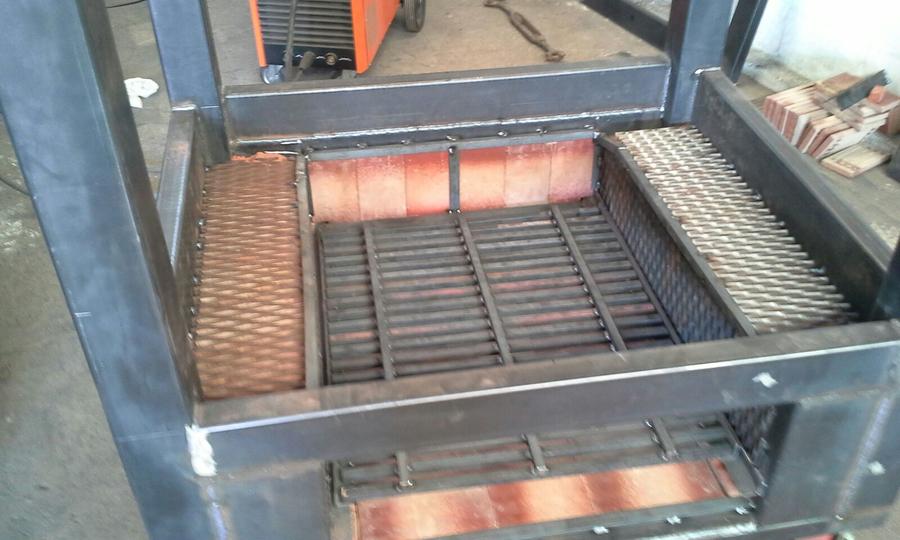

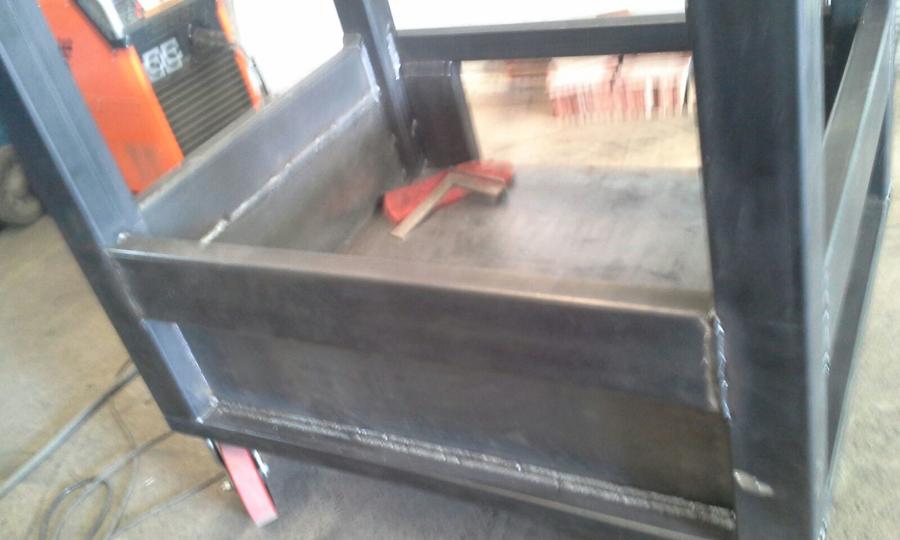

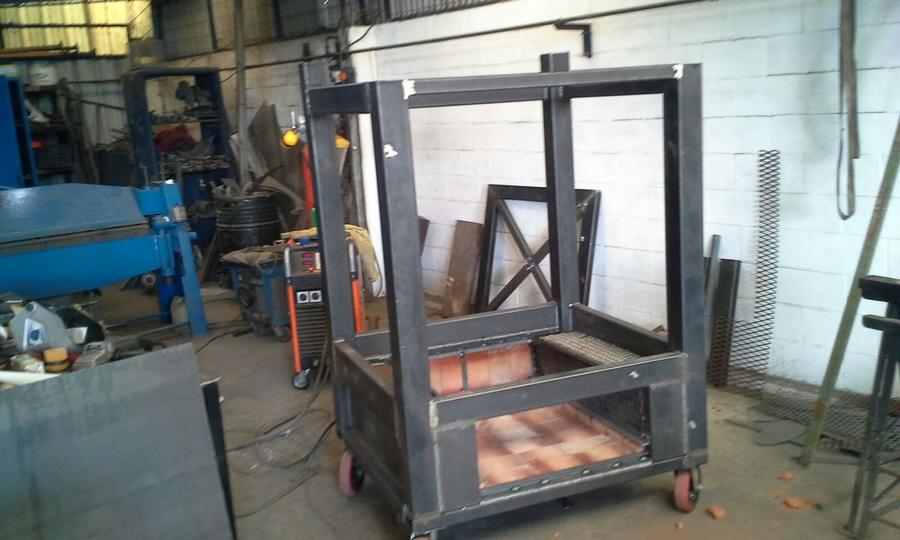

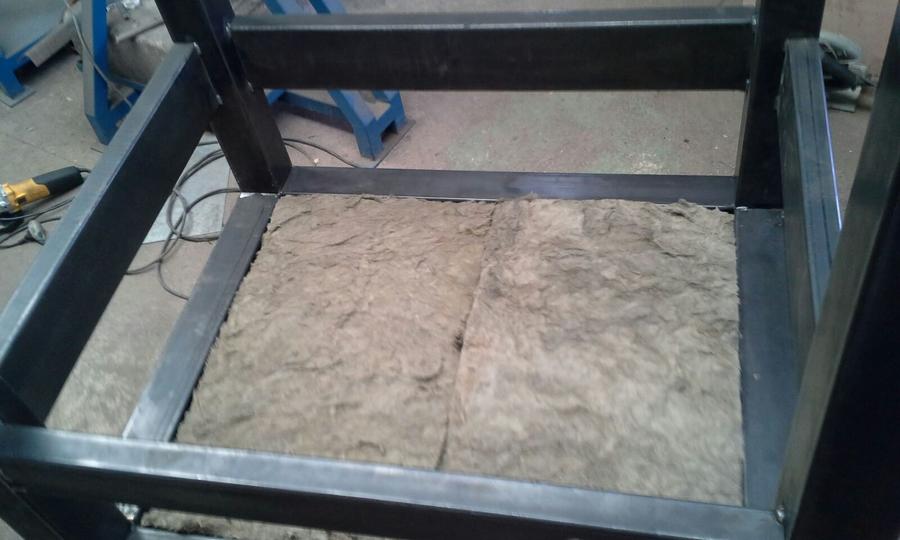

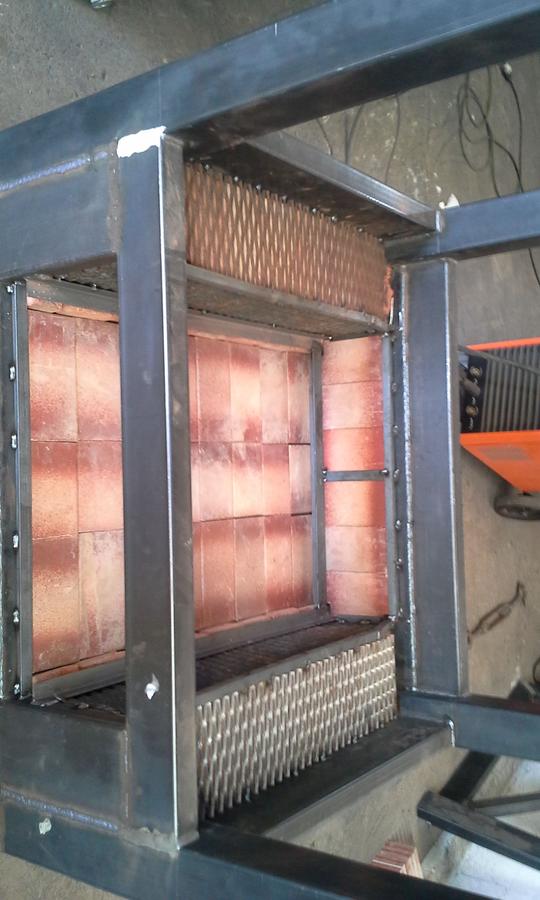

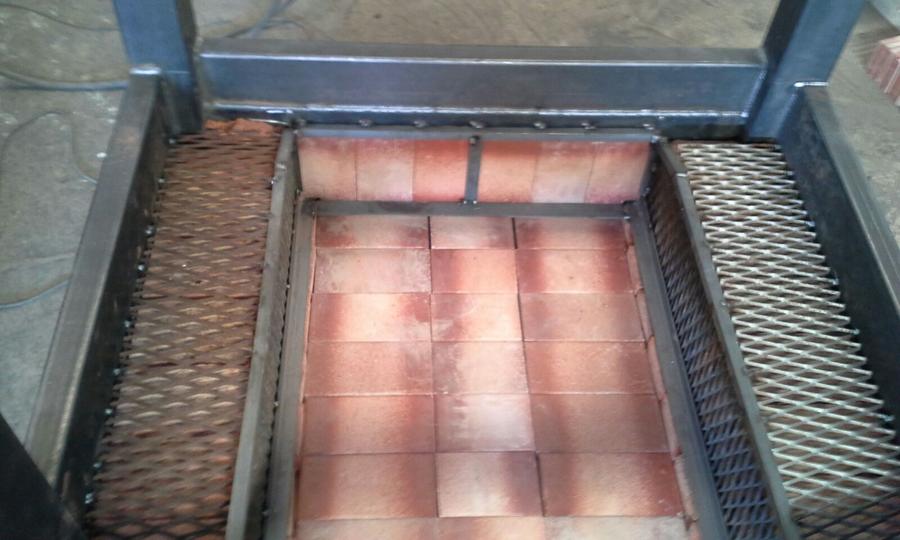

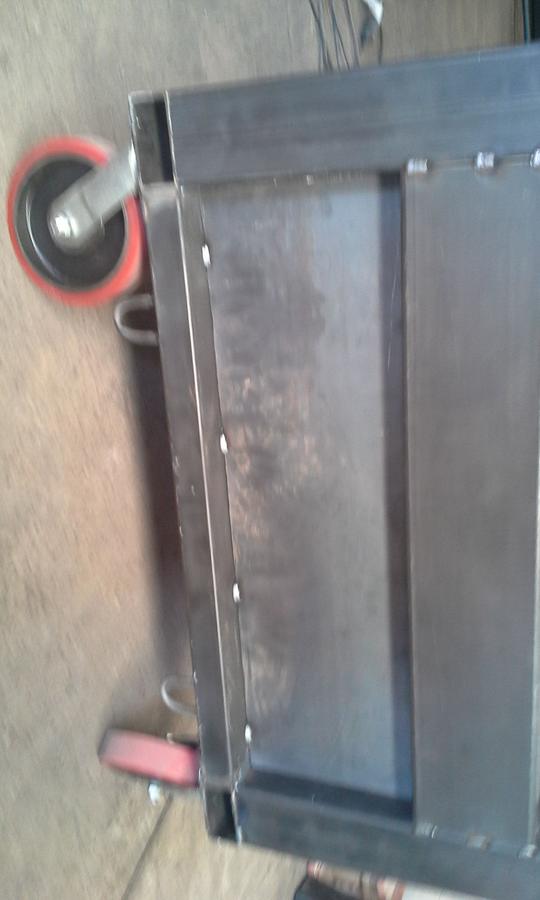

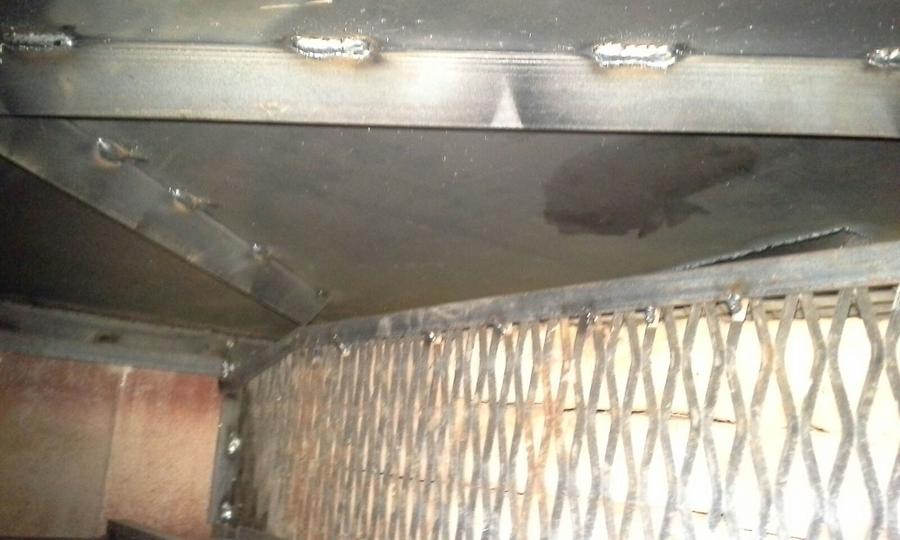

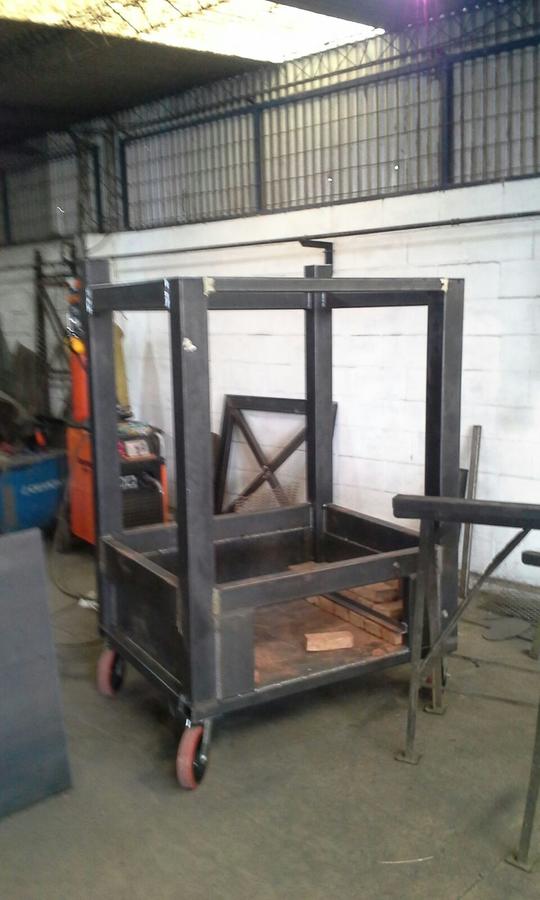

I put bricks in the firebox to take up some space as it was super big.  On the sides a regular common bricks, they were $25 for a 100 then I put 1 1/4" firebricks on the floor and back. The smoke will go above the bricks and into ducts on either side of the smoker.


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016

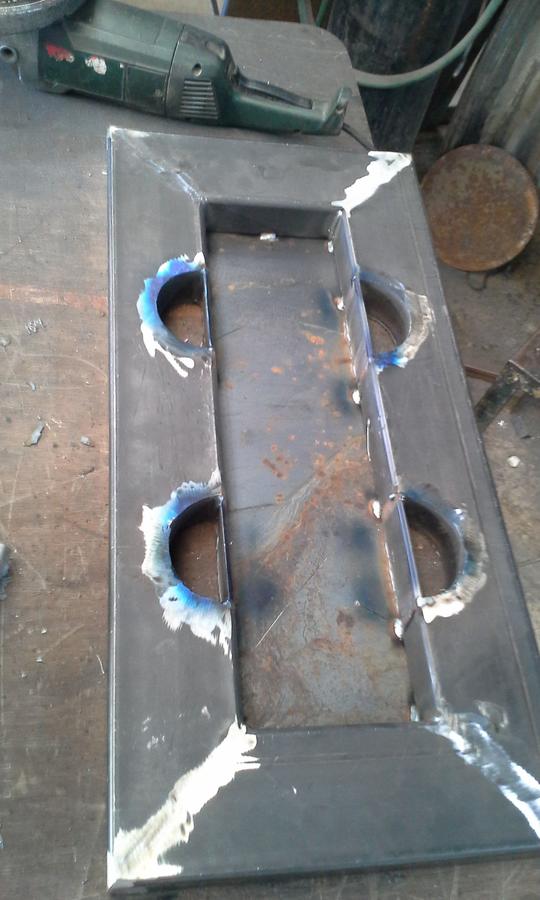

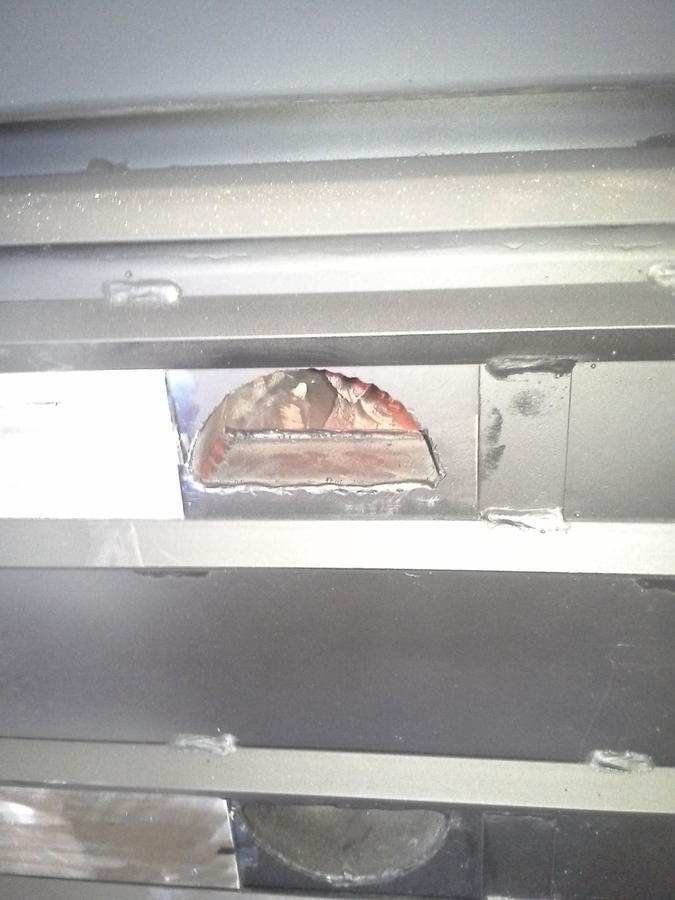

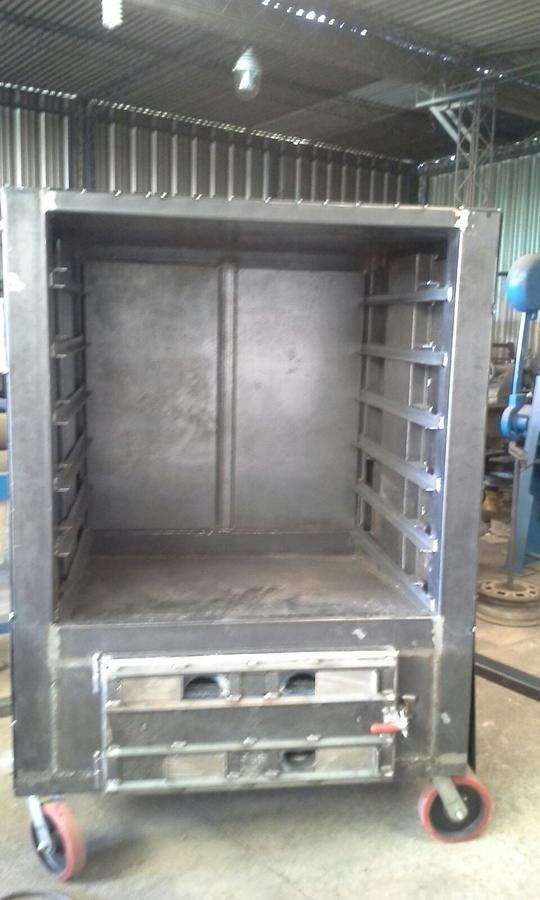

The cut outs for the air intakes on the fire box.   Doing an upper and lower intake as per Dave's suggestion.


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016

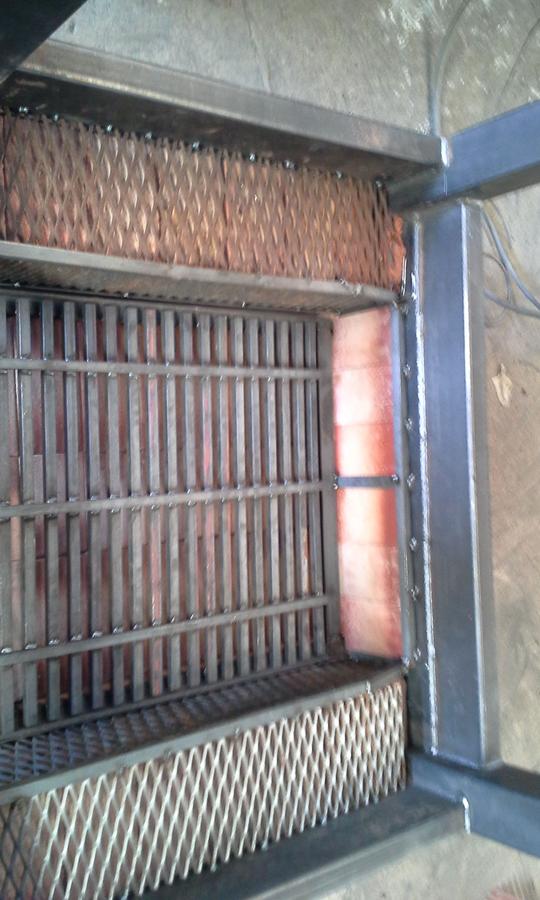

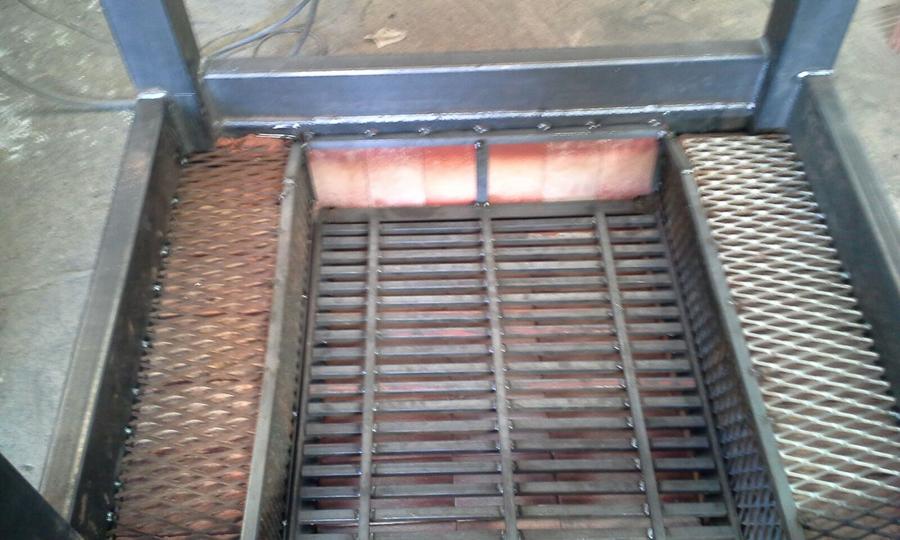

Built a grate out of 5/8 bar this morning


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016


• ahumadora
• Jan 20, 2016

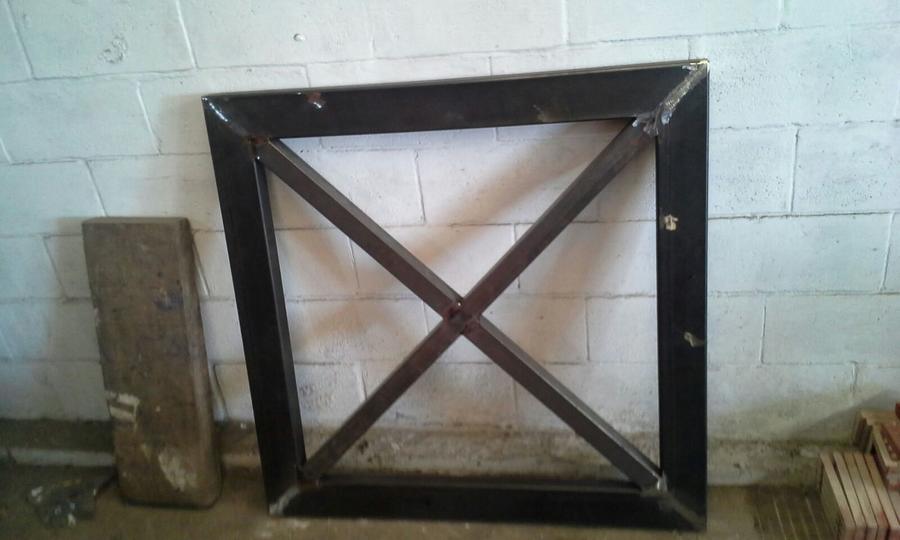

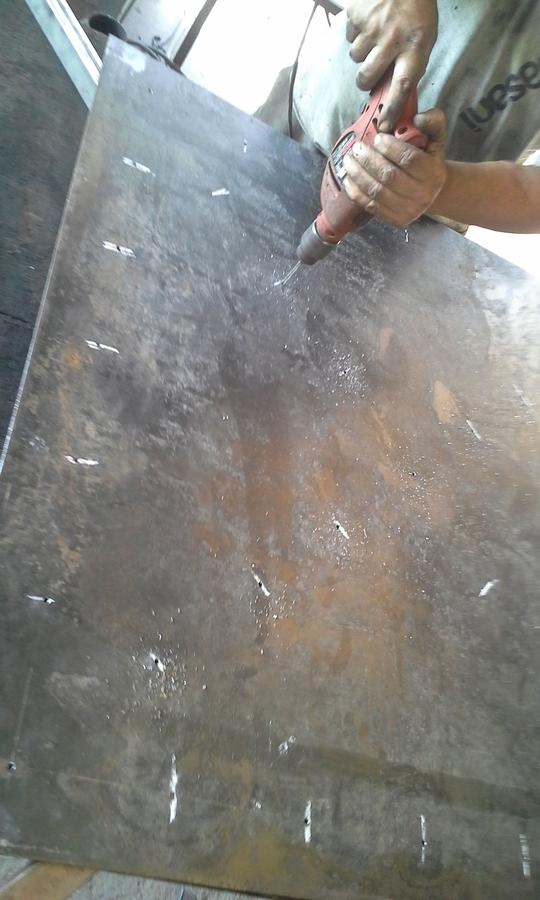

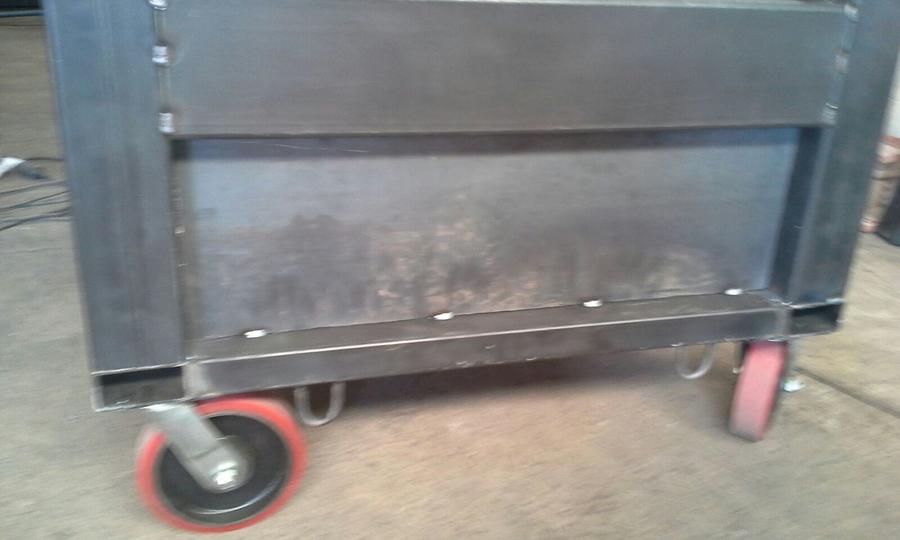

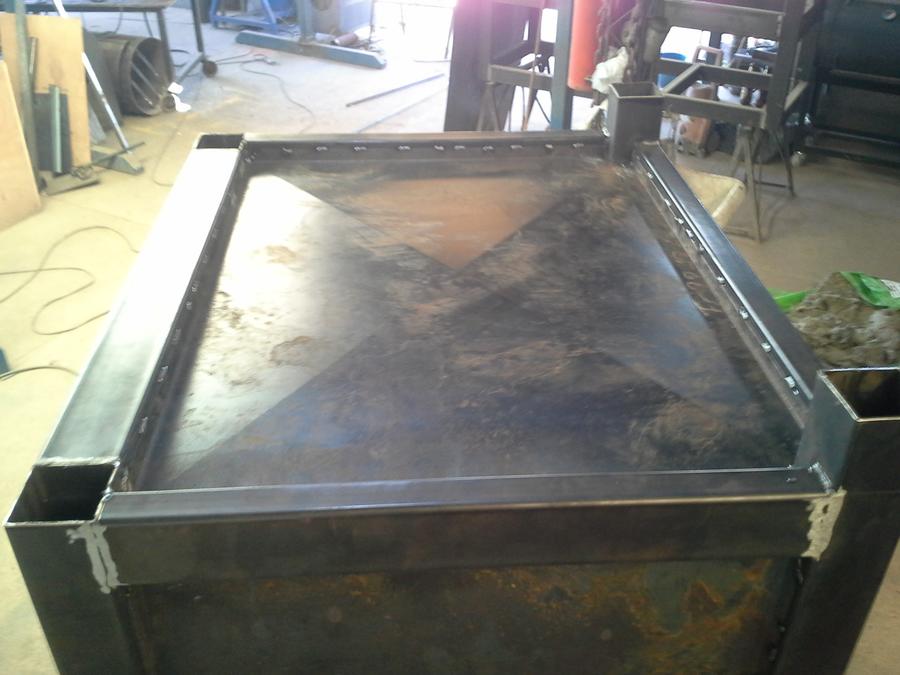

Holes for the spot welds on the X


• ahumadora
• Jan 20, 2016

Yeah, I know we need to clean the shop, just going hard trying to get this knocked out as fast as possible.

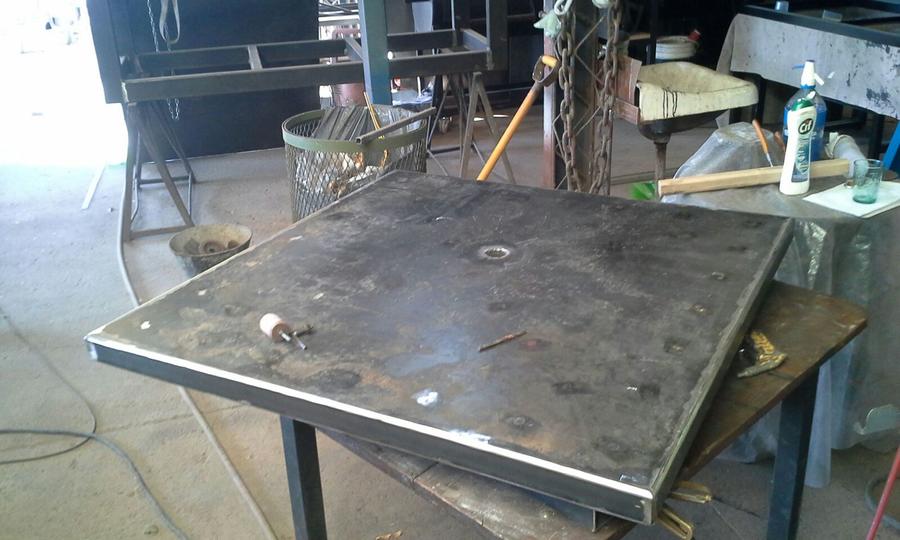

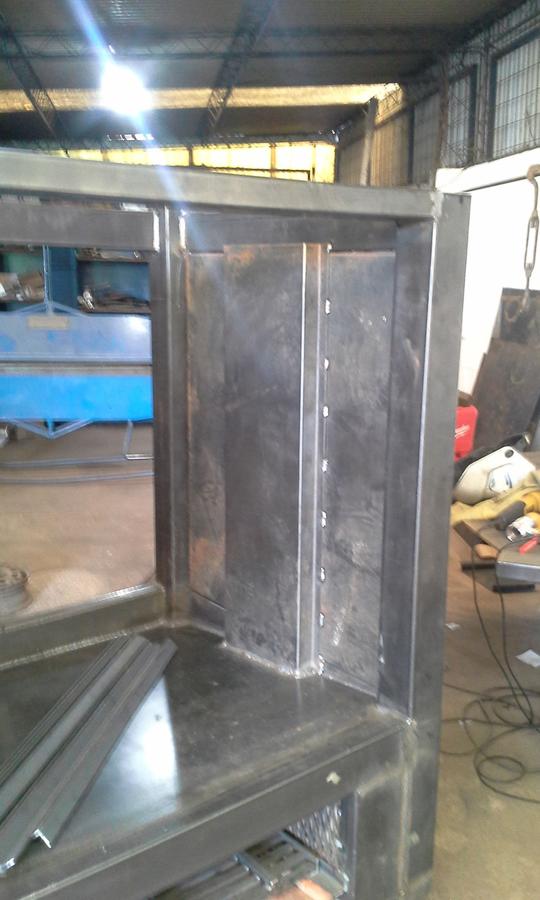

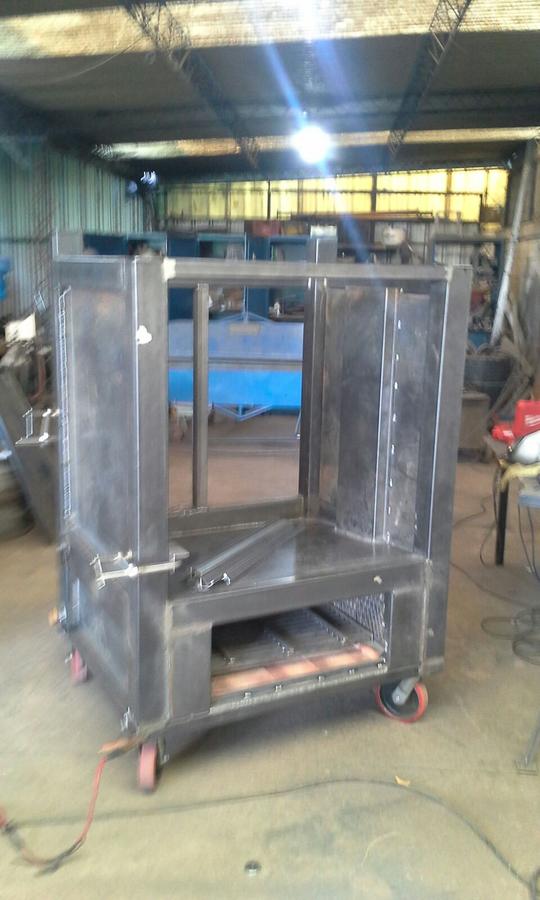

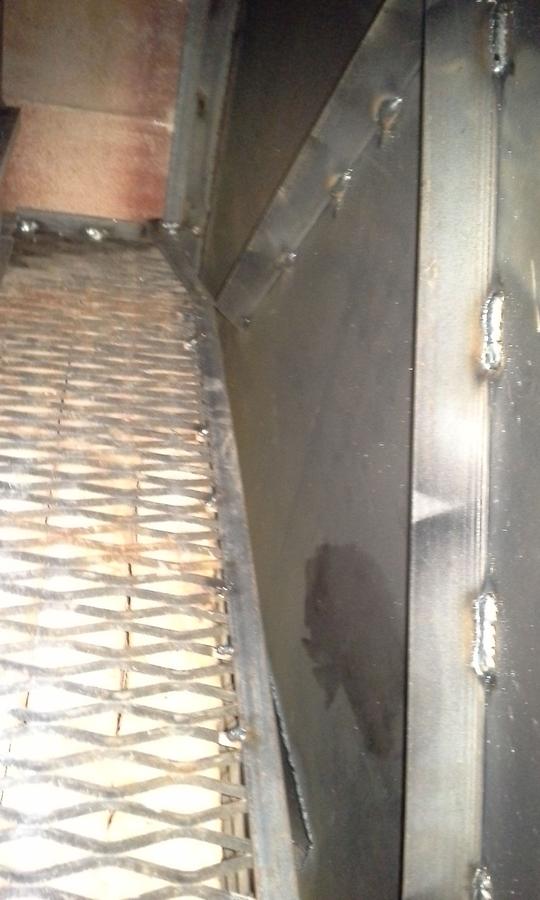

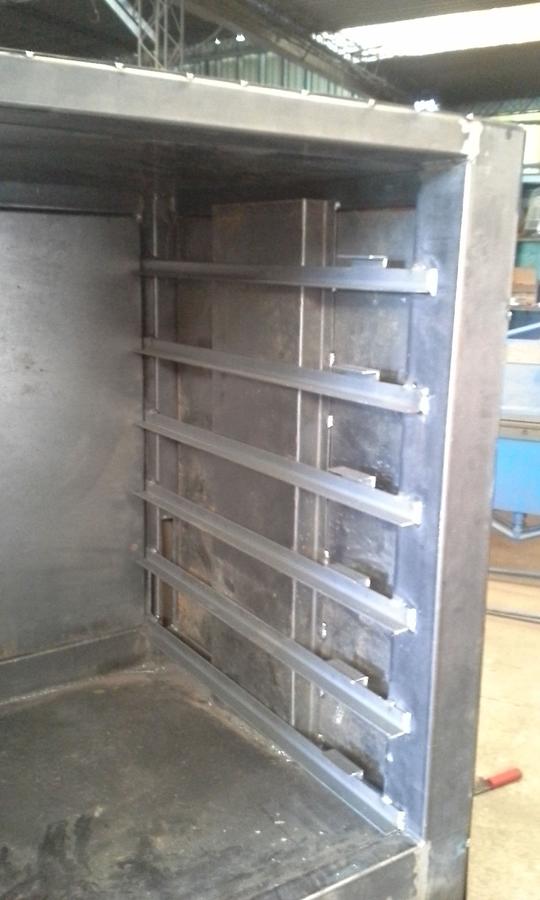

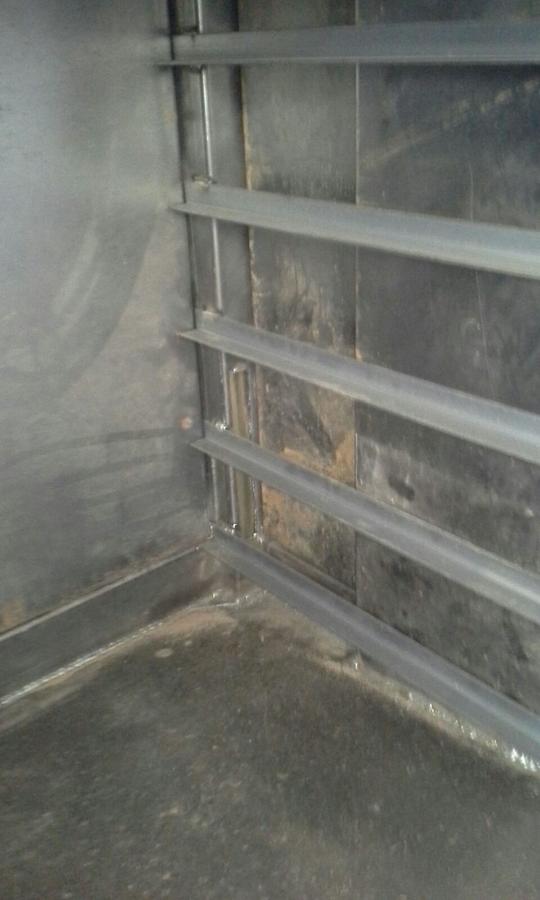

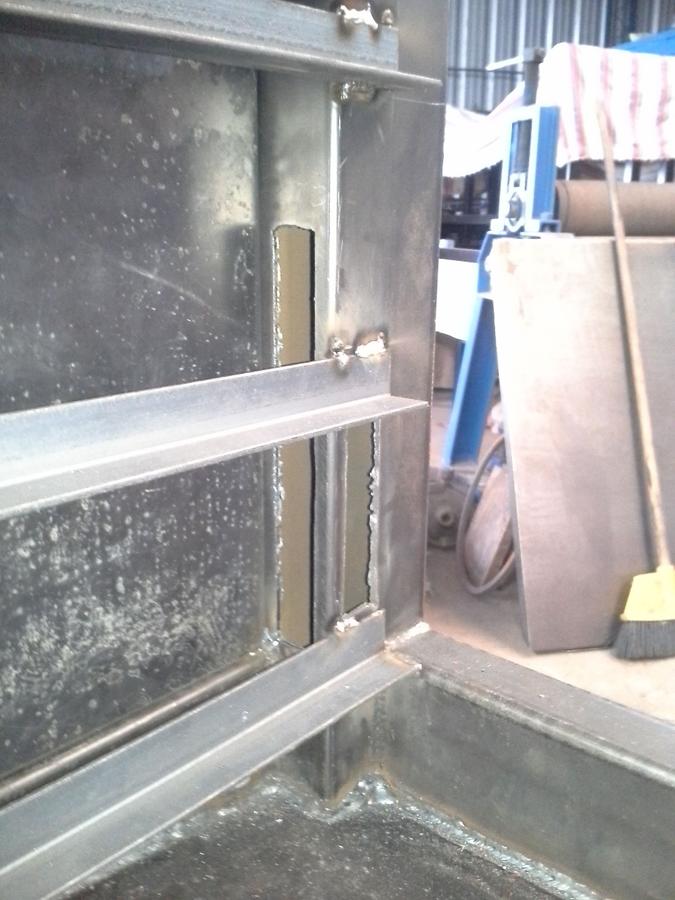

Installing the main plate in the morning and working on the side ducts.



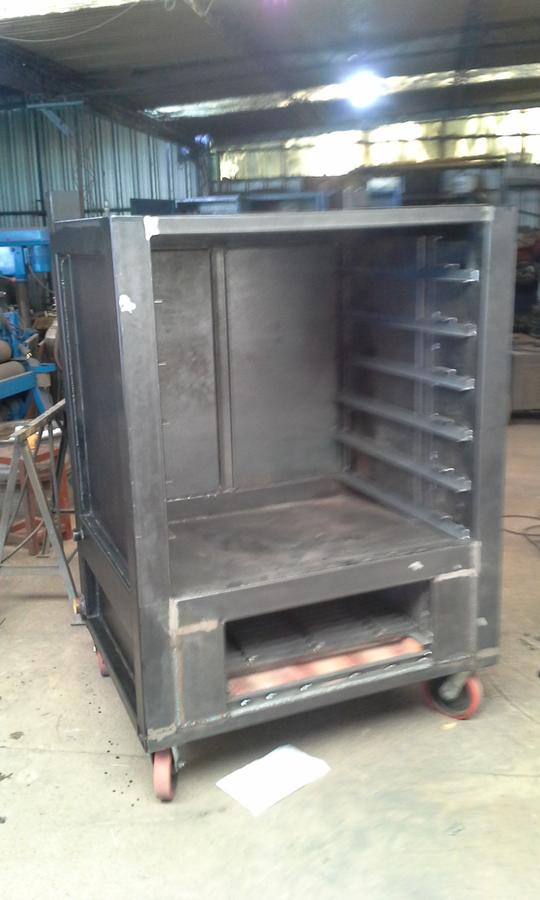

[ahumadora]


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016


• ahumadora
• Jan 21, 2016



[1967robg]

Looks like a solid build. Please keep giving updates,my next build is going to be a vertical



[thesmokist]

Looks great man and you've got some killer metal fab skills!



[ahumadora]

It will hit 104F (40c) here tomorrow.   We will work till lunchtime then concentrate on our beer drinking skills.



[ahumadora]

Thought you might like to see my dinner tonight. Been workin hard so bought me and wifey some steaks.

That's a 2" Argentine steak right there.


• ahumadora
• Jan 21, 2016



[ahumadora]


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016


• ahumadora
• Jan 22, 2016

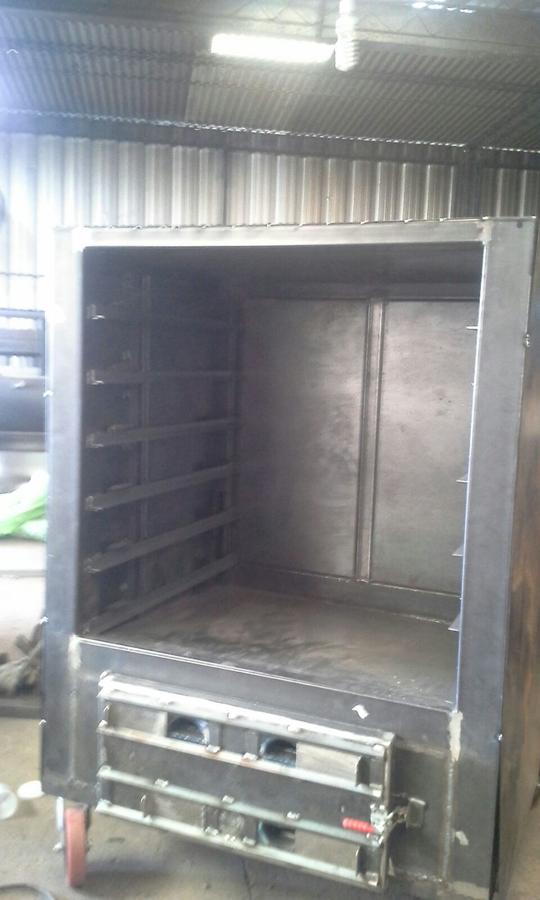

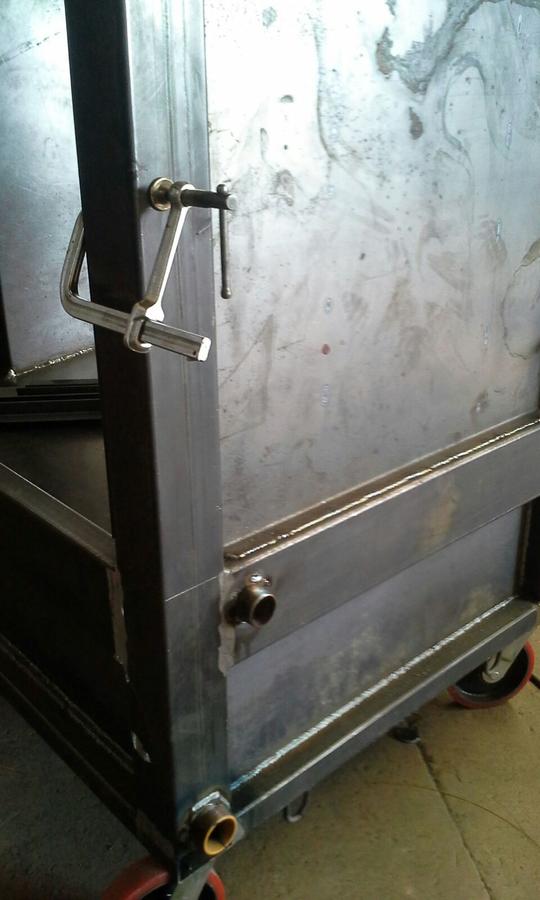

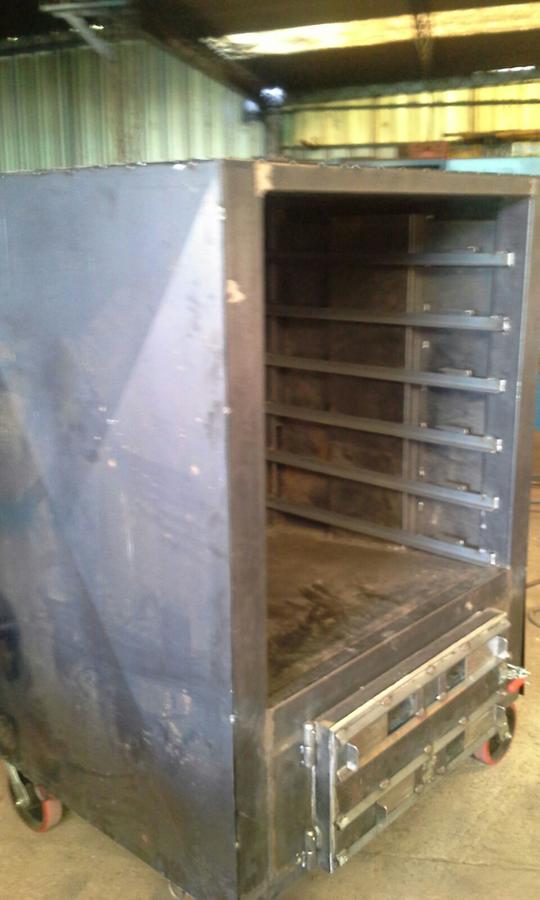

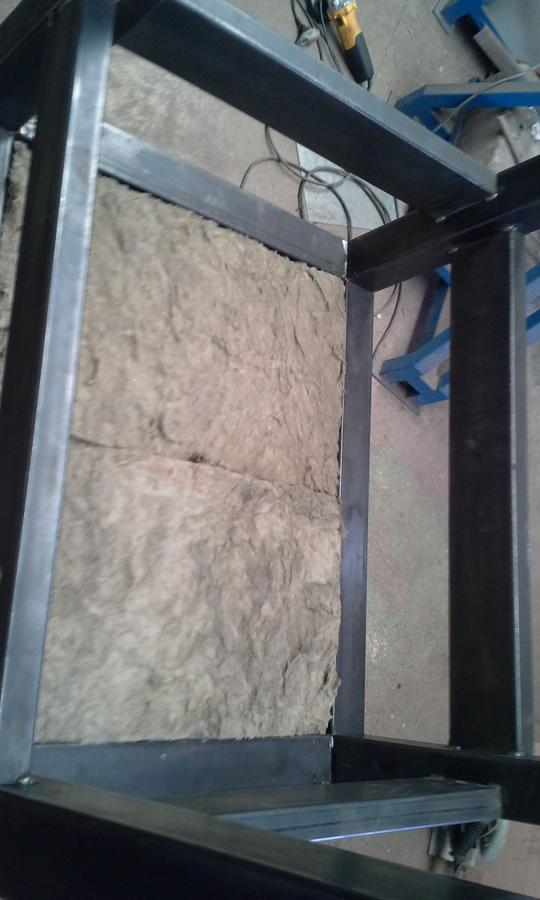

We should have this finished tomorrow.  107 F (42 c) in the shop today.



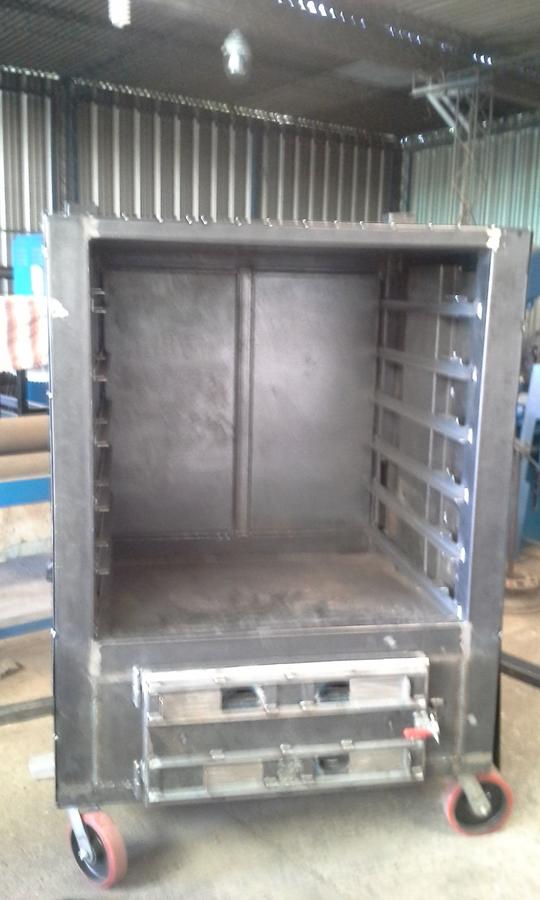

[ahumadora]


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016

It is cooler today under 100 F.   Thanks ambient temp, no fire lit in it.


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016


• ahumadora
• Jan 23, 2016

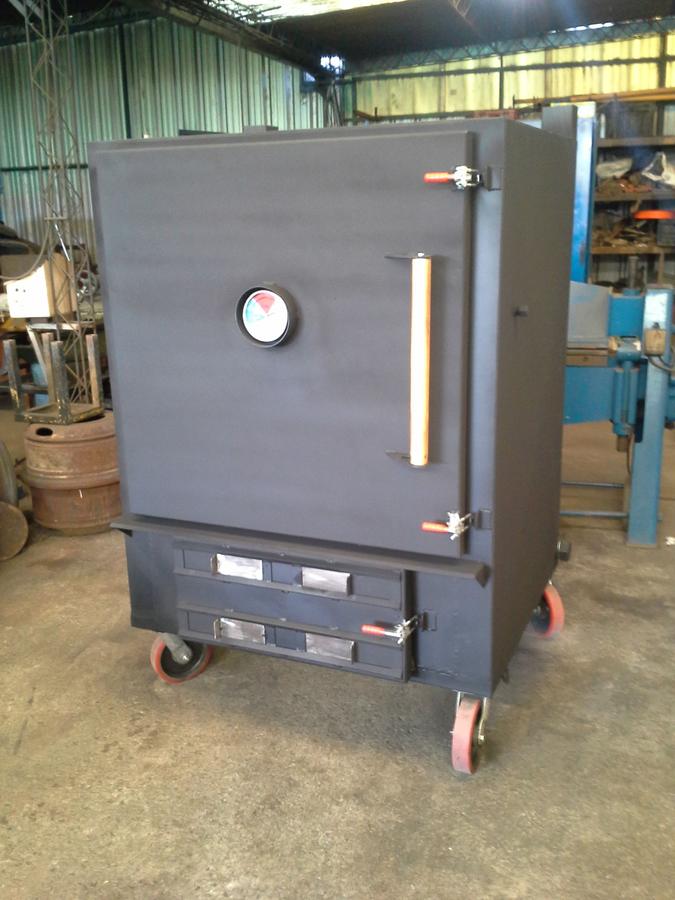

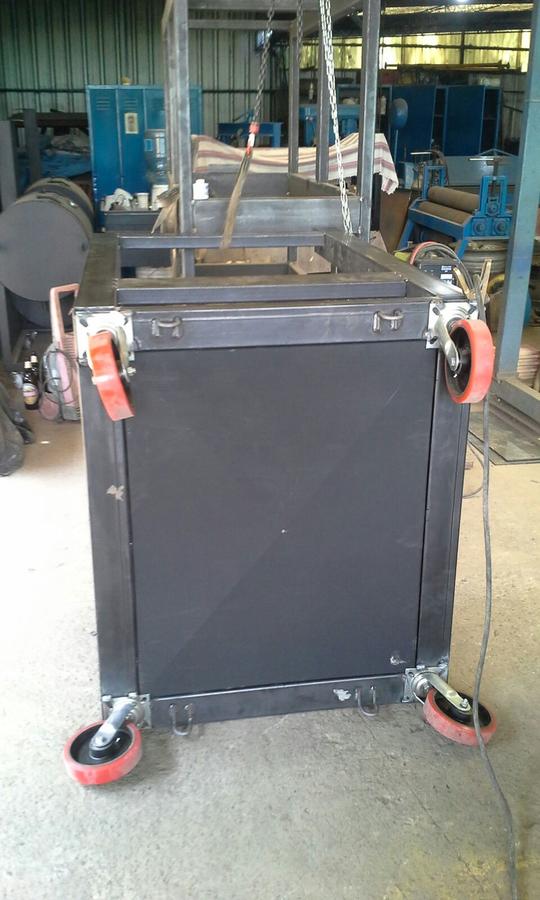

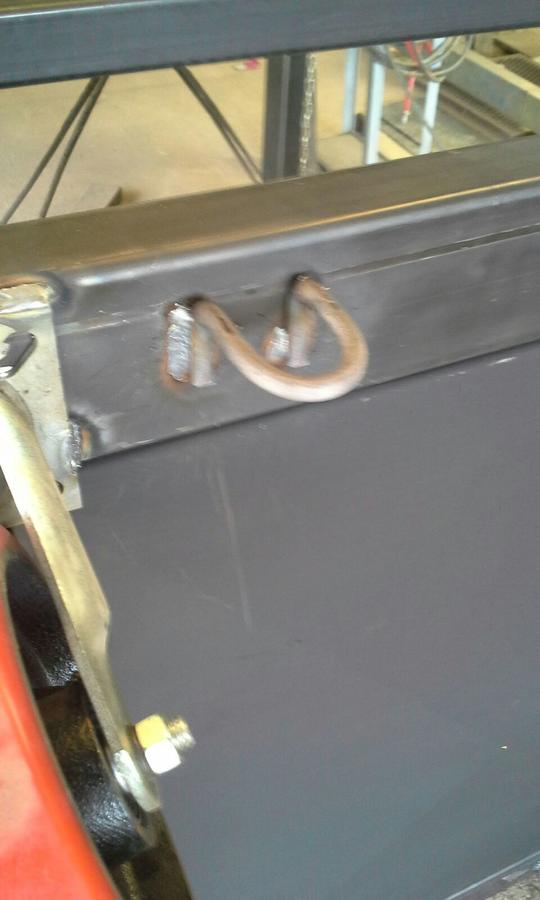

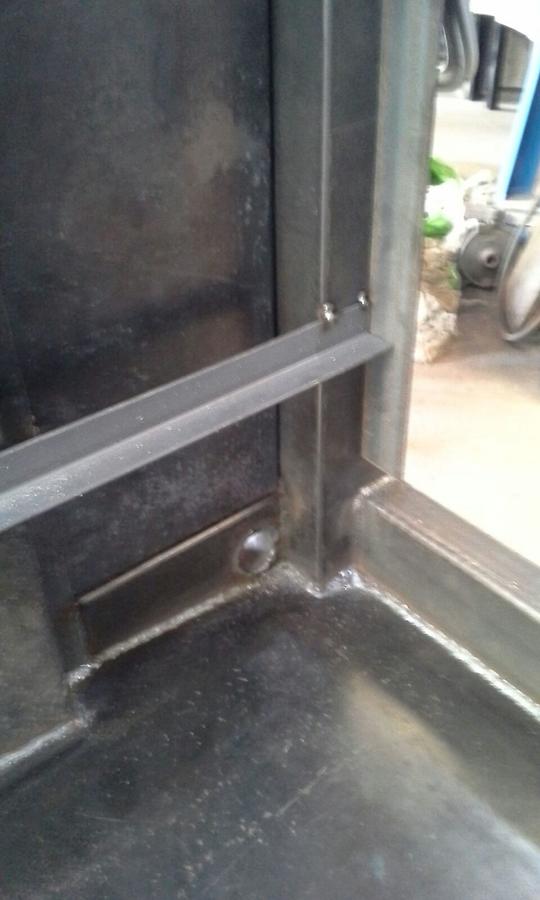

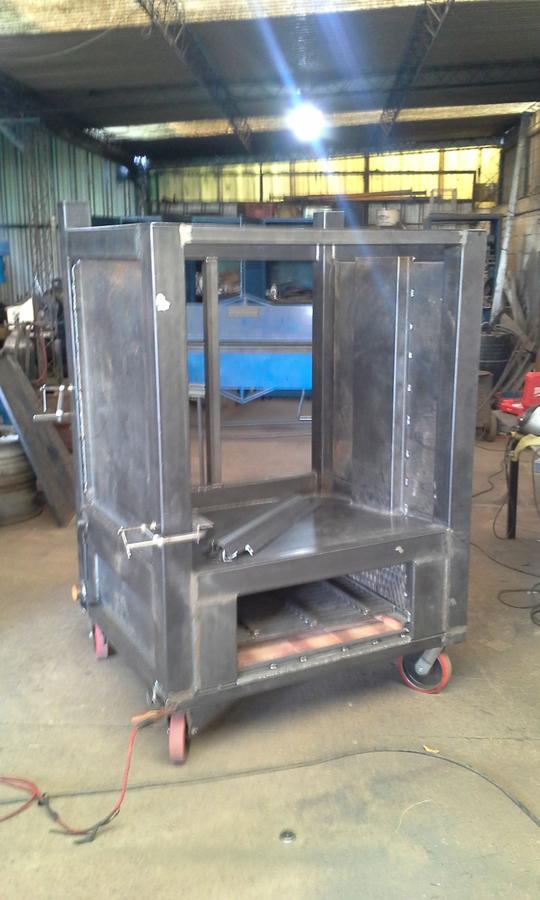

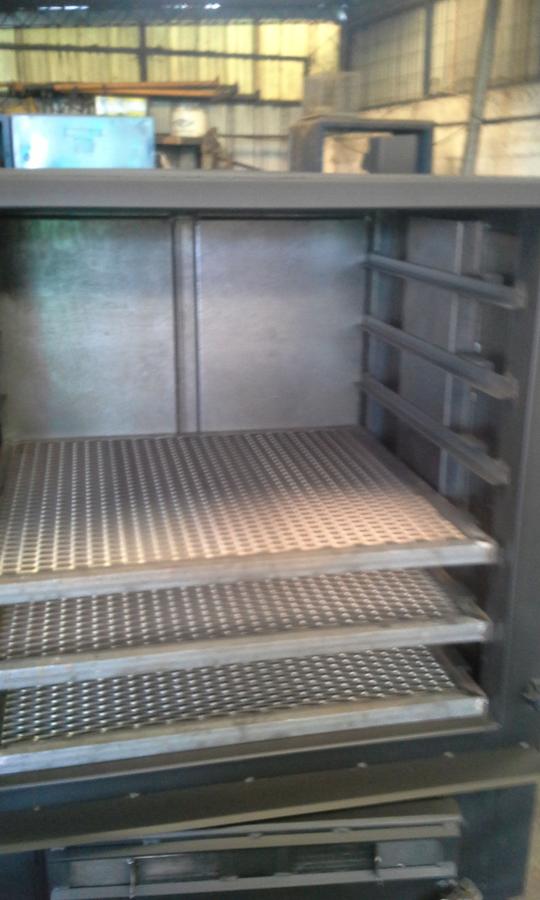

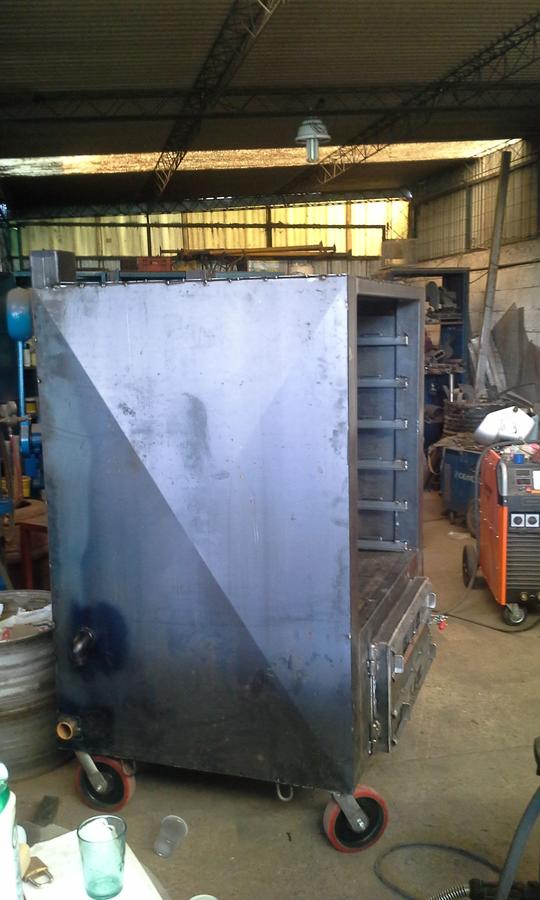

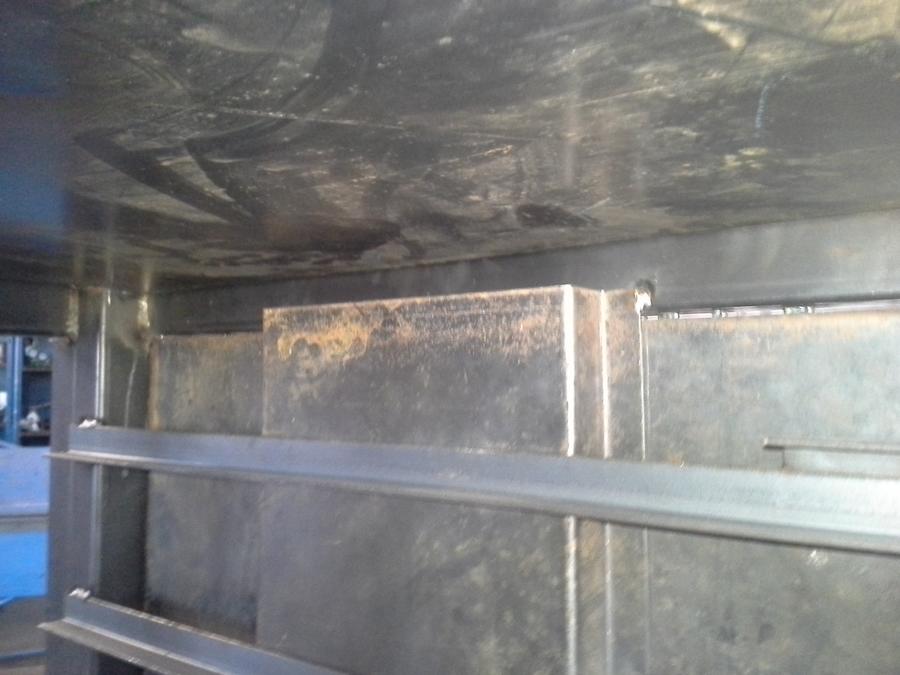

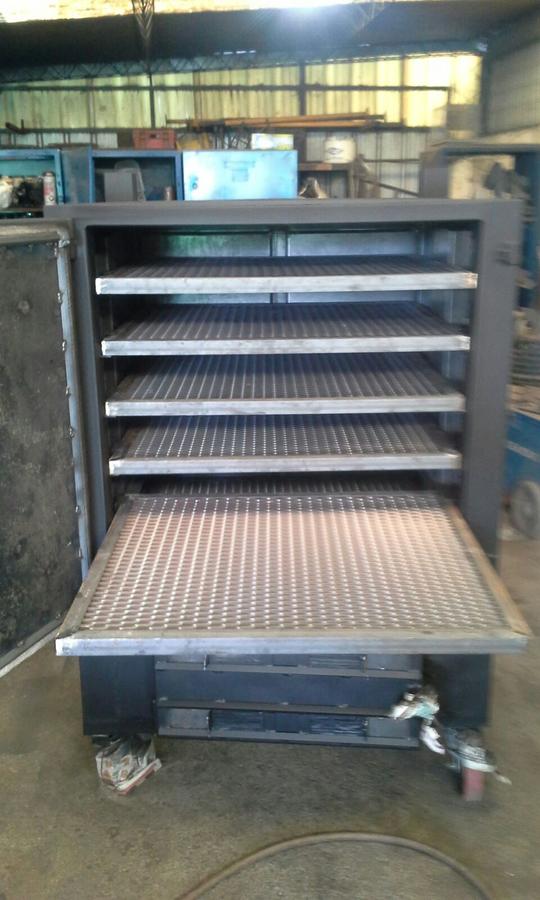

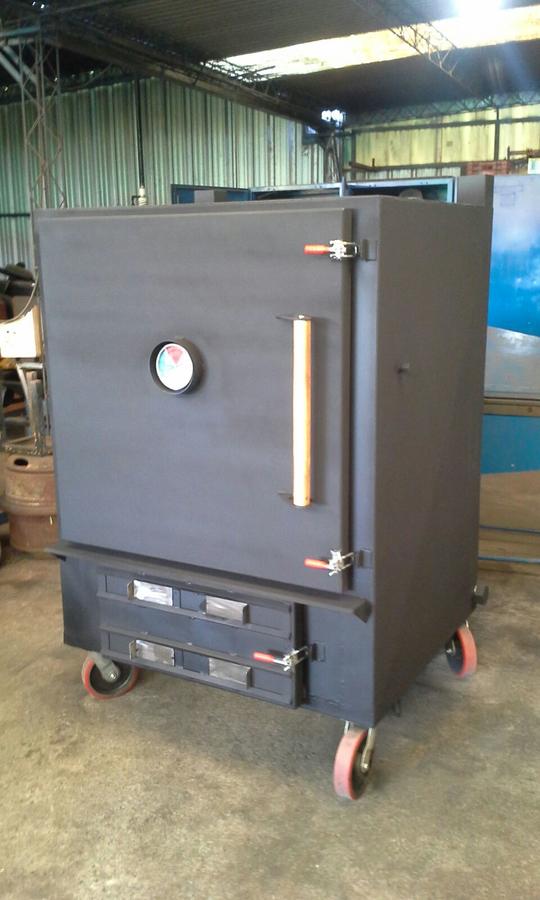

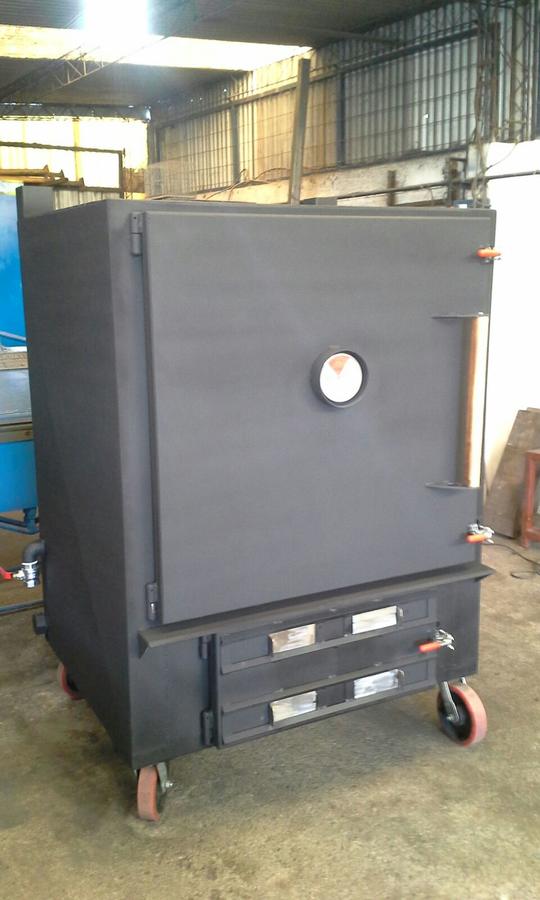

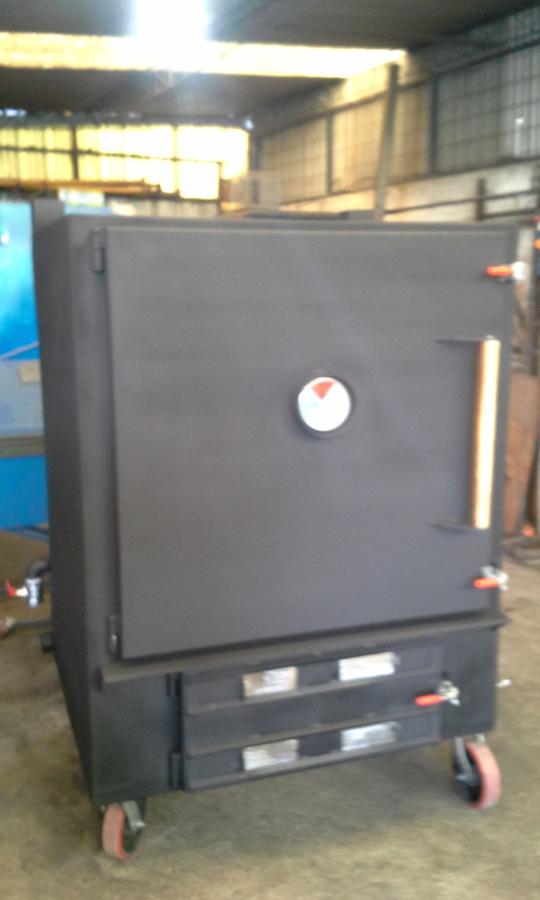

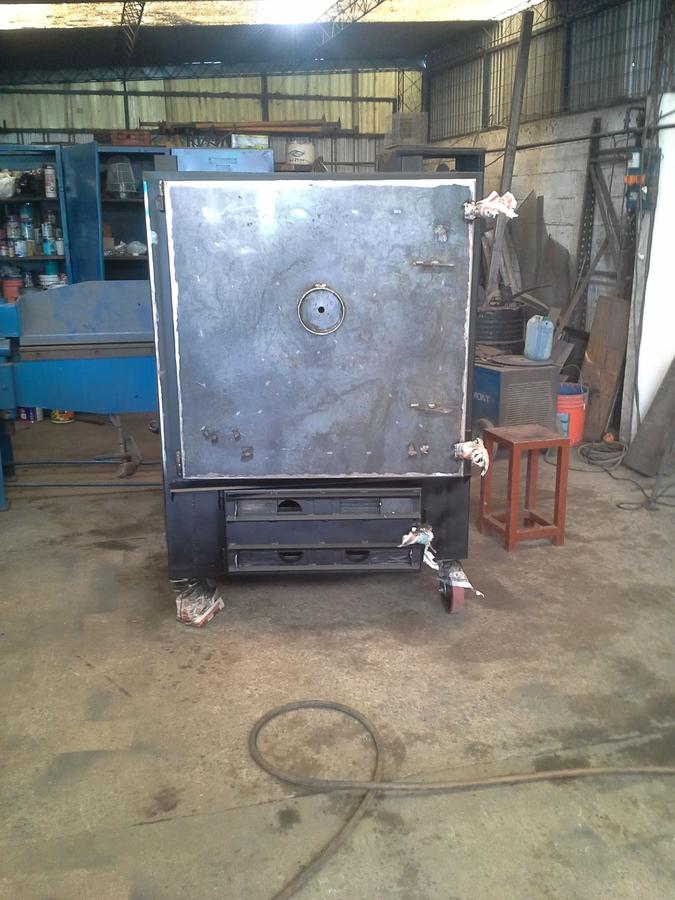

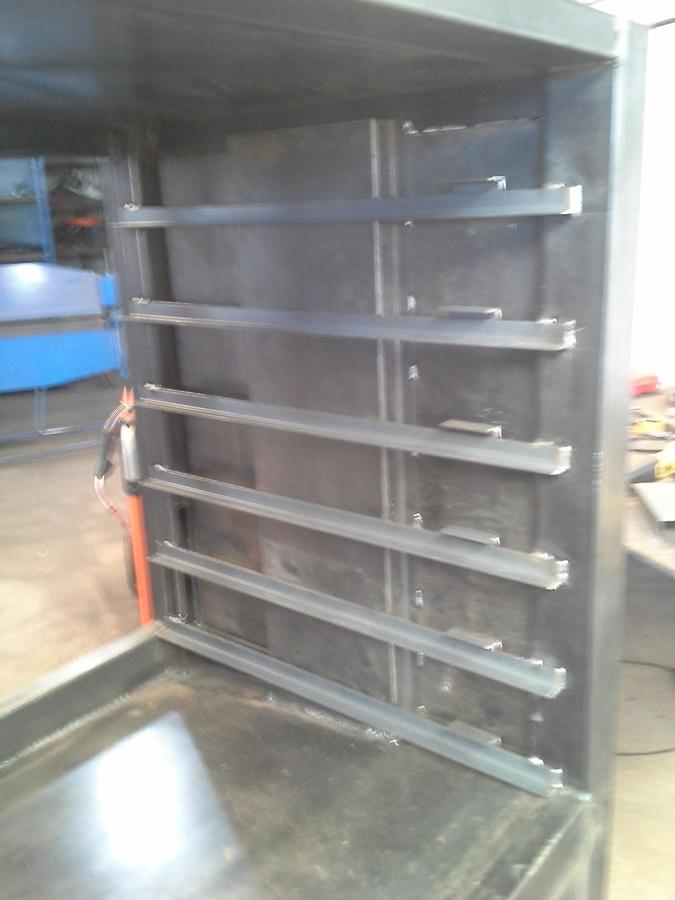

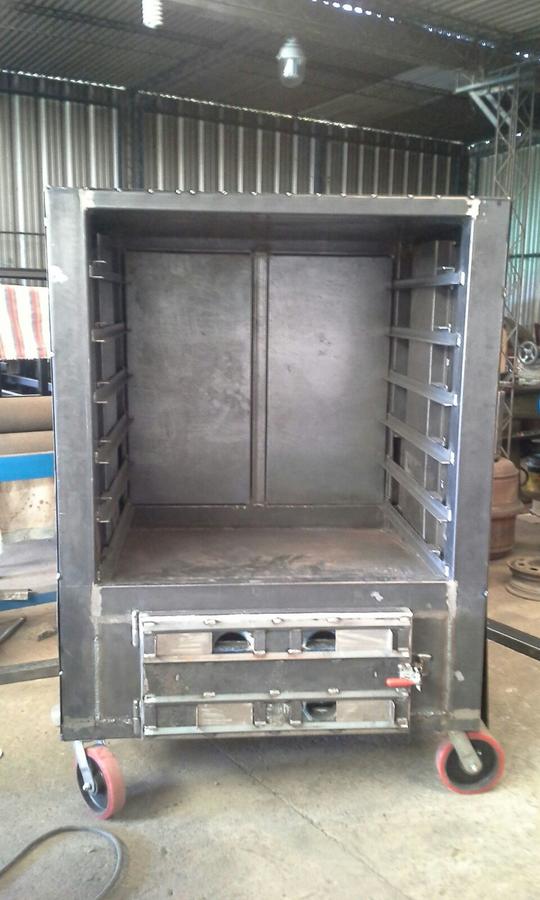

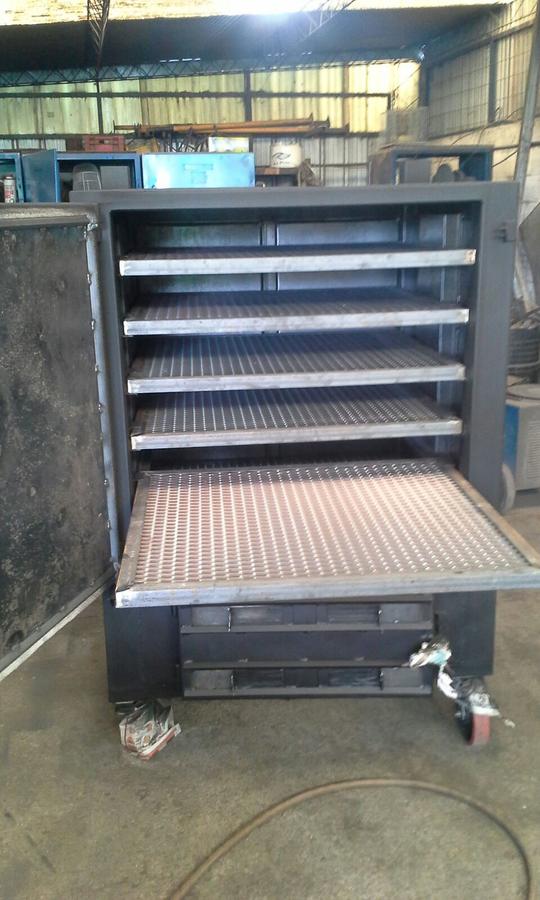

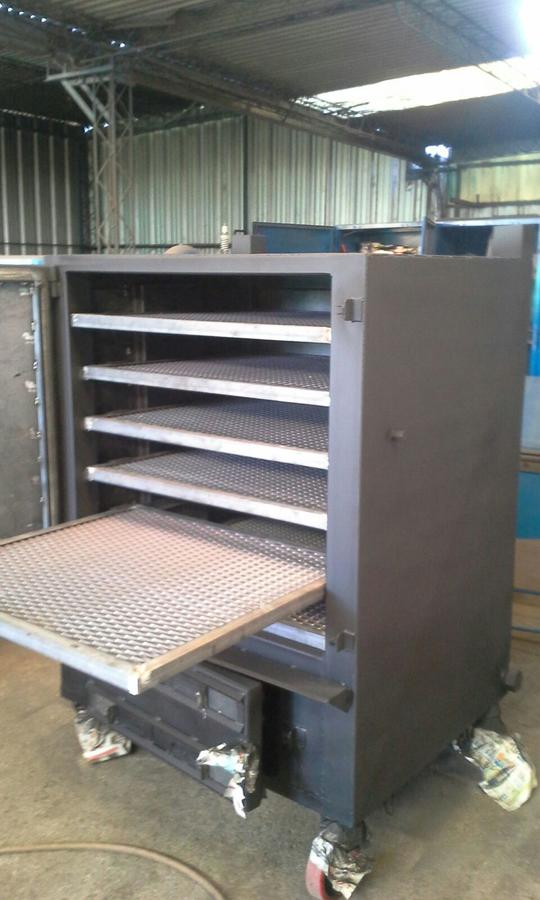

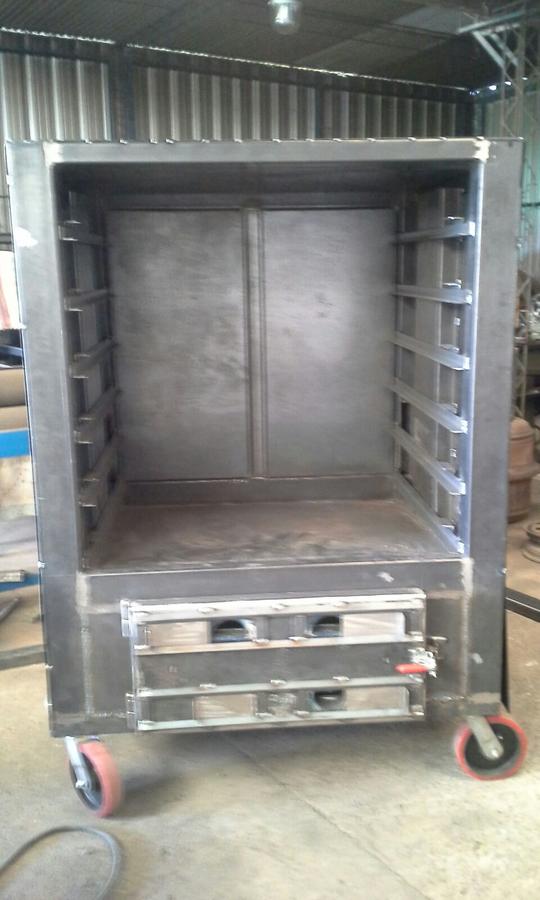

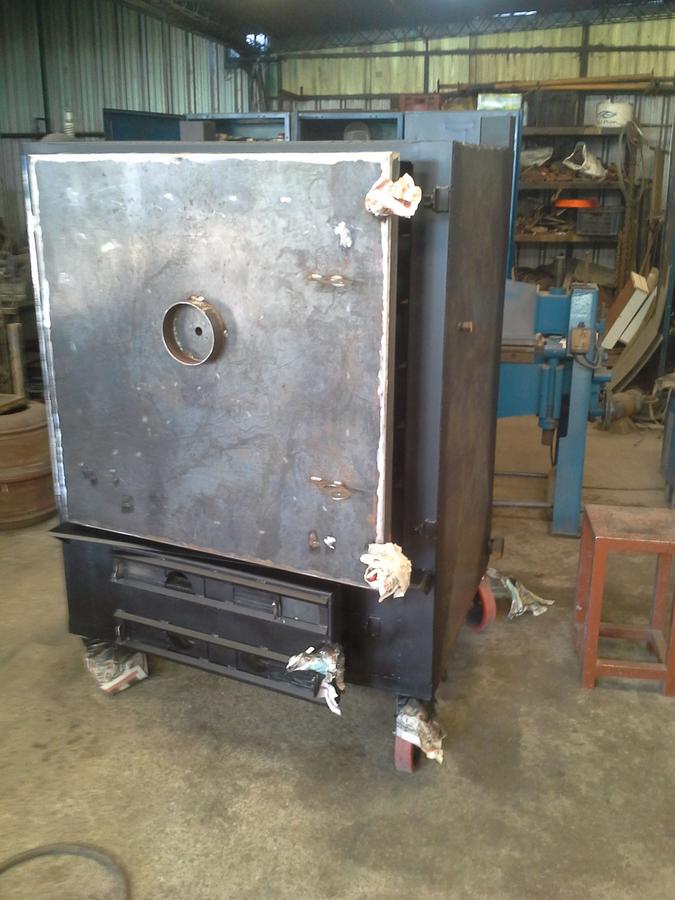

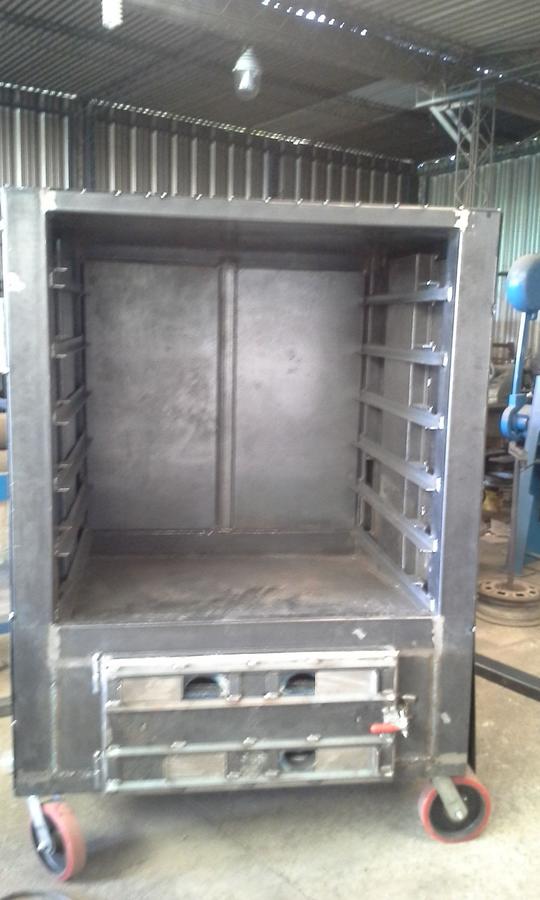

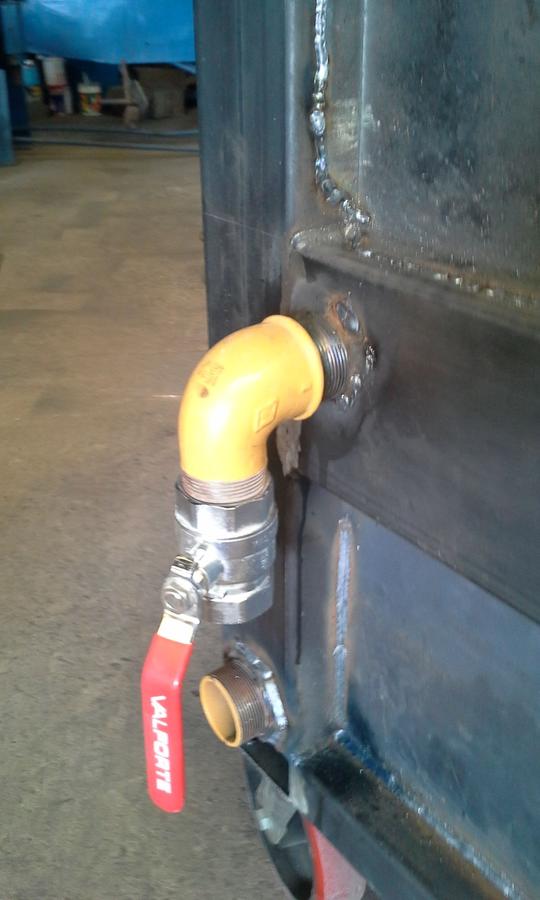

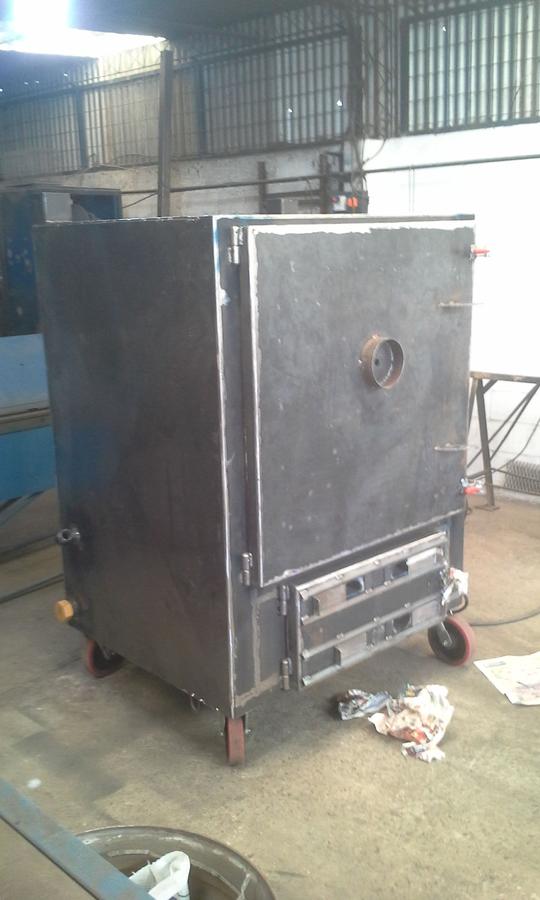

 Finished in week with 2 of us working on it.

A lot of  sweat, filth and noise, but it cam together in the end.

Will fire it up tomorrow and test it out.



[ahumadora]


• ahumadora
• Jan 24, 2016


• ahumadora
• Jan 24, 2016


• ahumadora
• Jan 24, 2016


• ahumadora
• Jan 24, 2016


• ahumadora
• Jan 24, 2016

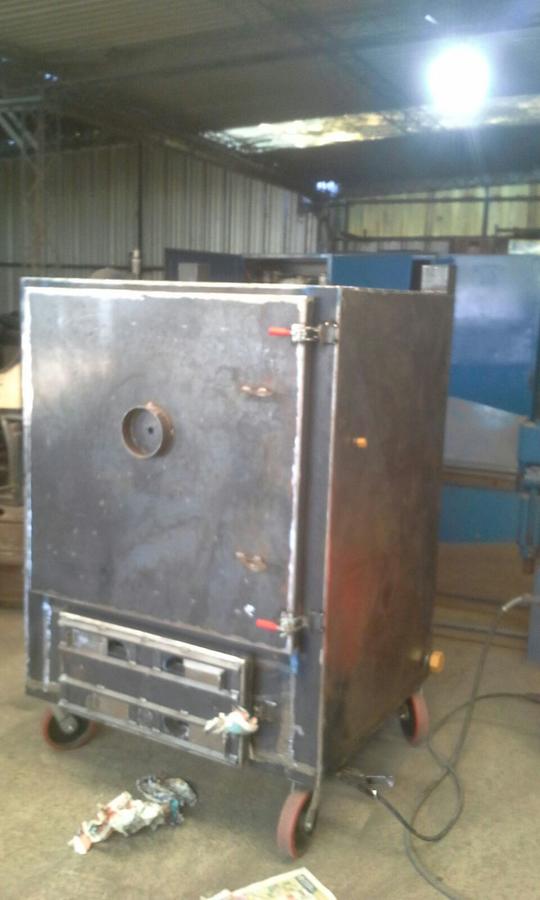

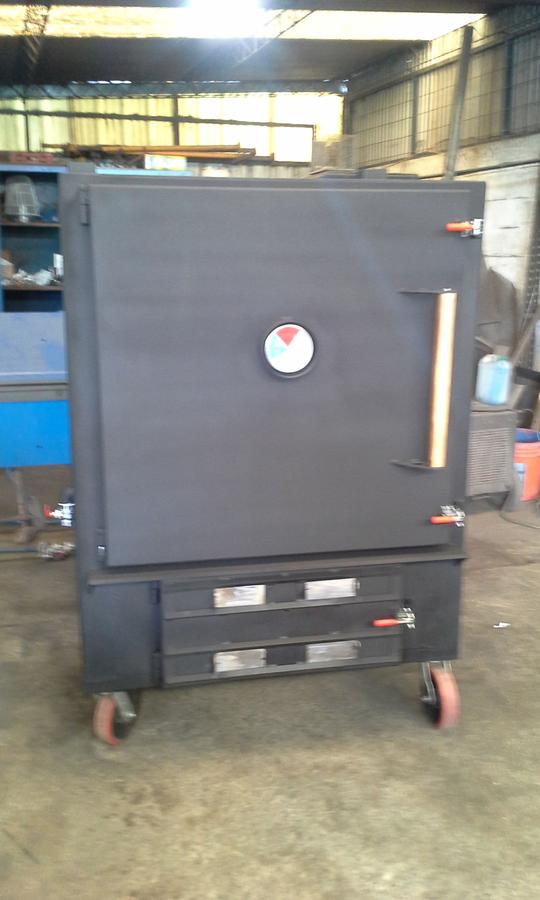

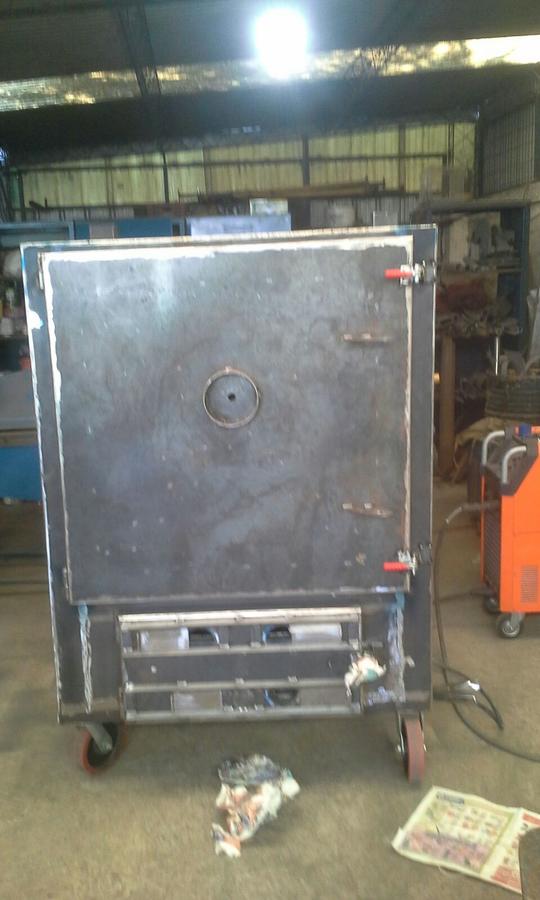

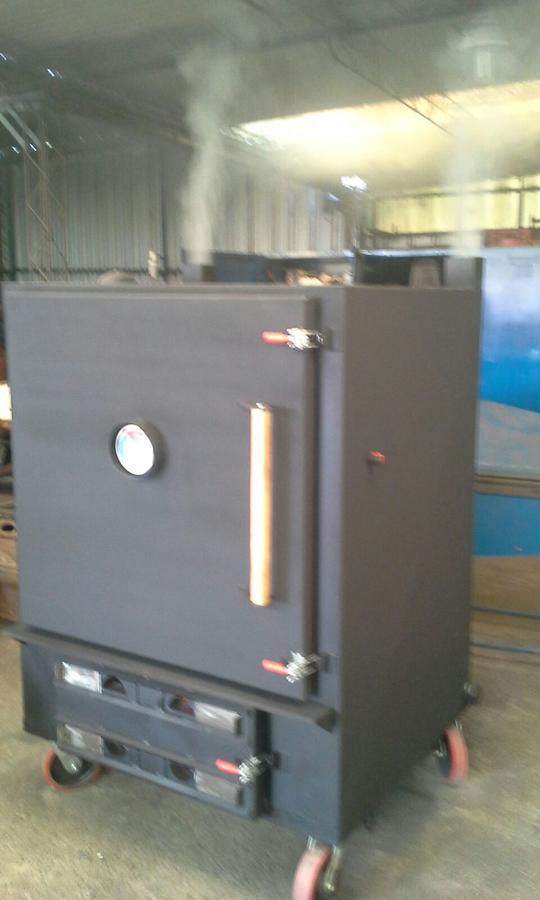

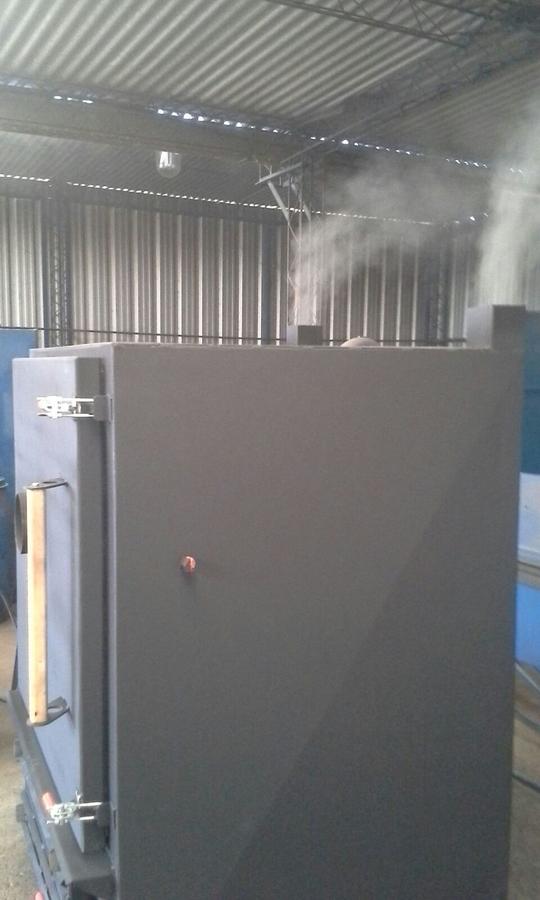

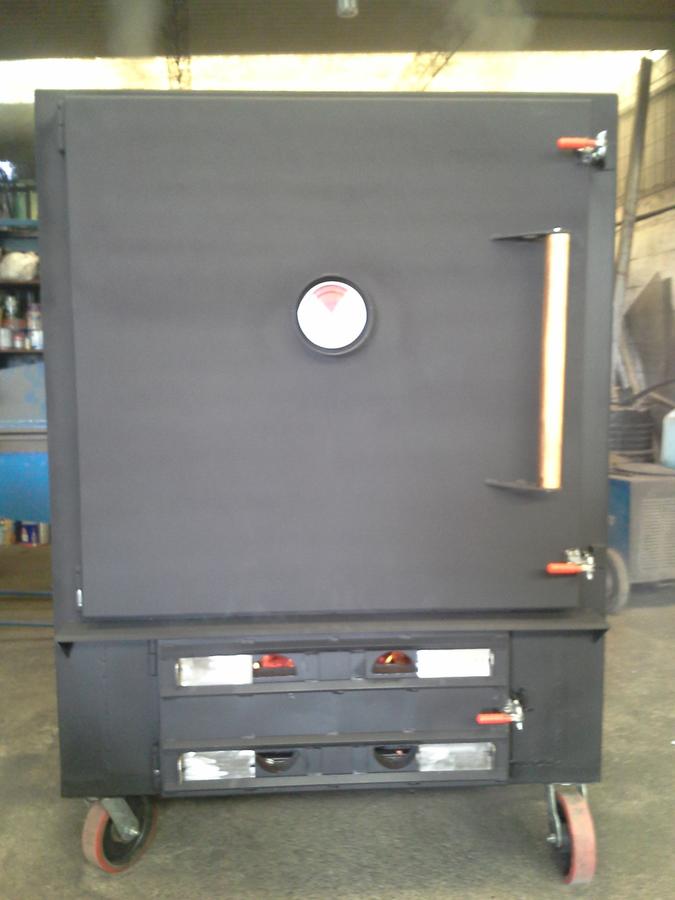

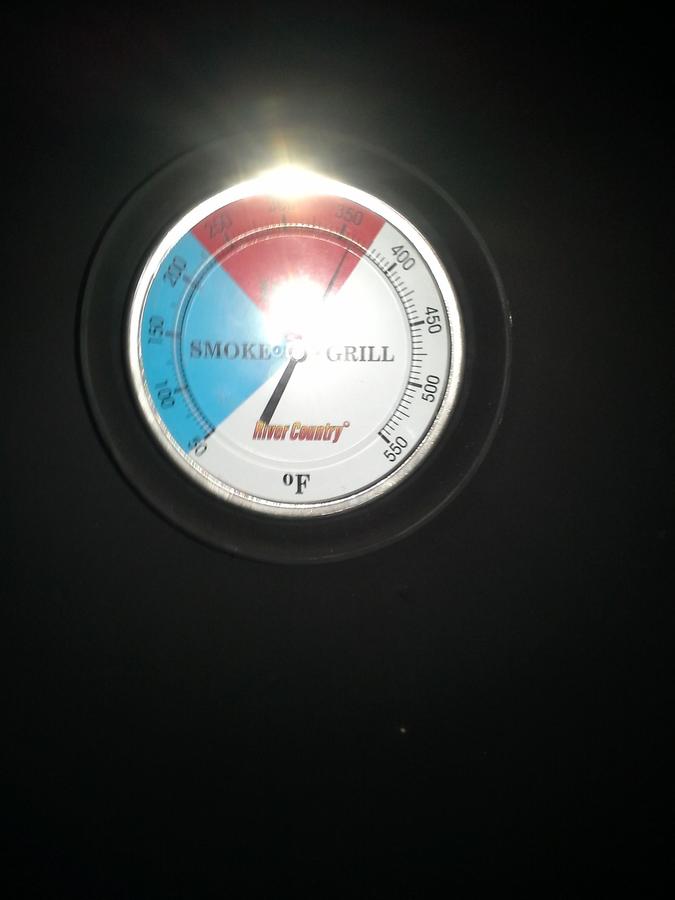

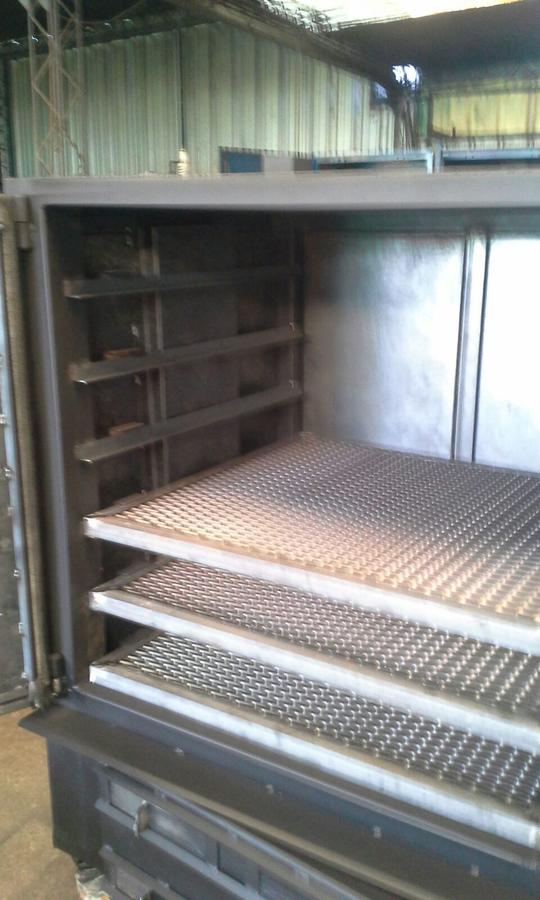

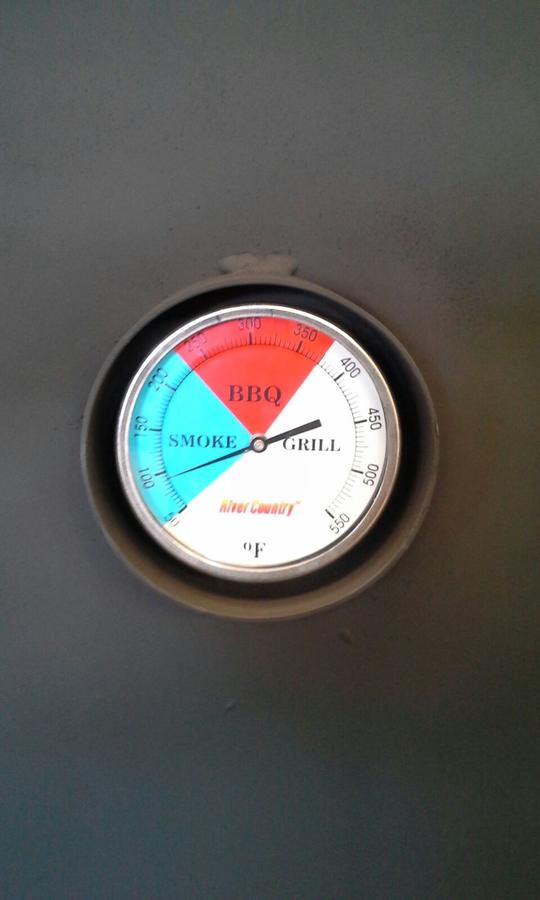

Fired it up today.

It took 20 mins to go from 100 to 230F with lump charcoal, dry Pecan branches and a weed burner.   Both the upper and lower air intakes sucked air from the get go and I opened the grease drain while running and it sucked air also. Both good signs.  Took it to 350F to test it. I will post pics in a week or so of it cooking. The owner checked t out today and was over the moon.
