New smokehouse

[tfd21]

Here's the start

so far so good



[tfd21]

Not sure why other photos did not show up any help



[Rings Я Us]

Nice.. Looks like you have a good place to store wood off to the side too. [emoji]128077[/emoji]



[daveomak]

Nice start !!!   When you start on the heat source, think about ways to get rid of extra heat, from the fire box, and to allow extra air into the smoke house....

Good air flow makes for great smoked meats...  Also, adjustable extra air flow will help to burn off creosotes and lower the temp in the smokehouse...

Below is a drawing I put together showing "some" of the ways to accomplish the above.....

SMOKEHOUSE SMOKE PIPE TEE.jpg

• daveomak
• Jul 11, 2017



[tfd21]

Nice start !!!   When you start on the heat source, think about ways to get rid of extra heat, from the fire box, and to allow extra air into the smoke house....
Good air flow makes for great smoked meats...  Also, adjustable extra air flow will help to burn off creosotes and lower the temp in the smokehouse...

Below is a drawing I put together showing "some" of the ways to accomplish the above.....

SMOKEHOUSE SMOKE PIPE TEE.jpg

• daveomak
• Jul 11, 2017



[tfd21]

Yes I have it will be like that I did a test burn on a 85 deg day smoker stayed under 90 deg the whole time this is a cold smoker only



[daveomak]

Awesome !!!   I'm waiting for pictures.....

    .....



[SmokinAl]

Looks like it's going to be a great smokehouse!

Al



[tfd21]


• tfd21
• Aug 2, 2017

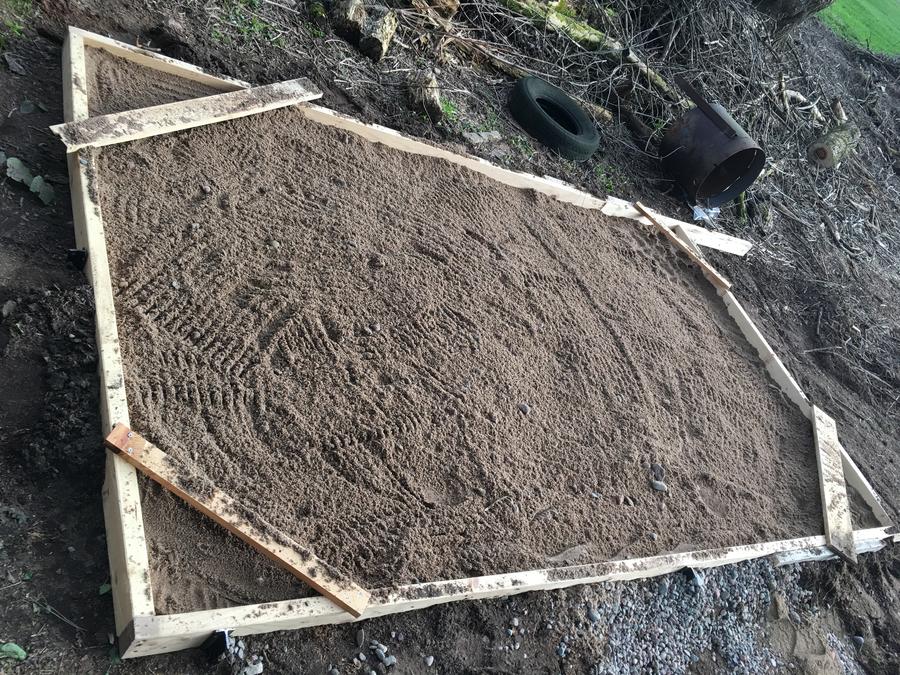

this is the slab 6ft by 10 ft



[tfd21]


• tfd21
• Aug 2, 2017

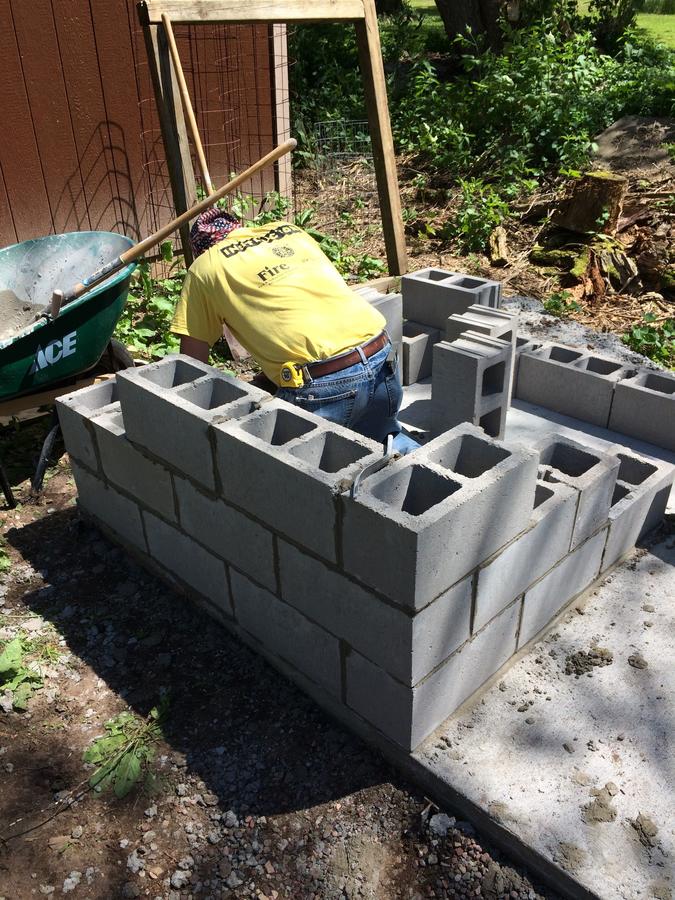

block work



[tfd21]


• tfd21
• Aug 2, 2017

framing



[tfd21]


• tfd21
• Aug 2, 2017

siding and doors



[tfd21]


• tfd21
• Aug 2, 2017

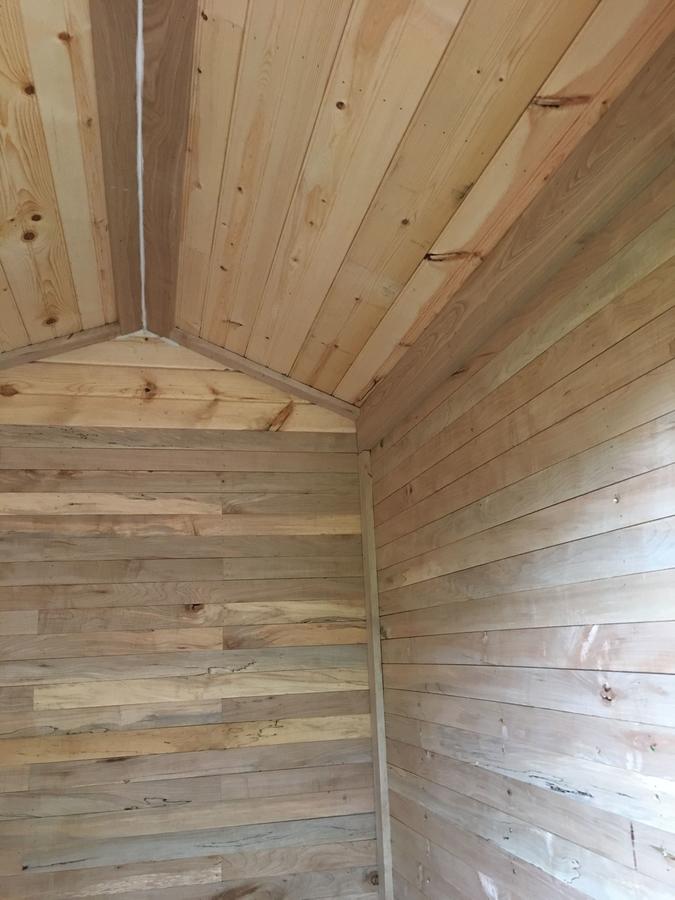

inside black ash t-g



[tfd21]


• tfd21
• Aug 2, 2017

inside sealed up



[tfd21]


• tfd21
• Aug 2, 2017

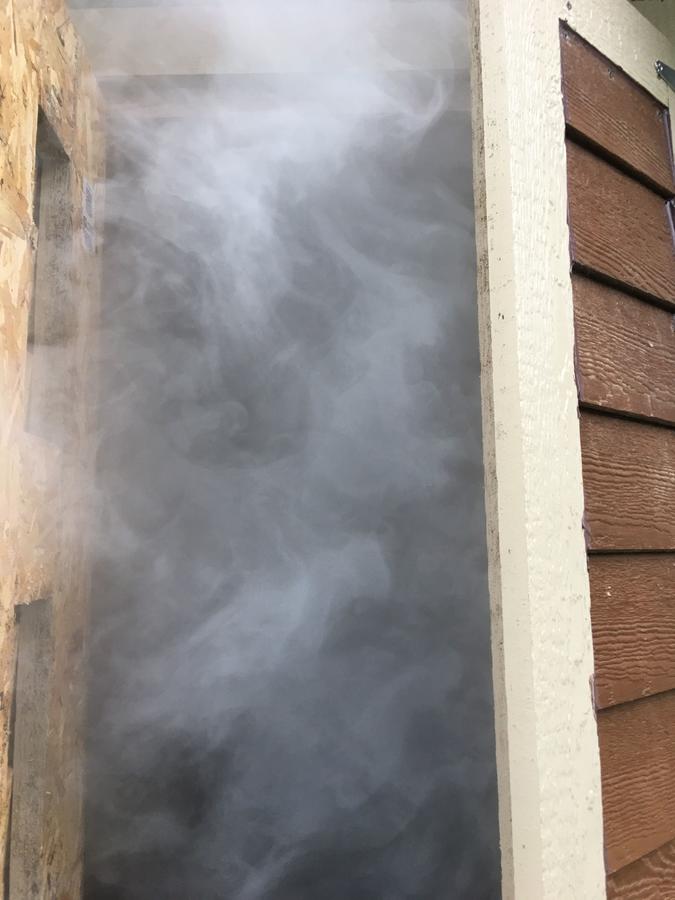

test run



[tfd21]


• tfd21
• Aug 2, 2017

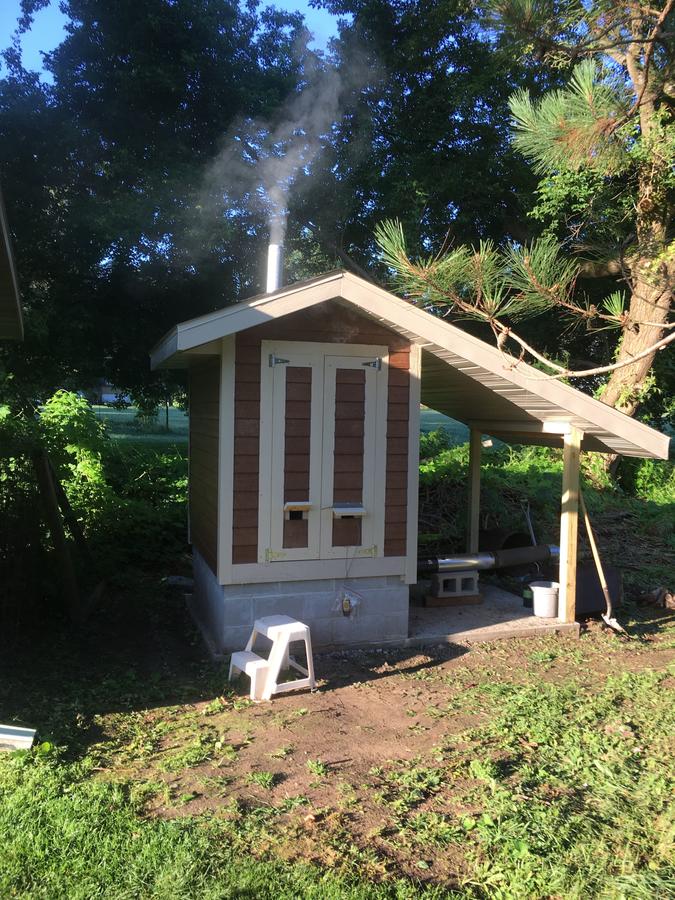

test run #2



[tfd21]


• tfd21
• Aug 2, 2017

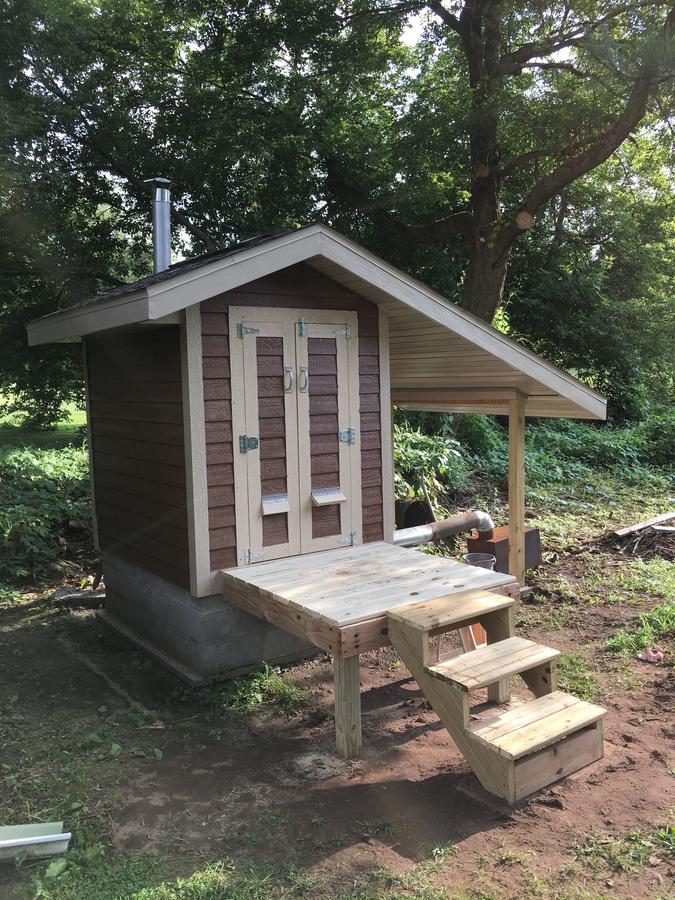

got the deck and stairs on



[tfd21]


• tfd21
• Aug 2, 2017

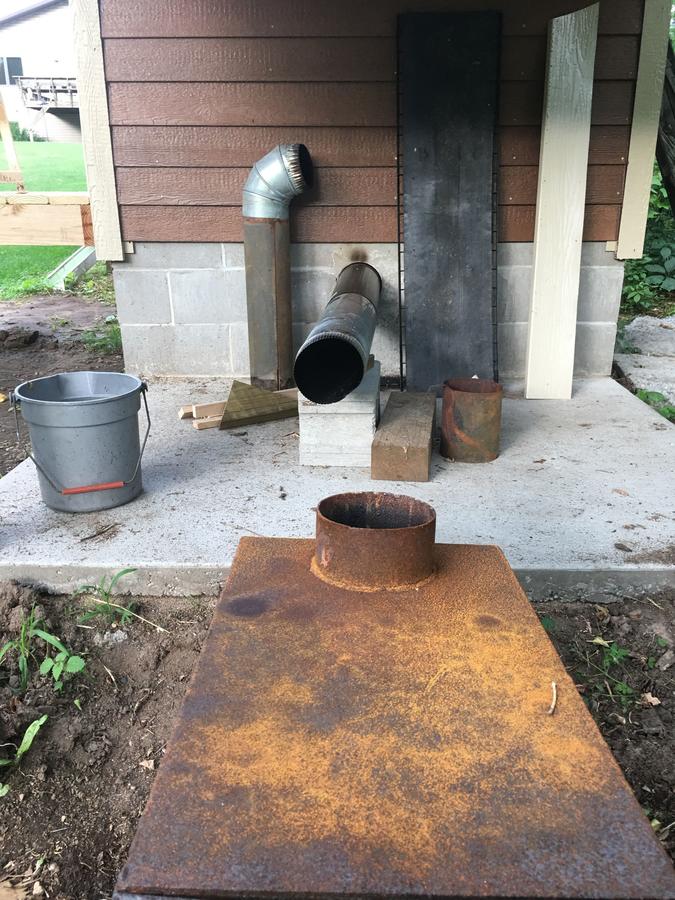

just need to finish the fire box



[ab canuck]

 Looks great so far!!!!



[jimmyinsd]

very nice!
