My 1st UDS build!!

jamiem

Newbie
9
10
Joined Nov 10, 2013
Hey everybody!  I've been watching and hearing so much on the internet lately about the UDS that I just have to make one.  I've been looking for about two weeks now and a friend of mine that works at a mechanic shop gave me an old drum that had oil in it for free.  It is in good condition and has the lid and is unlined.  He also had a bunch of pallets lying around and let me get as much as I wanted.  Finally got my stuff and will get to work this weekend.  Did some cleaning on it today after work.




When I first brought them home.  Mmmm that's so appetizing!!!  Cleaned them up, not sure why because I'm gonna burn it but just wanted to inspect it a little better.




Not too bad.  Will get to the burns and drilling and hopefully the painting this weekend!


flyboys

Smoking Fanatic
603
42
Joined Oct 14, 2007
I can almost see my reflection! Nice score and good luck. Ask if you get stuck, that's what I did with mine. If I can help by answering anything I most certainly will.


vagunsmith

Newbie
18
10
Joined Nov 6, 2013
I haven't seen the answer to this question anywhere. Will the uds get hot enough during smoking to burn the outside paint off the barrel? Is it really necessary to pre burn the outside paint from the barrel? My barrel had pure 100% honey in it and the inside is perfectly clean. If the paint will burn off I will go ahead and paint with high temp paint.


flyboys

Smoking Fanatic
603
42
Joined Oct 14, 2007
I didn't do a preburn on mine, I had it sandblasted inside and out.  I would imagine that the heat around the bottom of the drum where your charcoal basket is would probably affect the exterior paint.  Even the top exterior section of the drum gets pretty hot to the touch.  I painted mine with high temp grill paint to be on the safe side.


jamiem

Newbie
9
10
Joined Nov 10, 2013
I saw some videos on youtube where when they burned the barrel that the paint on the outside came off, most of it anyway.  I guess you just have to burn it hot enough and long enough.  I probably won't burn mine out until Friday or Saturday, will let you know and see how it turns out.


jamiem

Newbie
9
10
Joined Nov 10, 2013
I've found that people are using pipe nipples for the air intake.  I went to home depot yesterday to get them.  I don't think people are using the galvanized so I bought the 'black steel' nipples.  Are those safe or do we need to buy something else.  I know they are on the outside of the drum but the air is going through them so I didn't want the galvanized because I hear so many people talk about the harmful vapors when it gets to a certain temperature.


flyboys

Smoking Fanatic
603
42
Joined Oct 14, 2007
You're correct about galvanized. I have the black steel nipples on mine.

That just sounds wrong.


lilricky

Smoke Blower
89
12
Joined Feb 13, 2011

I've found that people are using pipe nipples for the air intake.  I went to home depot yesterday to get them.  I don't think people are using the galvanized so I bought the 'black steel' nipples.  Are those safe or do we need to buy something else.  I know they are on the outside of the drum but the air is going through them so I didn't want the galvanized because I hear so many people talk about the harmful vapors when it gets to a certain temperature.
correct. I used brass on mine as that is what we had where I work


fudlight

Newbie
10
10
Joined Nov 5, 2013
I did a burn in my barrel a couple weeks ago. Did one burn with all wood for about 6 hours then I washed it out and did another burn with mostly charcoal and some logs on top of the charcoal. A good portion of the paint on the outside was removed but still required some attention to remove the rest before I painted mine with high temp paint.


bigr314

Meat Mopper
270
15
Joined Jun 4, 2011

When you do a burn most of the outside paint comes off. Yes use black pipe and I have brass values I used a Weber 22 inch dome lid on mime.I have 3 -3/4 inch nipples and 3-24 inch black pipe intakes. My 1st drum I did not use the black pipe intakes. Just thought they would be nice this time around.


jamiem

Newbie
9
10
Joined Nov 10, 2013

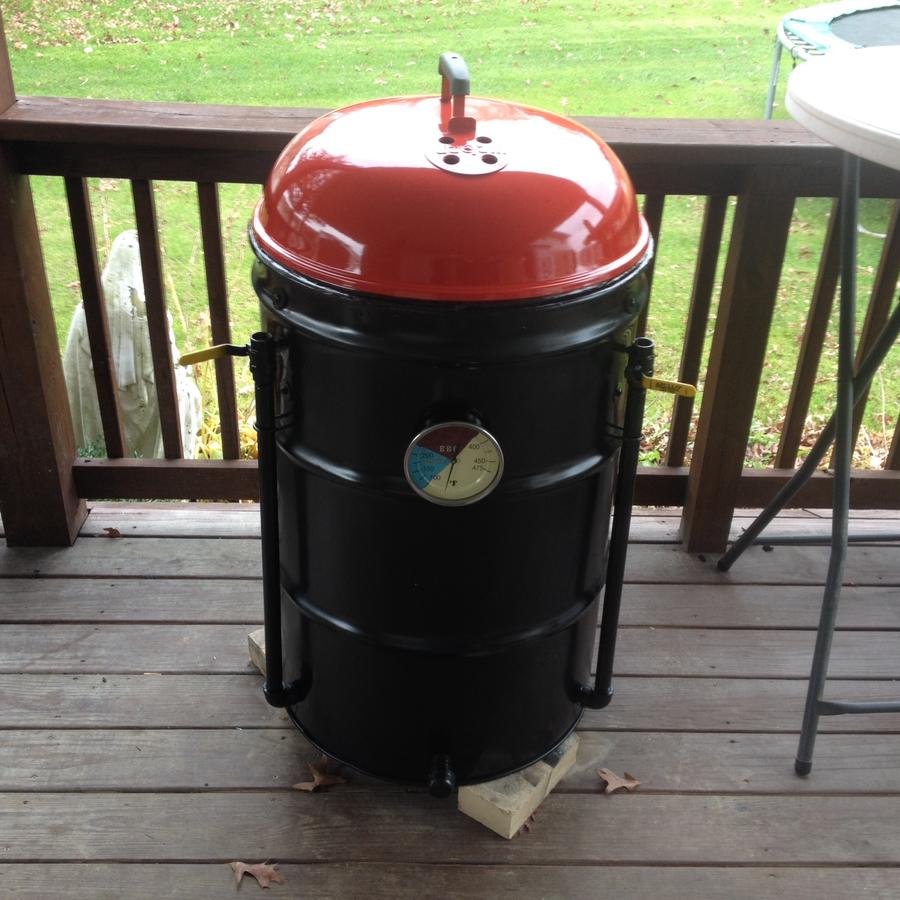

I finally finished my UDS!!!!  I am in the process of uploading the video to youtube but it's taking forever.  Here is a picture of my new UDS.


What you think??  Followed Sneekeey1's plan on youtube.  I'm in the process of seasoning it right now and will be smoking some ribs on Saturday.


fwismoker

Master of the Pit
4,281
1,030
Joined Dec 31, 2012

I finally finished my UDS!!!!  I am in the process of uploading the video to youtube but it's taking forever.  Here is a picture of my new UDS.


What you think??  Followed Sneekeey1's plan on youtube.  I'm in the process of seasoning it right now and will be smoking some ribs on Saturday.
That is one gorgeous machine!  WOW very very nice ...

The only thing i'd suggest is maybe add a couple of nipples for more air... What other air intakes are there besides the uprights?


jamiem

Newbie
9
10
Joined Nov 10, 2013
I have the 2 uprights and one nipple in the back for intake.  At the top I just have 2 holes drilled in the lid cause I don't have my exhaust pipes yet.  That will probably come this weekend too.  I've had it seasoning for the past 4 hours and it's holding steady at about 230.  I took the lid off to simulate basting the meat so that I could handle flareups.  It took me a few minutes to get it back.  It went up to 250 and finally got it back down to 225 after about 8-10 minutes.  About to shut down all the valves so I can go to bed.  I was going to let it burn all night until it burned out but a little worried about that since this is my 1st one I'm not sure if I should.


fwismoker

Master of the Pit
4,281
1,030
Joined Dec 31, 2012

I have the 2 uprights and one nipple in the back for intake.  At the top I just have 2 holes drilled in the lid cause I don't have my exhaust pipes yet.  That will probably come this weekend too.  I've had it seasoning for the past 4 hours and it's holding steady at about 230.  I took the lid off to simulate basting the meat so that I could handle flareups.  It took me a few minutes to get it back.  It went up to 250 and finally got it back down to 225 after about 8-10 minutes.  About to shut down all the valves so I can go to bed.  I was going to let it burn all night until it burned out but a little worried about that since this is my 1st one I'm not sure if I should.
Ok that helps.   Eventually you'll transition into higher heat cooks like 250 to 350...The bends in the uprights cut the flow by about half.   You'll definitely want a couple more nipples, maybe two 1" and also have enough  exhaust.   How big are the holes for the exhaust?

Again..that is one sharp ( non ugly) UDS!


magslam

Smoke Blower
95
14
Joined Oct 10, 2012

I finally finished my UDS!!!!  I am in the process of uploading the video to youtube but it's taking forever.  Here is a picture of my new UDS.


What you think??  Followed Sneekeey1's plan on youtube.  I'm in the process of seasoning it right now and will be smoking some ribs on Saturday.
It looks great. I've been tempted to go with a UDS built. So far I have kept "beating" my OTG Weber kettle.
