Modified my Small Reverse Flow

Discussion in 'Reverse Flow' started by smokinhawgbbq, May 3, 2016.

  1. I built a 26 gallon rf a few years ago just to cook Briskit at contests, out of stuff lying around, I had a 26 gallon tank, a chargriller sidebox

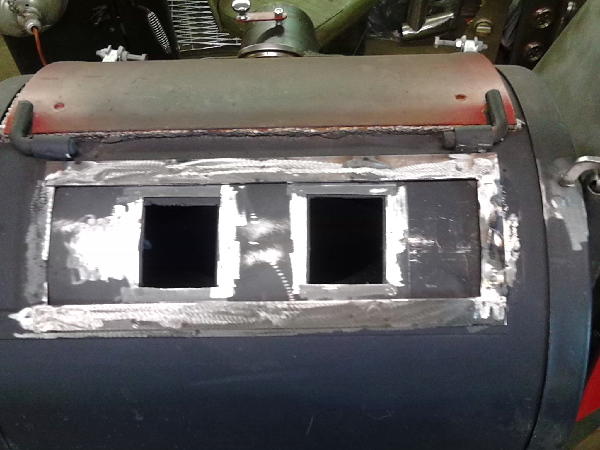

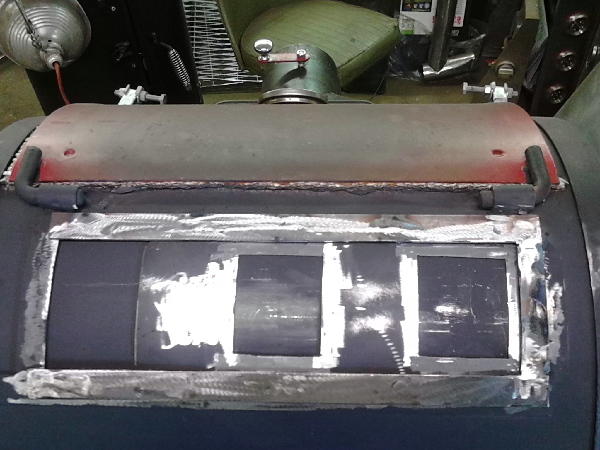

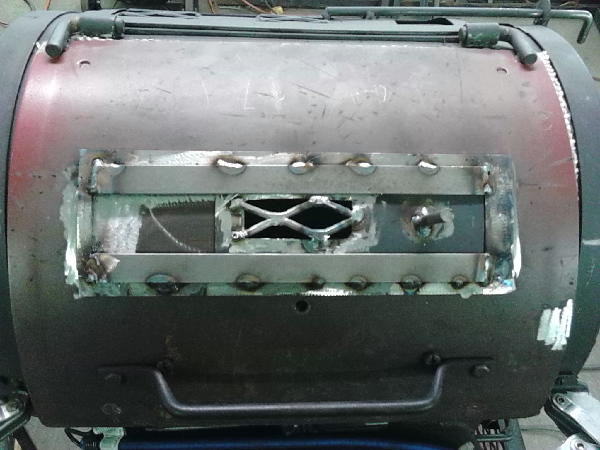

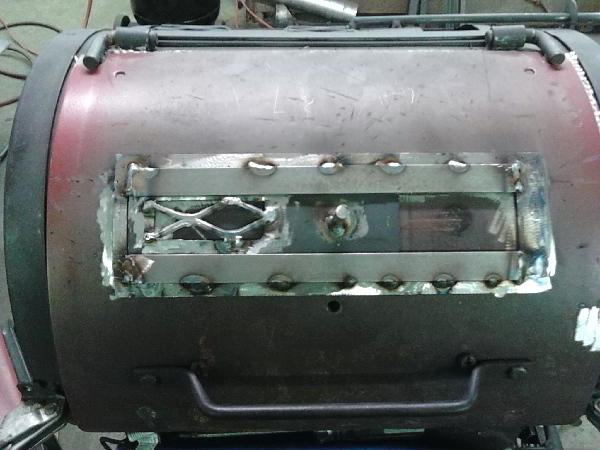

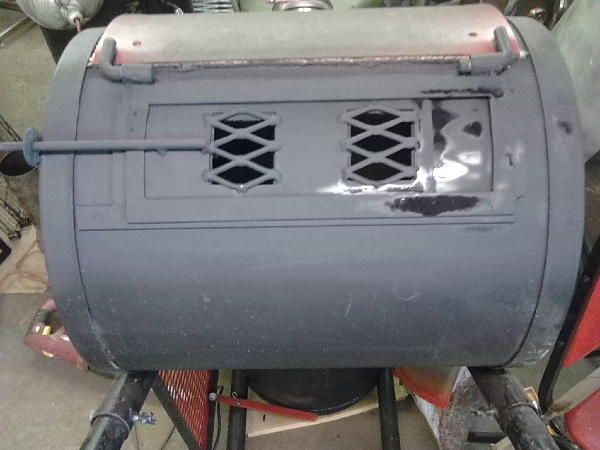

    And 2 14x24 chrome wire shelves. it ran ok,maintained 225-250 no problem, but woulden't go any higher. At that time I had never seen a build calculater to run specs. I ran daves calculater and openings were right, stack has a damper. I did new lower and upper intakes on the firebox, and tested it yesterday, 50 degrees,wet,breezy, put up a popup, and smoked 1/2 a turkey Breast , A small Pork Roast,

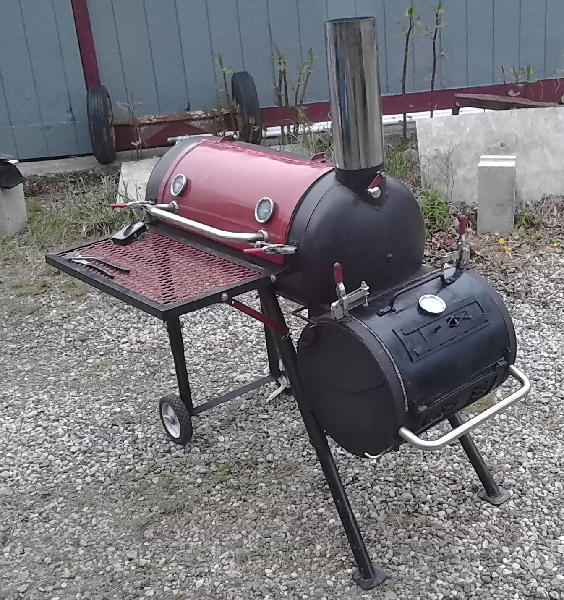

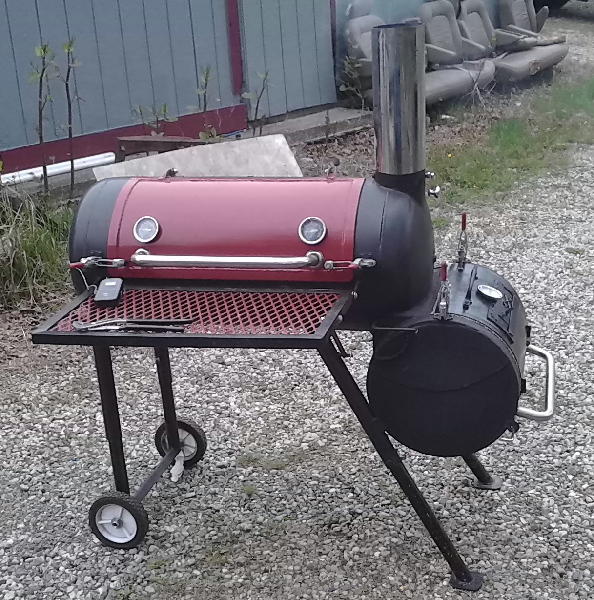

    And about 5 lbs of country ribs. With very little adjusting it would now run up to 350 if wanted, ran a constant 225 I like to cook at, temps were within 5 degrees front to rear. This smoker has a half moon baffle between the fb and cc, and a sliding plate to adjust the space at the end of the rf plate. WE never had to touch those extra adjustment points. The legs telescope 12 inches, the front shelf folds down, and the stack lifts off, So it wiuld fit under the cap of a mazda pickup. The difference after making Daves mods were like night and day.Thanks Dave!!

    Four hour cook on 5 chimneys of charcoal on a wet dreary day!!








    Last edited: May 3, 2016
    daveomak and smokealilsmoke like this.
  2. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Glad you found the tutorial helpful....  You'd be surprised how many folks think the upper and lower air inlets aren't needed...  or won't do anything to improve the temperature control...

    Another happy smoker....

  3. smokinal

    smokinal Smoking Guru Staff Member Moderator OTBS Member ★ Lifetime Premier ★

    That's a great looking smoker. Nice build!

    Thanks to Dave it's even better now.

    Looking forward to seeing it in action.

    Al

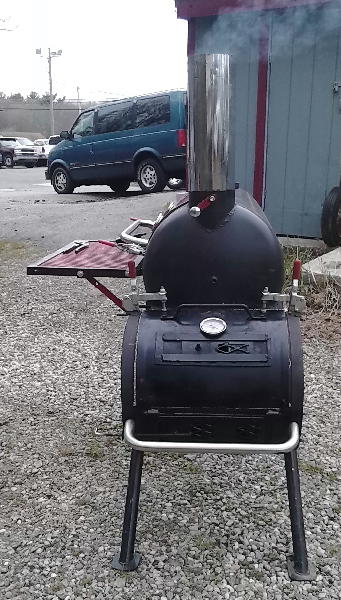

  4. Al, it's running in the second Picture you can just see the TBS, The q pics from that test cook are in this section, it always cooked good,the mods made it super good on charcoal !!

    Mike

  5. smokinal

    smokinal Smoking Guru Staff Member Moderator OTBS Member ★ Lifetime Premier ★

    I see it now Mike!

    Al

  6. Nice little smoker

    Gary
