Mini UDS.... What is too small?

newbsmoke

Fire Starter
53
12
Joined Jun 30, 2013

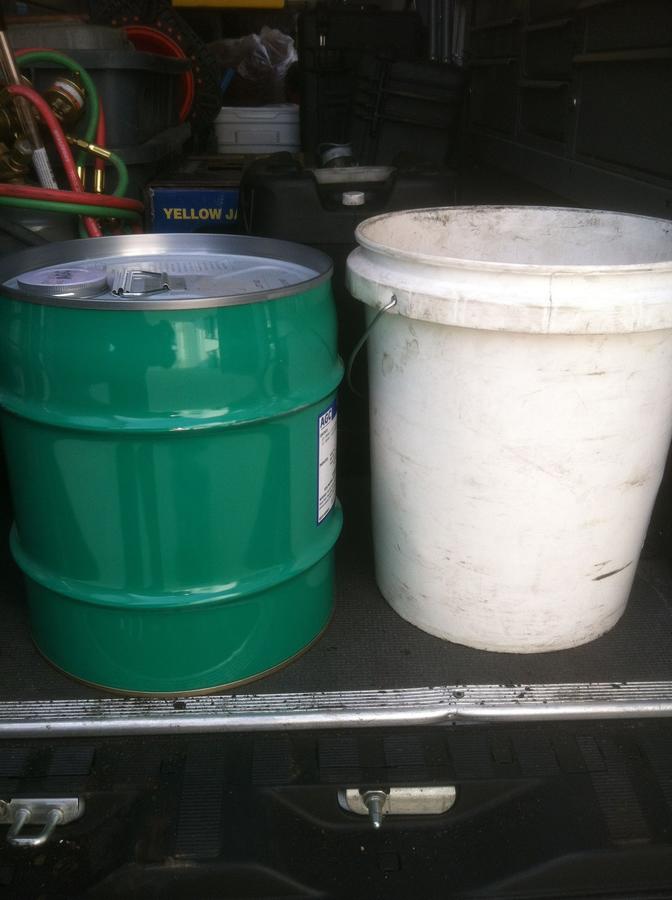

So when I smoke its always just me and my wife. I love my electric old smokey but really it's bigger then I need and I really want to experiment with charcoals and wood chunks. I got a drum today about the size of a 5 gallon bucket. Is this doable to turn into a really mini UDS? The bucket is for size comparison.


bama bbq

Master of the Pit
2,355
69
Joined Sep 24, 2011
Folks build mini wsm(s), and now Weber is selling them (part 711001) so why not a mini UDS? I've seen a 30 gal drum used but not one as small as the one in your photo. Go for it and be sure to document the build here and show us how it cooks!

Last edited:

newbsmoke

Fire Starter
53
12
Joined Jun 30, 2013
My main concern is that the meat will be too close to the heat source..... Any thoughts/comments/suggestions?


dirtsailor2003

Epic Pitmaster
OTBS Member
21,349
2,962
Joined Oct 4, 2012
My main concern is that the meat will be too close to the heat source..... Any thoughts/comments/suggestions?
Look at the mini-WSM builds. There are many ways to get the heat separated from the meat. As short as that drum is I would say that you would want to see if it will fit on a Smokey Joe. If you put the charcoal in the drum you aren't going to have enough room for a diffuser and the meat unless you're cooking thin cut chops and steaks.


bama bbq

Master of the Pit
2,355
69
Joined Sep 24, 2011
Look at the mini-WSM builds. There are many ways to get the heat separated from the meat. As short as that drum is I would say that you would want to see if it will fit on a Smokey Joe. If you put the charcoal in the drum you aren't going to have enough room for a diffuser and the meat unless you're cooking thin cut chops and steaks.
If it doesn't fit a Smokey Joe (14.5"), maybe a Jumbo Joe (18"). Also, you could use a pizza stone as a diffuser to keep direct flame off the food.

I really think you have some possibilities there.

Last edited:

themule69

Epic Pitmaster
12,898
350
Joined Oct 7, 2012
It should work fine. Take a look at the mini BGE

I look forward to seeing some pics of the build. Fallowed by some great Q

Happy smoken.

David


newbsmoke

Fire Starter
53
12
Joined Jun 30, 2013
I'm wishing I woulda grabbed two of them right now. The guy that gave it to me must of had like 50 of them.


newbsmoke

Fire Starter
53
12
Joined Jun 30, 2013
So I'm totally new to this... I know you can't link but can anybody point me in the direction of a good thread with step by step instructions? Also looking for some design help with how I should lay things out?


flyweed

Smoking Fanatic
376
12
Joined Jun 5, 2010
I'd think you could make a really nice UDS out of a 15 gallon drum.  I've been wanting to try that, but just no time.  And I am now building a Mini WSM


reents

Smoke Blower
149
11
Joined Aug 19, 2007
Go to search and type in UDG and you will obtain all types of info
