Insulated Reverse Flow Cabinet Smoker Build

SRPMKR

Newbie
3
7
Joined Aug 13, 2020

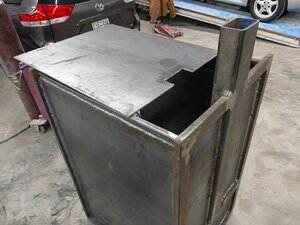

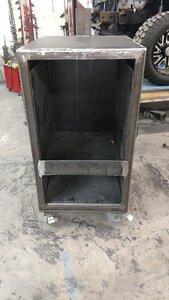

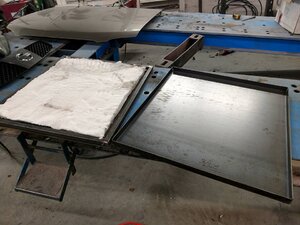

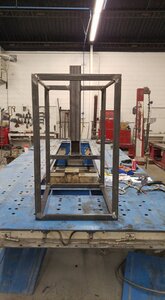

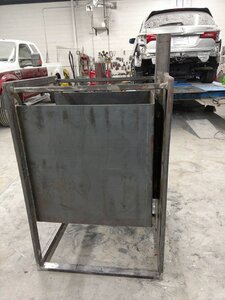

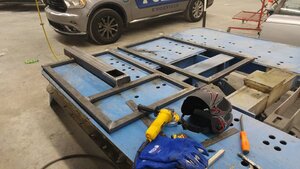

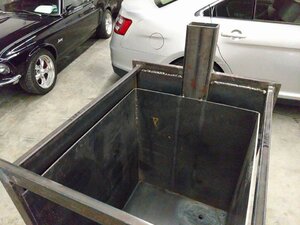

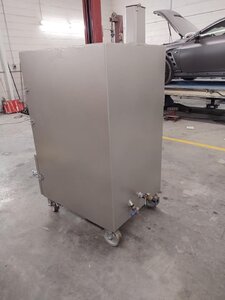

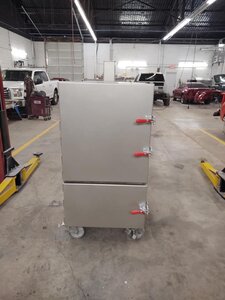

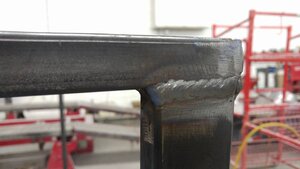

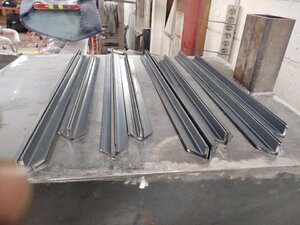

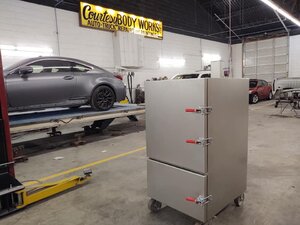

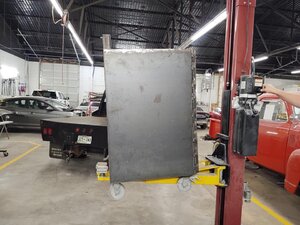

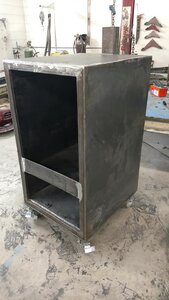

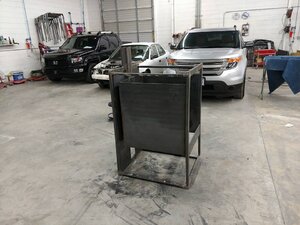

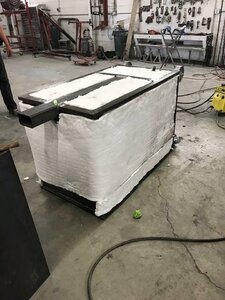

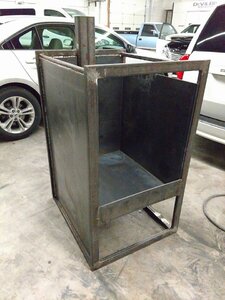

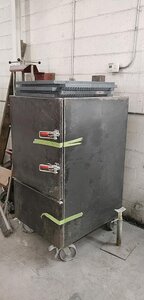

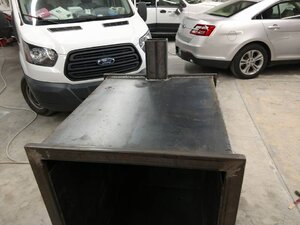

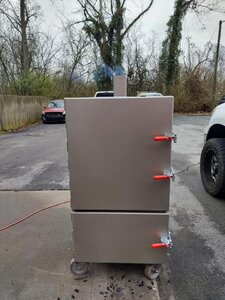

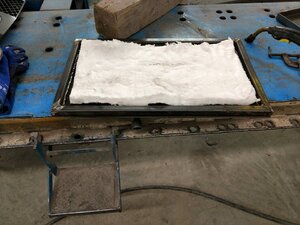

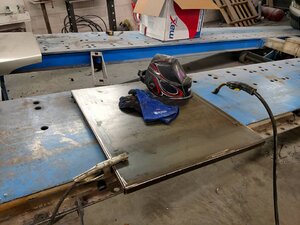

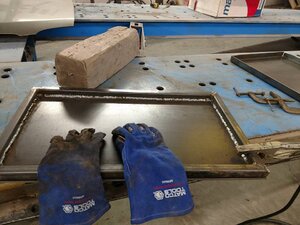

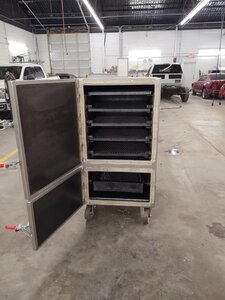

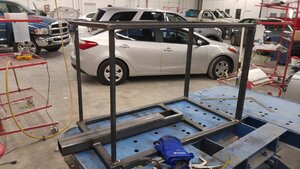

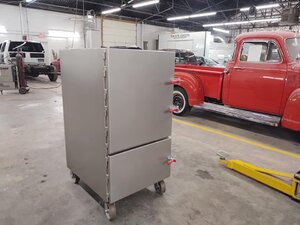

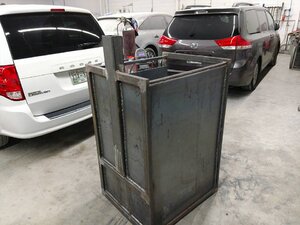

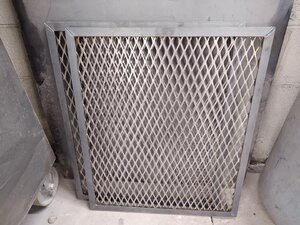

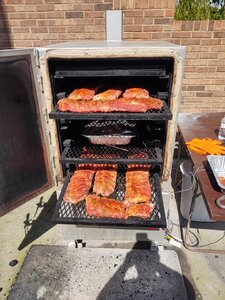

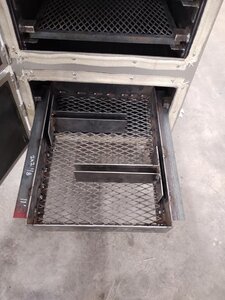

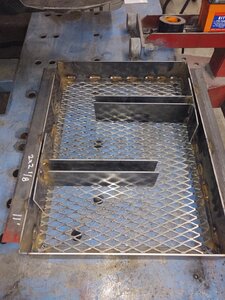

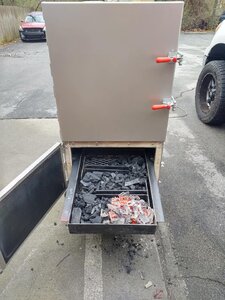

I thought I would join the group since I have been reading forum threads for years. I engineered/fabricated this mammoth smoker in part thanks to some other threads on here. When I decided to build a smoker my intention was to build a reverse flow barrel smoker. The more I thought about it the more I realized that it would take up a lot of floor space and not give the greatest amount of cooking capacity. Then it dawned on me that I can go up just like I can go out with the barrel. That's when this bad idea was cemented. I framed this smoker out of 1x1 and 1x2 tube mild steel. The all of the interior and middle divider walls are 1/4 inch steel. I installed an inch of Kaowool insulation and then capped the beast with 1/8 inch steel plate. It has steel ball bearing casters, Destatco latches, and braided rope gaskets. The doors follow this same plan of 1/4 inch inside walls, 1/8 outside, and 1 inch of insulation with 1x1 framing. I had a brain fart with the gaskets, I meant to install them on the doors instead of the smoker itself; just wasn't thinking clearly that day I guess! I was so close to finishing I could almost taste it and made that mistake. The lower pan of the cooking chamber acts as a water pan and is plumbed to the outside for easy cleaning/draining. The smoke chamber is valved as well and I elected to run my Auber PID controller with a 20 cfm fan to regulate the temp. I also built dividers for the charcoal box to progressively burn the coal in the Minon method. I have 5 cooking racks so theoretically I can cook 20-25 slabs of ribs, 10 or so briskets, or a ridiculous amount of butts. The exterior dimensions are 48 inches tall plus 8 inch casters, 28 inches wide, 33 inches deep, it has over 5 MILES of welding wire in it and weighs somewhere well north of 1000 lbs. The only complaints I have with the smoker are the extreme weight and that it takes it a good hour to warm up the massive amount of steel, after that it will cook all day/night. Thanks for letting me join the group and I hope to keep learning from you fine folks....

-Micah

16807093_718152361323_4255047963304760646_n.jpg 16938648_718154117803_949782560929309409_n.jpg 16939375_718152286473_9037837116099714482_n.jpg 16939500_719028625283_1205715624192047040_n.jpg 16998815_718152231583_1095713294669623992_n.jpg 17022288_719028560413_5160179713860167403_n.jpg 17098725_718787353793_6741608983663506192_n.jpg 17103711_719028555423_7485891440117948391_n.jpg 21192472_748510069233_1158641317709312188_n.jpg 21193010_748510109153_3826018818879731711_n.jpg 25994535_764774420343_3944559170230663666_n.jpg 26000985_764549037013_4394693788200956991_n.jpg 26001239_764774555073_685516846788555633_n.jpg 26056118_764548832423_7992646893202360877_n.jpg 26112367_764548857373_631080167197930937_n.jpg 26166965_764548912263_4718124686642206163_n.jpg 26169647_764774709763_2397254627222872456_n.jpg 26169798_764774580023_8920837389522673066_n.jpg 30260984_778598222333_9019037219695886336_n.jpg 30261898_778598062653_3344470709609955328_n.jpg 30264543_778598322133_715759125966880768_n.jpg 30440849_778598032713_7450633326336933888_n.jpg 30441768_778598252273_4368462943872876544_n.jpg 31655599_781412607283_745238011960098816_n.jpg 35646920_787606814043_7615383465743089664_n.jpg 35647540_787606774123_6600102765186252800_n.jpg 83840549_868682313093_4437171756205080576_n.jpg 83947168_868682477763_6941125242957856768_n.jpg 84663777_868682607503_6054527560795029504_n.jpg 84715604_868682278163_8691479077850185728_o.jpg 86460258_871013072233_6766646229532147712_n.jpg 86469105_871012892593_7174568805828395008_n.jpg 86809049_871012977423_2946734189422051328_n.jpg 86831290_871013032313_4239885689048530944_n.jpg 86842061_871013346683_1839597229464092672_n.jpg 86842062_871013107163_4616137447087013888_n.jpg 86874653_871012922533_4869091049223487488_n.jpg 86969526_871012862653_3475366946126430208_n.jpg 86970749_871013152073_3764427105664761856_n.jpg 87042126_871336169743_8198841329657053184_n.jpg 87047088_871336239603_5294041723444396032_n.jpg 89111292_873310772623_7531750535410483200_n.jpg 93973918_885666262123_3650873453168295936_n.jpg 100057628_895091004863_6398557915833171968_n.jpg

Last edited:

flatbroke

Master of the Pit
OTBS Member
★ Lifetime Premier ★
2,183
1,948
Joined Sep 16, 2007
Welcome to SMF. Great job. You are making the dog drool


JC in GB

Master of the Pit
SMF Premier Member
2,095
1,241
Joined Sep 28, 2018
Wow, amazing work. How does the airflow run through that unit?

JC :emoji_cat:


sawhorseray

Master of the Pit
SMF Premier Member
3,502
3,407
Joined Oct 17, 2014
Welcome from Gilbert, AZ! Magnificent piece of work building that smoker, looks like you got quite a bit of practice in on running s puddle. RAY


SRPMKR

Newbie
3
7
Joined Aug 13, 2020

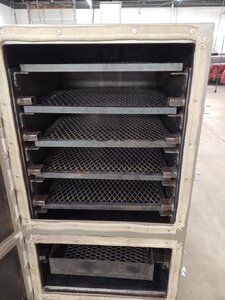

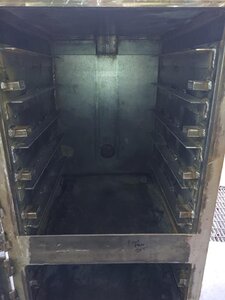

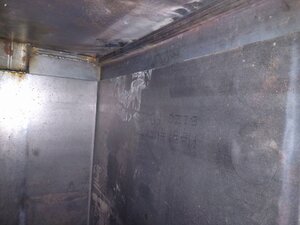

JC in GB it has a valve in the rear of the smoker in the bottom that it draws air inside, or in my case forced in with a PID fan, then flows up a 1 inch camber wall between the middle wall and the cooking chamber wall. The cooking chamber (most interior wall) stops 3 inches shy of the top to allow the smoke to flow into the cooking area, from there the smoke reverse flows down across the meat and mixes with the rising steam from the water pan at the bottom before be exhausted at the bottom of the cooking chamber in the rear and travels up the stack. You can see the gap in the photos on the original post now that you know what to look for.


SRPMKR

Newbie
3
7
Joined Aug 13, 2020

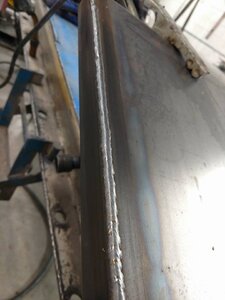

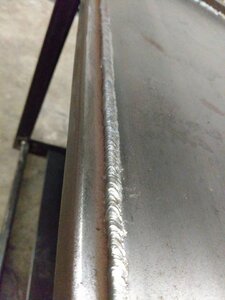

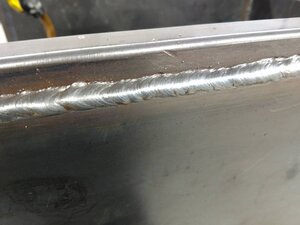

Sawhorseray I might have used a welder a couple times before. :emoji_wink: This was definitely a different animal though, don't get to run long hot beads on modern vehicles, always have to just stitch those together a tack at a time on the paper thin metal that's used today. I added it up and after it was all said and done there is over 5 miles of .030 wire in it. I built it in a way that the majority of the welds are hidden so it would be as clean of a look as possible when finished.


JC in GB

Master of the Pit
SMF Premier Member
2,095
1,241
Joined Sep 28, 2018
JC in GB it has a valve in the rear of the smoker in the bottom that it draws air inside, or in my case forced in with a PID fan, then flows up a 1 inch camber wall between the middle wall and the cooking chamber wall. The cooking chamber (most interior wall) stops 3 inches shy of the top to allow the smoke to flow into the cooking area, from there the smoke reverse flows down across the meat and mixes with the rising steam from the water pan at the bottom before be exhausted at the bottom of the cooking chamber in the rear and travels up the stack. You can see the gap in the photos on the original post now that you know what to look for.
Nice. Thanks for that explanation. Some lovely work you did on that rig.


etotore

Newbie
17
8
Joined Jul 21, 2020
Guess the meat ends up very juicy, easy to keep temperature low enough, with all the insulation? Love the design and the thought gone into it.
Maybe call it reverse gravity feed?
