Inkbird Getting Ready To Spin The Meat

[tropics]

Modified my Inkbirdbbq IBT- 6XS to use on my Rotisserie when the snow goes away,

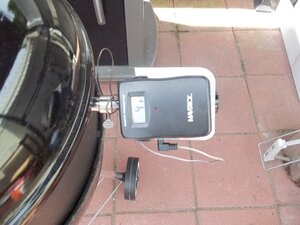

Followed L lamar https://www.smokingmeatforums.com/threads/making-et732-work-on-my-rotisserie.258216/
I had almost the same one he had, not having much of a shop mine was crude but it worked. A few pics of it.

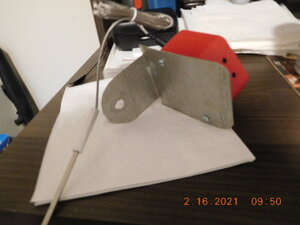

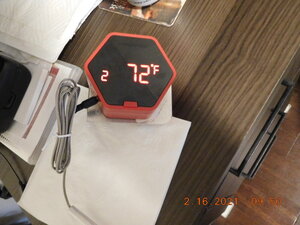

I am using the same bracket for the Inkbird IBT-6XS

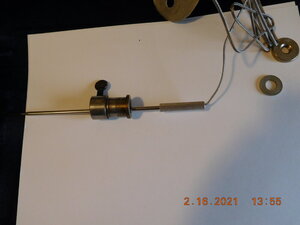

I slide the probe thru the bushing, keeping the wire under the skewer rod

You have to figure how much cable is needed to get the probe into the meat

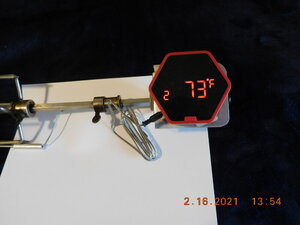

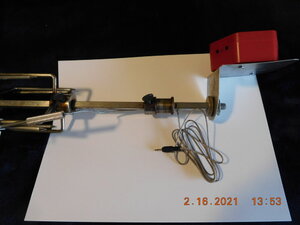

Showing with the handle attached

Items you will need you do not have to take it apart using the mollies.
You do not have to bend the bracket, once the screws are holding it it should be good.

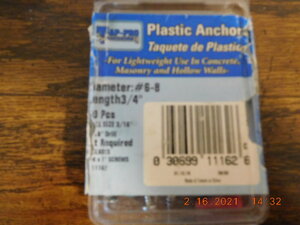

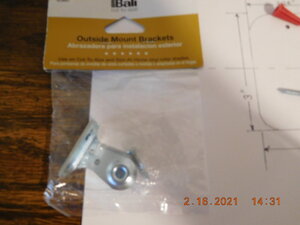

Here is a pic of the mollies I used and( the screws are from shade brackets they are thinner so as not to crack the probe casing)

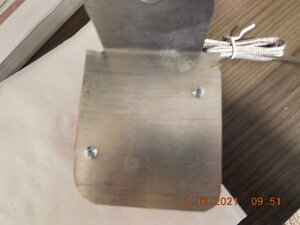

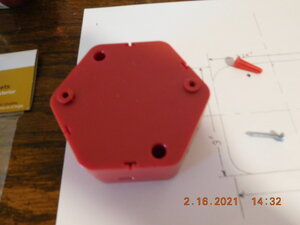

The back showing the mollies

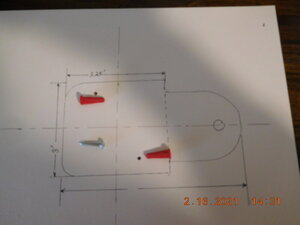

Here is the diagram you can print it and trace it to what ever metal you use for the bracket, I hope this works it is a PDF file sorry it will not allow me to add it as an image
I can send this to your email or PM if you need it.
Can hardly wait to use it.
Richie



[chopsaw]

Nice Richie . I've been looking for that thread and could not find it. Looks like yours is gonna work great . Thanks bud .



[tropics]

Nice Richie . I've been looking for that thread and could not find it. Looks like yours is gonna work great . Thanks bud .

Rich Thank you it was a crazy idea till I took it apart, Then it was all to easy,
Thanks for the like I appreciate it
Richie



[Brokenhandle]

I love it when a plan comes together! Can't wait to see it in use.

Ryan



[Winterrider]

Heck yeah !



[lamar]

Glad my crazy idea was of some value to you guys. good work.



[chef jimmyj]

That is great. Can the bracket be purchased or did you make it! I have a new Rotisserie for my kettle and No ability to fabricate a bracket...JJ



[indaswamp]

So, is that a homemade bracket to install on the rotisserie so you can use a thermometer with a probe?



[tropics]

I love it when a plan comes together! Can't wait to see it in use.

Ryan

Ryan Thanks Covid has me stir crazy
Richie



[tropics]

Heck yeah !

Thank you that is what I said when I started to do it. Thanks for the Like I appreciate it
Richie



[tropics]

Glad my crazy idea was of some value to you guys. good work.

Still giving you the credit it works great. Thanks again Bud for the idea
Richie



[tropics]

That is great. Can the bracket be purchased or did you make it! I have a new Rotisserie for my kettle and No ability to fabricate a bracket...JJ

JJ Thank You I made the bracket with a pair of tin snips and a drill. I used a cheap SS pan cut it bent it, now I drill holes for the screws
Thank for the Like I appreciate it
Richie



[tropics]

So, is that a homemade bracket to install on the rotisserie so you can use a thermometer with a probe?

Yes it is you can see how the probe wire goes thru the bushing and into the meat.
Richie



[MJB05615]

Great fabrication idea. Can't wait to see it in action.



[indaswamp]

Cool idea...



[tropics]

Great fabrication idea. Can't wait to see it in action.

Mike Thank You L lamar is the one who came up with the original. Thanks for the Like I appreciate it
Richie



[tropics]

Cool idea...

Going to see if I can draw ( TRACE ) and save a pic that anyone could use to make it with their IBT-6SX
Richie



[crazymoon]

Richie, Looks good ,now you need to think spring to use it.



[sawhorseray]

I always wondered how someone would do that, nice piece of work Richie! RAY



[tropics]

Richie, Looks good ,now you need to think spring to use it.

I hear ya this cold and snow has been here to long already. I know you must be getting some nice Perch thru the ice. Thanks for the Like I appreciate it
Richie
