Heating oil tank vertical build

Discussion in 'Other Builds' started by lotemp, Dec 18, 2014.

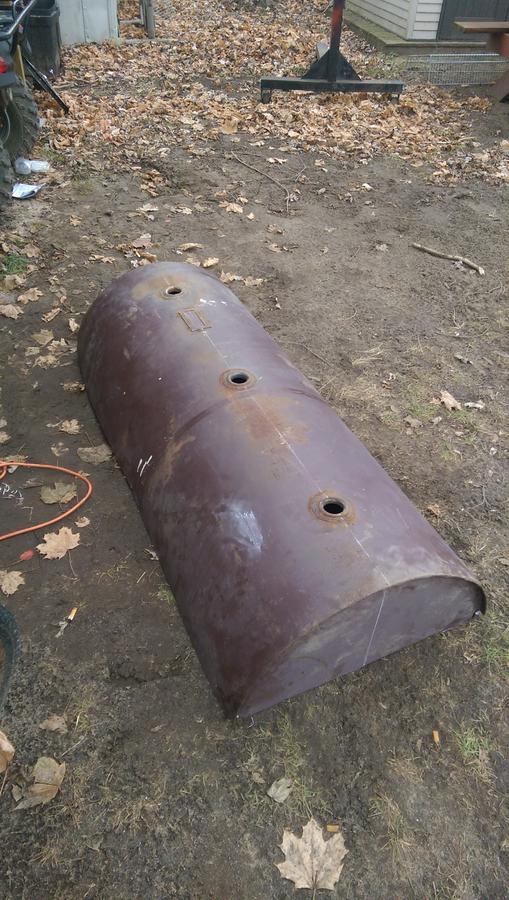

  1. Hello everyone and welcome to my vertical heating oil tank build. I originally purchased the tank to build a smoker for a friend but then they decided they didn't want it. So now I'm building it for someone else.

    I got a pretty good start on it today so I will let the pics do the talking. This was my first tank I've cut and just as I predicted the panel was under a decent amount of tension. I'll be adding some bracing so that i can keep everything square.







  2. bigtrain74

    bigtrain74 Master of the Pit OTBS Member SMF Premier Member

    I love it! Can't wait to see more when they come.

  3. Your off to a good start! Keep the pics coming.

    [​IMG]

    Happy smoken.

    David

  4. Looking good !

    Gary

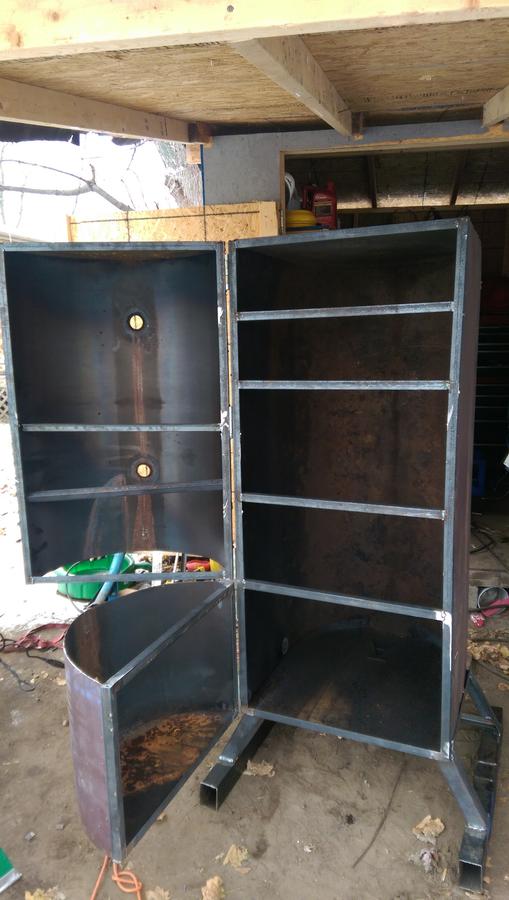

  5. So it's kinda cold so I didnt take a lot of time for pics while I was building but this is where I am so far. And the crooked braces in the door are just temporary because I was struggling with the tension on the panel.

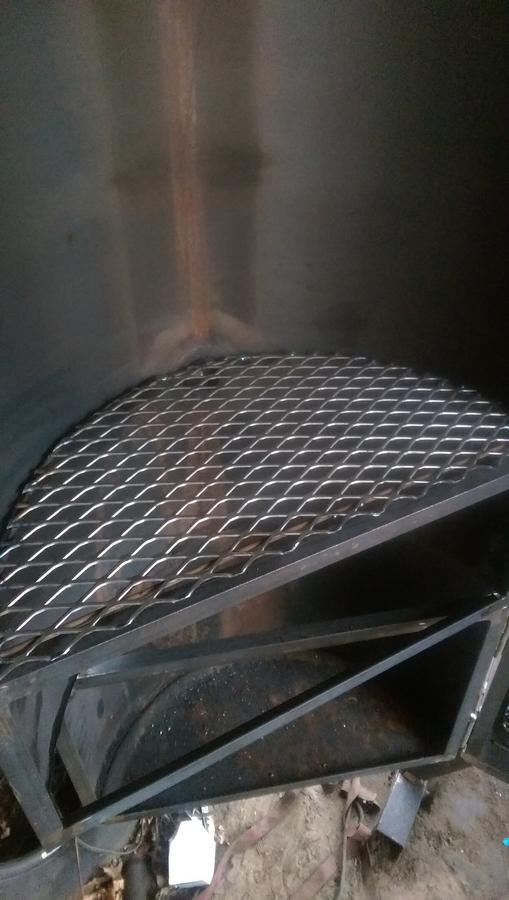

  6. i finished the meat racks, deflector plate, latches and air inlet






  7. It needs a paint job but its finished. I'm not sure how its going to flow with the short stack but that was not my call. It does look pretty cool though.  let me know what you think





  8. A little paint and it's all done

  9. Nice

  10. boykjo

    boykjo Sausage maker Staff Member Moderator Group Lead OTBS Member

    Looks great.........[​IMG]       Cant wait to see that baby fired up

    Joe

  11. Unfortunately it's not mine to fire. I just built it

  12. jckdanls 07

    jckdanls 07 Master of the Pit Group Lead OTBS Member

    cool smoker... If I am seeing the pictures right.. you put grates in the door too ??

  13. Ya. I had some extra material so I made two shelves on the door

  14. Final pic of the inside

  15. Nice !
