Fire brick top of smoker

darikweitzel

Newbie
9
0
Joined Feb 4, 2020

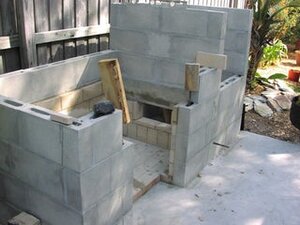

Looking for ideas on how to build the top part of my offset smoker in the firebox. I want it to be firebrick however not sure how to keep it together without it falling down over time. Be nice to have a fire brick slab but I can’t fire one up. I thought about a steel plate or putting rebar through the fire brick to hold it up or even just a concrete slab but I want it to last.


smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
2,955
1,082
Joined Jan 14, 2014
years ago I built my brother something like that, I ended up using a 3/8 steel plate reinforced with angle iron, tried a thinner piece first but it warped quickly. as far as using fire brick I think you would have to use angle iron back to back every width of the brick to bridge the gap then lay the brick on that. maybe some of the pro's will chime though


darikweitzel

Newbie
9
0
Joined Feb 4, 2020
years ago I built my brother something like that, I ended up using a 3/8 steel plate reinforced with angle iron, tried a thinner piece first but it warped quickly. as far as using fire brick I think you would have to use angle iron back to back every width of the brick to bridge the gap then lay the brick on that. maybe some of the pro's will chime though
Wow that is pretty thick steel. Perhaps the angle iron would be plausible to do. Think I would have to weld them together?


SmokinEdge

Meat Mopper
169
103
Joined Jan 18, 2020
If you feel you need or want fire brick on the top side of the fire box, I would build it as a soft arch. Kind of like a pizza oven. That said, in a small fire box, the fire brick won’t last long on top.


smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
2,955
1,082
Joined Jan 14, 2014
Wow that is pretty thick steel. Perhaps the angle iron would be plausible to do. Think I would have to weld them together?
yeah pretty thick but there are some high temps in there, I just started thinking when I built it and can't believe it was 17 years ago, but luckily I have a friend who was a iron worker and knew a guy with his own fab shop, he did everything for me, including the steel door for the fire box, the top for the smoke chamber and 2 steel doors for the smoker chamber. best part he didn't charge me a dime for nothing. can't tell you what it would of cost. next time i'm down that way i'll take a picture of it.


SmokinEdge

Meat Mopper
169
103
Joined Jan 18, 2020
So you think thick steel will last longer then firebrick? I want something that will last a long time
with out doubt, a good thick Steel plate will out last the rest of the fire box.
source a local Steel supply or a fab shop, see what they have in left over cuts. I would use what they have available in cut pieces. 1\2, 3/4 even 1 inch if they will sell that piece cheap enough.

That can be used as a warming plate, or a cooking surface for skillets as well.


darikweitzel

Newbie
9
0
Joined Feb 4, 2020
I think I will go for steel then at the thickest I can get for the price. Thank you all for your inputs! I will post many pictures when I start the project. I may run along more issues and will ask for help but til then :)


gary s

SMF Hall of Fame Pitmaster
OTBS Member
25,812
4,338
Joined Jan 6, 2011
If you are trying to hold heat, go with at least 1/4" (or heaver ) angle iron around the sides 1 , 1.5 or 2 inch Rock-wool then a thinner plate on top, Just sandwiching the Rock-Wool in between

Gary


smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
2,955
1,082
Joined Jan 14, 2014
if you are going to use angle iron (and I would to prevent warping) just make sure to leave enough room on edges of plate so it will sit flat on your blocks. good luck with your build!


darikweitzel

Newbie
9
0
Joined Feb 4, 2020
If you are trying to hold heat, go with at least 1/4" (or heaver ) angle iron around the sides 1 , 1.5 or 2 inch Rock-wool then a thinner plate on top, Just sandwiching the Rock-Wool in between

Gary
Trying to get heat out of the fire box to the offset smoke box. Looking for idea to close top of firebox.
