Final mod; to my MES. I think?

GATOR240

Smoking Fanatic
OTBS Member
SMF Premier Member
911
356
Joined Oct 15, 2017
Just curious, how is the insulation in the cabinet holding up?


dr k

Master of the Pit
OTBS Member
2,493
446
Joined Mar 22, 2013
One of the reasons I cut the element bracket in half lengthwise and flipped it (so I didn't have to cut a new hole in the smoker) other than for even heating was to keep the insulation in the right rear corner from burning. A lot of pics with the back off show burnt insulation in the right rear corner with the stock 1,200 watt element. When you push on the inside walls near the element you can hear crunchy burnt insulation. I'm thinking the insulation won't handle 350° for much time.


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019
One of the reasons I cut the element bracket in half lengthwise and flipped it (so I didn't have to cut a new hole in the smoker) other than for even heating was to keep the insulation in the right rear corner from burning. A lot of pics with the back off show burnt insulation in the right rear corner with the stock 1,200 watt element. When you push on the inside walls near the element you can hear crunchy burnt insulation. I'm thinking the insulation won't handle 350° for much time.
I have not smoke above 250 with it but got real tired of it never getting above 200 when unaltered.


dr k

Master of the Pit
OTBS Member
2,493
446
Joined Mar 22, 2013
I have not smoke above 250 with it but got real tired of it never getting above 200 when unaltered.
Right! Me too. That's why I went to the PID because without it my Mes Gen 1 40 highest temp was 260 on the upward coast so averaged about 245-250. I wanted 275 for ribs, butts and brisket.


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019
Right! Me too. That's why I went to the PID because without it my Mes Gen 1 40 highest temp was 260 on the upward coast so averaged about 245-250. I wanted 275 for ribs, butts and brisket.
I was hoping to get enough heat to smoke chicken and have crispy skin.


barryvabeach

Fire Starter
48
10
Joined Apr 12, 2016

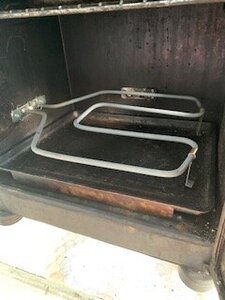

Can you post some info on the element - what the model number is and where you got it. I was modding a counter top oven recently and was looking for an element just like that, and could not find it. It looks like it will give more even heat through the box.


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019
Can you post some info on the element - what the model number is and where you got it. I was modding a counter top oven recently and was looking for an element just like that, and could not find it. It looks like it will give more even heat through the box.
amazon" style="max-width:120px">


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
5,693
475
Joined Sep 10, 2011
So if I am reading that right... the adjustable controller on the element is removable ?? and then how do you wire it to the PID controller without the element controller ??


barryvabeach

Fire Starter
48
10
Joined Apr 12, 2016
Jack, no fair, that was going to be my question. As I understand it, the controller just slides off, so you have two smooth ends, and I didn't see how you would attach leads to it?


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019
So if I am reading that right... the adjustable controller on the element is removable ?? and then how do you wire it to the PID controller without the element controller ??
Actually, I did not bypass the factory thermostat on the new element. I just dial it up to High and plug it in to my Auber a go to town!


cmayna

Master of the Pit
OTBS Member
★ Lifetime Premier ★
3,098
847
Joined Jun 23, 2012
So if I am reading that right... the adjustable controller on the element is removable ?? and then how do you wire it to the PID controller without the element controller ??
When I did my MES40 mod, I bypassed all of the smoker's original controller system by connecting a power cord directly to the element. I then plugged the new power cord to Mr. PID.


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019
When I did my MES40 mod, I bypassed all of the smoker's original controller system by connecting a power cord directly to the element. I then plugged the new power cord to Mr. PID.
That is what I did but got tired of it struggling to reach 250 so I did away with all of the original parts ans added this new element.


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
5,693
475
Joined Sep 10, 2011
OK.. But from my understanding of previous builds with an element that has it's own adjustable controller that it would not get any hotter than what the element controller (turned up all the way) is programmed at. No matter how high you set the PID controller. I see that it's a plug in type probe (like a deep fryer or electric skillet) on the controller to the element. If/how did you bypass the adjustable controller probe ??


chopsaw

Smoking Guru
OTBS Member
SMF Premier Member
★ Lifetime Premier ★
6,942
3,453
Joined Dec 14, 2013
would not get any hotter than what the element controller
I just went and looked at the info from the link . Says " 50 F to 450 F " I wouldn't run it over factory 275 , but that's me . Good idea though .


Bearcarver

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
Group Lead
37,389
10,288
Joined Sep 12, 2009
I had an MES that had a control problem----- brand new Gen #2.
It went up to 345° before I knew it, so I stopped it. I could hear a crinkling noise inside the walls, and if I put my ear against the left side wall (only place cool enough to do that) the noise didn't stop until it got below 310°. It had to be the insulation crinkling inside the inner & outer walls.
So like Chopsaw said, I wouldn't intentionally make it go over 275°, and watch carefully that it doesn't accidentally get much above 300° for more than a minute or two during a coasting over-run.

Bear


patinlouisiana

Meat Mopper
150
66
Joined Jun 21, 2019

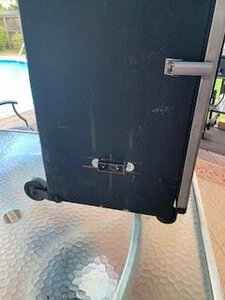

I have two 1/8" holes drilled in the middle of the sides. I slide the controller probe in one side and my Inkbird probe in the other side and have it set as a 310 high temp alarm. That way if my Amazing pellet tray ignites it will set off the alarm also.
