Assembled My New Masterbuilt

Discussion in 'Electric Smokers' started by Rings Я Us, Nov 29, 2017.

  1. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    I went and bought the Masterbuilt Bullet 1650 watt Smoker.
    Often these smokers sell for $69.00 or $59.00.. I saw some at the local HD and had to pull the trigger at a sale price if $29.00 . I bought a $7.00 2 year replacement warranty for the heck of it.
    I got the bullet to replace the ECB for a while. I guess I wanted to try out an electric type smoker and get some experience messing with one like that.
    Being an analog controlled device won't be so much set and forget. The low to high will be changing due to weather conditions and the size of or amount of food to smoke.
    Wood chips or chunks will burn different in this smoker than the charcoal ECB.
    This Masterbuilt is not a totally enclosed unit and has a small 1/2" or so gap all the way around it's heat shield under the double round heating elements that the charcoal pan sits just inside of..
    The charcoal pan has 3 feet to elevate it off the elements and they keep it centered.
    A water pan rests about 3 inches above the chip pan and is about the same diameter as the water pan used in the ECB. This water pan is however not as deep as the ECB pan. About 2/3 of the water volume it will hold.

    The entire Masterbuilt bullet smoker seems close to the old Brinkmann's dimensions, however, the body of the Masterbuilt is about 3 inches shorter.
    The steel thickness is a bit thinner than what the ECB is made of. It's not as heavy duty in the lid thickness either. Close in size of the lids though.
    This Masterbuilt comes with nice heavy plastic handles and a huge top vent. The thermometer is removable in the dome.
    I did stick the thermometer in my oven to check the accuracy of it.
    Have to admit.. Oven set at 275 and the Masterbuilt thermometer read 275 along with my regular oven thermometer next to it on the same rack.
    At least the dome temp it shows will be pretty close to actual temp there.
    During the assembly I kept wanting to grab the RTV sealant to put on all the holes before I screwed everything down. I refrained from bothering since this is not controlled by intake dampers at all.
    There is a bunch of sticky coating in the lid and inside the body of this bullet. The inside of the lid and barrel are not painted except for some overspray from factory paint job.. So the initial seasoning period hopefully gets all that crap off the inside.
    The manual calls for 3 hours hi heat with the last 45 minutes using wood chips.
    Supposedly this smoker can go to 400° on full boogie.
    It comes with a useless 6 foot power cord so I have to go buy another extension for it..
    Apartment has no outside plug.
    You need a cord rated for 1875 watts 15 Amp. Some cords you can get are 14/3 or 14 gauge and some are 12 gauge cords rated 15 Amp and 1875 watt.
    I need a 15 or 25 footer. $20 added to my purchase I guess.
    This smoker comes with a heavy duty plastic scoop for adding wood chips . Pretty nice. The door for your access to the water and chips is smaller than what it could be. It opens the same way as a WSM door.. Just kind of hangs there with no hinges.
    The lid hass kind of a sloppy fit to it.. There us no need to seal the lid for temp control reasons.. So we will have to see how much it leaks. It doesn't fit into the body but rather rests on the body with a good sized flat rim.
    A plus about the lid is that it has a tab just inside that is for hooking on the body rim to rest it there and you don't have to set it on the ground as you tend to food.
    I'm going to put pics on in some orderly fashion for anyone thinking of buying this model.
    The racks are actually 1/4 inch bigger diameter than the ECB racks. Smoker barrel is just under the 17" Mark. Racks are 15 3/4". The space between racks is 5 1/2" ... The top rack to just about to touch the under part of the lid is about the same amount of space.
    Not room for a big turkey on the top rack. The legs on this Masterbuilt bullet are real stable and heavy duty. Platform pads give the legs great stability.
    Can't wait to fire this thing up..
    Need the extension cord and a day off..
    Give this a ⭐⭐⭐⭐. 4 out of 5 so far. Can't beat this deal for $29.00

  2. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    IMG_20171129_182119.jpg IMG_20171129_184432.jpg IMG_20171129_193550.jpg IMG_20171129_193645.jpg IMG_20171129_202959.jpg IMG_20171129_204131.jpg IMG_20171129_204243.jpg IMG_20171129_204522.jpg IMG_20171129_204602.jpg IMG_20171129_210237.jpg IMG_20171129_210329.jpg IMG_20171129_210450.jpg IMG_20171129_212122.jpg IMG_20171129_212151.jpg IMG_20171129_212237.jpg 1512013601517-1153873918.jpg 15120136685391587368598.jpg
    I would add that the metal rod on this temp dial is also a probe that is in the smoker an inch or two and transmits to cycle on the heat as needed

    Last edited: Nov 30, 2017
  3. motocrash

    motocrash Master of the Pit OTBS Member

    Sounds like a "Sore D*** Special".....You just can't beat it!
    We don't have any in store near me and if I want to order one they're $60 delivered :(

    Rings Я Us likes this.
  4. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Yeah.. regular price is $79 and a good sale would be $59 . I don't think I would pay over $49.00 for one myself.

  5. motocrash

    motocrash Master of the Pit OTBS Member

    Buying the $7 replacement warranty is good ju-ju,this means it will last forever...that'd be my luck anyway.

  6. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    I think I messed up buying that though.. it's for items $25-$50 and they replace it.. But on sale $30 it's more than HALF OFF! Lol

    They may not replace it if the new one cost $59.00

  7. motocrash

    motocrash Master of the Pit OTBS Member

    I would think they would have to.A replacement is a replacement.

  8. GaryHibbert

    GaryHibbert Smoking Guru OTBS Member ★ Lifetime Premier ★

    Well Johnny for $29 its pretty hard to lose.
    Keep us posted.
    Gary

  9. phatbac

    phatbac Master of the Pit

    Congrats on the new smoker.
    Im sure you will posting pic of some good Q from it!

    Happy Smoking,
    phatbac (Aaron)

  10. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Should be fun to learn this style smoker.
    I think it will be good for crisping chicken skin since they say it can do 400°.

    Will get a cord and season it this weekend and check to see what it can do as far as low and hi temps.. See if chunks will work too.

  11. gmc2003

    gmc2003 Smoking Guru OTBS Member

    29.00 you could easily spend that on liquid refreshments. Good luck and keep us posted on how it performs.

    Chris

  12. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Will do....Other people can get an idea of this product by checking this thread out.

  13. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    1st smoke will be a 9.55 lb butt I'm going to do tomorrow..

    Some Canadian bacon in the brine soon.

  14. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Weather says 35 ° outside while I just start my break-in seasoning of the new Masterbuilt.

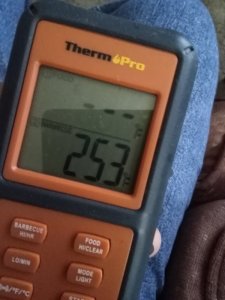

    I put the probe on the top grate at 9 a.m. to watch the temp in there. It's on full heat right now while this thing hopefully burns off the factory new smell crud.

    In 7 minutes this thing was at 250°
    IMG_20171202_085444.jpg IMG_20171202_085453.jpg 1512223515779317952839.jpg

  15. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    After 15 minutes in the mid 30s outside with no wind it reached over 300° to about 320 and kicked off. Temps dove down to 245° and started to slowly climb back up..
    I'm sure because there is no water in the pan, wood in the chip pan or food on the rack and the temp outside is so chilly that it will have issues keeping put.
    It seems to have settled in at 255 now.
    30 minutes in...


  16. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    Tripped the breaker on my living room line. The dogs space heater and my tv going with the 1650 watt Masterbuilt didn't last more than 45 minutes all going at once. :mad:

    Plugged it in on another line in the kitchen with its own breaker . Just don't run the garbage disposal and the dishwasher o_O

  17. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

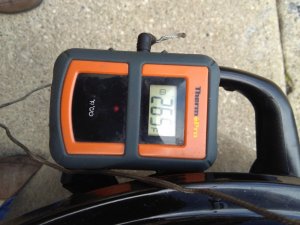

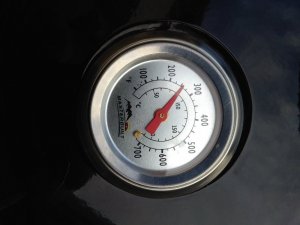

    An idea of dome temp reading and grate level

    IMG_20171202_095830.jpg IMG_20171202_095833.jpg
    Both seem close to each other

  18. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    IMG_20171202_102346.jpg Less draw on this electrical line now has the temp increasing I think..
    275 degrees steady.
    Still 37° outside here.

    Last edited: Dec 2, 2017
  19. Rings Я Us

    Rings Я Us Smoking Guru SMF Premier Member

    IMG_20171202_112007.jpg At 11:10 a.m. 285° I added a heaping scoop of scrap from the bottom of the bag of chunks. It was a little difficult to get all the stuff in at once. Maybe a smaller load would be easier. I also added in a chunk , to see how they will burn over time. Vent on top cracked about probe wire thickness. Temp drop of 10 degrees over about 30 seconds with the door open. So I'm seeing smoke already.

    And as I expected, smoke from the top door area and a bit around the lid in places.
    Hmm.. Wonder if the ECB lid fits ? . Lol
    Have to get some gasket stuff some day.
    The lid was actually stuck down when I tried to lift it. Stuck down real good. I guess the junk heated and got sticky under the lip.

    Last edited: Dec 2, 2017
  20. motocrash

    motocrash Master of the Pit OTBS Member

    The therm on my WSM was fairly accurate when new.Now it's a crapshoot.Sometimes it's spot on and sometimes off up to 60 degrees :confused:
