AMNPS in the Warthog (Smokin-It # 3 Update)

smoke happens

Smoking Fanatic
522
37
Joined Nov 20, 2012
FYI, this is an update to my original thread which was in the SI Owner's Group. Wanted to get it out of just that group for everyone to use...

http://www.smokingmeatforums.com/t/136168/amnps-in-the-smokin-it-3-hot-smoke#post_982618

So I finally decided to drill the Warthog since I prefer to use the pellets over chunk. I looked at a few other posts where folks had enlarged the existing hole and/or added another one center-line under the element. Since I set my AMNPS off to the side of the element I decided to drill my holes where the AMNPS would be sitting to get the most direct air supply. In addition to drilling 2 additional 1/2" holes in the unit, I also enlarged the existing hole to 3/4".

End result - the AMNPS burns flawlessly now, either hot smoke or cold smoke and regardless of the food load in the smoker. No issues with keeping the pellets lit for the entire burn at all, good even TBS throughout the smoke. In retrospect, I wish I had done this modification earlier.

Here are the pics. Sorry about the poor quality, I had to take them with my phone.

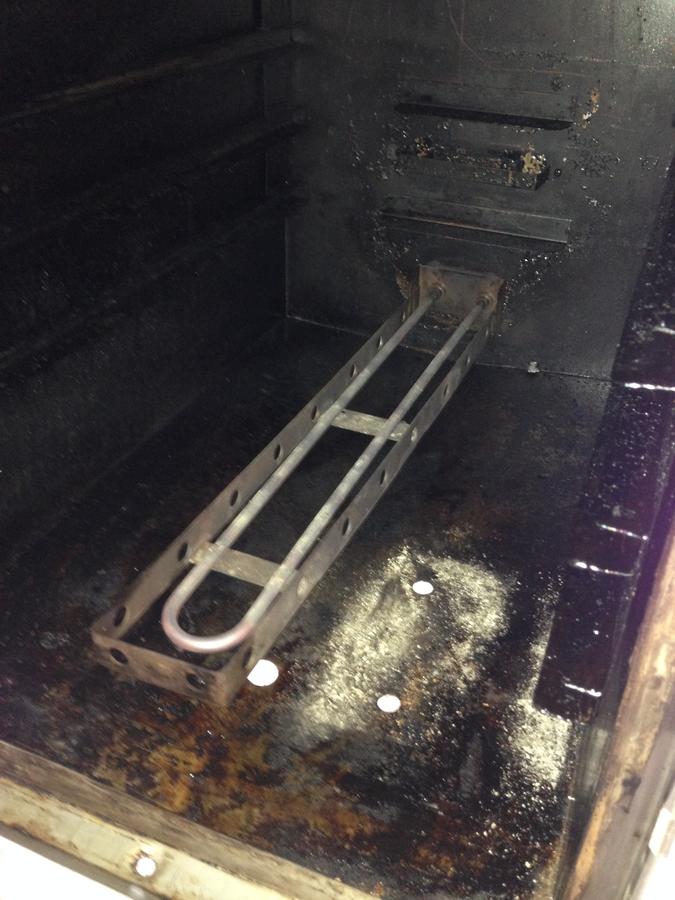

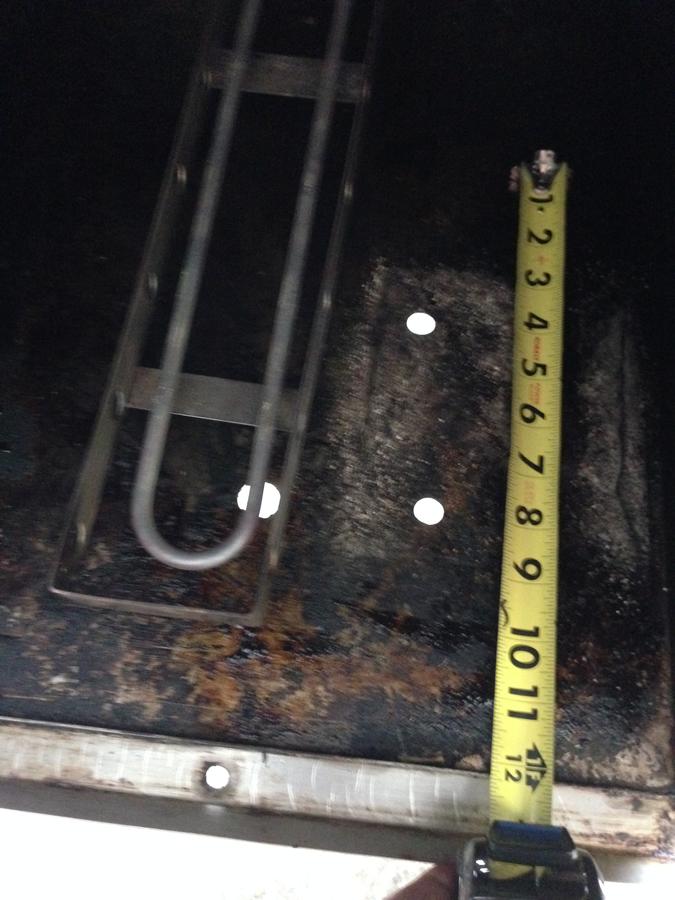

Original center line drain hole enlarged to 3/4", 2 additional hole @ 1/2" ea

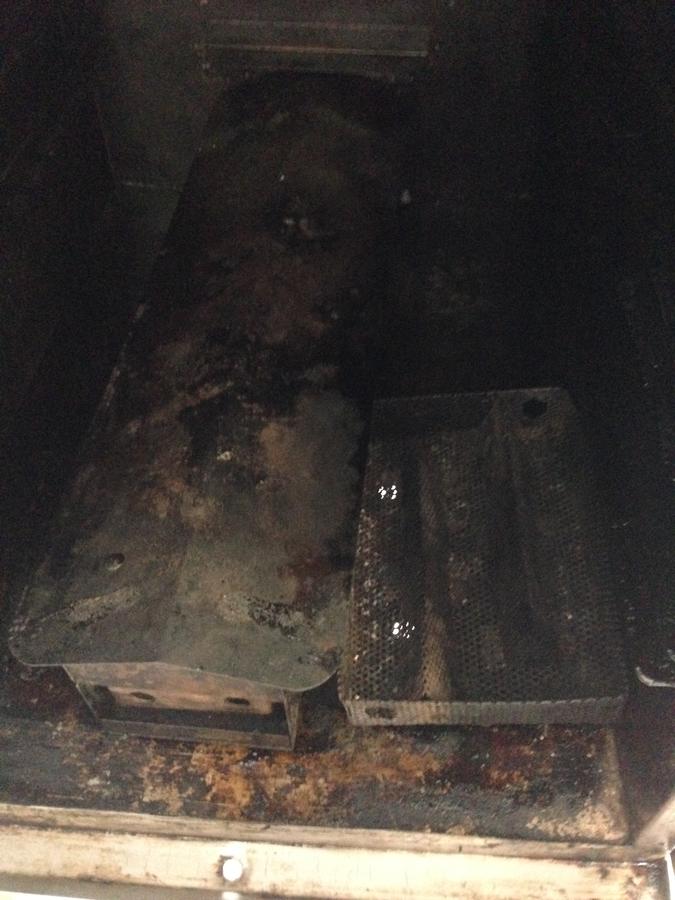

Top down shot with AMNPS in normal position foe my smokes


You can see the holes on the underside of the AMNPS here. I was worried that they would not be far enough out from center to maintain a burn on the outer row of the AMNPS, but I wanted to keep the holes within the drip pan perimeter to start. I figured I could add more farther out from center if needed, but it was not. Outer row of pellets burn just fine with the holes placed where they are.

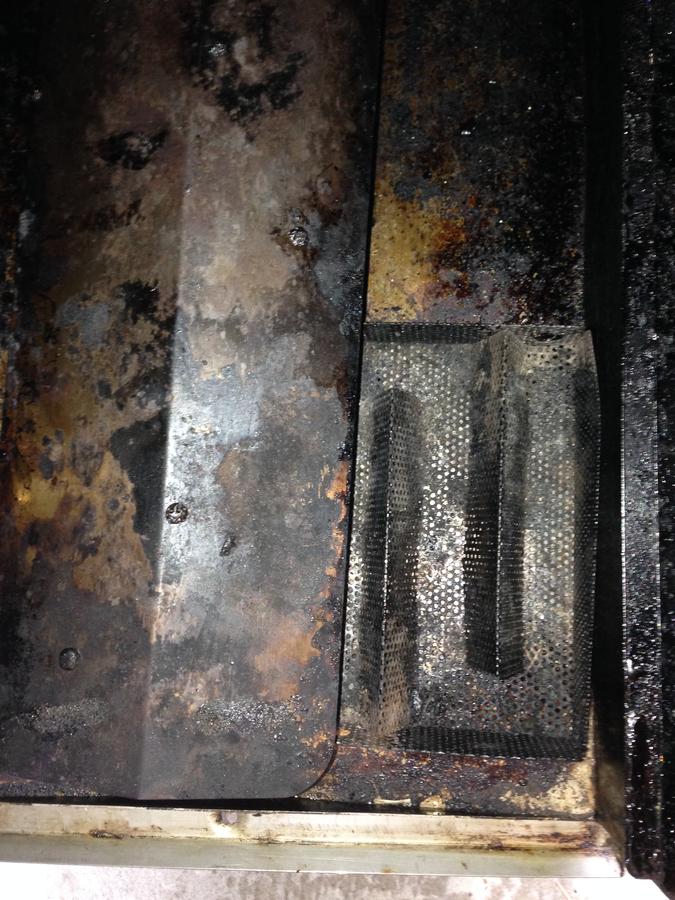

I normally line the bottom with foil, this smoke was some CB so I just put a piece of foil under the loin and the SMNPS directly on the bottom with no foil. You can see the ash "foot print" of the AMNPS burn, I lit it from both ends and you can see the mostly empty middle row where there were no pellets.


Now I just need to cough up the dough for my PID and I'm set... Hope this helps those of you that love the AMNPS and were having problems getting it to run the SI units.


bmudd14474

Legendary Pitmaster
Staff member
Administrator
Moderator
OTBS Member
★ Lifetime Premier ★
Group Lead
8,691
1,105
Joined Jun 1, 2008
Simple but effective. Thanks for sharing so that all the Smokin-It users can enjoy the AMNPS. Thumbs Up


puddle jumper

Newbie
25
10
Joined Aug 24, 2013
That will work!! Have you noticed any difference in the way the smokes on regular cook now??

Temp swings with more air running through it??

Thanks for the info..

PJ

Last edited:

smoke happens

Smoking Fanatic
522
37
Joined Nov 20, 2012

That will work!! Have you noticed any difference in the way the smokes on regular cook now??

Temp swings with more air running through it??

Thanks for the info..

PJ
I have not noticed any temp differences at all between running chunk and running the AMNPS with the holes drilled. This method is my "regular" way of cooking though, I don't use chunk anymore now that this is up and running.


shtrdave

Smoking Fanatic
666
16
Joined May 11, 2010
Do you put anything over it when in use to keep the food from dripping onto it? Or do you only use this for cold smoke and the factory box for hot smoke?


smoke happens

Smoking Fanatic
522
37
Joined Nov 20, 2012

Do you put anything over it when in use to keep the food from dripping onto it? Or do you only use this for cold smoke and the factory box for hot smoke?
I usually have foil above it on the rack if it's going to get dripped on, definitely need to protect it from dripping food otherwise you will have problems.


kbosch74

Fire Starter
43
10
Joined May 13, 2013
I, too, have a SI #3.  Pardon my ignorance, but why do you use the AMNPS for regular meat smokes (I understand for cold smokes)?

thanks.


smoke happens

Smoking Fanatic
522
37
Joined Nov 20, 2012
Sorry for the delayed response. I prefer the AMNPS for all smokes, hot or cold. I enjoy the flavor profile I get using Todd's pellets, I can have longer smoking sessions, I only have to buy 1 fuel (not chunk and pellets), I feel I have more control over the process with pellets, etc. Personal preference is what is really boils down to.
