A Tale of Two Mini's w/Pics

Discussion in 'Mini-WSM' started by jarjarchef, Jun 10, 2015.

  1. jarjarchef

    jarjarchef Master of the Pit OTBS Member

    So this post is just a little late. I made these early December 2014. One was for a friend and the other was for my Dad for Christmas.

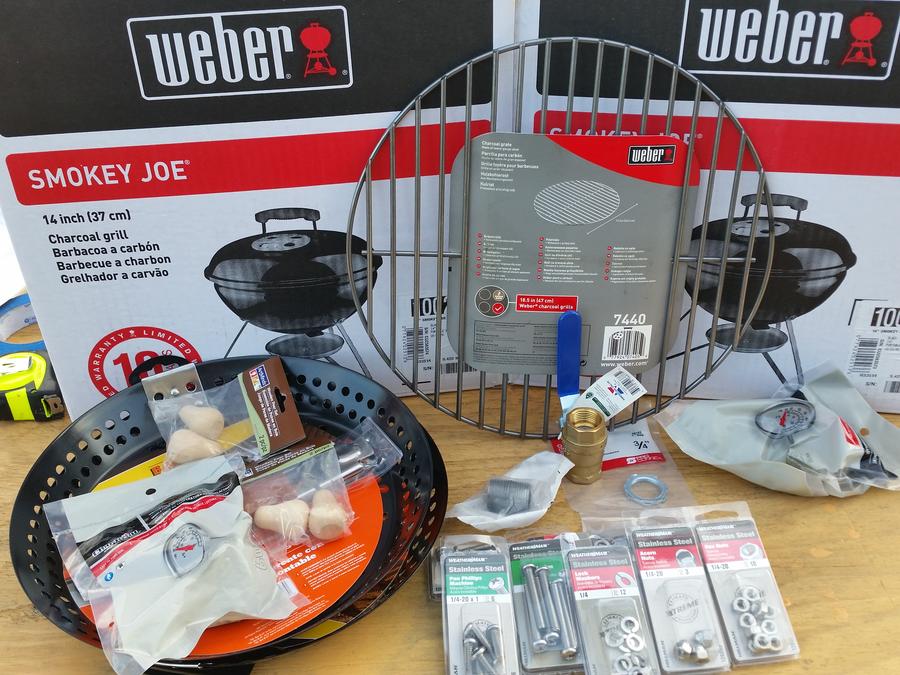

    The supplies: Nothing really out of the norm from others.

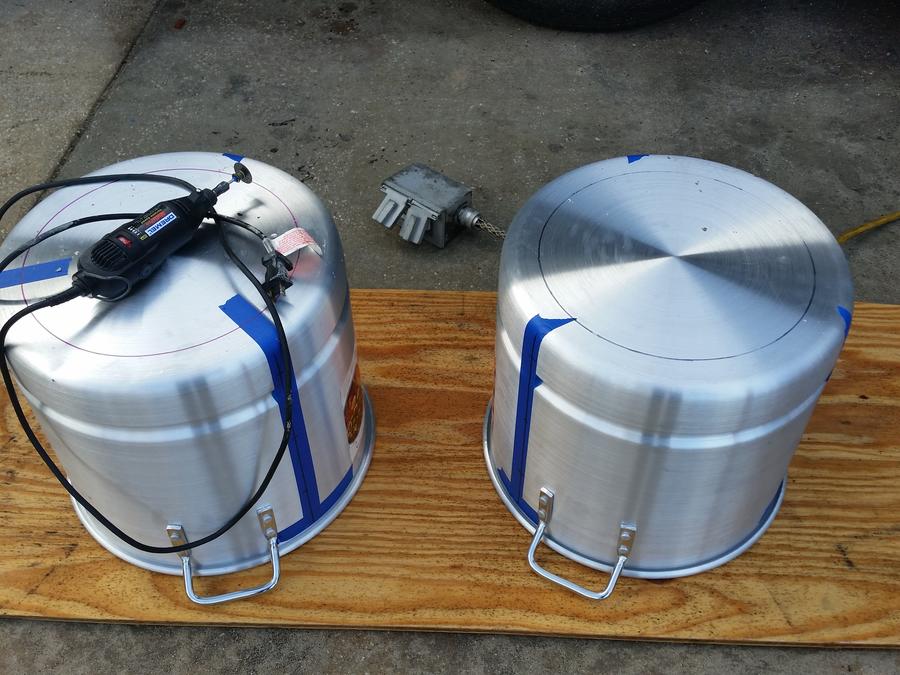

    Have the circles marked. We cut 3 little holes with the dremel for the jig saw blade, then cut all but 1/4" before the next hole. Then cut the rest with the dremel. we then ground the edges smooth.


    Sides marked for the side bolts.

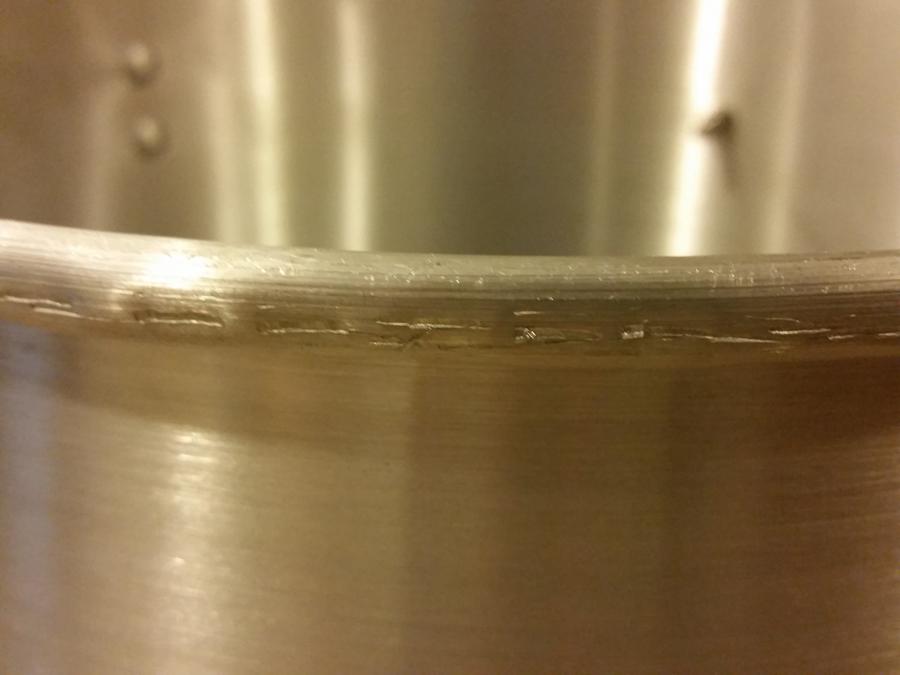

    In order for the lid to fit, we needed to crimp the top edge. Could have been a little cleaner in look for me.......

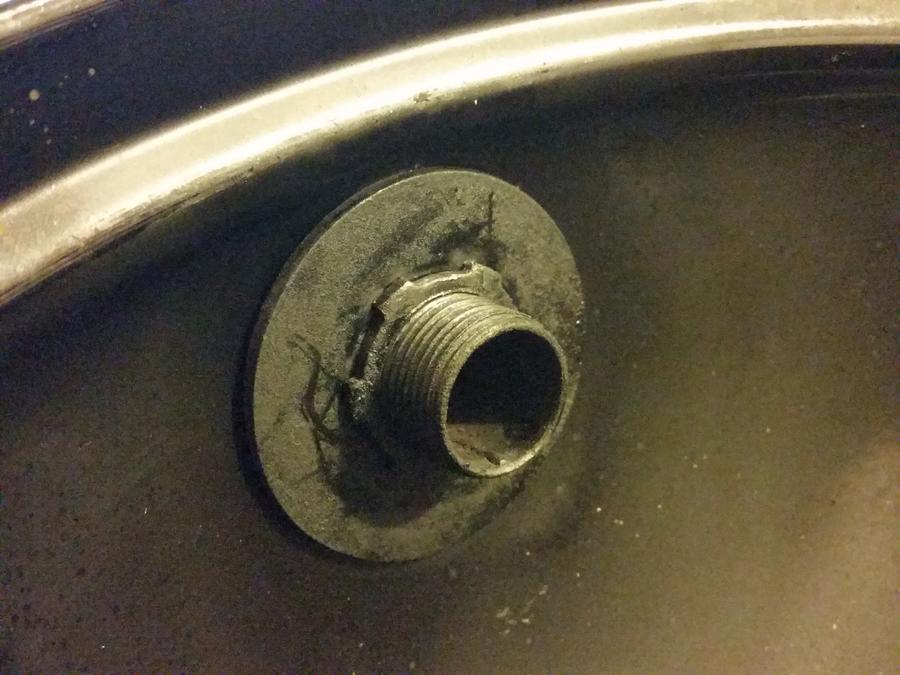

    All of the fittings were sealed with high heat silicon.

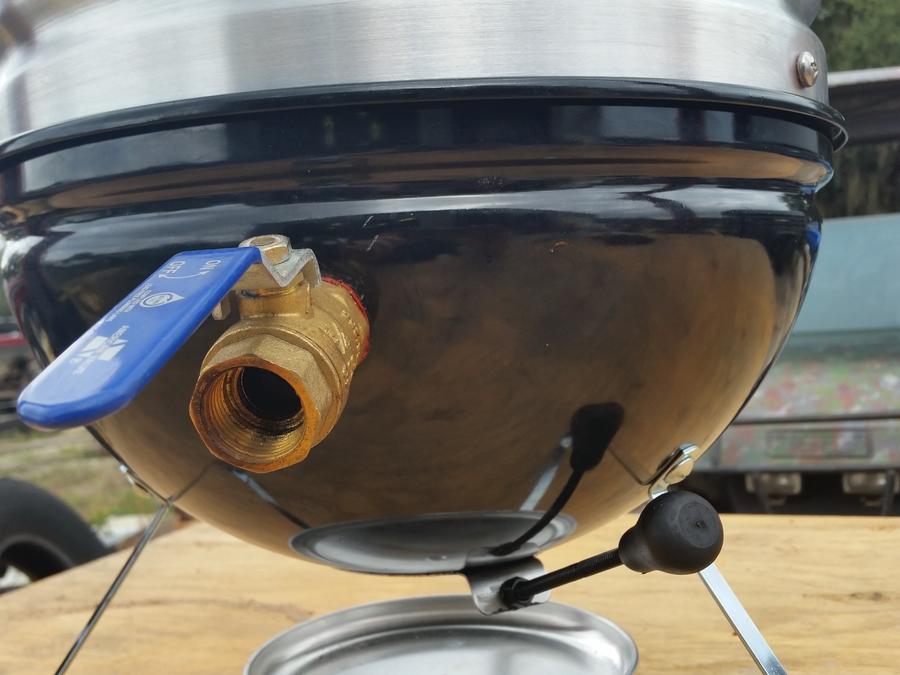

    3/4" Ball Valve front and back.

    Side note: when I make the next one I will use a 1" instead. Just a little more air flow for more heat.



    Thermometer and Vent Handle

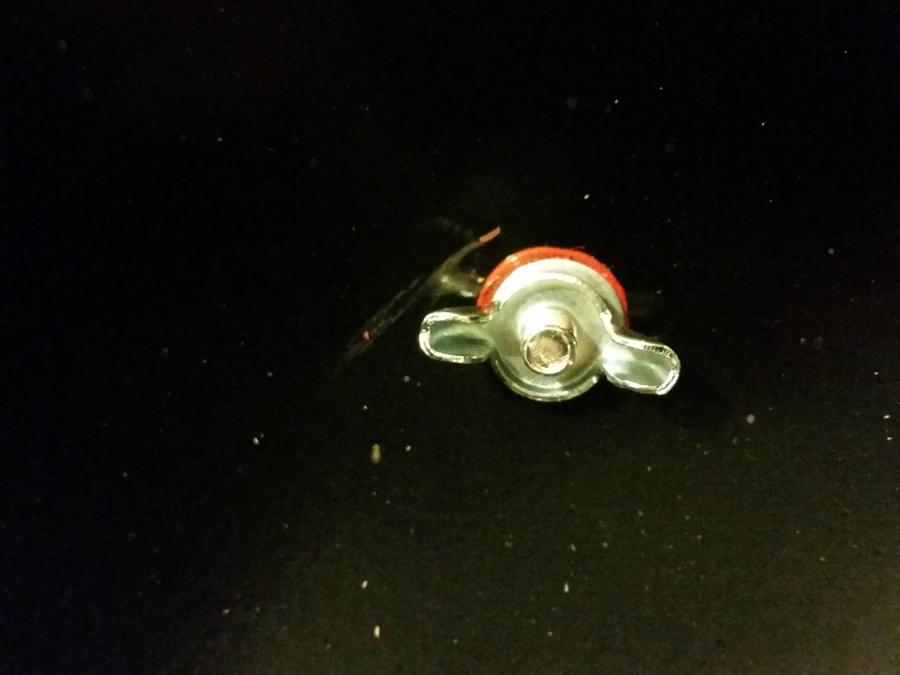

    Bottom Vent Handle

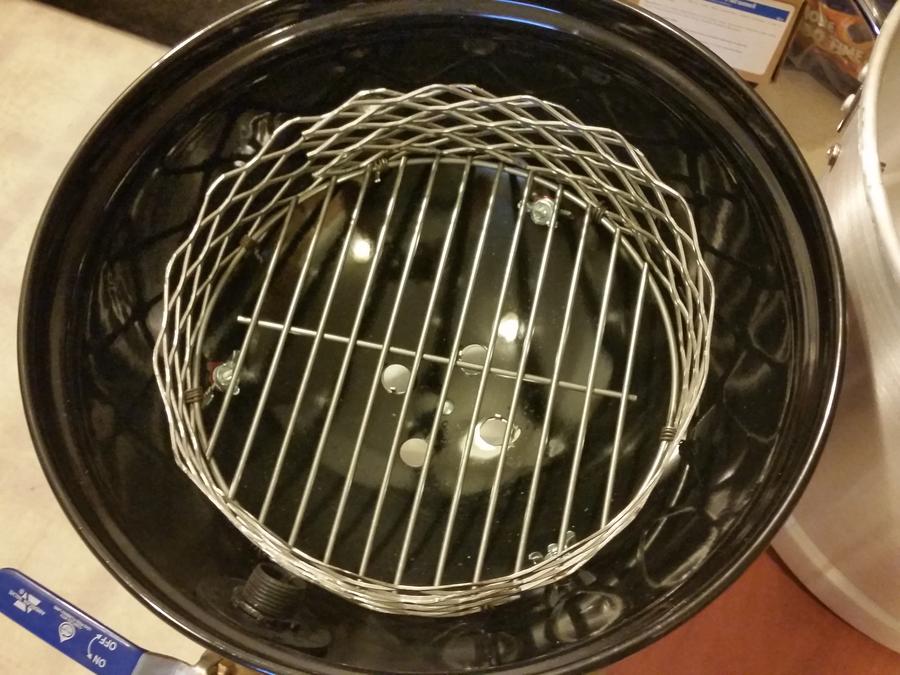

    Fire Basket

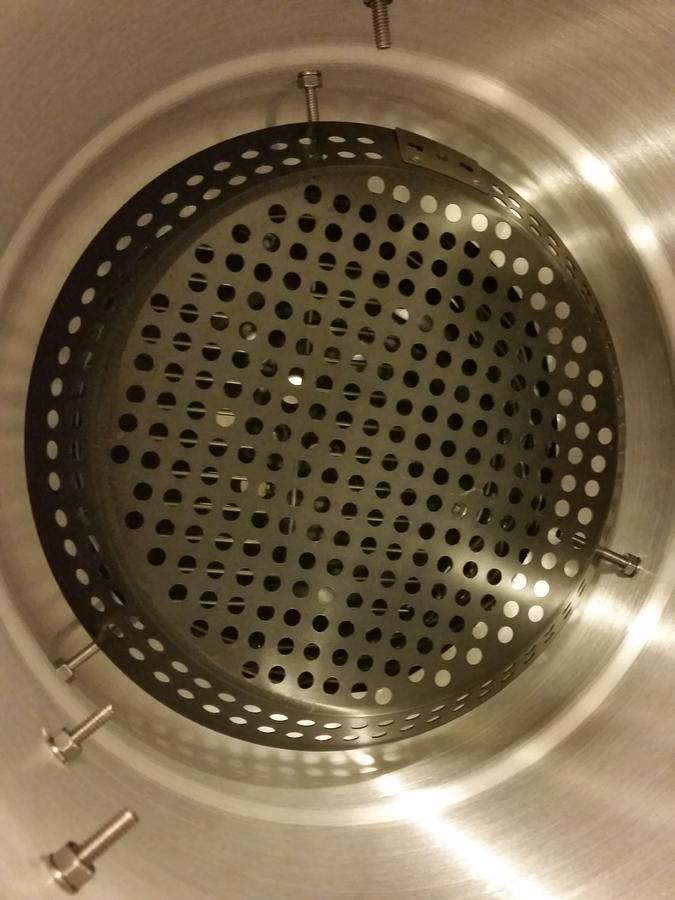

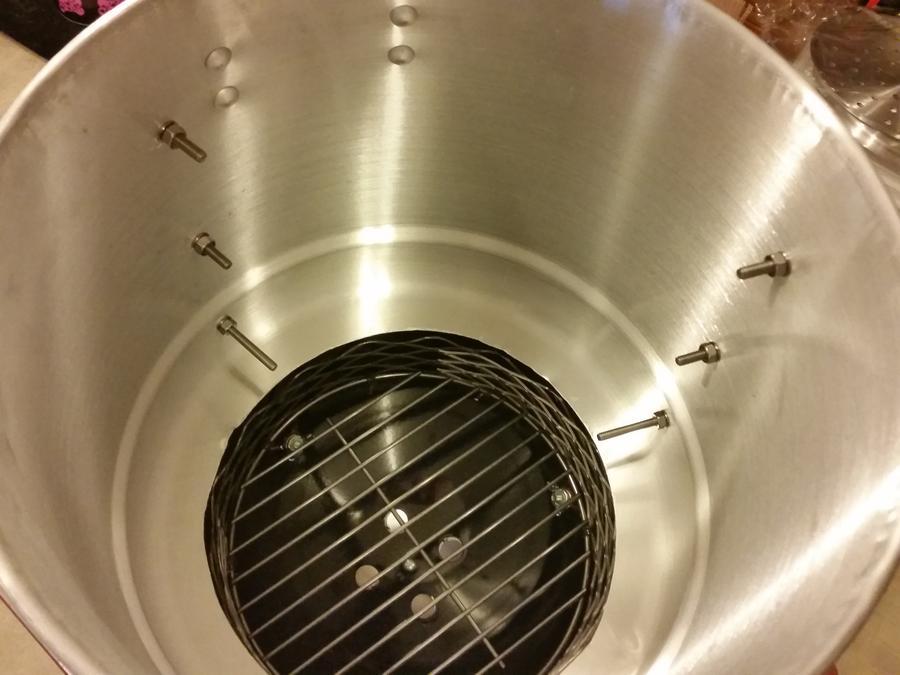

    Pot with Bolts looking into the fire basket.


    I tried to use a vegetable basket for more flexibility. It does work, but I will do a 1/4" plate next time.


    Ready for some fire and food.....


    This is the one I made for Dad. He has cooked in it almost every weekend since he got it. He is talking of upgrading to a larger model......

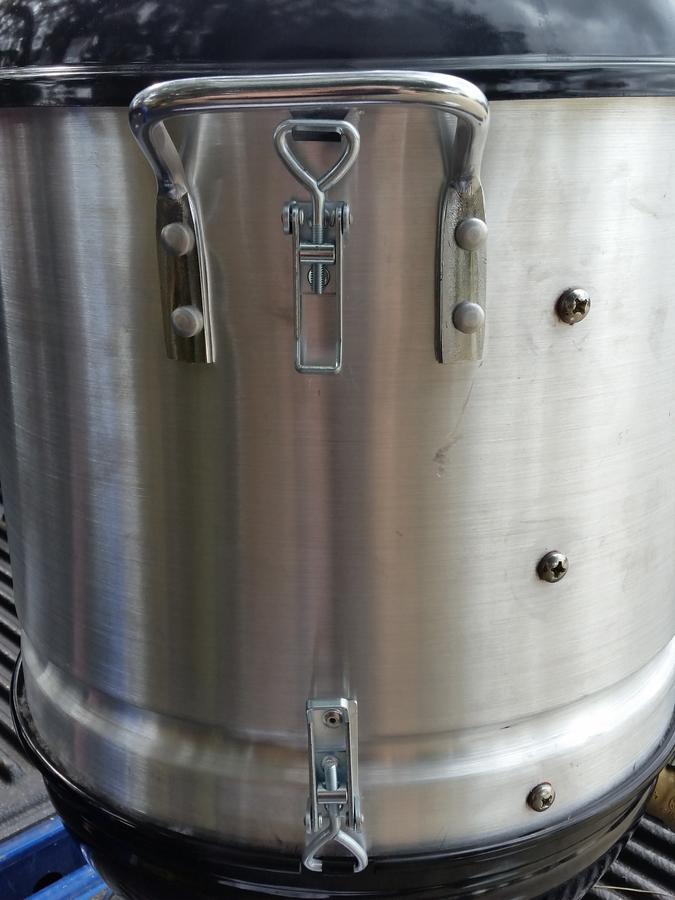

    So for my friends we did another mod. I was shown a mini that had latches so it could be carried. I was not able to copy the other due to not having the wire thing that is on some models to hold the lid on for transport.

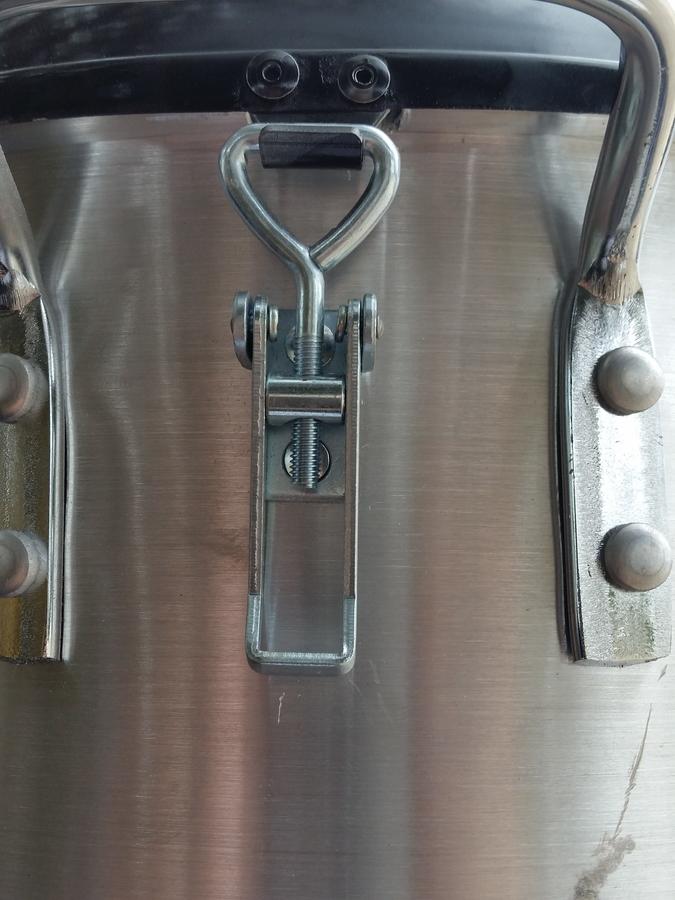

    I was able to use pop rivets to mount the latch and clip thing to the lid and pot. Sealed with a little high heat silicon.

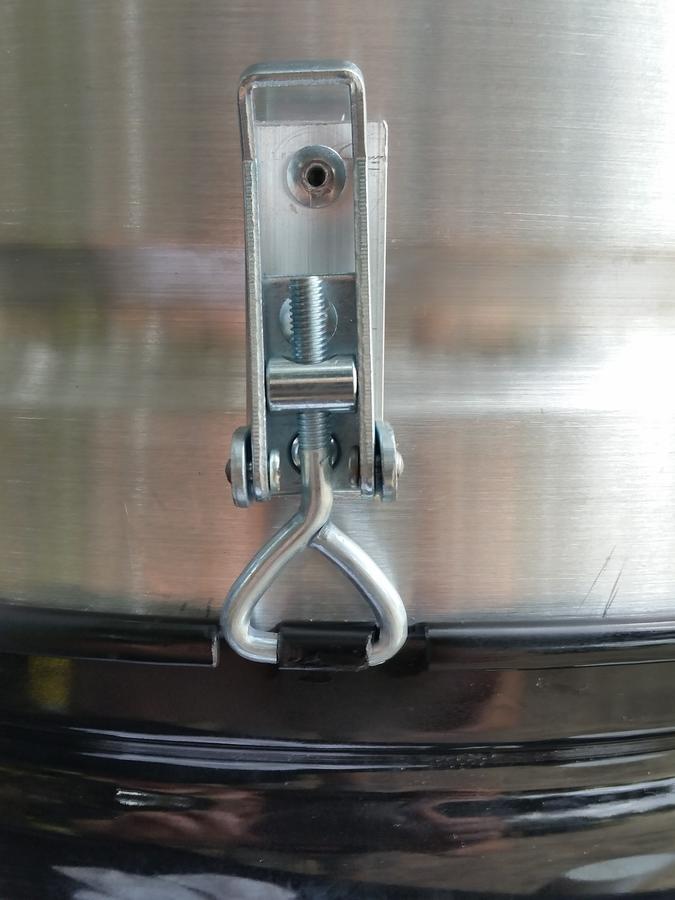

    The bottom was a little more of a challenge, but figured it out. I attached the latch with pop rivets after I made a bridge with some flat bar and then notched the bottom to latch too....


    Hang test......


    Hope you enjoyed....

    Please feel free to ask if you have any questions.

    dirtsailor2003 likes this.
  2. Cool   ---- Nice !!!

    Gary

  3. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Great looking Mini's! Where did you get the latches I like them. Haven't seen that exact style.

  4. c farmer

    c farmer Smoking Guru Staff Member Moderator OTBS Member SMF Premier Member

    I bet they love them. Great idea on the latches. I want more info too.

  5. jarjarchef

    jarjarchef Master of the Pit OTBS Member

    Thank you. Like I said my Dad uses his weekly, the friend has only used it a couple times, but he has liked it the couple times.

    I bought them from Amazon.

    Toggle Latch 131
    by Mesan



    I know I know outside links bad, but I am not aware of a sponsor of the site that sells these.....

  6. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    The Mini is a great smoker. Out of all my smokers it is the one that gets used the most.

    I had been looking at these guys for latches, but was afraid they wouldn't have enough to grab the lid.




  7. jarjarchef

    jarjarchef Master of the Pit OTBS Member


  8. dirtsailor2003

    dirtsailor2003 Smoking Guru OTBS Member

    Good Point on the adjust ability!

  9. Nice builds, jarjar. Just finished my Jimmy for the most part and was wondering about some latches. Glad I saw this thread.
