275 Fuel Oil Tank Reverse Flow Smoker Build, My

[dakota joe]

Hello all, newbie here, started a reverse flow smoker build this summer, kind of on the back burner right now, due to the weather and a non heated garage. I would like to post some pics and give you a idea of where I am at, and get some feedback and ideas. Now keep in mind I'm not a avid welder or even a seasoned one, I am a so-so welder, so some welds are not pretty, but they are mine and that's what counts.

So I got this 275 gal oil tank free, it was posted in the local paper "come get it out of my yard". It was cut in half to get it out of the basement, didn't matter to me, it was easier to load into the pickup. I took it home, put a temporary hinge on it and loaded it with wood and started to burn the oil out.Burned it for three days, welded it back together and decided to go a little different with the doors.


• dakota joe
• Dec 27, 2016

I had been looking at all the forums I could find and followed the measurements of a build similar to mine, and used it to get the dimensions of my firebox opening, 26 x 12 in radius. Put a reverse flow plate at 13 inches up, and 48 inches long, leaving a 12 inch opening at the end, and there is a 1/2 inch drop to the drain end for drain flow. Door opening will be 54 x 21.


• dakota joe
• Dec 27, 2016

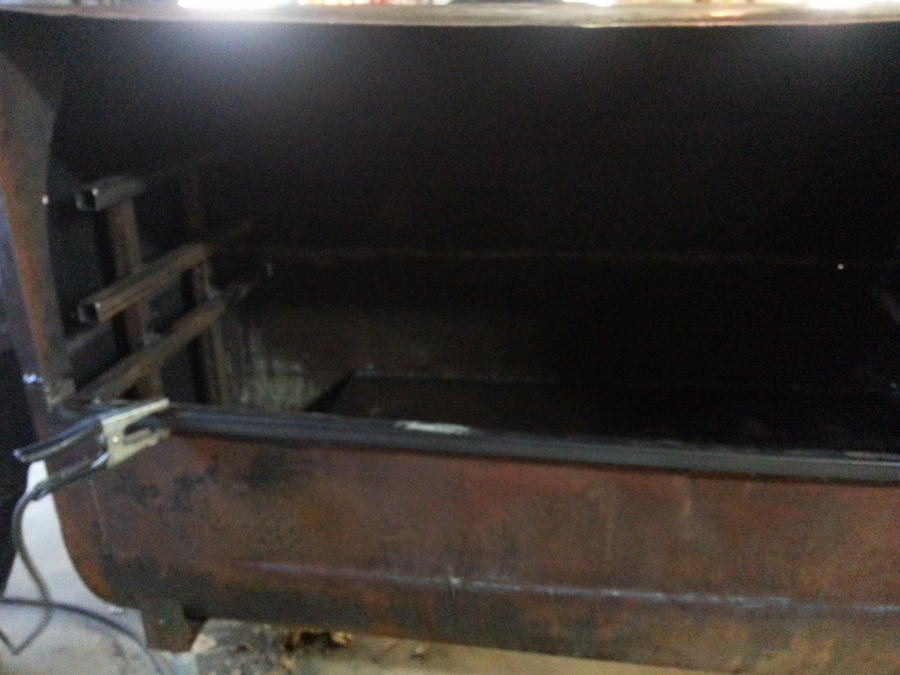

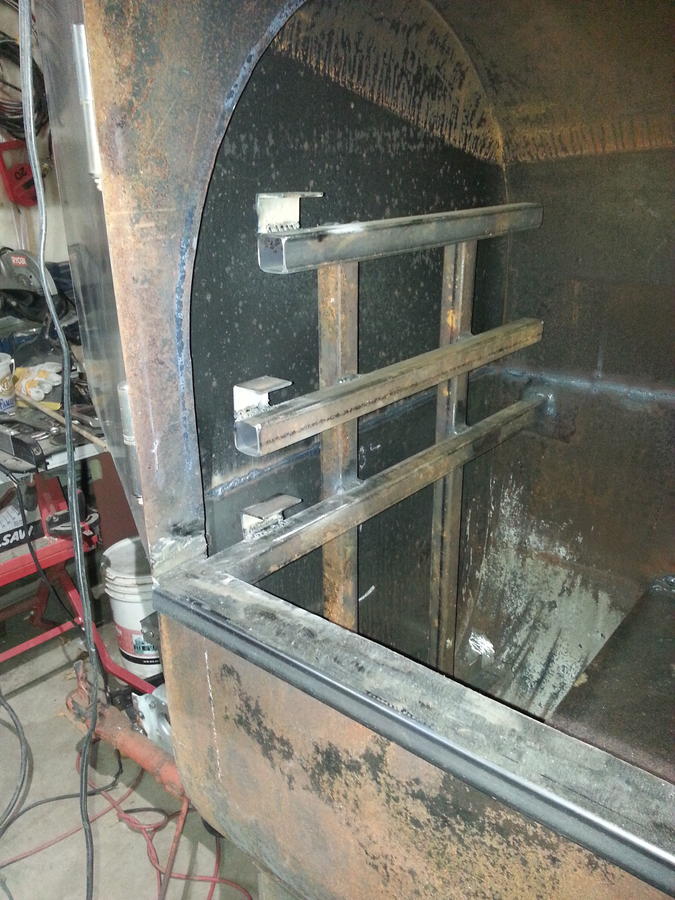

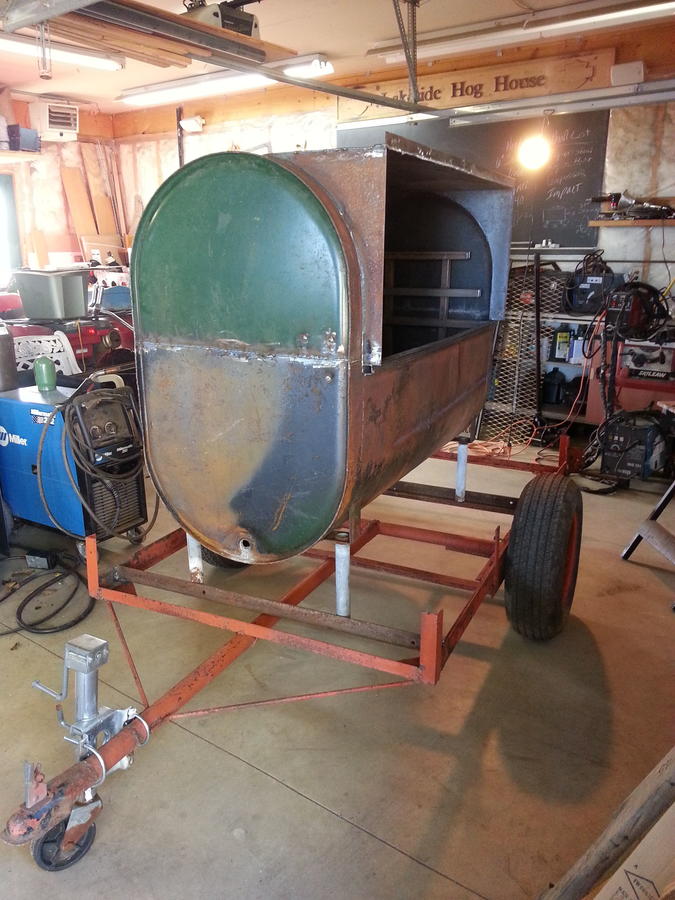

Here are the rack rails, first rack is level with the opening, next one up 5 inches, top rack up 6 inches. Racks measure 24x53.


• dakota joe
• Dec 29, 2016

This is the trailer I am going to use, 4x7, that I salvaged from a neighbor that was going to send it to the curb.I don't think this is something that I will pull down the highway, but will work for moving around the yard and driveway, I can put it on a open trailer for longer hauls.


• dakota joe
• Dec 29, 2016

Used angle iron and square tubing to frame out the door area.


• dakota joe
• Dec 29, 2016

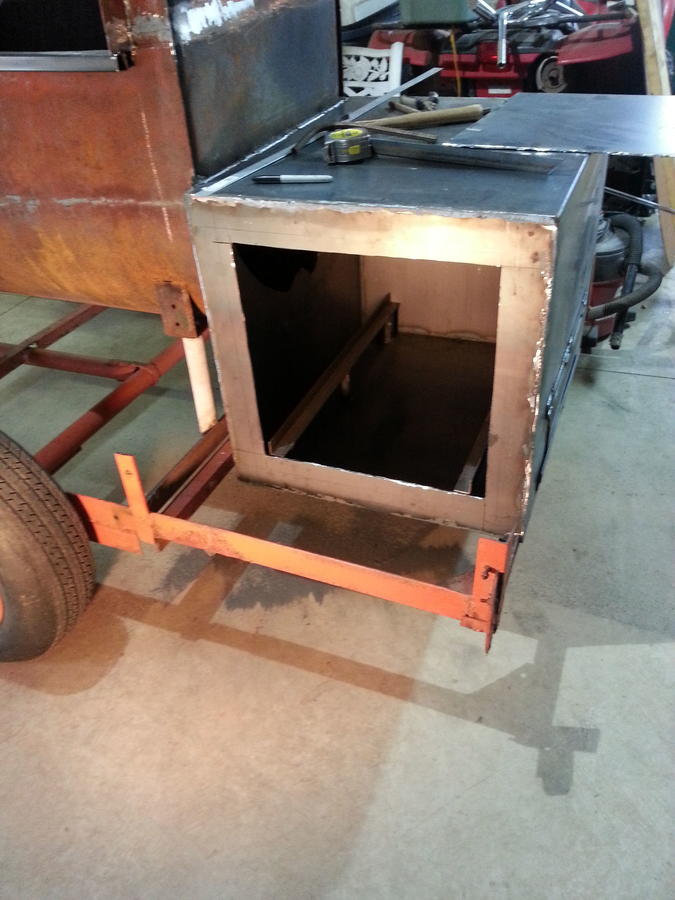

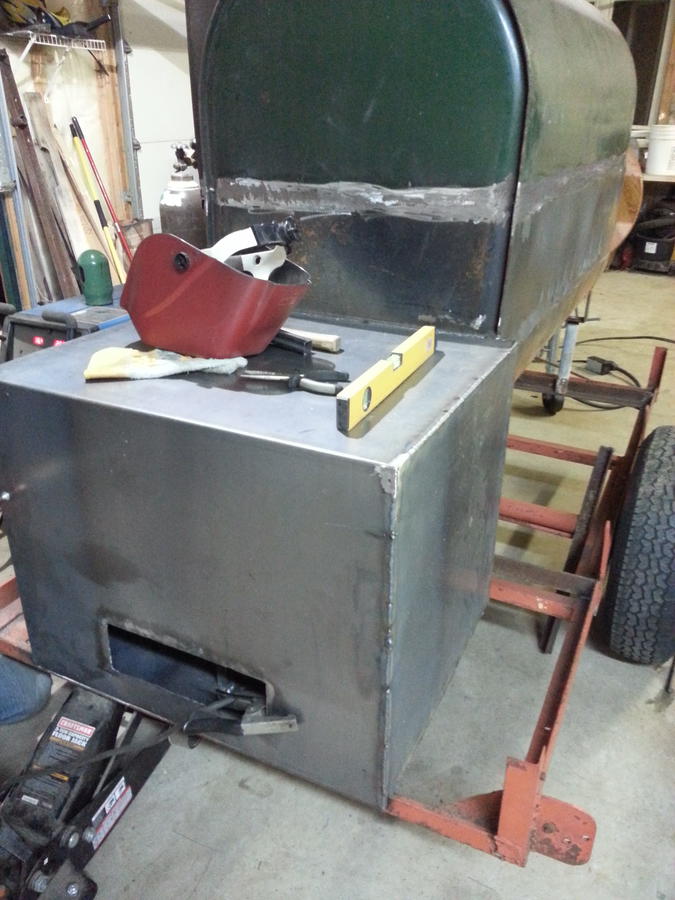

Adding the firebox. 3030x24. According to Feldons calculator I'm short on the volume, I swear the first time I used the calculator it gave me these dimensions!


• dakota joe
• Dec 29, 2016

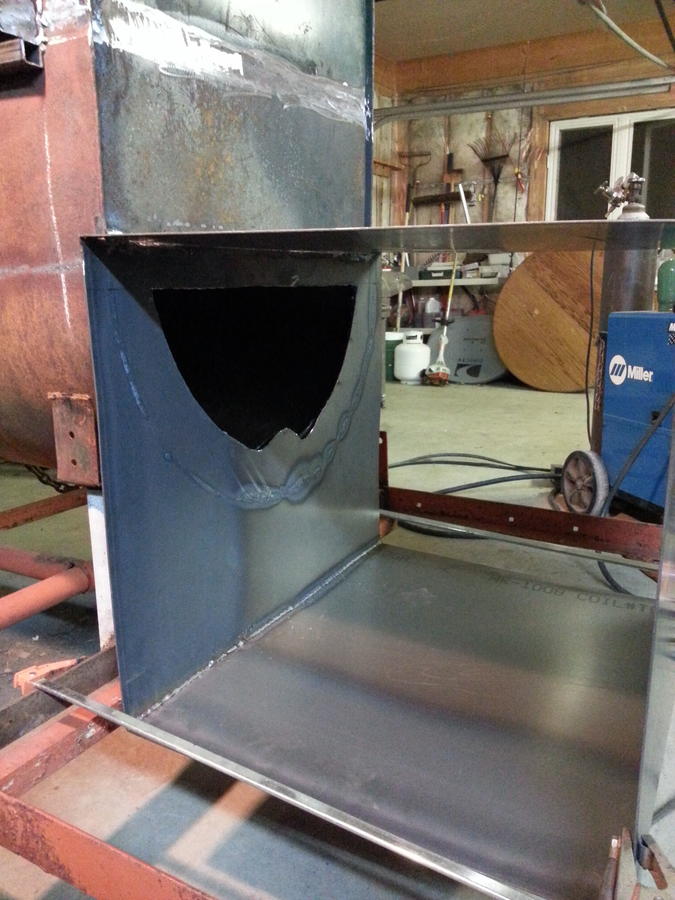

adding the air inlet


• dakota joe
• Dec 29, 2016

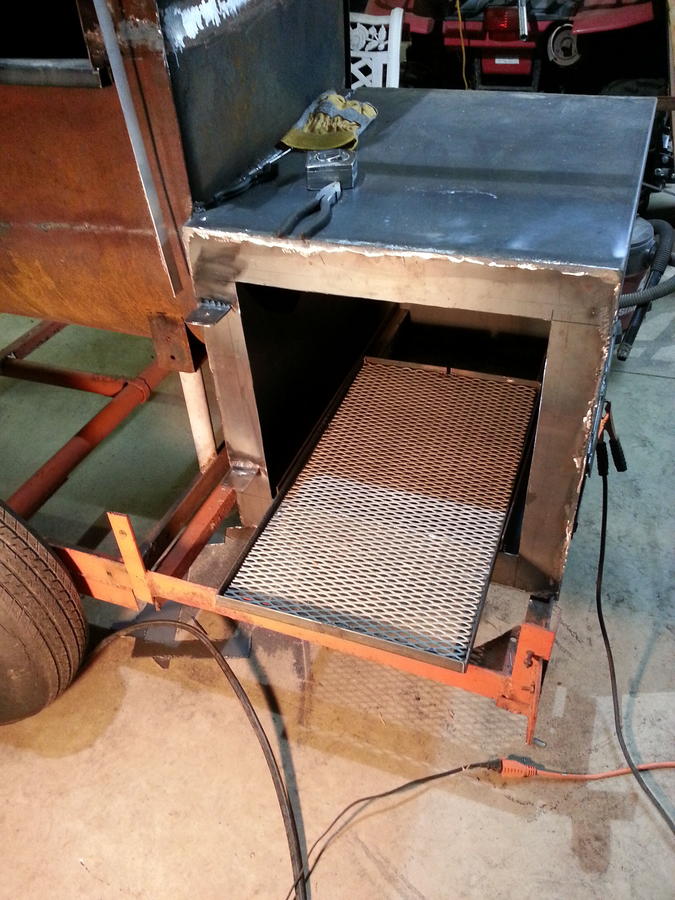

Cut the door opening and added the rails for the wood box or charcoal box.


• dakota joe
• Dec 29, 2016

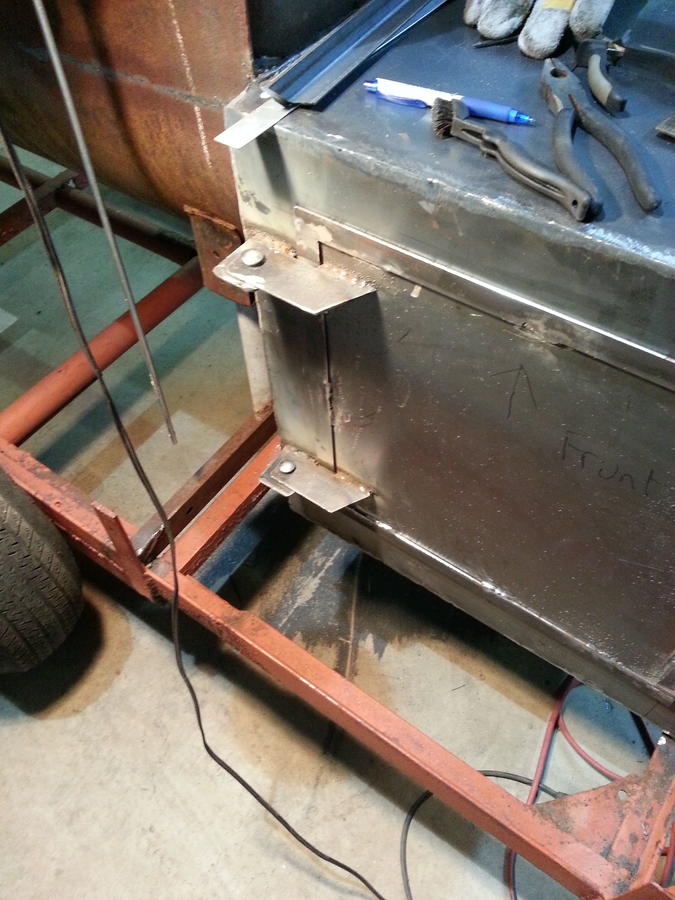

Homemade hinges for the door, like how I had to mark Up and front! HA!


• dakota joe
• Dec 29, 2016

Wood or coal tray. I think I may need one with sides on it. Thoughts?


• dakota joe
• Dec 29, 2016

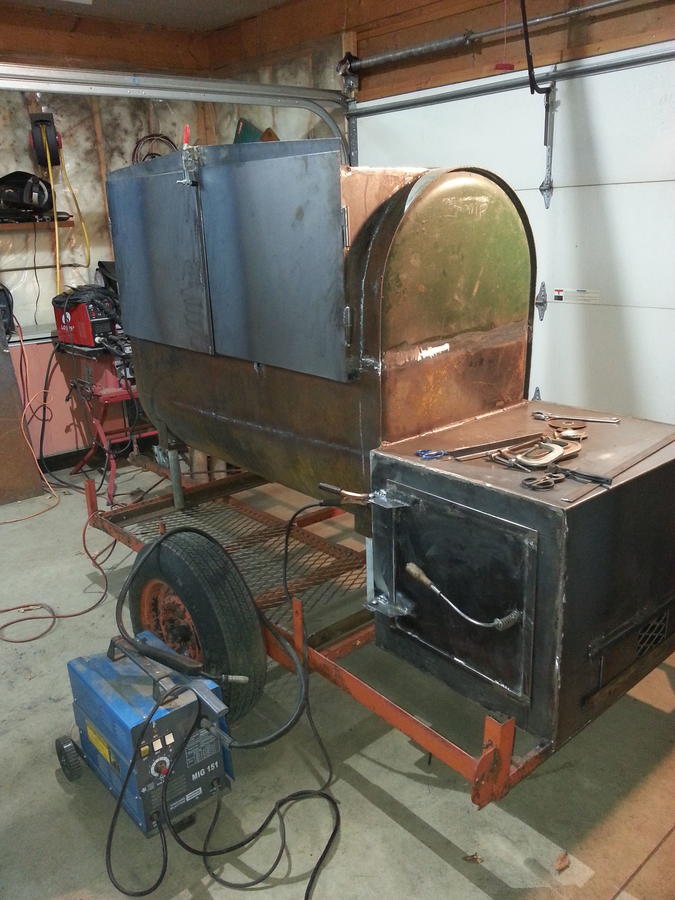

Door on, air inlet still needs handles.


• dakota joe
• Dec 29, 2016

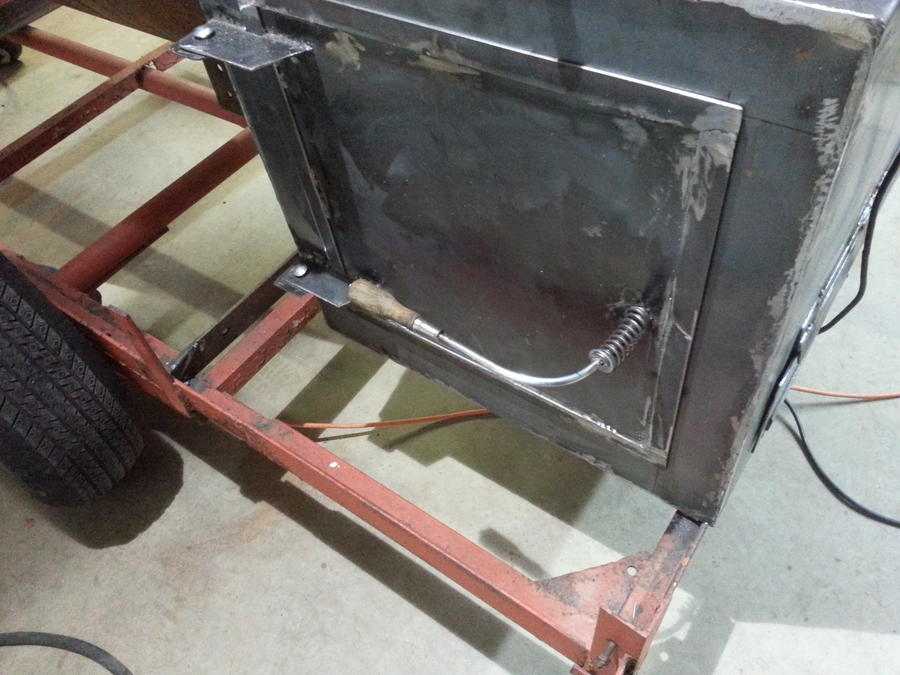

Now don't make fun of this, I thought it was a good Idea. Got a old wooden screwdriver handle, welded it to some rod, may change it later.


• dakota joe
• Dec 29, 2016

Time for the doors


• dakota joe
• Dec 29, 2016

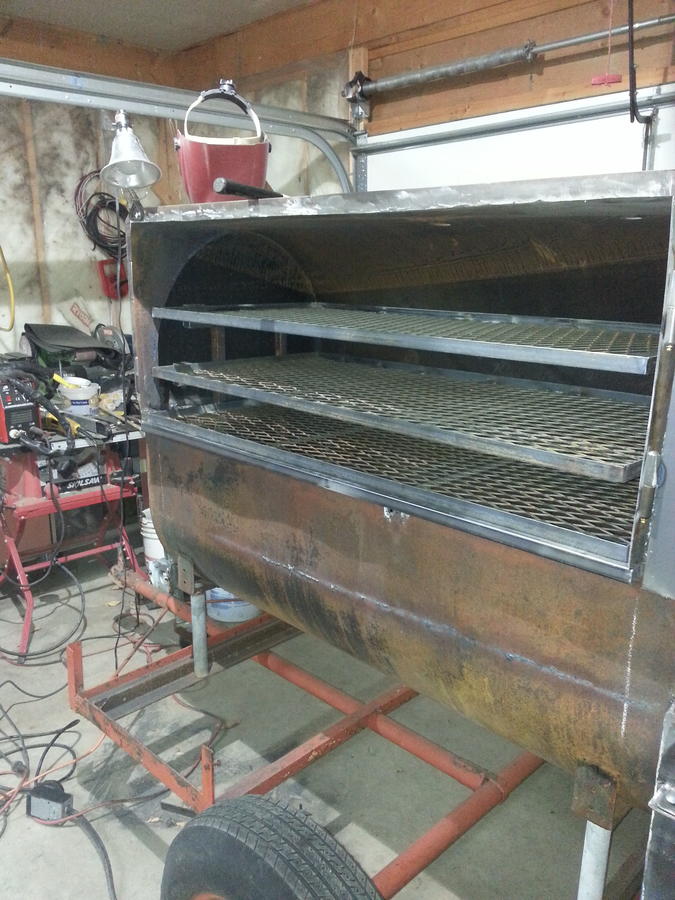

Racks Fit!


• dakota joe
• Dec 29, 2016

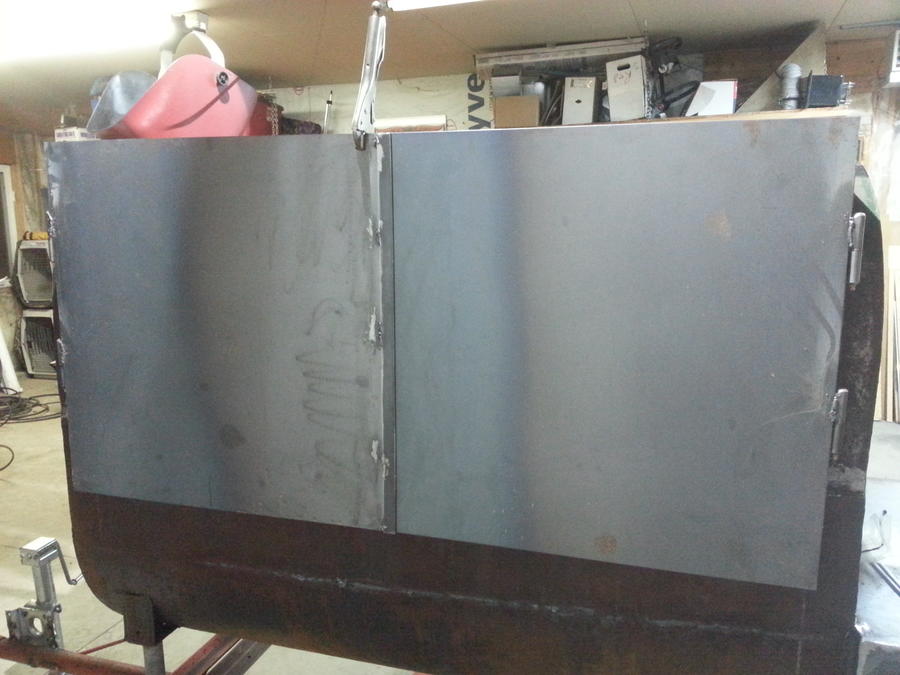

Had to think of a way to keep the racks from falling out when you pull them out to load them or check progress. Scrap angle iron...it worked.


• dakota joe
• Dec 29, 2016


• dakota joe
• Dec 29, 2016

Added door clamp on top, haven't figured out how I'm going to add the bottom clamp. I want to add a shelf or tray below the doors, for prep or for cutting or serving. Thinking about 24 inches wide and 54 inches long, same length of the tank. This would bring the shelf out to the same edge as the tire, so when working you would not have to work around the tire  Any Ideas would be great.

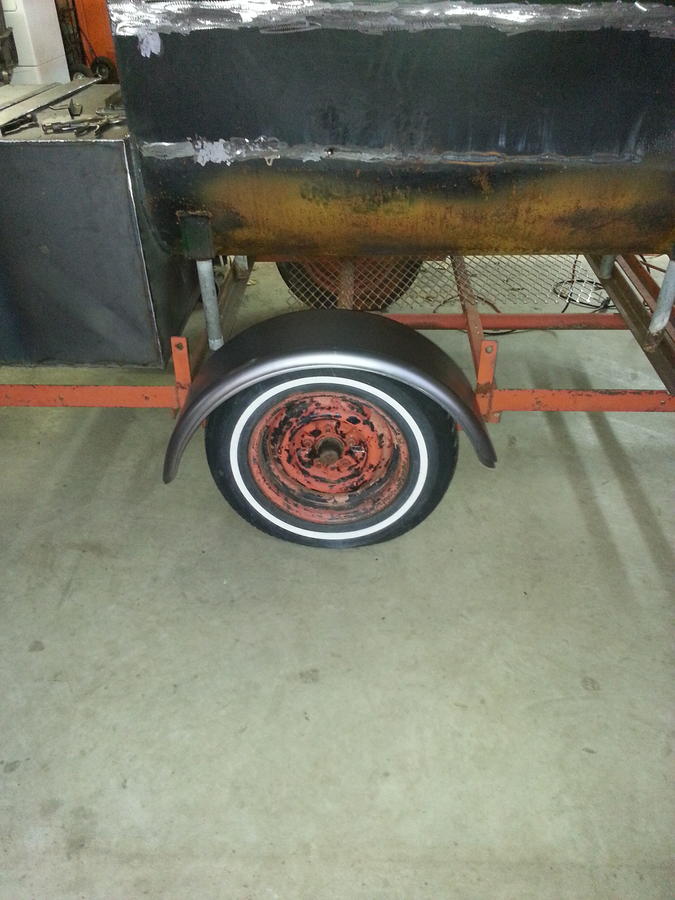

Fenders for the tires, need to get them welded.


• dakota joe
• Dec 29, 2016

And I picked up 2 of these for my chimneys. Feldons says I need 85 inches, these are semi exhaust pipes I picked up at the local salvage yard. They are 4 inch ID, and approx 48 inches long, that will give me the 85 inches I need. I'm hoping the bends don't cause any restrictions or problems, any thoughts?

And that is where I'm at!! Let me know what you think and suggest, I know it's not perfect, critique away.

Things that I think I need done, your ideas and suggestions would be greatly appreciated!1

Need that shelf below the door, serving or cutting shelf.

Wood storage area or box, I have some expanded metal on the trailer now, thinking I may fill the whole bottom and use that as a

   wood storage area

Fenders welded on

I picked up two Man Law smoker gauges, 2 1/4 inch, need to get them into the doors, along with some seal for the doors

Weld it to the trailer permantly.

Sandblasted and painted, my son mentioned powder coating, I think that is expensive,, any suggestions.

I have some openings on top from fill tube and fuel level gauge, want to put some kind of meat probe and gauge there.

As weather permits I will be working on this, please feel free to comment.
