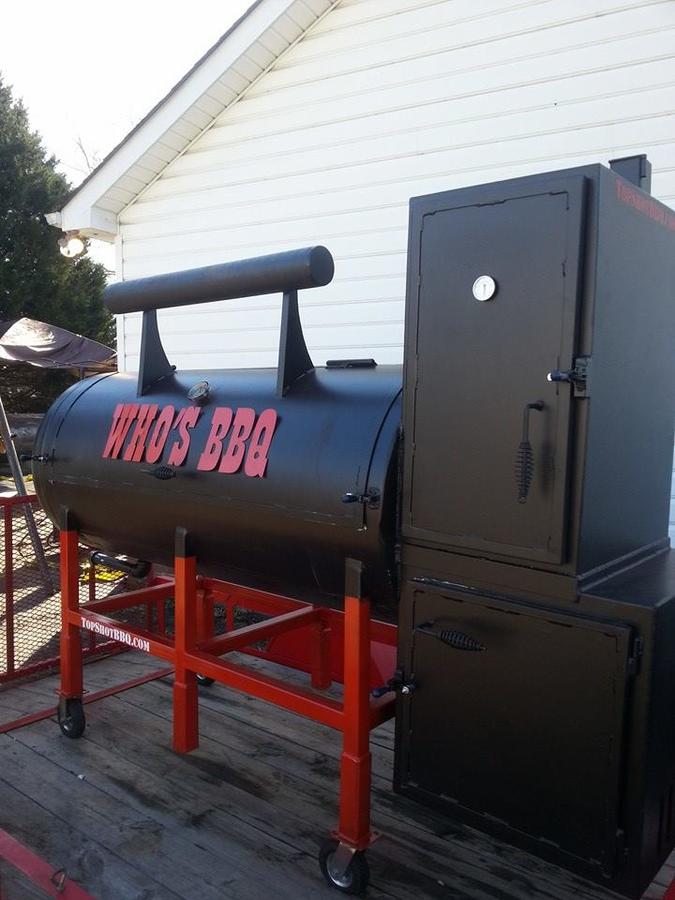

TS-250 on stand with warming tower

top shot bbq

Smoke Blower
84
11
Joined Oct 31, 2013

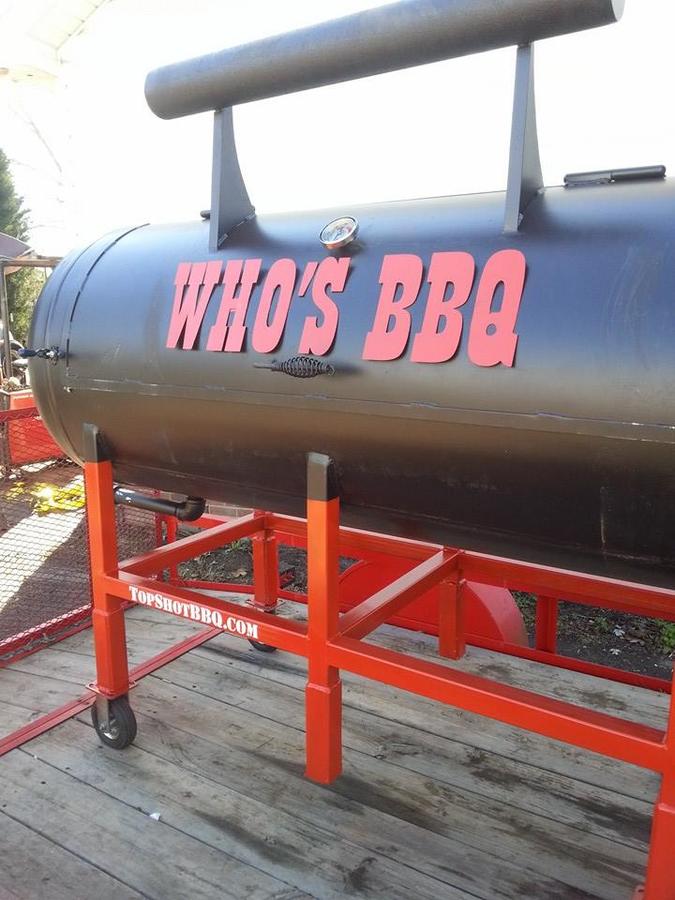

Customer Picked up and headed to Muscle Shoals AL. as an upgrade cooker for a new BBQ joint " WHO'S BBQ " weighing in at nearly 1600lbs we had to add last min casters to it to get it on the trailer. ( lift couldn't get high enough for trailer) This cooker will reside in an enclosed shack.

Specs: Main CC

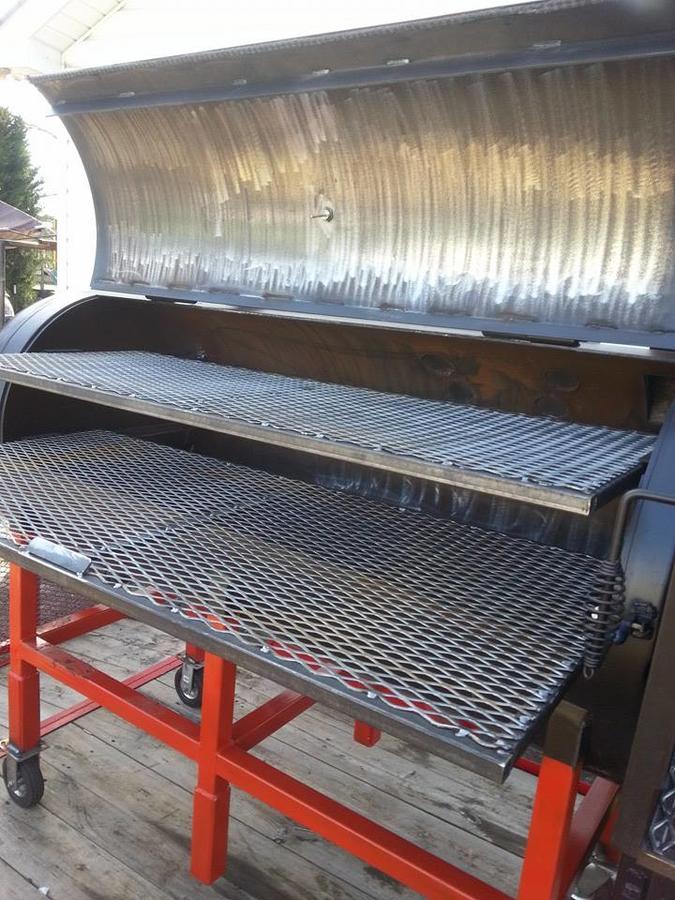

            top Main CC rack- 58''x22'' 6'' head space

           Bottom Rack  - 58''x28.5''  8.25'' head space

            5'' sq chimney 14''

            double flanged sides / fiber rope bottom gasket

            2'' inner drip rail

           3'' TEL-TRU Therm /2.5'' Probe RVT silicone  sealed threads

            Short counter weight mod due to back wall clearance

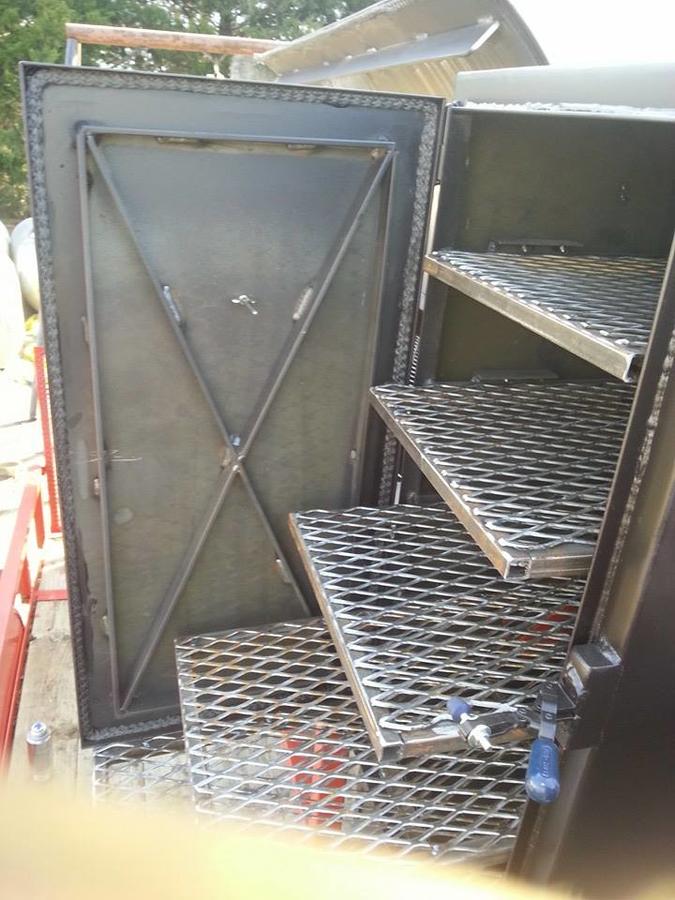

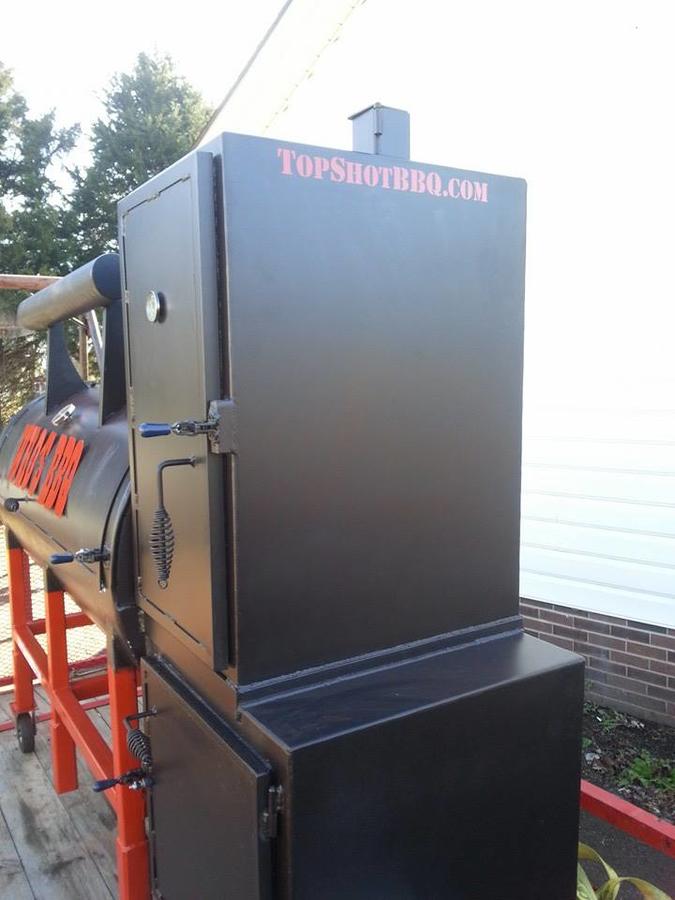

Warming tower-

14.5'' wide x 23'' deep 5.25'' head space 5 racks. Smoke butterfly vent , 3''sq outflow chimney / fiber rope gasket

2'' TEL-TRU 4'' prob

Firebox 24''x24''x24''  -3/16''sides and top 1/4'' bottom- slide air vent inlet / fiber rope gasket

We also pre-paint underside of all trim and flanges and base material to prevent rust drip lines.

Jason









top shot bbq

Smoke Blower
84
11
Joined Oct 31, 2013
Thanks Alaska, it's a labor of love for sure.. love my job.. well most days anyways..lol

Jason


top shot bbq

Smoke Blower
84
11
Joined Oct 31, 2013
Yea it should !!! The owner has been selling out of Q every Saturday so it was time for an upgrade. We love it when folks can make a living with our products !

Jason


driedstick

Smoking Guru
OTBS Member
5,980
610
Joined Nov 3, 2011
Very nice looks great  cant wait to see the product you will be making in that


bdskelly

Smoking Guru
OTBS Member
SMF Premier Member
★ Lifetime Premier ★
5,710
1,618
Joined Feb 3, 2013
5 Stars!
b


steve4christ

Newbie
22
11
Joined Dec 3, 2013
It is a real beauty....how does the draw work with that butterfly into the warming rack?

Last edited:

top shot bbq

Smoke Blower
84
11
Joined Oct 31, 2013
It is a real beauty....how does the draw work with that butterfly into the warming rack?
Neither the warming tower or fire box are insulated it has a one inch air gap between the two, the flow is good as a warming tower. The warming tower wasn't designed as true additional CC space. it will hold 150-175 Deg pretty easy. the butterfly will shut down the smoke completely or let it in for BBQ bake beans, or as a cold smoke rack.
