Standard Reverse Flow Smoker Calculator... by DaveOmak and others... Ready to use.. rev5.. 6/19/15.

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.
Enter a guess for the Segment Height ED... I'd start with 6.0

Click on [CALCULATE]....

The other boxes will fill with numbers....

The [Segment Area] box is what you area going to compare with the FB/CC opening in square inches...

If the FB/CC opening number is smaller, change the number in the Segment Height ED box to 5.... continue changing that number until the [Segment Area] matches the FB/CC number.....

Now look at the colored circles above.... Segment height ED is how tall the green area is and corresponds to the area to be cut out....


That's the actual calculator I was describing, thanks! This just felt like I was sitting in algebra class, I'll circle back to this when I get to this step so my head doesn't explode today!

31 x 70 = 52,800... x 0.004 = 211 sq. in.. "segment area"

x 0.001 = 53 sq. in. FB inlets.. 20% upper& 80% lower

x 0.022= 1162 cu. in. 6.5" diam. exh. stack 35" above the CC.. or 7" Dia. stack 35" above the CC...

Cut the opening between the CC and FB like the "green" part of the diagram... The line ED is the segment height... and is 10".... Match that cut out to the top of the end plate on the Fire Box so they match up... The top plate on the FB is where you attach the RF plate...
See some of the pictures in this thread....




Here's to "Alien BBQ" and the folks that first put the calculator together and "1728 Software Systems" for this great "Circle Calculator" and all the folks at "SmokingMeatForums", with a special shout out to Ribwizzard, that contributed their ideas and feedback while this thing was coming together..

The smoker and how it's supposed to work...... click on pics to enlarge.....


Edit: 2-16-2014 ; You will need a hand held calculator, smart telephone, or your computer.... calculator, to use this tutorial.. It does not crunch numbers for you.....

Calculations for a standard design, reverse flow smoker..

Gallons X 231 = volume in cubic inches.... Sometimes the tag, in gallons, reflects a 20% air space for expansion....

Volume of the Cook Chamber.... Use the Inside Diameter of the tank...

Diameter X Diameter X 0.7854 X Length = Volume in cubic inches

Volume in cubic inches X 0.004 = FB/CC opening in square inches

Volume in cubic inches X 0.004 = Area under the RF plate in square inches

Volume in cubic inches X 0.004 = Area required at the end of the RF plate in square inches

Volume in cubic inches X 0.33 = minimum volume of the Fire Box

The above areas are necessary for great air/heat/smoke flow.... using less may cause an overheated FB.... Narrow / Long CC may require an increase in those numbers due to increased surface area friction to volume... Wide/Fat Short CC may use smaller numbers due to reduced surface area friction to volume...

Volume in cubic inches X 0.001 = FB air inlets in square inches...

Recommended 20% upper and 80% lower air inlets... Upper air inlet directly across from the FB/CC opening to facilitate moving heat from the FB to the CC, and insuring good air flow through the CC.. The lower air inlet should be situated at or below the fuel grate.... The two air inlets can share the designated square inches of opening....

Volume in cubic inches X 0.022 = Exhaust Stack Volume in cubic inches, above the CC.... (ESV)
(The increase in volume ~30% shows a dramatic improvement in equalized temperatures across the cooking surface... edit 6/19/15 )

Exhaust Calculation..

ESV in cubic inches_________ ... = Stack Length in inches (36" +/-)
0.7854 X Stack Diameter X Stack Diameter

ESV in c.i. = D2 ... Diameter of the stack squared...
0.7854 x 36
10/3/2019 edit


Adjust the diameter of the stack, until the proper length is achieved... be sure to measure the actual internal diameter of the pipe used..
this is for round stacks only..


This circle calculator is really cool... It does it all.... Just fill in the necessary blanks...
......click on this link......
http://www.1728.org/circsect.htm

For calculating the FB/CC opening.... You are calculating for the GREEN area... that will be the cut-out area in the FB that mates to the CC....

The green area is a segment. It is called a "Segment Area"... That area is the same as the FB/CC opening....



When you open the "Circle Calculator" link, Click on the "bullet" to the left of Radius & Segment Height ED....

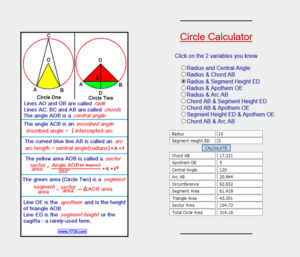

Circle Calculator

Click on the 2 variables you know

......Radius and Central Angle...........................Radius & Chord AB
[X] Radius & Segment Height ED.....................Radius & Apothem OE
......................................................Radius & Arc AB
......Chord AB & Segment Height ED................Chord AB & Apothem OE
......Segment Height ED & Apothem OE...........Chord AB & Arc AB

You should have opened the circle calculator and a bunch of boxes will appear below..
and a box called [CALCULATE]..

Enter the radius in the box so marked.... If you tank is 24" OD, and has a 3/8" thick steel wall, the ID of the tank 23.25".... the radius is 11.625"..... these numbers need to be accurate if you want stuff to fit... ALSO, take into account the thickness of the FB steel when cutting out the tank...

When calculating for, and with a FB that is smaller radius, use the FB radius for the football opening...

Enter a guess for the Segment Height ED... I'd start with 6.0

Click on [CALCULATE]....

The other boxes will fill with numbers....

The [Segment Area] box is what you area going to compare with the FB/CC opening in square inches...

If the FB/CC opening number is smaller, change the number in the Segment Height ED box to 5.... continue changing that number until the [Segment Area] matches the FB/CC number.....

Now look at the colored circles above.... Segment height ED is how tall the green area is and corresponds to the area to be cut out.....

Also, [Chord AB] corresponds to the width of the RF plate... NOTE... for ease in fitment, the FB should be at least as wide as the RF plate..


Smoker Calculator reasoning
The concept for the changes is below.... Alien and his associates, did an amazing job putting the original calculator together... 100% of my numbers are based on his original numbers... small changes were made for the improvements due to design changes in smokers.....
The original measurements were taken from SFB smokers with tuning plates I do believe.... The advent of the RF smoker did not make any changes to the calculator... Now the exhaust has to travel twice as far as before, and the original FB/CC opening restricted the air flow from the FB, causing the FB to over heat... Some would get up to 450 deg and higher while the CC wouldn't get over 250.... And then there is the increased friction from the steel.... When using natural draft, any restriction/friction is very detrimental to the flow....
So, on a whim, the FB/CC opening was enlarged, the area under the RF plate was increased and the area at the end of the RF plate was increased... all by 50%.... That solved ALL the problems.... fuel consumption was reduced.... folks were happy....
I personally experienced members improvements and fuel usage by the letters/PMs they wrote me on their improvements...... One additional modification was suggested.... members here, tested a second air inlet to the FB.... directly across from the FB/CC opening... That was a significant improvement of some/most smokers.... If the FB was too hot, it could be cooled by opening the upper air inlet.... Also, the fire had a separate air inlet to adjust it's heat output.... It should be installed at or below the wood fire grate....
All of this has been tested and proven by members building smoker on this forum.... The only place you will find using these numbers... or it used to be... I'm sure many builders are now using these ideas for their builds.... this process has been going for at least 2 years....

Thanks for all your help...... DaveOmak

================== edit 12/24/14

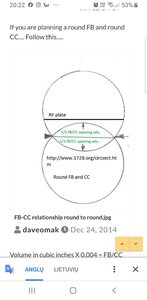

If you are planning a round FB and round CC.... Follow this.....


Volume in cubic inches X 0.004 = FB/CC opening in square inches.... the answer is divided by 2.... then that number is solved for in the circle calculator by manipulating the segment height.. when the radius and segment height box is checked... That will give you the lower and upper halves of the football opening... then double the new segment height number and run the calculator... (if originally it was 4", put in 8").... that's the width of the football, AND the new height of the RF plate... and if you look at the chord AB number, when the 8" segment height was crunched, that is the width of the RF plate....
[/ QUOTE]

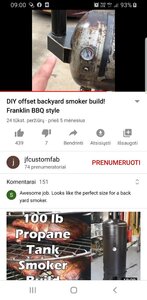

good day people. i start writing text through a translator. Maybe someone can count how many inches it takes to cut holes to connect CC and FB? My CC and FB are 20 inches.


Attachments

  • Screenshot_20210505-202228_Chrome.jpg
    47.9 KB · Views: 71
good day people. i start writing text through a translator. Maybe someone can count how many inches it takes to cut holes to connect CC and FB? My CC and FB are 20 inches.

Good morning saulius.... Give me the dimensions... Cook Chamber Length and diameter... Preferably in inches... I will run the numbers for you...

Cook Chamber Length 42" inches.
Cook Chamber diameter 20" inches.
Fire box lenght 25" inches.
Fire box diameter 20" inches.

  • Like
Reactions: daveomak
20*20*0.7854*42=13,195 cubic inches

FB/CC & Below and the end of the RF plate
13195x0.004= 53 square inches

13,195x 0.001= 13 square inches air inlets of the FB...
13x .8 = 10 square inches lower air inlet of the FB
13x .2 = 3 square inches upper air inlet of the FB

13195x 0.022 = 290 cubic inches volume of the exhaust stack..

13195 / .7854 x 4 x 4 = 23 inches above the CC exhaust stack...
Now, more is always better in a natural draft system... So, a 4" exhaust stack 35" above the CC will be fine...

53 square inches is the number we will be calculating for using the circle calculator...


Since bigger is better in your smoker, with a 10" radius and a 5" segment height ED, gives us a segment area of 61 square inches.. Slightly bigger than the 53" we calculated above... All is good here...
Now we divide that by 2... and look for the ED that will give us approx. 31 square inches..


2021-05-05 (2).png


Perfect... An ED of 3" gives us ~30 square inches... That is 1/2 of the football shape we are calculating for..
Now if we flip that shape over and get a complete football, our opening will be 60 square inches... A big bigger than the original 53 but it will work great... Remember, bigger is better...


12 ring.jpg


Did I forget anything ???
I hope this stuff makes sense...

Dave

...


Attachments

  • 1620257178764.png
    184.2 KB · Views: 83
20*20*0.7854*42=13,195 cubic inches

FB/CC & Below and the end of the RF plate
13195x0.004= 53 square inches

13,195x 0.001= 13 square inches air inlets of the FB...
13x .8 = 10 square inches lower air inlet of the FB
13x .2 = 3 square inches upper air inlet of the FB

13195x 0.022 = 290 cubic inches volume of the exhaust stack..

13195 / .7854 x 4 x 4 = 23 inches above the CC exhaust stack...
Now, more is always better in a natural draft system... So, a 4" exhaust stack 35" above the CC will be fine...

53 square inches is the number we will be calculating for using the circle calculator...


Since bigger is better in your smoker, with a 10" radius and a 5" segment height ED, gives us a segment area of 61 square inches.. Slightly bigger than the 53" we calculated above... All is good here...
Now we divide that by 2... and look for the ED that will give us approx. 31 square inches..


View attachment 495411

Perfect... An ED of 3" gives us ~30 square inches... That is 1/2 of the football shape we are calculating for..
Now if we flip that shape over and get a complete football, our opening will be 60 square inches... A big bigger than the original 53 but it will work great... Remember, bigger is better...


View attachment 495415

Did I forget anything ???
I hope this stuff makes sense...

Dave

...
Thank you.You are a very good person. you helped a lot. Another question I have these calculations differ between is a ofset smoker or rewers flow smoker?

Hello Dave,

I recently purchased a used custom built reverse flow offset smoker. This is my first true offset and I don't have any experience to compare how this smoker runs to others. I have done one cook on it (pork belly) and it turned out great. I had 4 probes in the smoker and they all read (271F Top rack near exhaust, 268F Top rack near end of reflector. 268F Bottom rack near exhaust, 255F Bottom rack near reflector plate). All probes were placed approximately 14" away from the ends.

I was planning on building my own smoker before and I have my calculations based on your calculator. After my cook, I took measurements and compared to your calculator and the numbers are off. I'm hoping you can look at each calculation and based on your experience can inform us what we would expect if a number is higher or lower than your calculator.

Also, my exhaust stack placement is right at the top of the CC. How beneficial would it be to cut it off, patch the hole and to lower it? Is it worth the trouble.

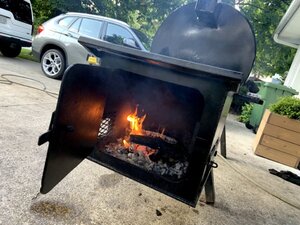

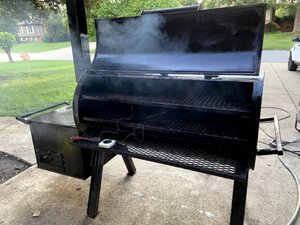

I am attaching pictures of the smoker as well as my numbers. The smoker is 24" x 48" x 3/16" CC and 21" x 22" x 18" x 1/4" Firebox.

Thanks in advance! Looking forward to your response.

Smoker Calc.JPG

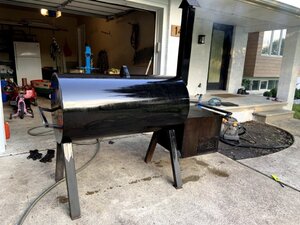

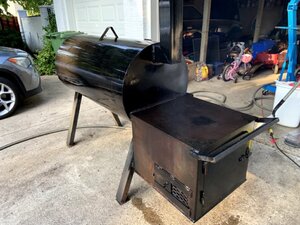

4dcNRFfeTtGgWQJNuU5m7w.jpg dnOMWs93Tces0XBoZyVYqg.jpg hV0hXBhNRHKy4mVePnL2Cw.jpg


Attachments

  • IVxidArcT7KprUqV4-qQLw.jpg
    146.2 KB · Views: 62


FB/CC opening...And.... Area at the end of the RF plate opening....And .. undersized exhaust stack......... is restricting the air movement to the CC and allowing the FB to overheat causing fuel wastage...

Not having an upper air inlet .... You lose control of the fire...and... control of the air flow through the CC.....

The 90 deg. restricts air flow through the exhaust.

FB/CC opening...And.... Area at the end of the RF plate opening....And .. undersized exhaust stack......... is restricting the air movement to the CC and allowing the FB to overheat causing fuel wastage...

Not having an upper air inlet .... You lose control of the fire...and... control of the air flow through the CC.....

The 90 deg. restricts air flow through the exhaust.

Thanks Dave for the input!
I am planning on cutting out the RF plate tonight. Currently there is no drain in this smoker and under the RF plate has never been cleaned out (need to fix this). In doing so, I can take some material off the RF plate to achieve the proper area at the end of the RF plate (1" should do it).

I am going to see if I can open up the FB/CC opening to get closer to the calculator.

For not having upper air inlets.... on the last cook I kept the door cracked open.... Would this achieve the same thing? Or should I figure out how to add the upper inlets?

Lastly, for the exhaust. This will be the most expensive and hardest change. Do you think it is worth the effort vs. the amount of fuel I'd be saving?

For not having upper air inlets.... on the last cook I kept the door cracked open.... Would this achieve the same thing? Or should I figure out how to add the upper inlets?

Opening the door does not reduce air to the fire...
Below is a GREAT example of complete fire control... Being able to move the heat from the FB to the CC without adding air to the fire is the ultimate in controlling cooking temperature....


Smoker Exh and Intakes 2.jpg



Lastly, for the exhaust. This will be the most expensive and hardest change. Do you think it is worth the effort vs. the amount of fuel I'd be saving?

I would add a 5" exhaust with an oversize plenum, between the food grate and top of the CC...



For the end of the RF plate, 1" is the 25% increase you are looking for... I would make it 2".. and leave the plate where it is... 132% is fine.... That 2" can easily done with an angle grinder and cut-off wheel...

For not having upper air inlets.... on the last cook I kept the door cracked open.... Would this achieve the same thing? Or should I figure out how to add the upper inlets?

Opening the door does not reduce air to the fire...

Lastly, for the exhaust. This will be the most expensive and hardest change. Do you think it is worth the effort vs. the amount of fuel I'd be saving?

I would add a 5" exhaust with an oversize plenum, between the food grate and top of the CC...

For the end of the RF plate, 1" is the 25% increase you are looking for... I would make it 2".. and leave the plate where it is... 132% is fine.... That 2" can easily done with an angle grinder and cut-off wheel...
Hey Dave,

I would like to report that I removed 2" from the RF plate but kept everything else the same for now. Just that change has made a HUGE difference in my last cook. For my first cook before the modification, I had to run a large fire close to the FB/CC opening to get the CC temperature to 275°.

After the modification, I made the same size fire near the FB/CC opening and the CC temps were around 330°. For the remainder of the cook, I had to baby sit a much smaller fire and I pulled the fire away from the FB/CC opening.

Thank you for the help!

  • Like
Reactions: daveomak
I am coming way late to the party. My perspective is that I built a reverse flow horizontal offset smoker back about 2010, using the tribal wisdom about these ratios available then. My cooker worked like a dream! However, the numbers provided by the BBQ calculator in 2009 do *not* match the numbers from this calculator, not even close. I looked through my design notes and here is what I extracted as the main rules from the 2009 BBQ calculator, put out by Tom Chism also purporting to be regurgitating Alien BBQ's numbers. (NOTE: VOLCC is 'volume of the cooking chamber'.)

RULE 1: Firebox 1/3rd the size of the cook chamber (or larger) ;; this is the same as today
RULE 2: Air inlet opening = VOLCC * 0.003 ;; this is THREE times today's 0.001
RULE 3: Firebox to CC op. = VOLCC * 0.008 ;; this is DOUBLE today's 0.004
RULE 4: Stack volume = VOLCC * 0.050 ;; more than double today's 0.022

Today's calculator makes the point that you should have the same cross-sectional area under the RF plate as there was between the firebox and cooking chamber, and there should also be this same area around the end of the RF plate. Stands to reason.

Remember, I built a smoker according to the old numbers and it worked super well.

So what's up here? Did Alien BBQ change his mind between 2009 and 2014? Did the numbers get copied wrong and just propagated mindlessly forever?

Inquiring minds want to know.

FYI the Tom Chism calculator takes a little savvy and digging but here's the link:

seattlepitboss

Hello y'all

Im building my first offset smoker and found this calculator.
Ran my numbers through the calculator but Im a bit sceptical of the smoke stack, especially the diameter.
CC will be 12100 CI / 52 gallons.
That gives me a SMV of 267 CI (12100*0,022).
If the smokestack should be aprox 36 inches high it gives an opening area of 7,41 square inches, and a diameter of 3 inches.
The diameter looks surprisingly small to me, especially compared to most pictures one sees.
Did I do the calculations right?
