Stainless smoker build

motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
I heard leaving the bark on fruit woods is good.

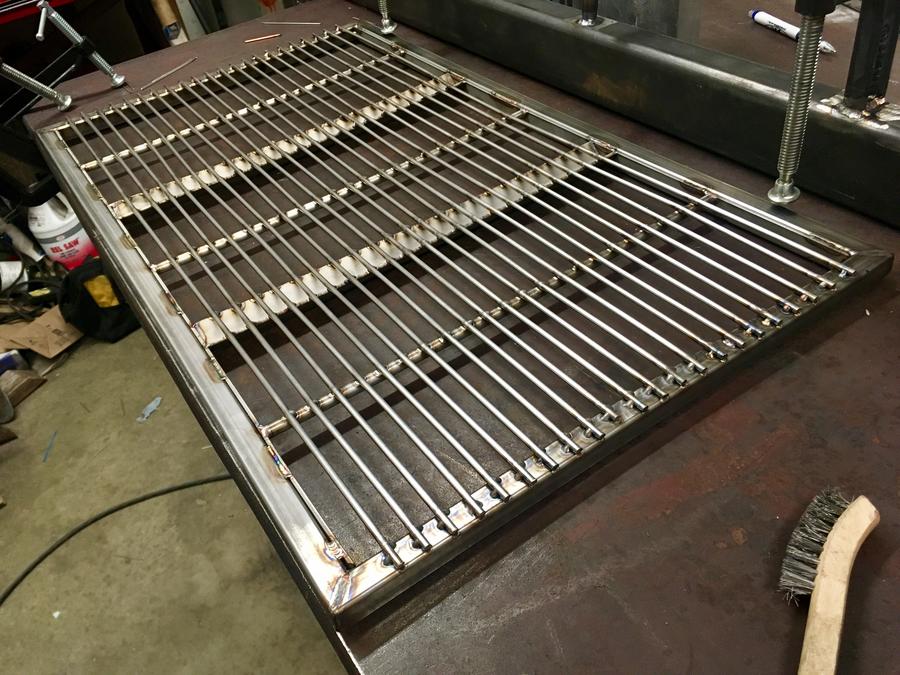

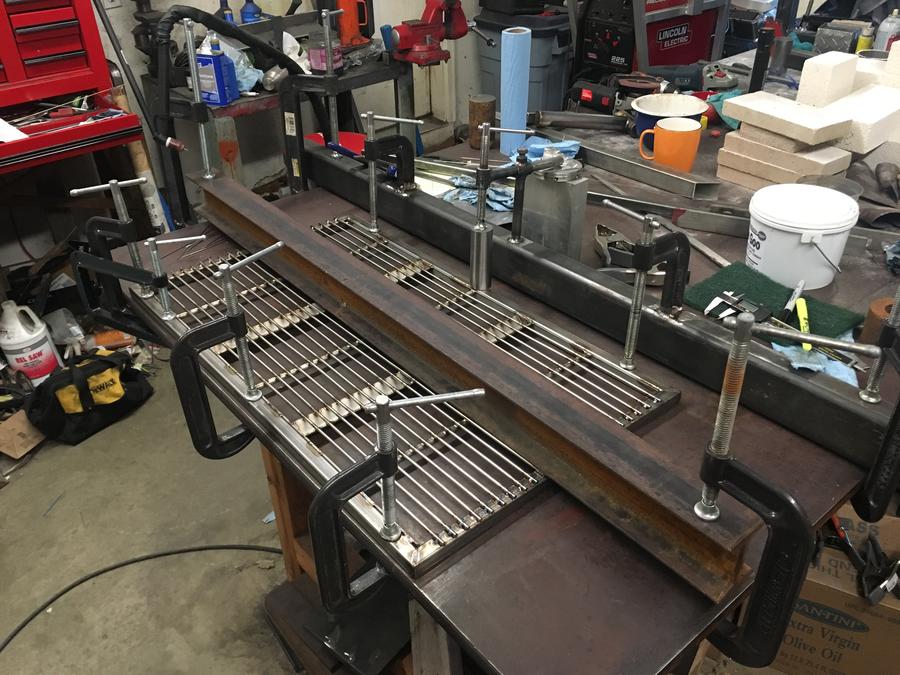

Been making progress on the smoker heres where I am now. Doing the pluming on the second runner going up to the cc. It's 3.5 OD with 1/4 wall


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
I've got a question on the exuast. It's 3.5" hole in the back of smoker and thinking it's a little small. I'm thinking of stepping up to 4" after 10 " - 12" or so and going long with it like 3-3.5'. What do you guys think?smoker is right about 55 to 60 gallons

Last edited:

motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
I tried the calculator and could get them to work. Has everyone lost interest in this build??


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
Probably more likely too busy.   Just got home and going to bed.

Hopefully I will have time later this week to help

thanks


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
That would be nice tanks! Mainly worried the exuast my be to small, kinda a lot of work to go 4" now, since the hole is 3.5".


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
ok Finally have a few mins..

If it is a bitch to change to larger diameter leave it alone at 3.5" .

For me you don't need much exhaust length as the fire box is low and will naturally draw.

I would probably cut it at 12-14" above the top of the cook chamber.   Much longer and you may get stall from it cooling too much.

Make an adjustable pipe that slides over it and you can play with the length once it is fired up.

Must be close now, I bet that chicken has headed for the hills....


kam59

Smoking Fanatic
515
65
Joined May 2, 2017
I had to go back and look at the dimensions of your build. A 3.5" exhaust will be fine in my opinion because you are working with more of a vertical build rather than horizontal draft. I would keep the length to around 6" to 12" tall to minimize any stall as Ahumadora mentioned.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Like the pipe would be tall long and not wanna go through the pipe anymore and leave the pipe ? Smoke get stuck inside?


kam59

Smoking Fanatic
515
65
Joined May 2, 2017
If your exhaust is too tall your heat/smoke cools and becomes heavy in the exhaust and slows your draft.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
ok thanks that's makes sense. Would it pull better if I added a 4" tube right after the 3.5" tube coming out of the cc?


kam59

Smoking Fanatic
515
65
Joined May 2, 2017
I believe you will be fine with just the 3.5" diam. at 6" to 12" tall.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
I'm worried the heat will not wanna get out good enough and that I will have to have a tiny fire. It's all stainless and insulated. Got some more work done on the smoker today but can't load pics. I see a lot of guys on here even using 6" stack on similar sized cookers as mine.


kam59

Smoking Fanatic
515
65
Joined May 2, 2017
The heat/smoke traveling through the pipe to the chamber is a bigger concern to me than the 3.5" exhaust. If your'e concerned with the exhaust size increase it. You can always cut back on it if needed with a damper.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
What's the concern with the intake pipes? I do plan on putting a baffle plate over it if that's what you mean. The intake (tubes) are 1/4" thick

Last edited:

kam59

Smoking Fanatic
515
65
Joined May 2, 2017
When the heat /smoke enters the pipe to travel to the chamber my concern would be it cooling down. If the firebox were attached to the cooker and only a short transition I believe it would work better. The set up you are working with is common in smoke houses but they cook at much lower temps. It may work fine it is just a concern i would have.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Ok thanks. I really don't think that will be a concern. My firebox is fully insulated with insulating 2300 brick and the tubes are 1/4 stainless. Stainless does not dissapate heat well at all. Mild steel steel dissipates about 5.5x's as quick as stainless steel does. I maybe just weld in a 3.5" cookie and place it in the hole and tack it then I'll have a pilot again to use 4" whole saw. And that way I think I'll be able to have a bigger fire that will be easier to keep going for a while. Again thanks a lot for your advise.
