Stainless smoker build

ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
Kory,

Unfortunately there are no calculators for insulated smokers.

Best to get it in the ball park range with Dave O's reverse flow calculator (click on the reverse flow section).

If you could figure a way to insulate the heat exchange tubes would be good as that's where a bunch of heat loss will occur.

The smaller the tubes, the more friction you have.

2 x 3" tubes probably will be ok or even go to 4" on a  20 chicken sized cooker like yours.

yes a water tray will help just try everything you can so hot flames are not blasting onto your brisket.

i would make the chimney anywhere from 1/2-3/4 up the CC.

You want to get good airflow through the cooker


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Thanks for the advise bro, I was thinking 3/4 down may be to low and the hot in coming air would escape the low exuast. I think I'll go 1/2 to 5/8. I'm gona go with 1/4" wall tubing or so , not sure if I'll be getting tube or pipe but I may wrap them in header wrap insulation.


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,309
864
Joined Sep 10, 2011
not to change the subject.. but reading your name... was just wondering If you ride/race motocross ??


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Yes just rebuild my cr500 top end tonight actually. Shaved the head .040 and did some porting cleanup. Live in the PNW


JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,309
864
Joined Sep 10, 2011
Yes just rebuild my cr500 top end tonight actually. Shaved the head .040 and did some porting cleanup. Live in the PNW

LOL.. the 500 isn't fast enough ??? ... I have my grandson racing... we have a 16 YZ250F .. he rides 250 B class...

Last edited:

motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
thsts awesome! Where u guys from? I'm mainly a woods ride, I live out in the woods right next to a orv park, power lines and horse trails. I'm pretty spoiled


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Is goes good but I just wanna do some experimenting, it went real good in the sand too, I've only had it about 3 months, was my first time in the sand too


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Dang he's up there! Howed the sausage turn out? I plane to do some as well here in a couple months

Last edited:

JckDanls 07

Smoking Guru
OTBS Member
Group Lead
6,309
864
Joined Sep 10, 2011
snack sticks (pork) are great.. summer sausage not done.. been 12 hrs.. tired and wanna go to bed


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
You can buy 3" mandrel bends online for exhaust and yes header wrap will work. That stuff usually rusts regular pipe but with stainless you will be fine.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
That stuff would be spendy and only 16 gauge. I'm going with 1/4 and I'll just be pie cutting it and tig weld. Thanks tho. I'm also no far from Columbia river manderl bending


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016

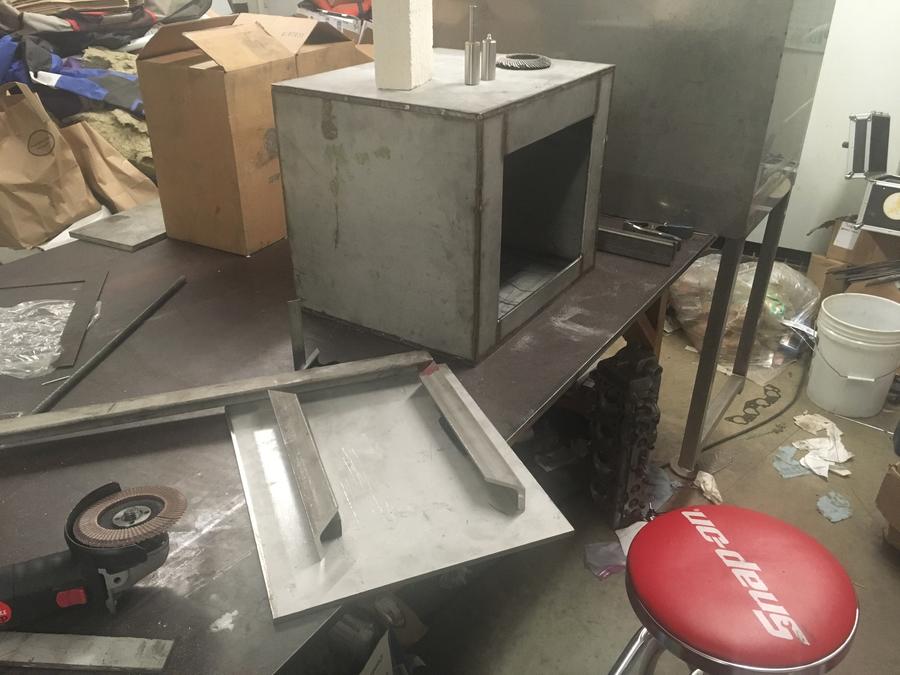

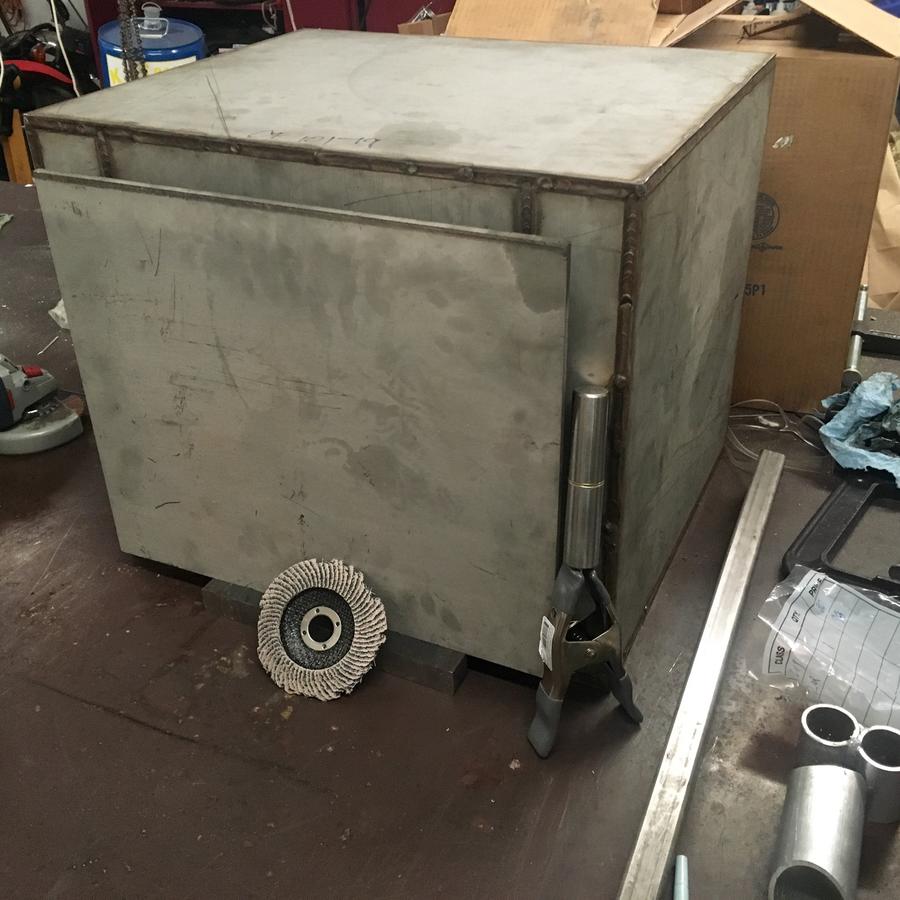

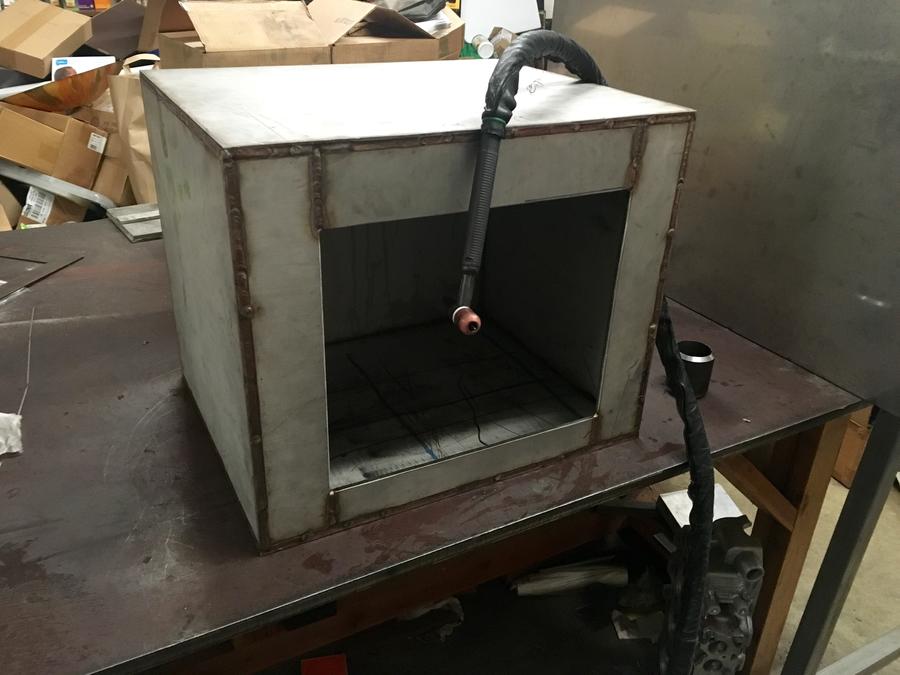

Ok I'm making more progress on the smoker build. Building the firebox now it's 1/4" 304 stainless and was a Rem piece that was all water jet cut. I've got some insulting bricks off CL and and I don't really wanna put the bricks in the door. I'd rather put in maybe mortor mix maybe? Looking for something that will last. I've got 1/4" 1.5" angle to hold it in on the 5/16" door. Thank a lot


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
Ya she didn't have much choice. Pics don't like to load off my wifi. I'll have to go in town.


motolife313

Master of the Pit
OTBS Member
1,332
450
Joined Aug 27, 2016
so I'm trying to fill the door in with maybe some kind of concrete or some other sort of insulator that won't mind the mind being smokey. I was thinking the roxul insulation that I'm using for the cooking chamber but worried the smoke with cause problems since I don't wanna totally wanna seal up the area on the door that I'm using 1/4" angle. Any ideas would be appreciated!
