Smoker will not turn on 40 inch Masterbuilt electric smoker Model#20075415

Bdubbs10

Newbie
2
0
Joined Sep 16, 2020
Hello,

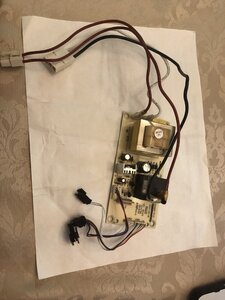

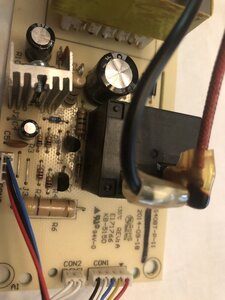

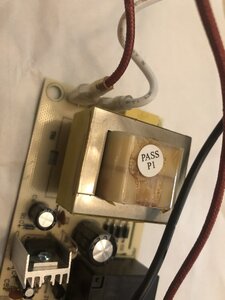

I have been having issues with my smoker for the passed year I believe my issue lies with the circuit board. I have changed out my digital control and replaced the element both parts from Masterbuilt. I am trying to buy the circuit board part#9907140048 but Masterbuilt and Appliance Factory Parts do not have them anymore. I currently stuck right now with a fairly new smoker and its not working :(. I believe the relay on my circuit board is bad but you never know. I can attached a picture of my circuit board as there may have been a small spark or fire along with the board getting slightly wet!

Any help is appreciated!!!!
thank you


Attachments

daveomak

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
25,976
3,376
Joined Nov 12, 2010
There are aftermarket temp controllers that are "plug and play"....


Auberins make good stuff..... and they have a tech dep't to help also....


Bearcarver

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
Group Lead
38,628
11,303
Joined Sep 12, 2009
My Goto guy for electrical problems with an MES (Masterbuilt) is tallbm tallbm .
I'll try to draw him over to you.
If he doesn't show up, click on tallbm tallbm , and send him a message.

Bear


smokerjim

Master of the Pit
OTBS Member
SMF Premier Member
4,023
1,609
Joined Jan 14, 2014
check out tallbm's, never mind bear beat me to it.


tallbm

Master of the Pit
OTBS Member
★ Lifetime Premier ★
4,595
1,713
Joined Dec 30, 2016
Hello,
I have been having issues with my smoker for the passed year I believe my issue lies with the circuit board. I have changed out my digital control and replaced the element both parts from Masterbuilt. I am trying to buy the circuit board part#9907140048 but Masterbuilt and Appliance Factory Parts do not have them anymore. I currently stuck right now with a fairly new smoker and its not working :(. I believe the relay on my circuit board is bad but you never know. I can attached a picture of my circuit board as there may have been a small spark or fire along with the board getting slightly wet!

Any help is appreciated!!!!
thank you
Hi there and welcome!

I'm not sure you will be able to find an exact replacement board for your smoker. You could gamble and try a different part for an MES like yours and hope it works but I wouldnt bet on it.

Now there IS an option that a number of us guys have applied and honestly makes your smoker 100X better than it ever was brand new.
The option is to do a simple rewire (yours is likely even simpler than my guide mentions) and to then use the $150 Auber PID plug and play controller.

Now you might ask "Why would I pay $150 when that is close to the cost of a new smoker?". My answer is that for $150 you get the Auber PID and you get a better than new smoker!!!

These Auber PID controllers allow your smoker to hold within 1-3 degrees of your set temp. They are super precise when dialed in! No more temp swings! You can now do bacon and sausage without fear of temp swings melting out the fat! You now get a consistent even temp rather than an average temp! The conversion to use a PID makes your smoker live sooo much longer since it is a way simpler machine than with all that crappy circuitry Masterbuilt has in the mix!

Your rewire would be to take one of the braided red wires still in the smoker (that connected to the braided red wires in your picture) and connect it to the smooth black wire still in the smoker (not the smooth black wire in your picture).
You then take the other braided red in your smoker and connect it to the smooth white wire in your smoker (neither of the red braided or smooth white wires in your picture).
This now makes the MES plug feed power to the heating element WITH the over heating safety switch in the mix!

With this rewire u plug the MES into the Auber PID. You plug the Auber PID into the wall socket. You clip the Auber PID temp probe to one of your smoker racks and punch in a set temp.
The PID will now feed power to the MES heating element to hit and hold your set temp. Boom, done!

My post here covers all of the details but that is the short of it all:

Honestly man everyone who does the rewire and moves to a PID controller says the same thing. They say "I wish I would have done this sooner, this smoker is now amazing!"

One minor drawback, but not really... is that you will have to use the A-Maze-N Pellet Smoker (AMNPS) tray or tube and pellets to now generate smoke. Most of us did that anyways and its a drastic improvement over feeding chips so not really a drawback lol.

I hope this info helps and ask all the questions you have :)


Steve H

Smoking Guru
OTBS Member
SMF Premier Member
5,240
3,988
Joined Feb 18, 2018
Also, if you're handy enough. You can do the rewire as noted. But instead of spending 150.00 on the Auber. You can make your own PID controller for roughly a third of the price. There are a few here, including myself. That have done this.


chopsaw

Legendary Pitmaster
OTBS Member
SMF Premier Member
★ Lifetime Premier ★
7,841
4,210
Joined Dec 14, 2013
The $150.00 for the Auber is well worth the money . If you're comparing price , make sure you know what the differences are .


JC in GB

Master of the Pit
SMF Premier Member
2,213
1,347
Joined Sep 28, 2018
I have a PID controller kit available for MES electric smokers up to 1250 Watts.

Cost is $90 + tax and shipping.

See attached pic and performance curve.

MES_kit 03.jpg
