Smoker/oven/Santa Maria build

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

kevin2466

Newbie
Original poster
Aug 7, 2022
10
29

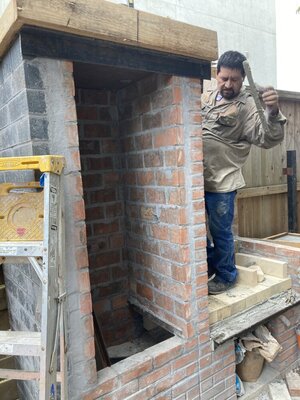

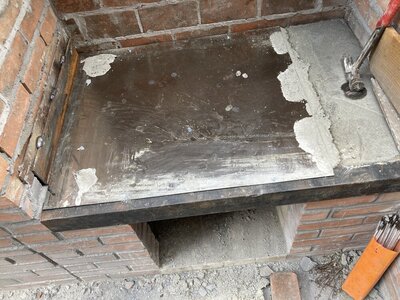

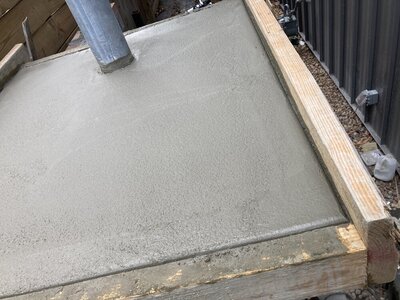

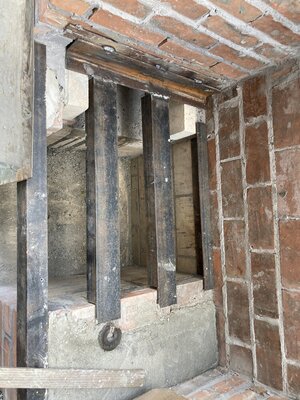

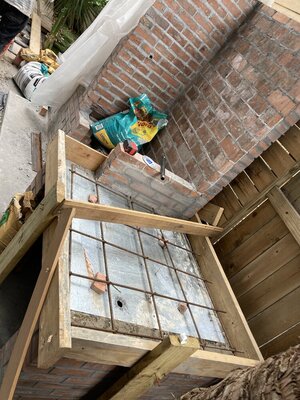

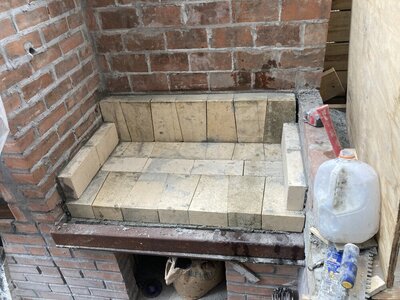

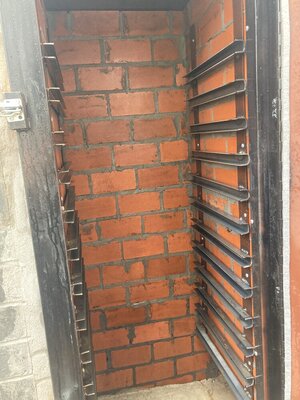

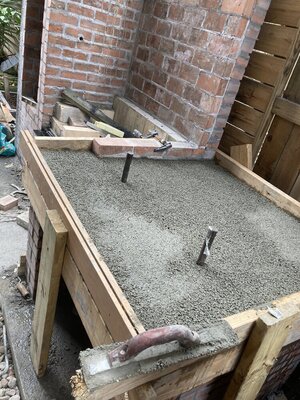

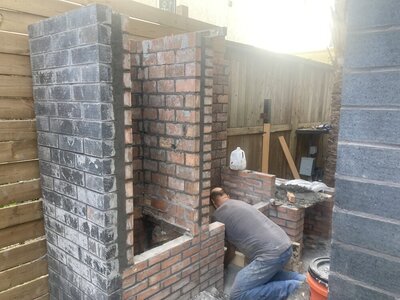

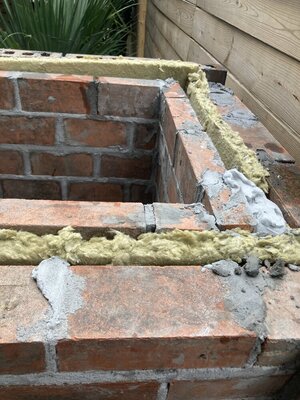

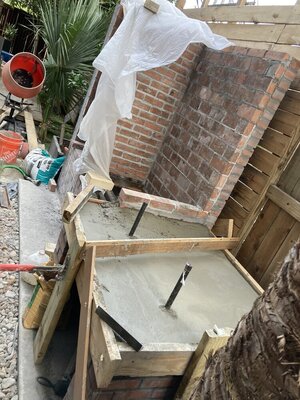

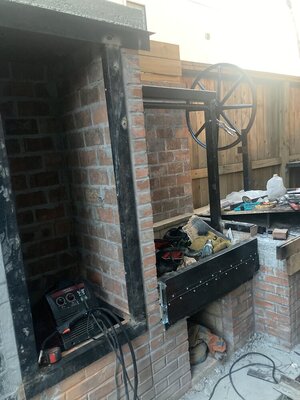

Thought I’d share a few pics of my build. I’ve built a few steel smokers that have served me well for the past 15 years but have always wanted a masonry smoker, and finally got bored enough to build. My goal is to hopefully have a smoker that I can leave for 4-6 hours at a time, much like I do my green egg. Pics aren’t the greatest as I live in the city and it’s being build on my side easement, so space is tight. Total footprint is 10’x42”. Fire chamber and smoke box are double wall and fully insulated


Attachments

  • 0969BD25-CEE3-41F7-AE13-0650380F2AF1.jpeg
    186.8 KB · Views: 176
  • F12F366D-19D6-4BAF-9629-7206ADAA3860.jpeg
    186.6 KB · Views: 151
  • FD5F6681-8484-454C-9D1F-07B8B4B9CB4A.jpeg
    189.3 KB · Views: 137
  • E3B090F9-F6DC-4817-89B0-6727033D96BB.jpeg
    257.4 KB · Views: 136
  • 4CCFED25-159F-4248-AF1A-40159F34FDA0.jpeg
    168.8 KB · Views: 128
  • 184F17A3-1EB2-4F9F-9362-777E718EB47D.jpeg
    197.4 KB · Views: 120
  • FA50D7A4-EC39-468C-9CF1-A6683679299E.jpeg
    189 KB · Views: 116
  • 9EFE477D-69A9-4324-9F46-8838C9311A32.jpeg
    217.1 KB · Views: 111
  • FDFA1EC5-378A-41CF-AD34-B71BD3DB63E1.jpeg
    215.6 KB · Views: 110
  • B479A3AA-B423-4454-A5D3-FD16AA3949B4.jpeg
    197.2 KB · Views: 108
  • C29E60A4-63B7-4F73-BA9B-0A56AD71D6B5.jpeg
    212.8 KB · Views: 113
  • 8718C7ED-169B-46DE-91C5-A7FE88DD306F.jpeg
    161.3 KB · Views: 130
Thats gonna be nice! looking forward to the finish pics. Whats gonna be the break in run?
Jim

Man that is a serious build! Looks awesome. I'm sure you're ready to light fire in there

Coming along nicely! Look forward to many cooks on it!

Ryan

Thats gonna be nice! looking forward to the finish pics. Whats gonna be the break in run?
Jim
Found some ribs on sale this week that I couldn’t pass up, hoping to get them on the smoker this weekend

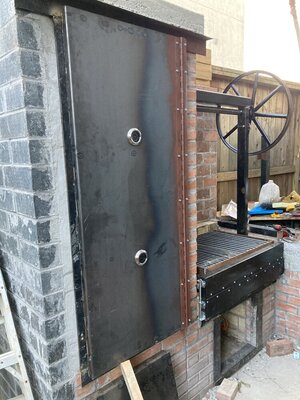

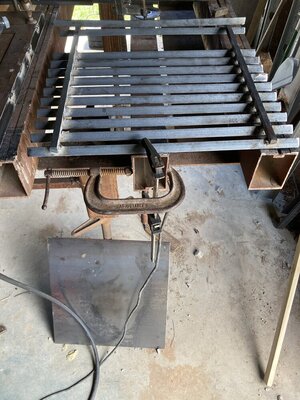

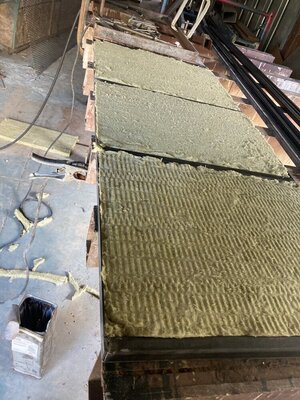

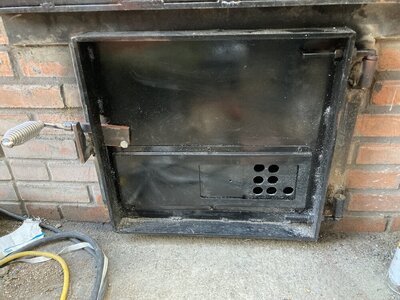

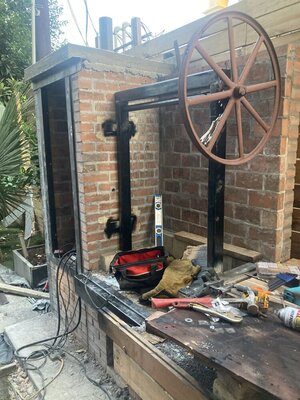

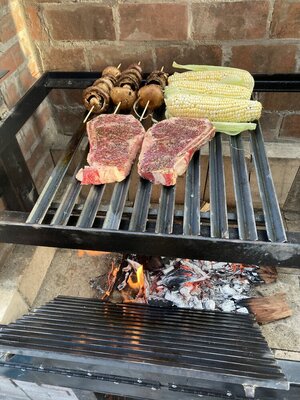

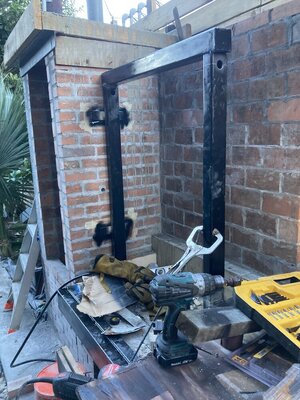

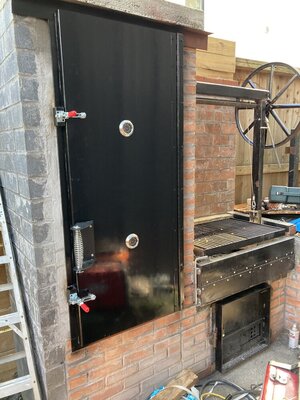

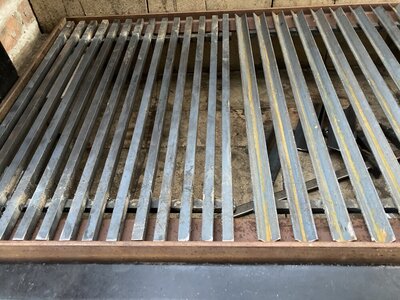

Mad e a little more progress this weekend, built an insulated smoke door and got it mounted, and built two sets of grills for the Santa Maria. Couldn’t have asked for the door to line up any better


Attachments

  • 9D5889A6-65D7-44EC-93C6-9717058EA15E.jpeg
    184.6 KB · Views: 115
  • 7D4AED06-FF71-4263-98C2-05E0177CEB75.jpeg
    171.8 KB · Views: 107
  • 2FC1FD7E-B912-4B9B-98F9-F71178E82650.jpeg
    191.8 KB · Views: 109
  • 21C18140-DD01-446F-8127-FBC54AE494A8.jpeg
    205.2 KB · Views: 109
  • 72C0D092-A5FC-4000-A03A-8ED501BD33DD.jpeg
    257.6 KB · Views: 125
Ended up with covid so slowed down a bit, but smoker and Santa Maria are near finished , can finally start on oven dome


Attachments

  • 73A74E38-7713-40D6-A15D-EB7014295AA7.jpeg
    165.1 KB · Views: 106
  • 54794884-7909-40D6-A6B2-8601028090DF.jpeg
    193.7 KB · Views: 105
  • 6EE01B7D-72FB-4932-AF7D-01B79AAEEF9B.jpeg
    217.1 KB · Views: 109
Ugh on the 'vid. But good progress thus far. Thinking that test cook you got going would make me feel pretty darn good!
Jim

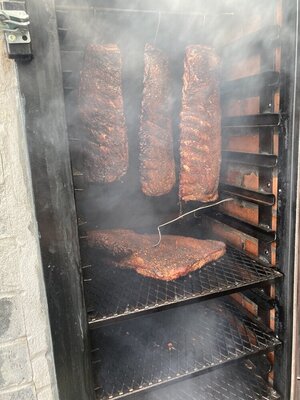

Thanks for the compliments guys. Seems like it cooked a bit faster than a steel smoker at the same temp, may be the way the brick radiates heat. Will drop down to around 210-215 on the next smoke


Attachments

  • 5D9851D2-B33C-4D3B-AE37-F6D74F16BD42.jpeg
    158.9 KB · Views: 78
  • 13EF86A2-050A-4759-9FD2-316ACB8A649E.jpeg
    201.6 KB · Views: 86
  • 5A0129E6-6D55-402A-BA9E-448D804EB112.jpeg
    157.3 KB · Views: 87
  • Like
Reactions: 48°North and tbern

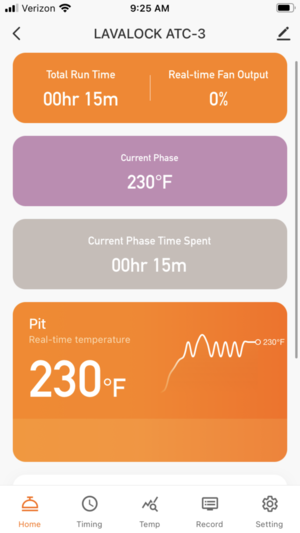

Didn’t seem to use to much wood and held heat well, kept over 200 degrees for 5 hours after I shut off the air


Attachments

  • 7C77EC46-65A1-4004-9AA4-22F80E2D170D.png
    132.8 KB · Views: 84
  • F24B9B9C-205F-4FD6-99DD-815B47BFD495.jpeg
    168.1 KB · Views: 80
Glad it worked good for you!! That smoker looks awfully good full of meat!!
Thanks, I’m glad to get it to this point, been working on it for a month of evenings and weekends, finally get to start on the pizza oven

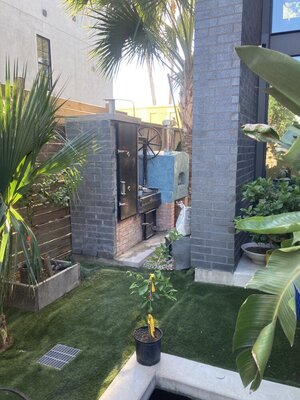

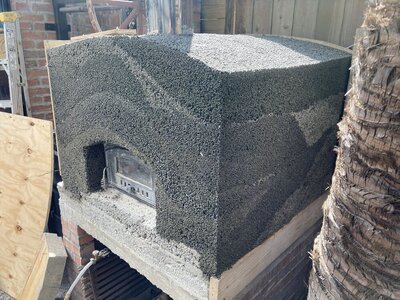

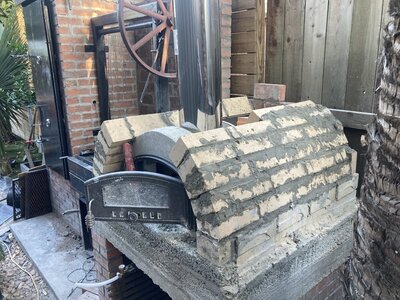

Almost finished. Covered oven in leftover pool plaster I had from another project, will get painted. Smoker works great


Attachments

  • 4D6A52BA-0118-4412-8579-D8CA9C5CBFED.jpeg
    270.4 KB · Views: 69
  • 39A3C5AA-04AE-40F7-A4A3-0A18E9515D7A.jpeg
    186.5 KB · Views: 68
  • DC97037D-5C6D-4216-942A-329217059B74.jpeg
    217.2 KB · Views: 70
  • 15C71B9F-782B-42DA-984D-E3B3B71C38D8.jpeg
    230.7 KB · Views: 75
  • Like
Reactions: tbern
