Should have made it BIGGER !

Discussion in 'Reverse Flow' started by jhsdigital, May 23, 2016.

  1. I finished this build a while ago and the smoker works amazing (thanks Dave, Rib Wizard & Squibb) unfortunately I want more cooking room. So, you math wizards out there, how do I figure this out?

    1. I want to remove the door and build a box on top of it, (see attached internet photo).

    2. I'm guessing I will have to change the size of the air inlets and possibly make the stack bigger or longer. If so, how do I calculate this?

    3. Will I have to relocate the stack to the side of the new box or can I leave it where its at?

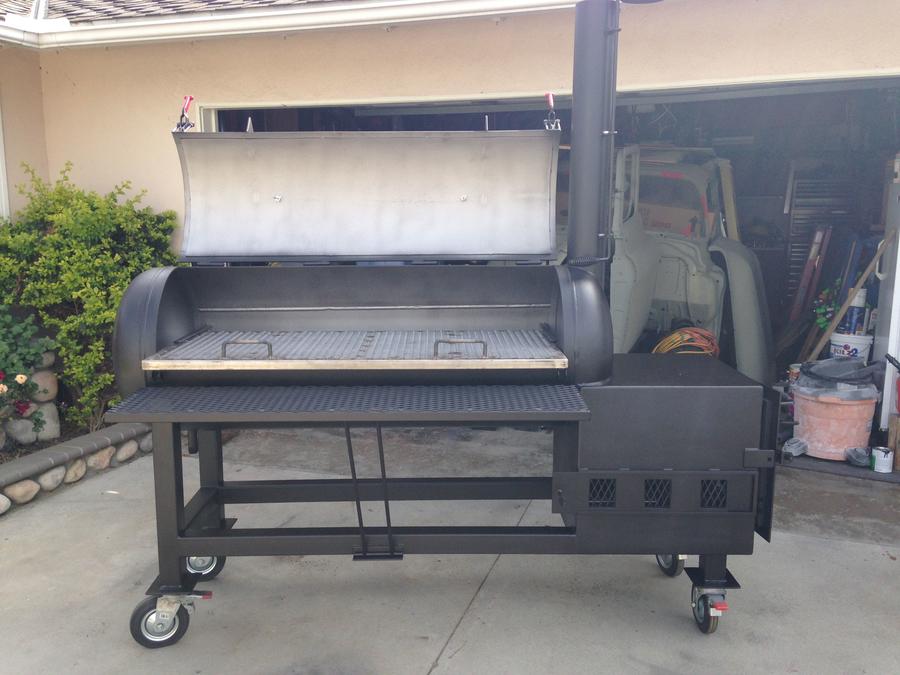

    Original Build

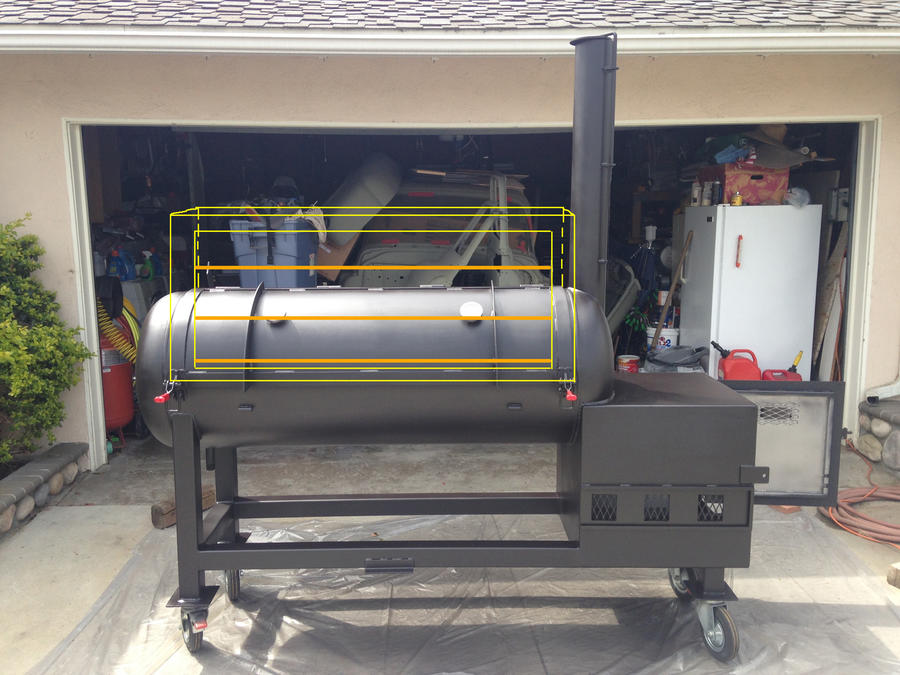

    Proposed changes

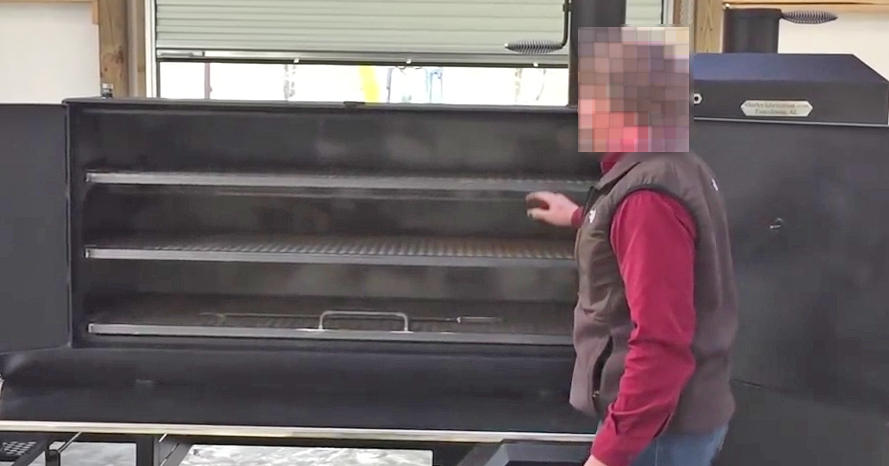

    Internet photo showing what I want to do.


    Internet photo showing what I want to do.


  2. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

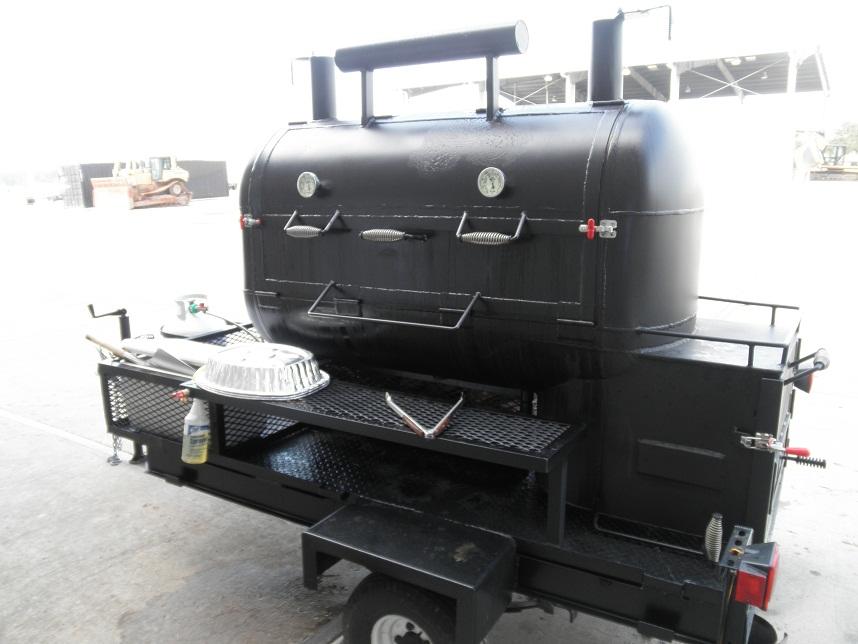

    Ribwizzard expanded one of his smokers....   You might think of this method.....  Then see if it works, and adjust as needed....


  3. Dave how do I find or get to that thread?

  4. Last edited: May 23, 2016
  5. Hey I like your Idea,  First Figure the the overall new Cu, In, of the CC then we can start sizing everything else.

    You will need to move the stack  Think about a plenum style

    Gary

  6. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Bazza has you covered....    You may not have to do anything after you section the smoker...  fire it up.... check it out before planning size changes....

  7. I will take some measurements and try and post them this weekend, any ideas on average height between shelves? I want them high enough so I don't have to re-modify this thing again HAHA !

  8. daveomak

    daveomak Smoking Guru OTBS Member SMF Premier Member

    Build in multiple shelf supports and just move the shelves as needed...   Just like your kitchen oven.....

  9. Dave,

    Great idea, that's what I love about this forum. People come up with the things you either over look or don't think about.
