Offset build with 34in diameter pipe

[jbellard]

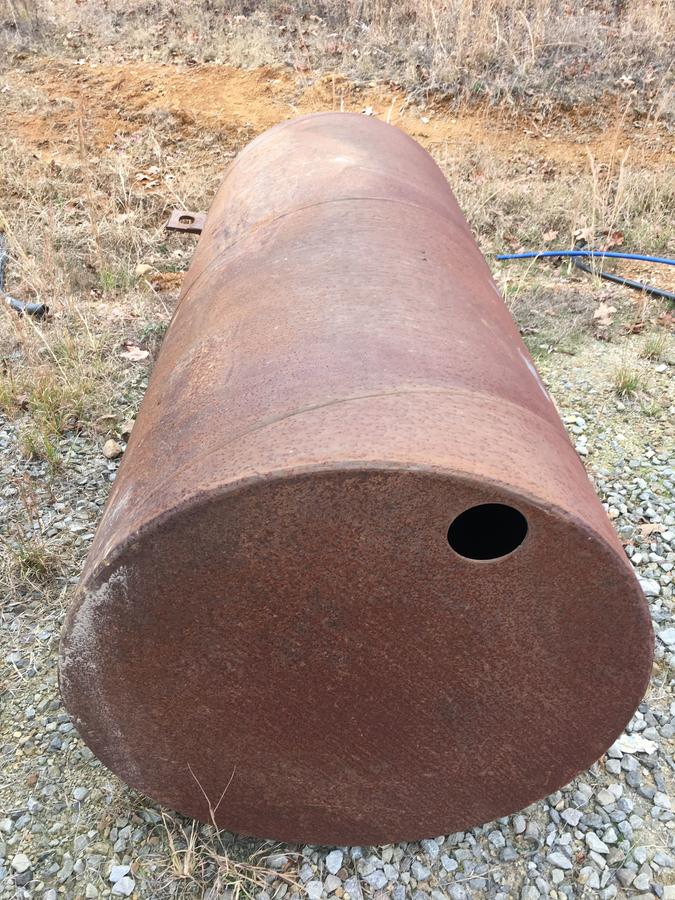

Here is my journey of having a smoker built for me. Enjoy! Started with a 34 in diameter, 6ft long pipe. Shooting for an Aaron Franklin type smoker.


• jbellard
• May 9, 2017



[jbellard]

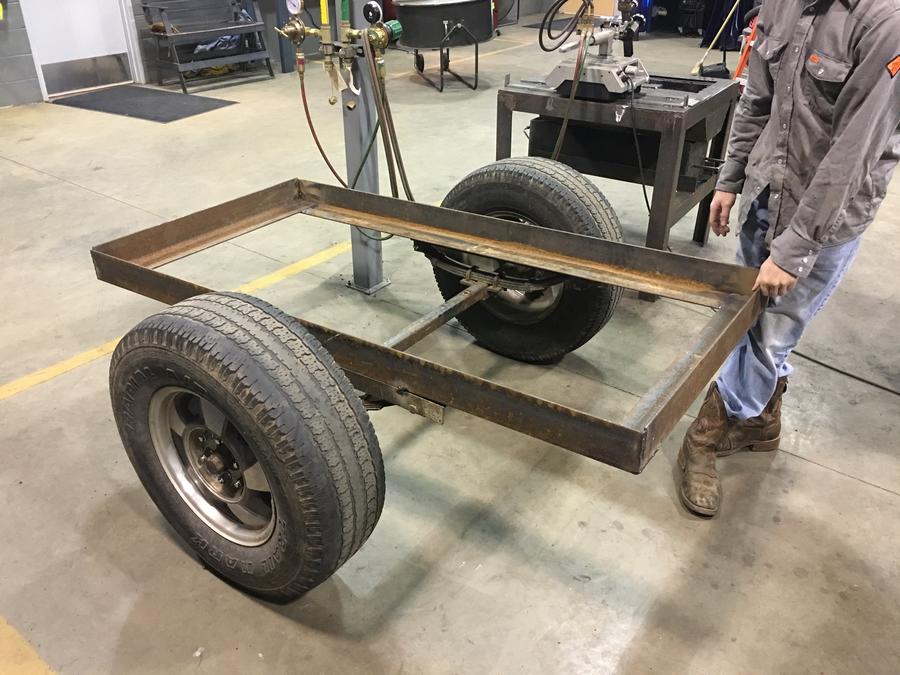

Got some angle iron from scrap yard to make trailer. Having our local high school welding teacher and class do all the welding


• jbellard
• May 9, 2017



[jbellard]

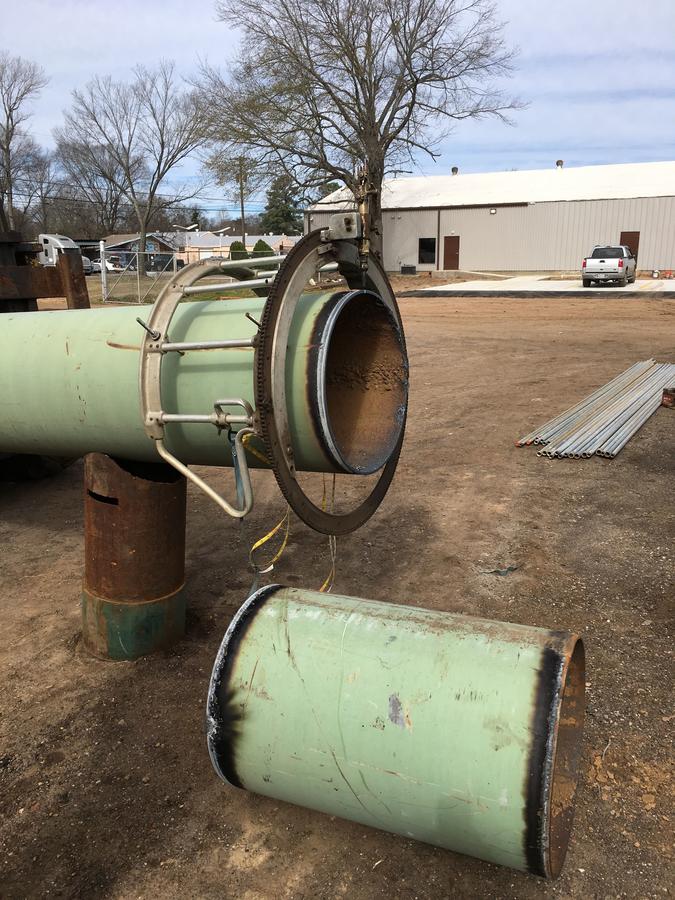

Using a 3/8 thick 24 inch diameter pipe that is 2ft long for firebox.


• jbellard
• May 9, 2017



[jbellard]

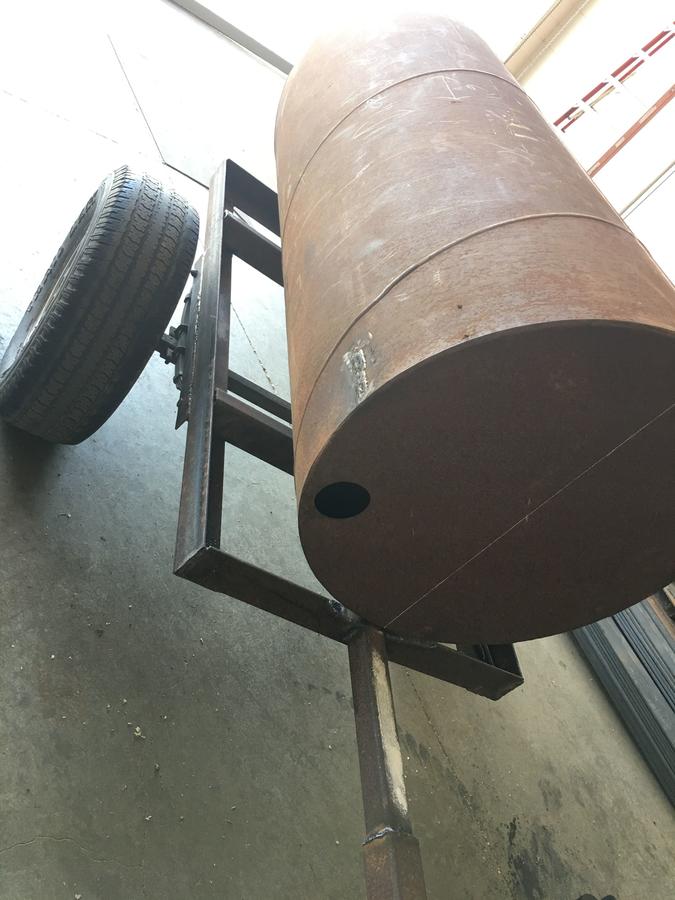

Have pipe welded to trailer along with jack and hitch. Coming along nicely.


• jbellard
• May 9, 2017



[jbellard]

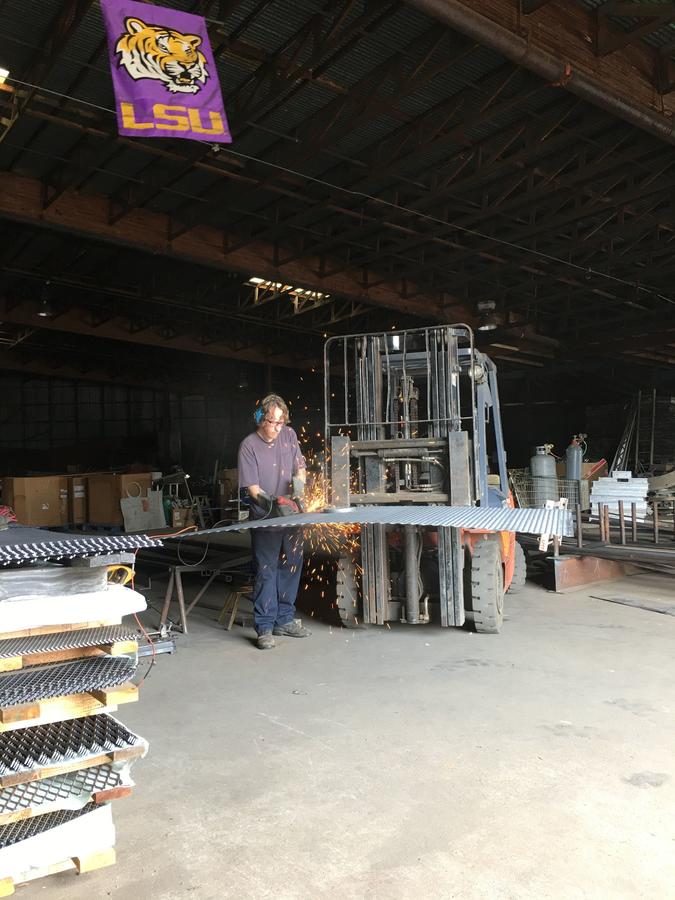

Got my expanded metal and angle for grates and sliding racks cut.


• jbellard
• May 9, 2017



[jbellard]

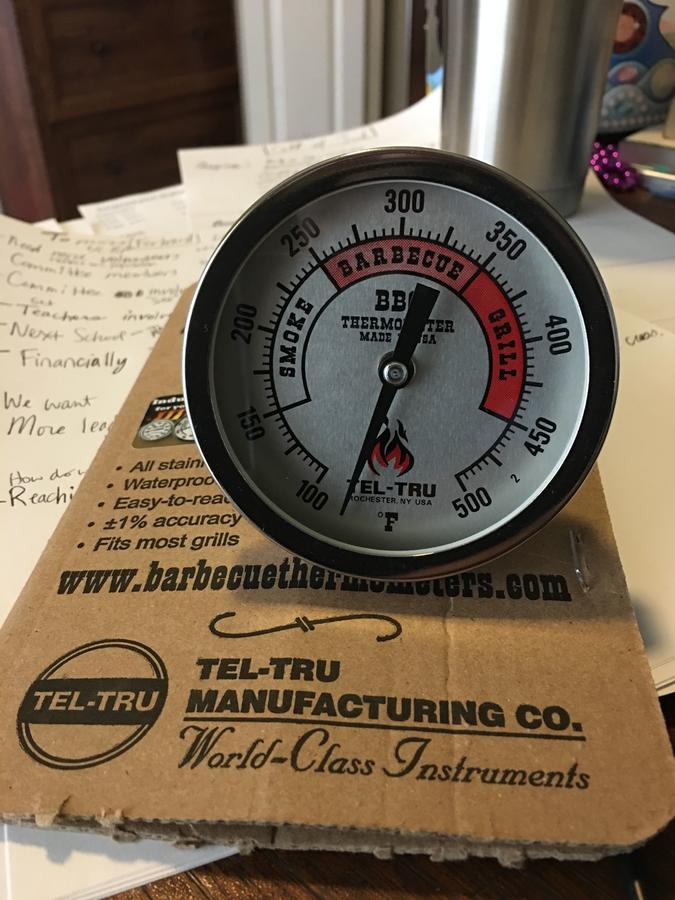

After much research I decided to go with a Tel-tru thermometer. Got the 3 in face with 4 in stem. Can't wait to use it!


• jbellard
• May 9, 2017



[jbellard]

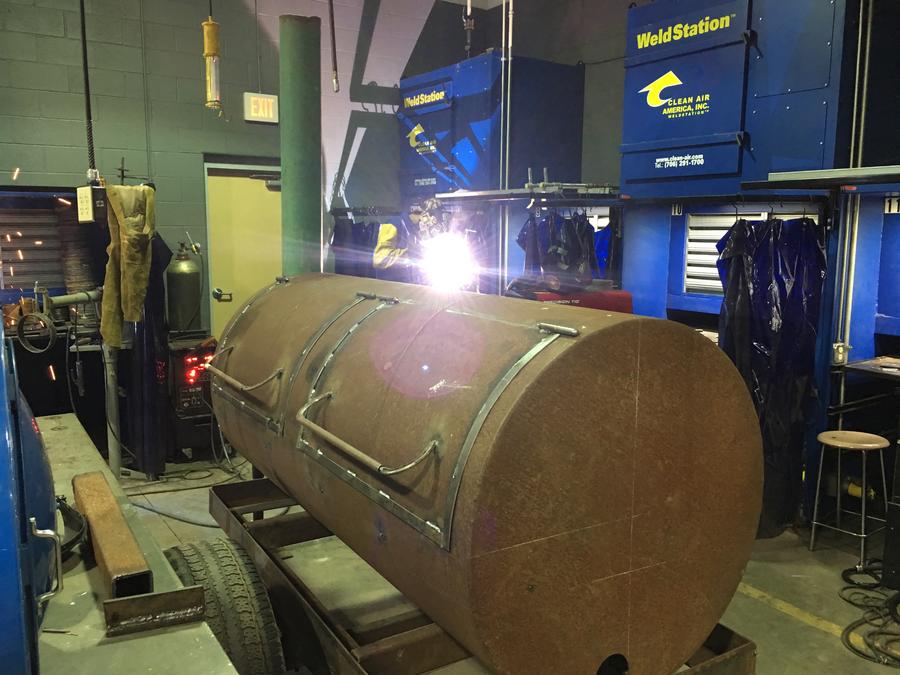

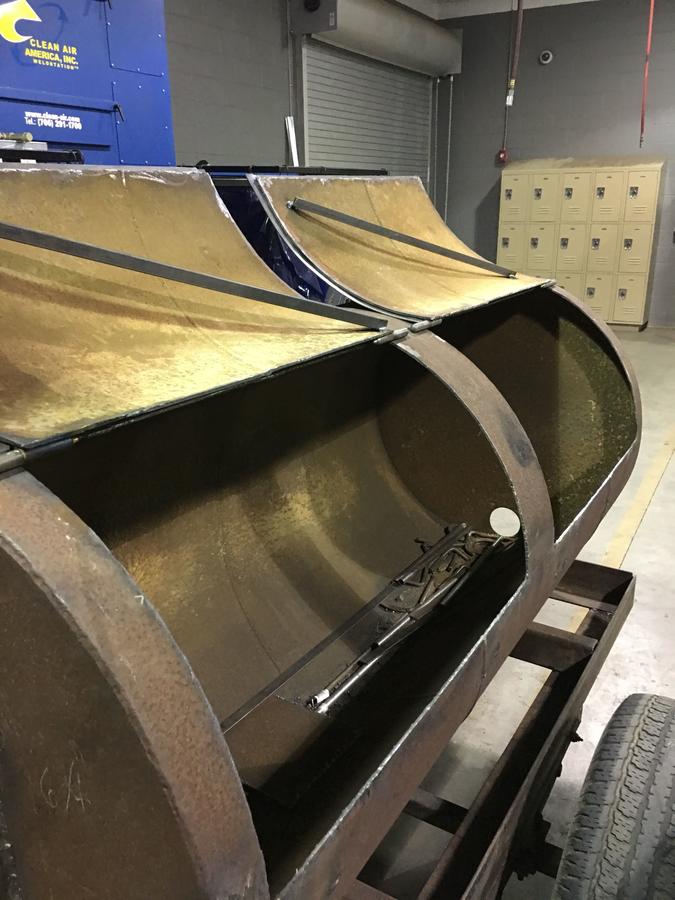

Went with two 30 inch doors and will have two levels of racks. Should have plenty of room for food. Doors sprung a bit so he added braces on inside lid. Starting to look like a smoker now.


• jbellard
• May 9, 2017



[jbellard]

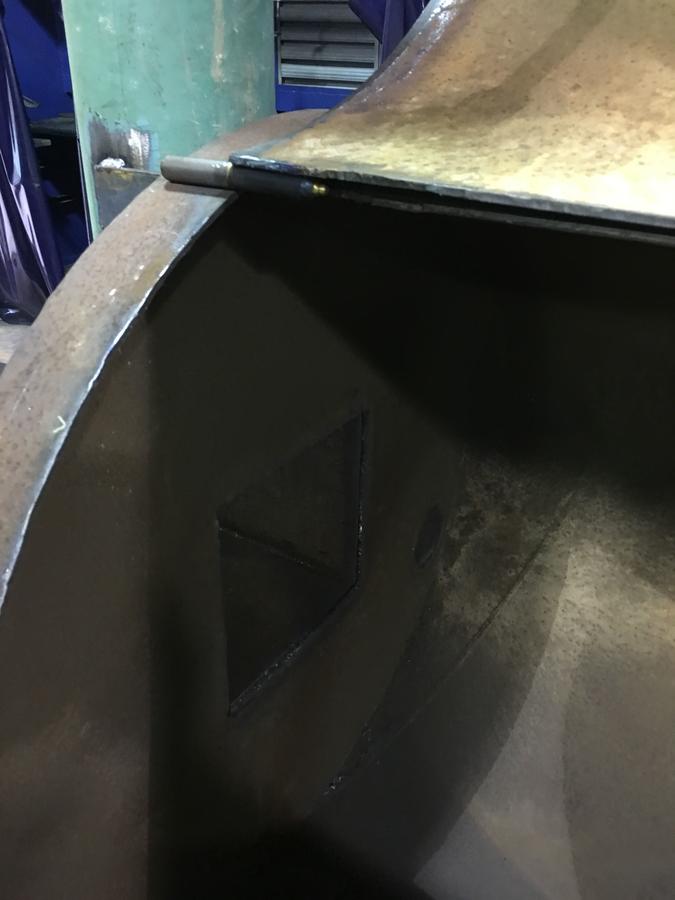

Went with a grate level exhaust. Opening is 10in by 10in.


• jbellard
• May 9, 2017



[jbellard]

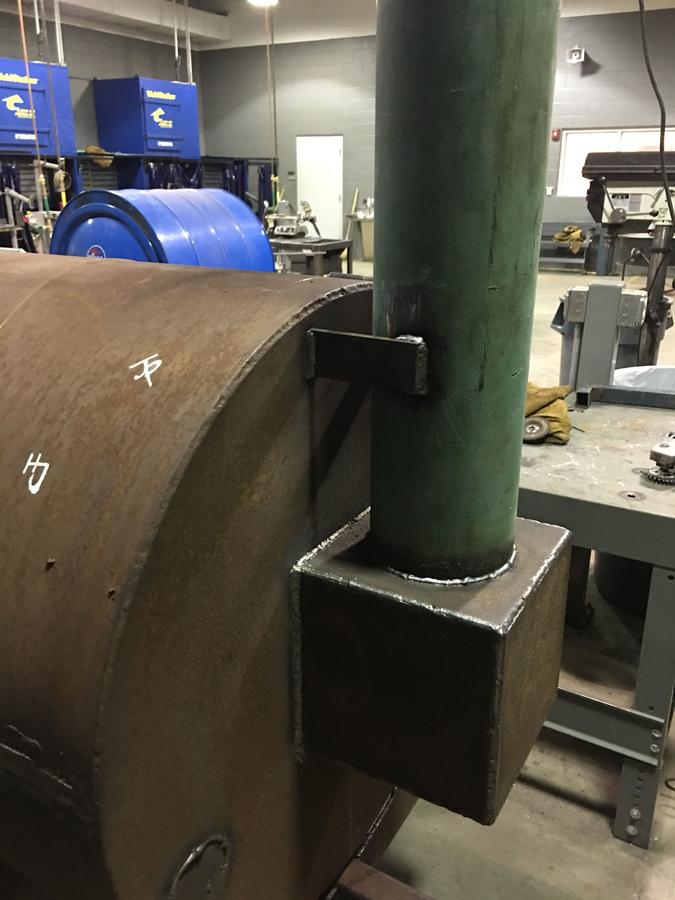

Plenum came out nicely. Stack is 6 inch diameter and 51 inches long with 39 inches above top of cook chamber.


• jbellard
• May 9, 2017



[jbellard]

This is where build progress stands. Still need to get firebox attached and put in grate slides as well as build racks.


• jbellard
• May 9, 2017



[jbellard]

Only thing left to buy is high temp paint. A friend's work is going to sandblast it for me for free and another friend will help me paint it.



[hardcookin]

Looks like that will make you a nice smoker...thanks for sharing!



[jbellard]

Thank you sir! I can't wait. Won't be long now. I really want to see how well it holds temps.



[jbellard]


• jbellard
• May 15, 2017

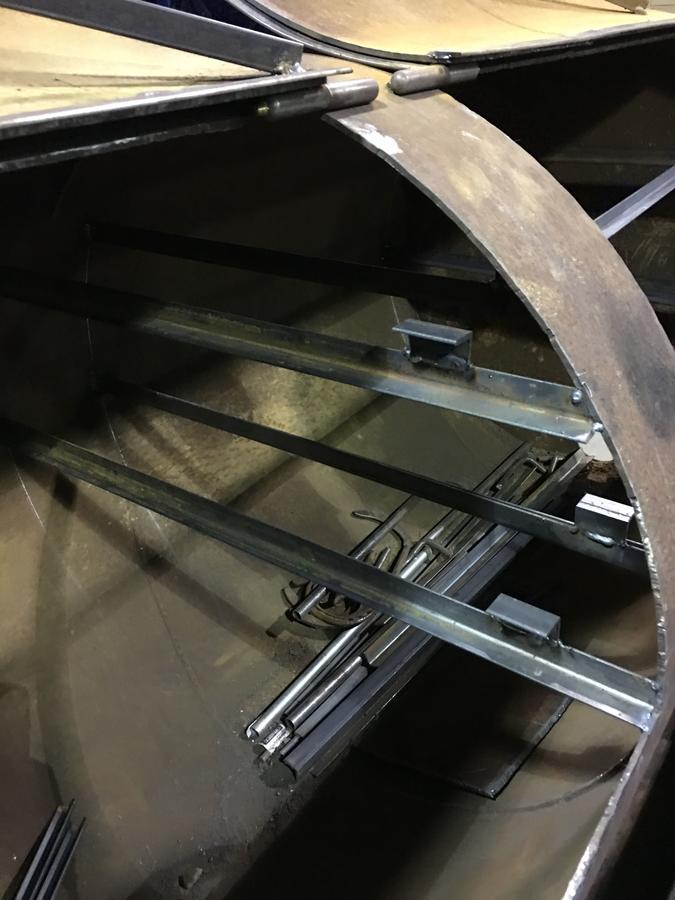

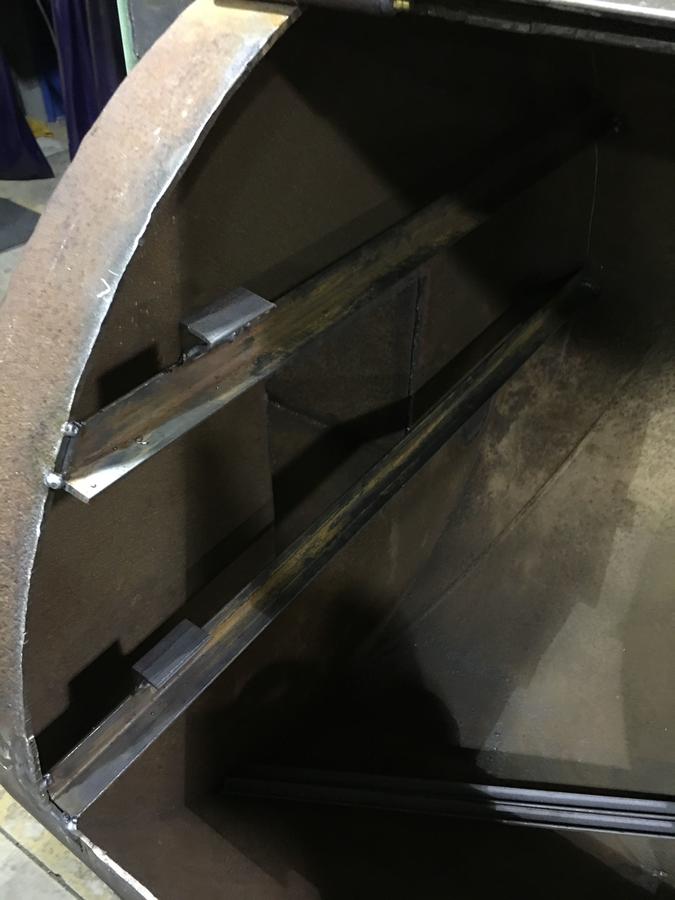

Racks with stops are in. Only need grates to be built and inside of grill is close to done.



[jbellard]


• jbellard
• May 15, 2017



[jbellard]


• jbellard
• May 15, 2017



[jbellard]

Got firebox welded on there. Welded steel rods to ends of horse shoes and fit into pipe so handle turns.


• jbellard
• May 24, 2017



[jbellard]

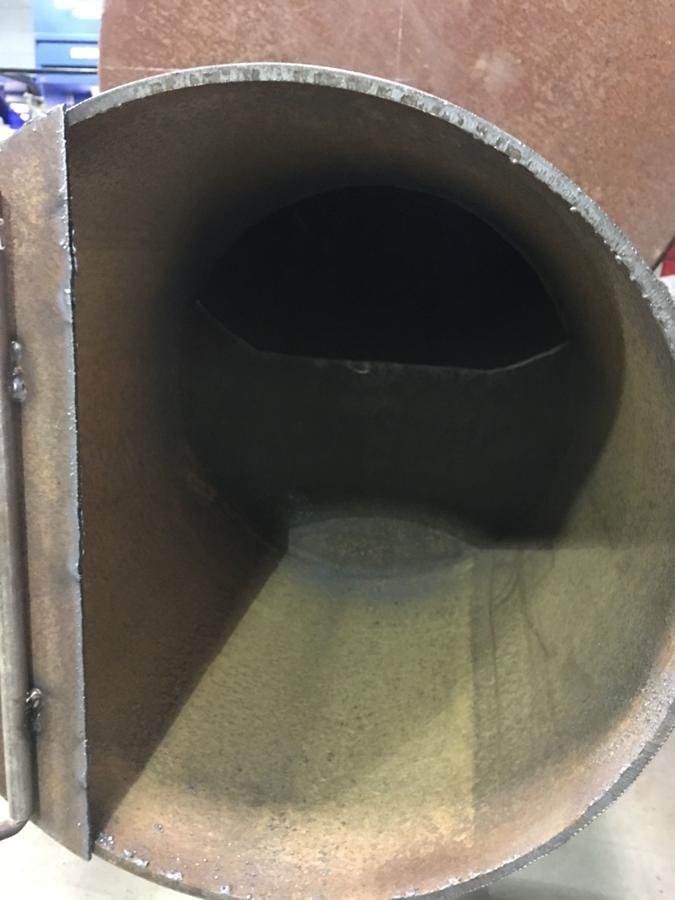

Inside view of firebox with lip so grease doesn't get into firebox. I do have a 1 1/2 ball valve for a drain.


• jbellard
• May 24, 2017



[jbellard]

Inside view of firebox.


• jbellard
• May 24, 2017



[jbellard]


• jbellard
• Jul 28, 2017

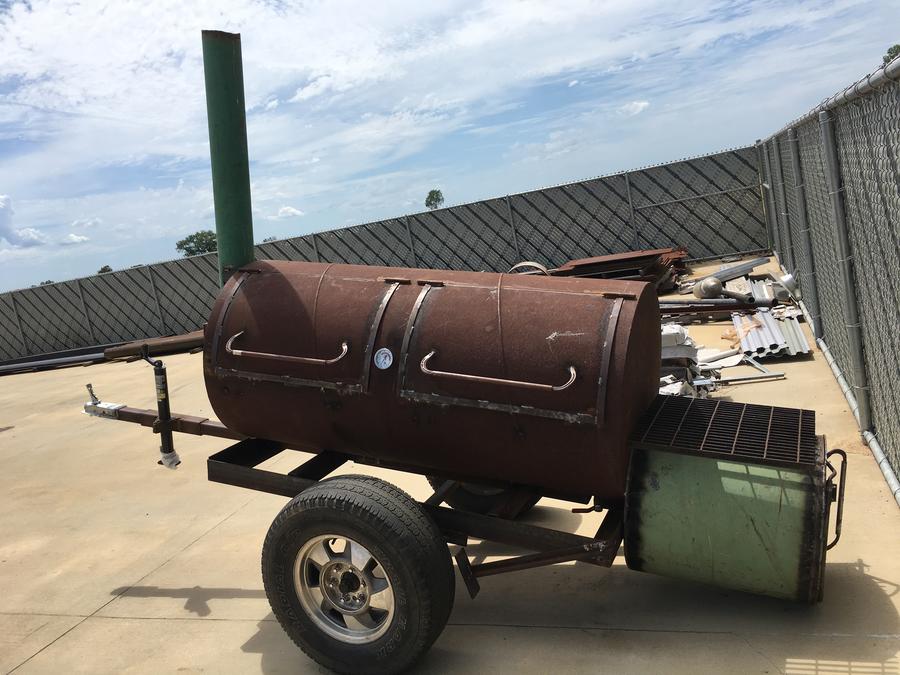

Here's my smoker almost done. Have a few details to iron out before sandblasting and painting including adding some weight in the front.
