New RF build from South Carolina

Discussion in 'Reverse Flow' started by sjared14, Mar 2, 2016.

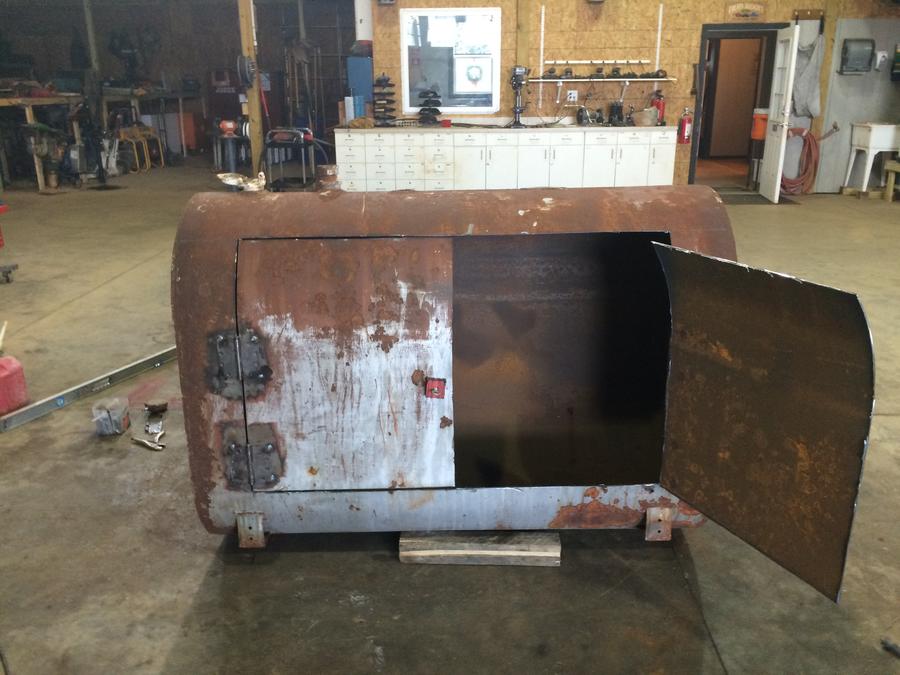

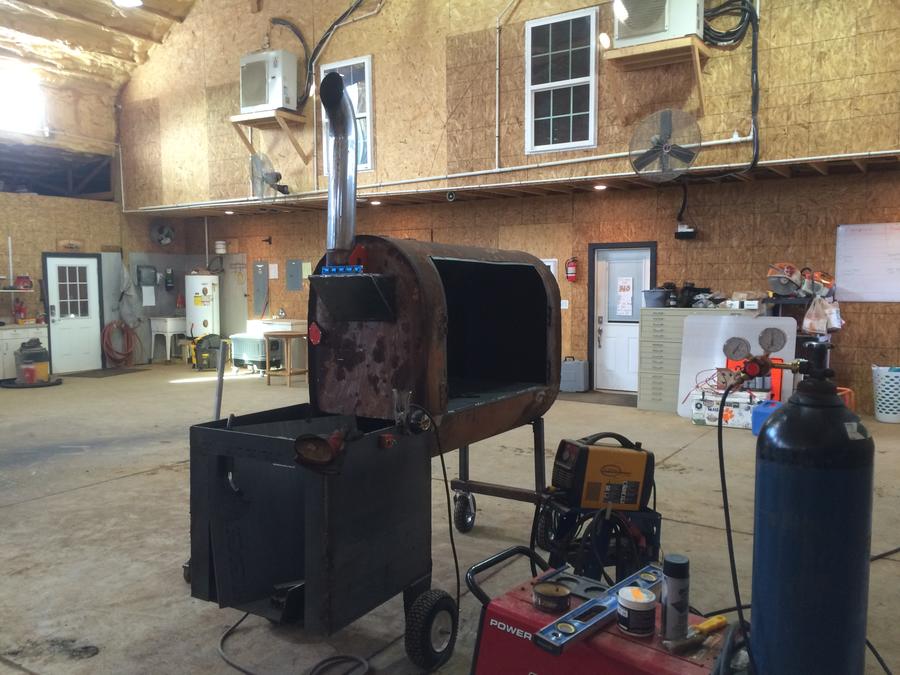

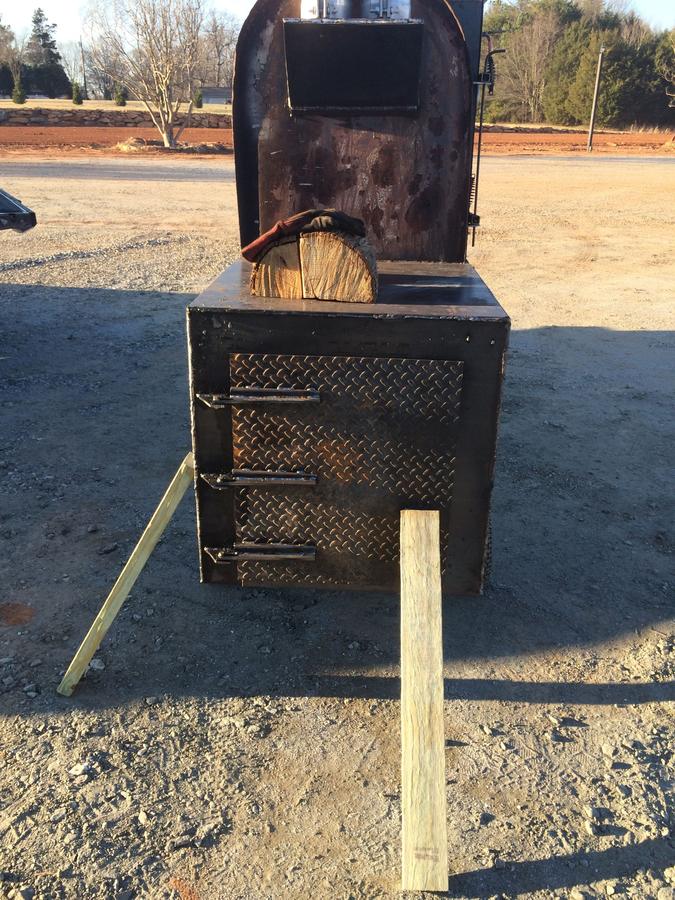

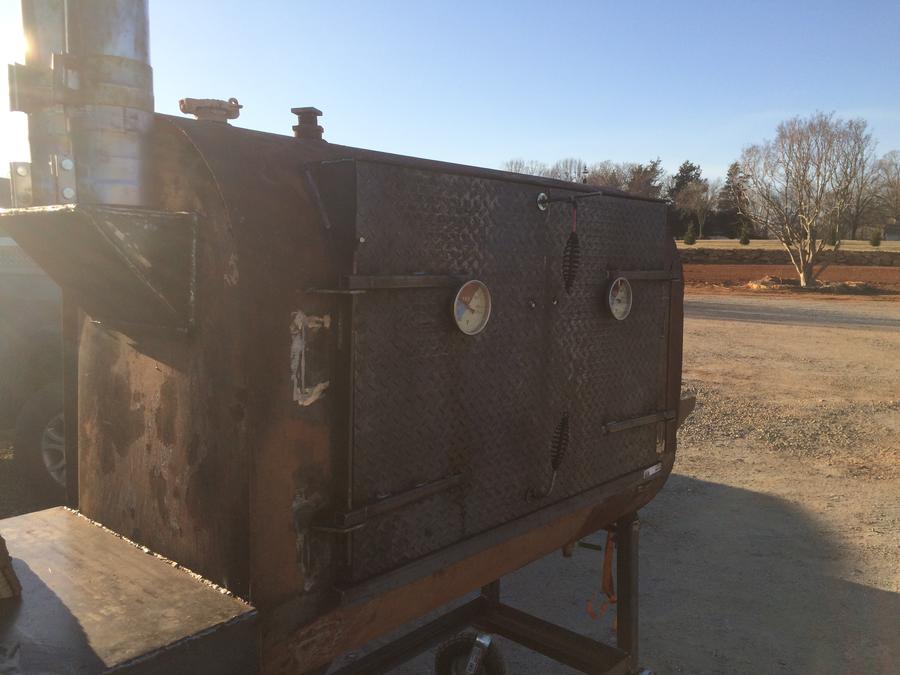

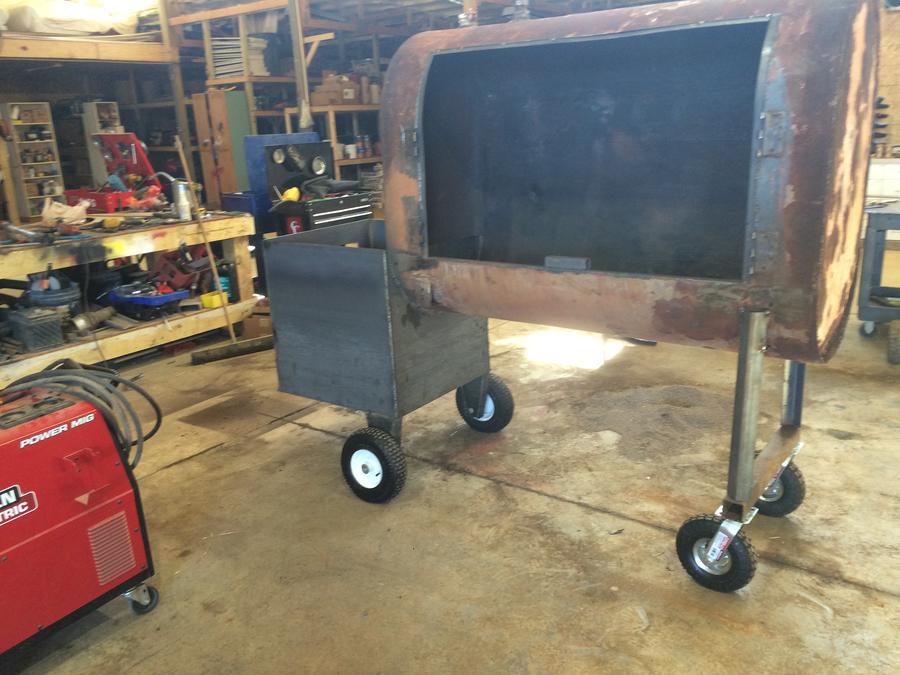

  1. I am building a rf smoker from a 250 gallon oval tank. It features a 28"x28" fire box made from 1/4" plate. This is my first build but I am quite happy with my results but I am going to post pictures of the build and would hope that some of the more experienced builders on the site could give me some suggestions as they see fit all help is welcome.











  2. Welcome to South Carolina ........ Ohhh SMF

    Last edited: Mar 2, 2016
  3. smokinpapist

    smokinpapist Smoke Blower

    Sweet lookin rig.

  4. joe black

    joe black Master of the Pit OTBS Member

    Another good looking smoker here in the Palmetto state. It's looking great so far. I can't wait to see a load of good food come off of her.

    Good luck with the rest of your build, Joe

  5. nwbhoss

    nwbhoss Smoking Fanatic

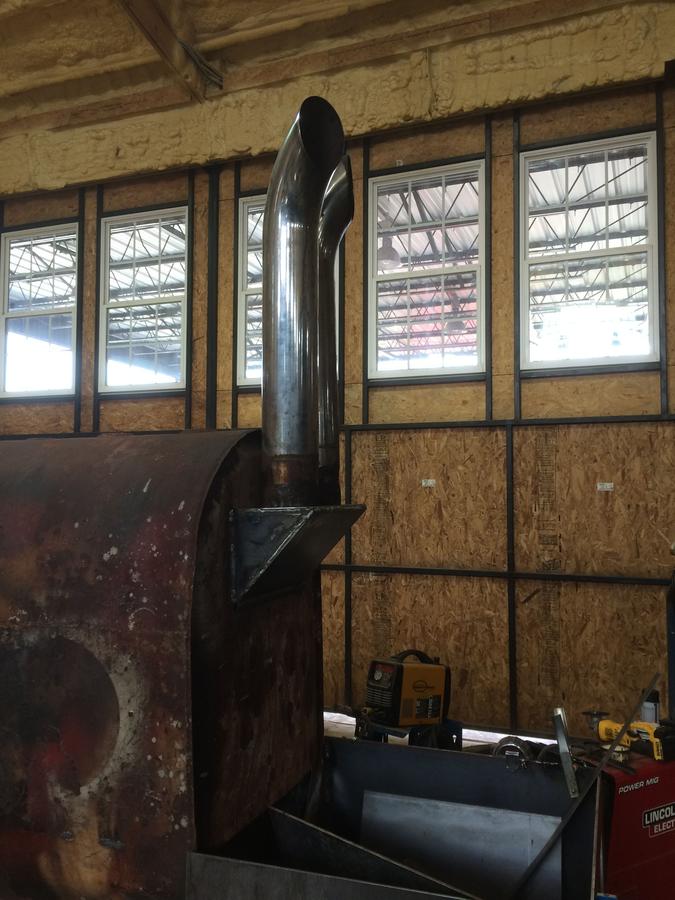

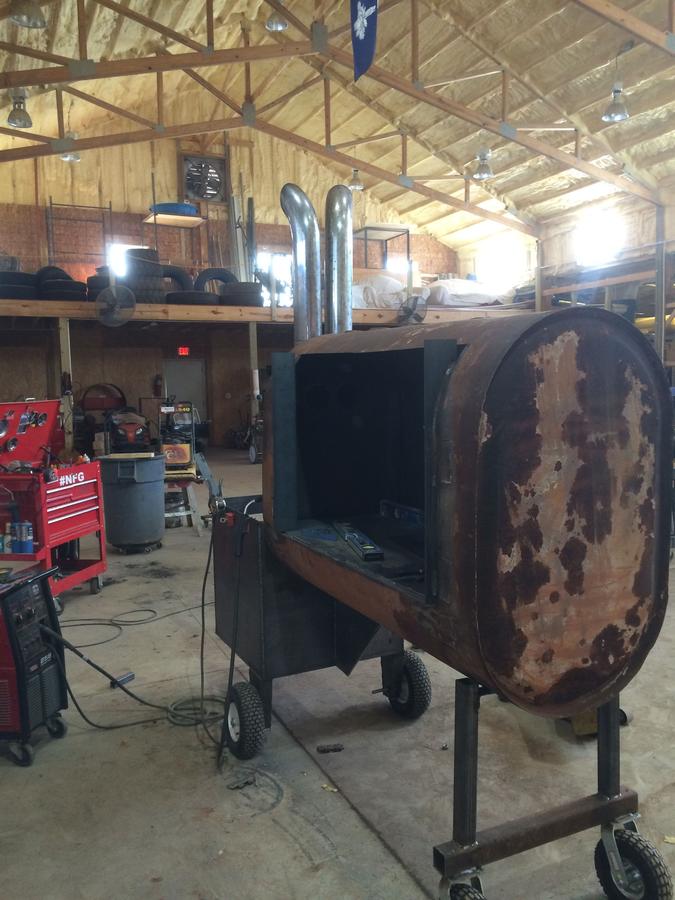

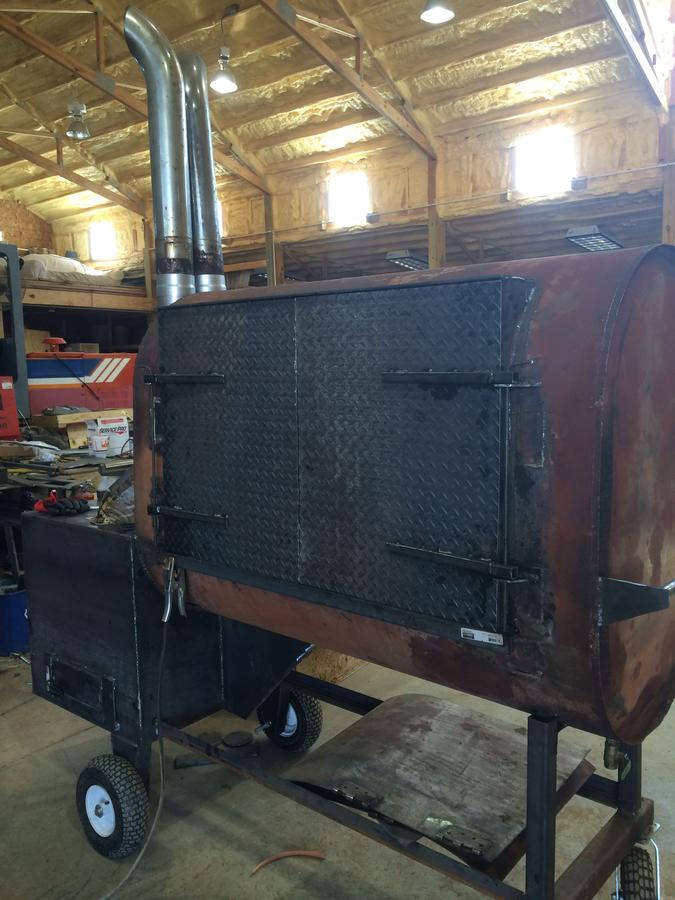

    I love the stacks!

  6. sfclene

    sfclene Fire Starter

    I love the simplicity of the rig. Very nice.

  7. ham35

    ham35 Newbie

    how big is your fire box to chamber opening I have the same tank basically what is the height and width of your firebox and chamber opening?

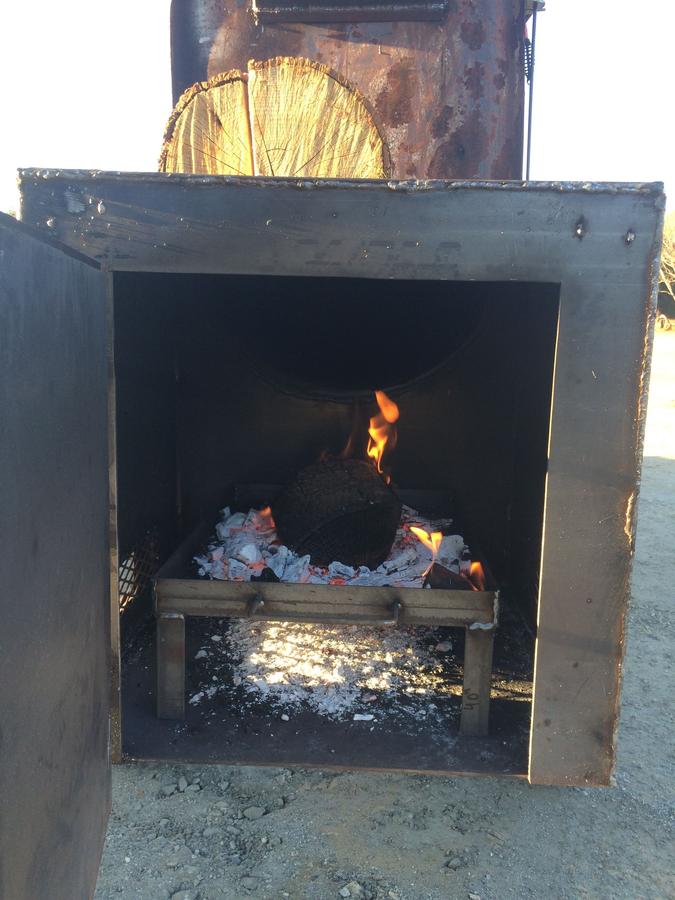

  8. It's 26" wide by 12" tall I'm currently in the process of adding fresh air intakes to the firebox to get better smoke draw this was a small issue that came from my test fire just letting u know in case you're thinking of this set up

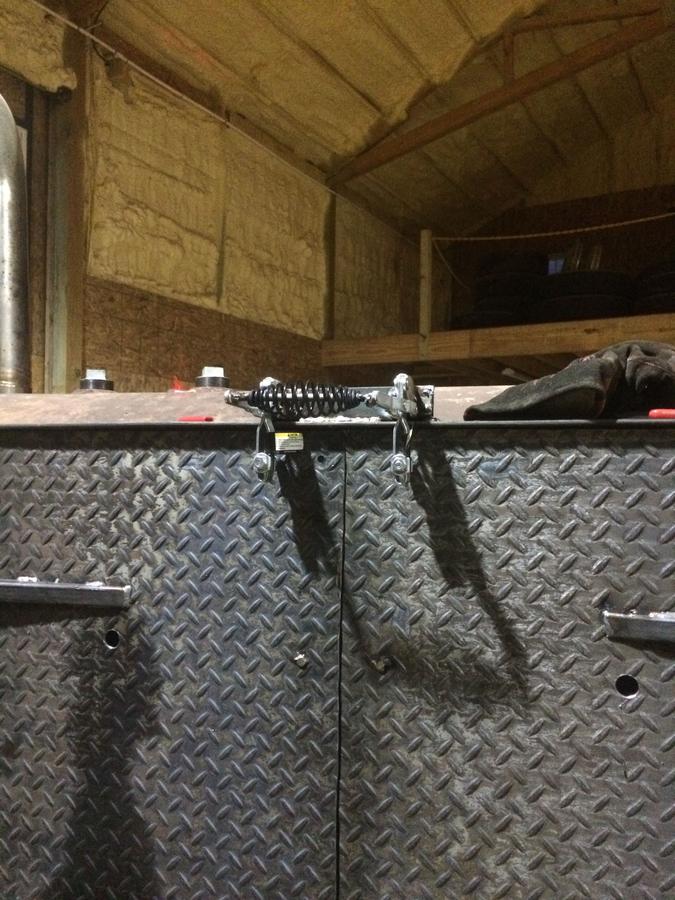

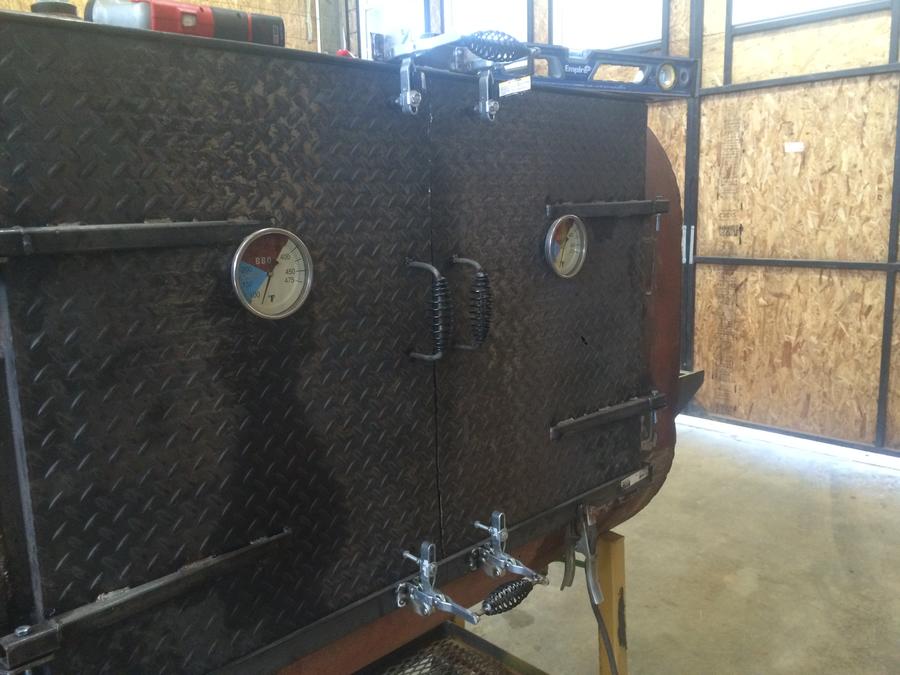

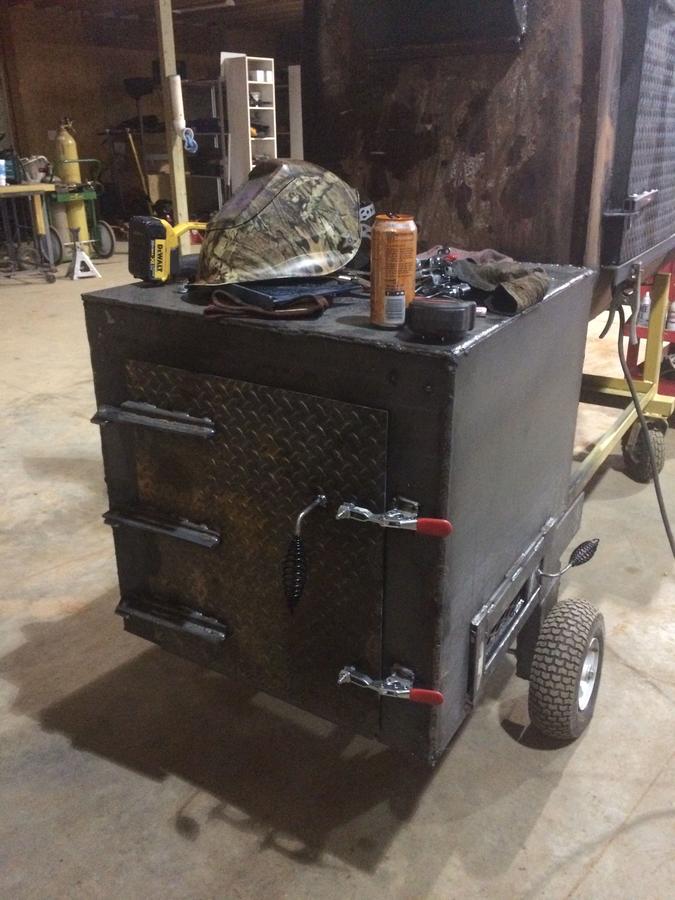

  9. Just some latches I've been working on

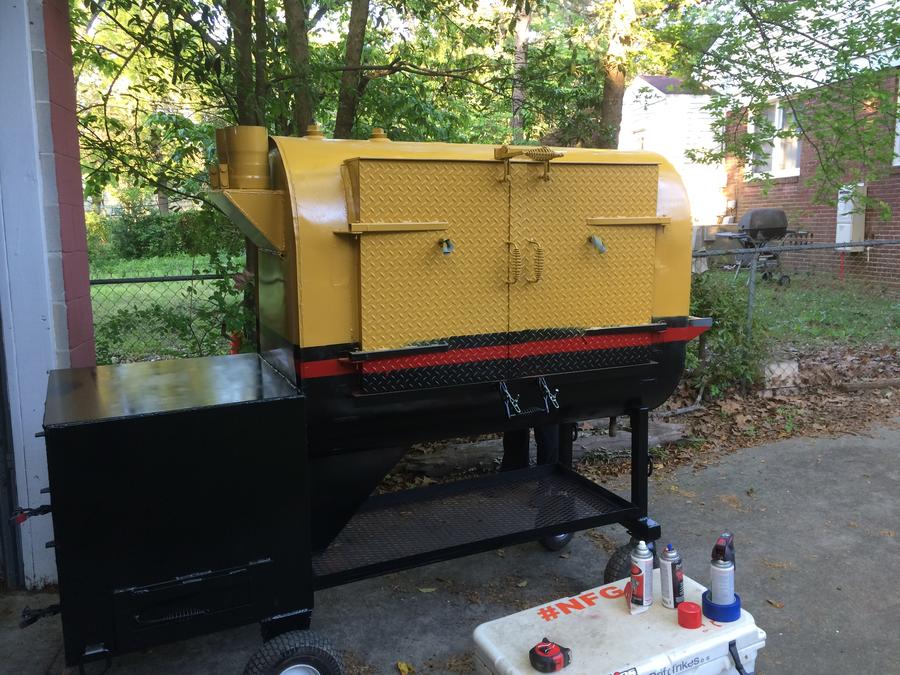

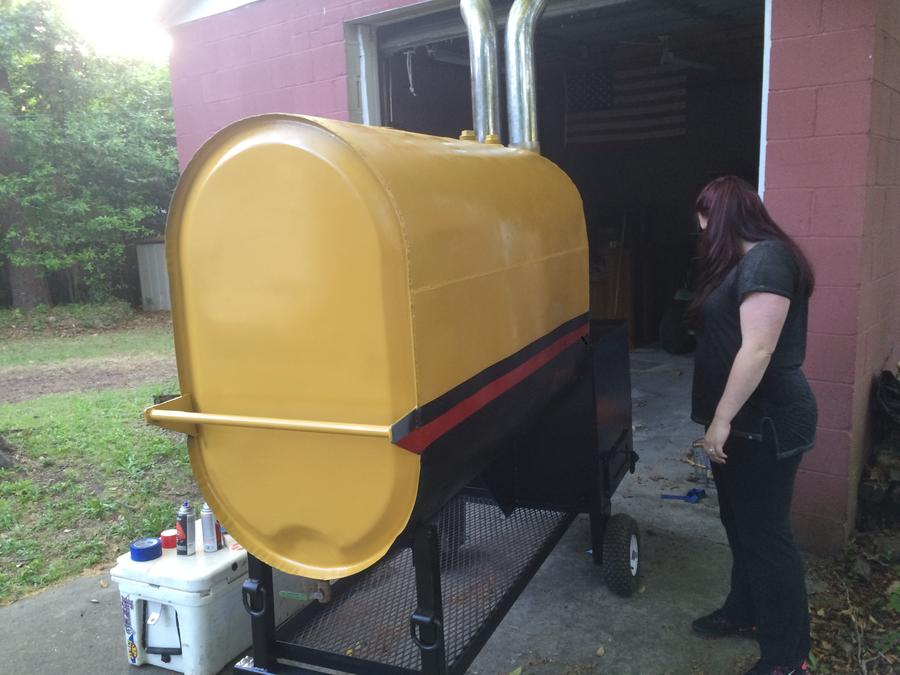

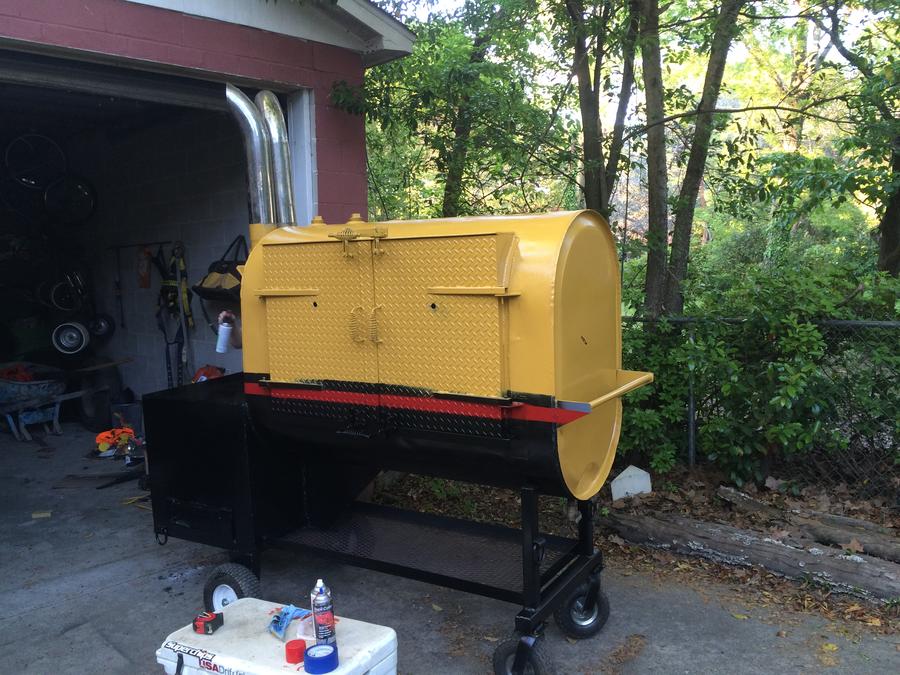

  10. Caterpillar paint job almost finished

  11. smokejumper

    smokejumper Smoking Fanatic

    Nice paint job.

    Good to see someone use colors instead of the basic black.

  12. Thanks smoke jumper I'm trying to be different black is boring
