New - Oklahoma Joe's Highland Smoker

PoutineEater

Newbie
1
0
Joined Jul 8, 2021
O OttawaIrishGuy ,
Duder!! FFS Try harder. Google the thing and you'll find it. I did.

Me! Went to Lowes and stole a tape to measure it before jamming the $550 thing in to the prius. Sorry. I don't have that crap nor paid $550 years ago.



Can someone help me out please. I am in the market for a new smoker and I am considering an Oklahoma Joe. The thing is I don't believe they are readily available in Canada to go look at one in person. That being said also it would be out of season for most big box stores to have BBQ's and Smokers.

What I was hoping, was someone could tell me what is the measurement from outside of the wheel rim to the outside of the other wheel rim. And is this the widest part of the legs. I have a spot for what ever my new smoker is going to be but it's a raised platform and I am not sure it is wide enough for the Joe.

Thanks in advance.


MNholla

Fire Starter
38
32
Joined Mar 24, 2019
This has been a very informative thread to say the least! I am looking to move away from my Chargiller 5050 and get a dedicated smoker and think that the OK Joe Highland is going to be the one


RiversideSm0ker

Master of the Pit
1,667
670
Joined Jan 30, 2018
I love my OKJ Highland but my view is a bit skewed by the ridiculously low price I paid. Mine was only $75 at Walmart on closeout near Christmas time. At 200lbs, I figure the materials and shipping would have to warrant a price higher than that. I am not going to complain. She has never let me down yet. Sure there are a lot better offset smokers out there but not for $75. Eventually, I do want to buy a real deal offset made from 1/4" steel but for now, I am more than happy to smoke my barbecue on my OKJ. Now if I could just afford some meat to put in the thing that would be awesome!

G


BadJewBBQ

Newbie
5
4
Joined Aug 16, 2021
Hey folks,

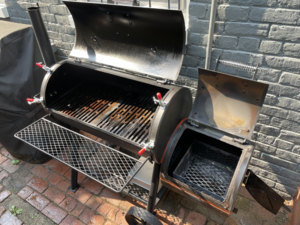

Thanks to everyone who has shared their tips and tricks so far. I have really enjoyed the process of optimizing this hunk of metal. Most of the mods have been from BBQSmokerMods (lava lock). The comprehensive list so far includes (in the order listed):

1. Baffle/Deflector with the matching water pan
2. Drilled two ports for temp probes and fitted with a probe gasket thing for each
3. Gaskets and latches on the cook chamber
4. Gaskets and silicone sealant on the firebox

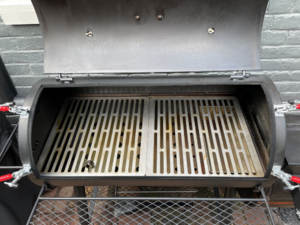

5. Replacement steel grates (I wish I had found expanded metal but I have these now and they do just fine)

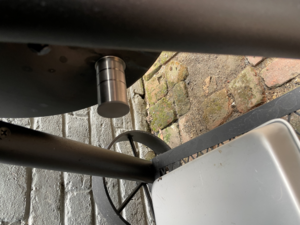

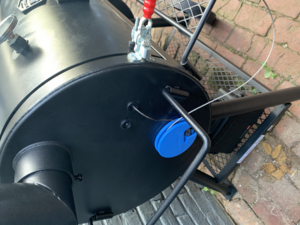

6. Installed BBQ guru bulkhead adapter on the far side of the firebox (which will be used with the billows by Thermoworks with their universal adapter)

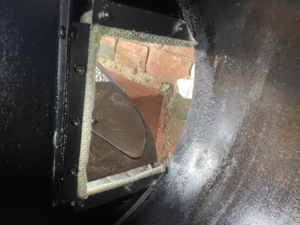

7. Fiberglass high temp "tadpole" gasket to seal the side door of the firebox

Given items 1-5 are more or less plug and play I'll skip ahead to 6/7. I wanted to be able to automate at least a portion of the cook without blocking the native intake. To provide this flexibility I chose to put the fan opposite the intake -- I had come across a few videos with this fan positioning and while theoretical, I can convince myself it MIGHT lessen the chances of ash being blown into the CC by the fan. I purchased the BBQ guru bulkhead adapter because it comes with a silicone "kill plug" that is positioned a small distance away from the firebox. I contemplated drilling the hole to directly attach the billows and use an appropriately sized silicone plug, but I would have been concerned that the high temperatures might melt the plug. Probably overkill to do it this way but I think it looks pretty clean and in theory should work.

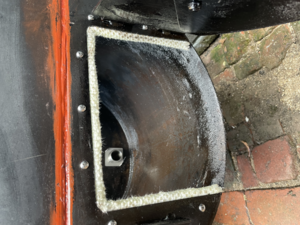

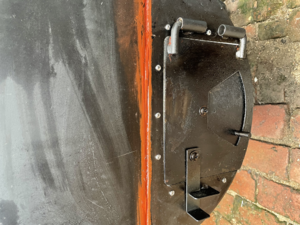

I sealed the side door because I didn't want a crosswind effect with the fan on that might result in air pointlessly blowing across the bottom of the firebox. Again probably overthinking it but it was an itch I needed to scratch. I have zero welding abilities and I am by no means a handyman, so basically if I can do this so can you. I bought some 22 gauge sheet metal at Home Depot and a cheap pair of aviation or tin snips and measured and cut some strips. I then drilled through the firebox and sheet metal as pictured and used the metal strips to pin the tadpole gasket in place. Probably not as clean looking as welding but I'm happy with it. As other posters have mentioned I rotated the grate 90 degrees and now there is about 4 inches of clearance beneath to help with air flow as well.

Thanks and hopefully this is of use to someone.


Attachments

RiversideSm0ker

Master of the Pit
1,667
670
Joined Jan 30, 2018
I like those steel cooking grates. Where did you pick those up from? I could be interested in those.
