Need help with traditional flow offset smoker build

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

Sietseweg

Newbie
Original poster
Sep 27, 2021
7
0
Currently i am building a traditional flow offset smoker, i have a few questions about the numbers. I read a lot of negative things about the feldon calculator and would like to double check with you :)

My setup:

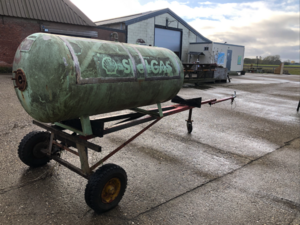

264 Gallon propane tank

Firebox made of steel tubes 3.15 inch x 1.18 inch, we have the tubes and don't know yet what size firebox we are going to make (i think inner size 26 x 29 x 29 inch)

Chimney diameter 6.5 inch diameter, not yet cut to size.

About the firebox:
Does the opening to the cooking chamber have to be on the upper end of the firebox, or can it also be in the middle (so we can mount the firebox a bit higer)?
Does the opening have to be round or half moon or can it also be square?
What is the recommended size for the opening? (if feldons calc is not right)

The chimney will be connected to a collector in the middle of the tank, should i take the recommended size from the top of the tank or from the lowest point of the collector?



Here is a link to my calculations:
Link to BBQ Pit Calculator


I hope you can help me out with the numbers so we can build a good quality smoker :)


Attachments

  • Schermafbeelding 2021-11-10 om 13.30.26.png
    Schermafbeelding 2021-11-10 om 13.30.26.png
    1.4 MB · Views: 31
I'm no expert but I believe that if you don't have the opening at the top of your firebox into your cook chamber you will trap an enormous amount of heat on the top side of your firebox. I think that would also significantly raise the temperature in your cook chamber on the firebox side.

Your fire box is plenty bib enough, the opening in it should be at the top and the shape of the opening does not matter. The size of the opening should be approx 1/3 of the size of the firebox end panel. 6" stack is also plenty big enough. Are adding a baffle plate inside the cooking chamber above the firebox opening?

Thanks for helping me out!
We will make the opening in the top of the firebox.
For now we have had no plans to make a baffle plate, would you recommend it?

how long stack size would you recommend?

Thanks, would it be 4 feet from the collector or from the top of the tank?

The baffle plate helps to distribute the heat a little more evenly across the cook chamber, without it my guess is that there could be a 50 degree temperature difference from one side to the other

Ah Yes i think i will make a baffle plate then! Thanks for the tip! 😁
