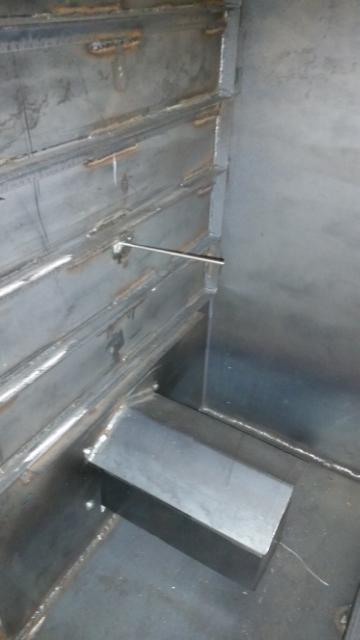

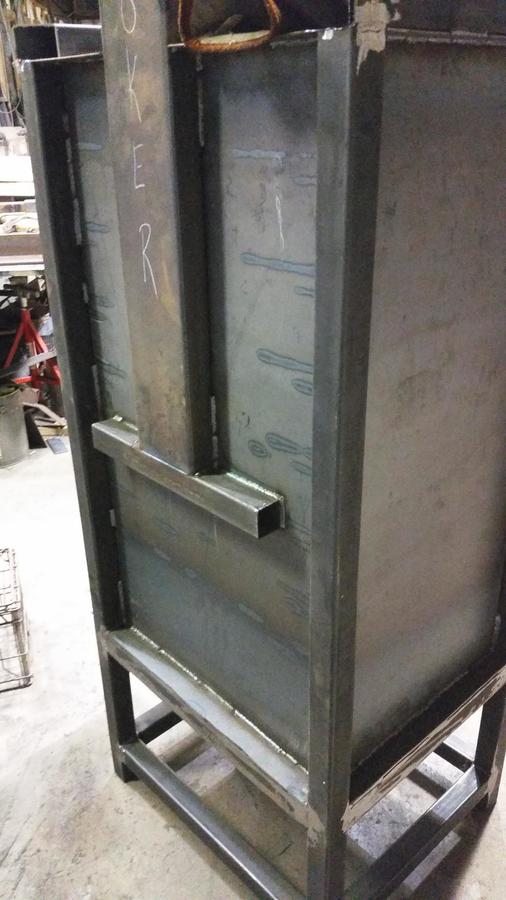

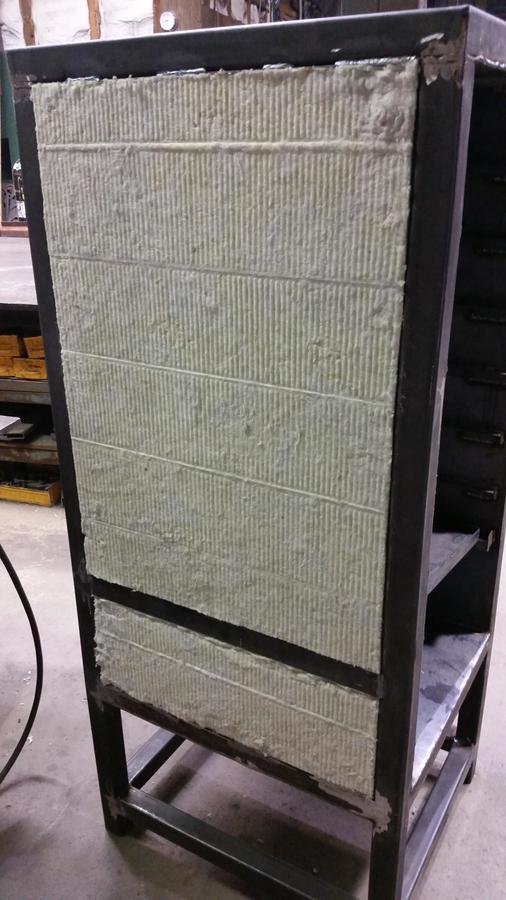

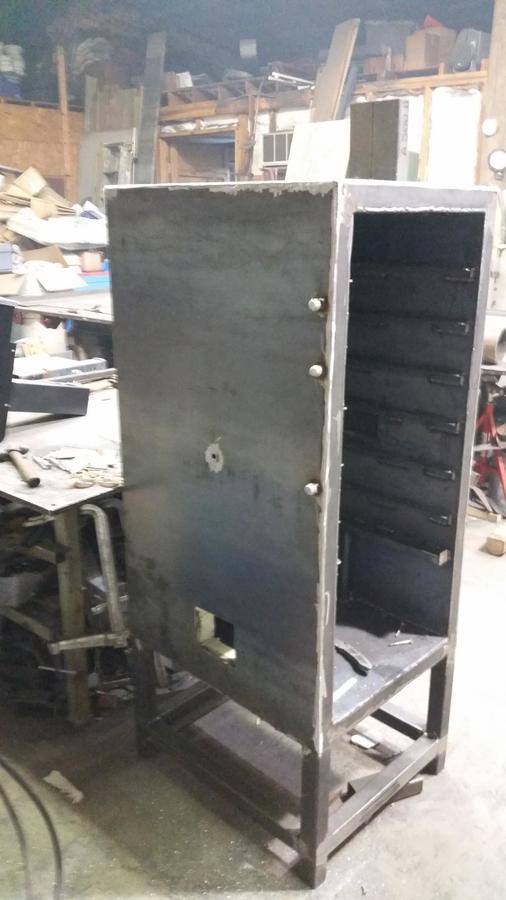

Well I decided to build me a pellet smoker.  Looked around and got a few ideas.  Bought me a pellet hopper and burner assembly from SmokeDaddy.Com.  Burner and hopper unit looks awesome.  Cooking chamber is 44"tall 20" wide and 26" deep.  It will have 6 cooking racks that are 19" x 24" for a total cooking space of 19sq feet.  Inside metal is 11 gauge and outside skin is 16 gauge.  Frame is 2" x 2" 14 gauge square tubing.  It is insulated with 2" mineral wool high heat insulation.  It will have a Tel-Tru thermometer on the door.  Has three ports for running meat probes into the cook chamber without having them ran in thru door and messing up the door seal.  Has a sloped grease and drippings pan that runs into a 2" channel which then drains to the bottom of the smoker into a stainless steel steam table pan.  Got quite a bit done on it this week.  Still got to build my door and attach it and build by cooking grates.  Then it will be off to the powder coater.  Here is some pictures......








Last edited:

WaterinHoleBrew

Epic Pitmaster
OTBS Member
SMF Premier Member
10,353
3,112
Joined Jun 18, 2013
That is awesome Jim, I'am gonna follow your progress... Your gonna have a nice smoker for sure ! Thumbs Up
I have a pellet smoker & love it !

Justin


seenred

Legendary Pitmaster
OTBS Member
Group Lead
9,266
579
Joined Feb 9, 2009
Looks great so far Jim! That thing's gonna be a beast when it's finished! I'll be following your progress! Thumbs Up

Red


wolfman1955

Master of the Pit
1,055
47
Joined Nov 17, 2013
Jim,
Very nice looking smoker, Looks like you have thought it through very well!! I cant wait to see it fierd up.
Keep Smokin!!!
Wolf


firemanjim

Fire Starter
Thread starter
48
13
Joined Feb 6, 2013

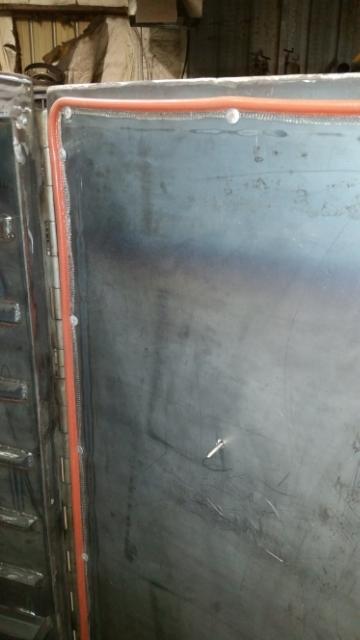

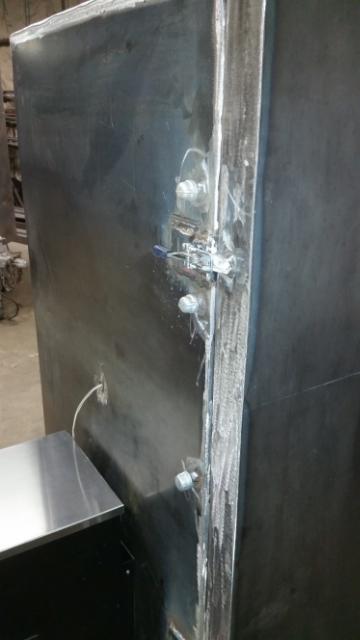

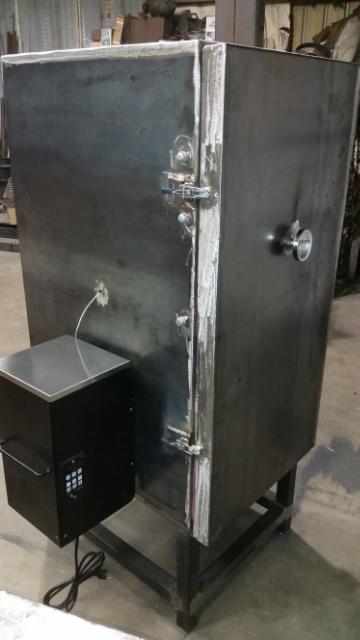

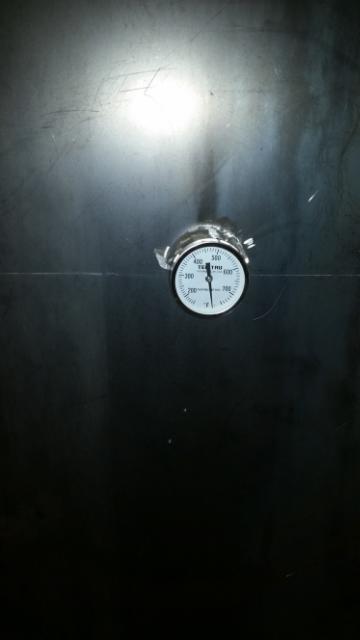

Well....Door is built and installed now.  Tel-Tru Thermometer installed in the door.  Tadpole gasket installed on the door.  Pit Probe from the SmokeDaddy Hopper system is installed.  De-Staco latches are installed on the door.  SmokeDaddy Pellet Hopper Assembly is now installed.  Door is swinging on a McMaster Carr Weld On Piano Hinge.  All I like on the cooker is building some 3/4" channel to secure the Pit Probe wires you see above the pellet hopper assembly and putting in some grate tilt stops.  Got to secure those ugly wires in something.  Then she is ready for some powder coating.  While she is away getting pretty I will build the 6 cooking grates.  Coming along nicely.....









seenred

Legendary Pitmaster
OTBS Member
Group Lead
9,266
579
Joined Feb 9, 2009
That's coming along real nice! Around here we'd say you've got skills! Thumbs Up

Looking forward to seeing it finished...and seeing how she cooks!

:Looks-Great:


Nice work!

Red

Last edited:

JckDanls 07

Smoking Guru
OTBS Member
SMF Premier Member
Group Lead
6,515
1,078
Joined Sep 10, 2011

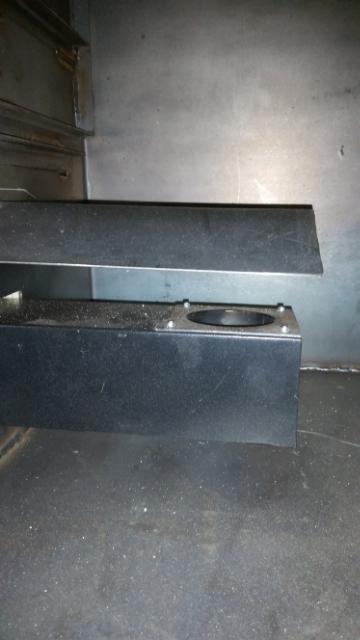

This is gonna be saweet ... my only concern is your drip pan (3rd picture in first post).... If it's as big as the inside of the CC, I'm worried heat will not go up around it... I've seen where people made a full size drip pan out of tin foil for there MES.. only to find out the CC wouldn't come up to temp... hopefully that won't be the case for you ...


gary s

Gone but not forgotten. RIP
OTBS Member
26,259
4,688
Joined Jan 6, 2011
I would say FIREMANJIM has skills, that is a great looking smoker, can't wait to see the TBS and what he smokes first


Gary


firemanjim

Fire Starter
Thread starter
48
13
Joined Feb 6, 2013

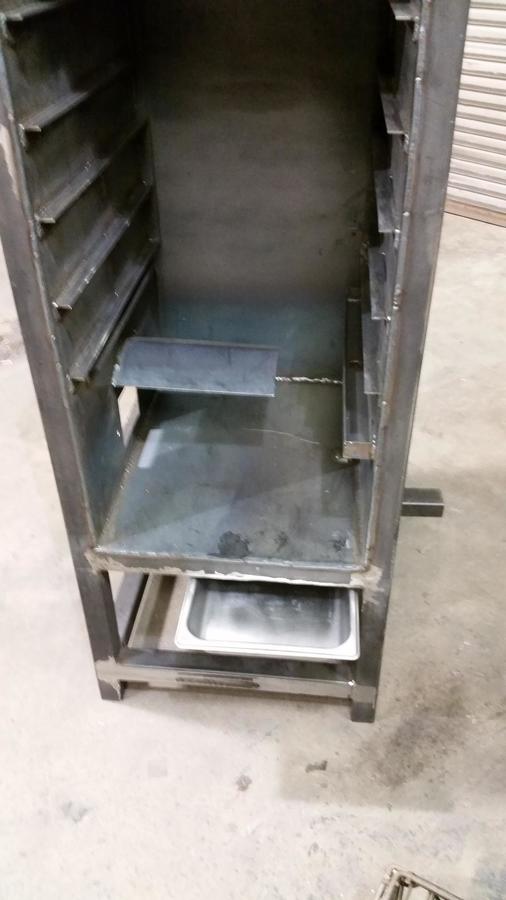

There is a 1 1/2" channel in the back and in the front which allows the smoke to travel up. Works great. Less than 15 degrees difference between the bottom shelf and the top shelf.
