Hinges for my builds

2bears

Smoke Blower
89
10
Joined Jul 20, 2010
Lets see some pictures of the hinges you used for both the cook chamber doors and the fire box doors.

I am going to be putting a couple smokers together soon and am looking for ideas for good durable hinges, one is a 120 gallon on a cart the ather will be a 500 gallon tank on a trailer.

Any good home made styles out there?


randya

Meat Mopper
SMF Premier Member
251
25
Joined Feb 8, 2009

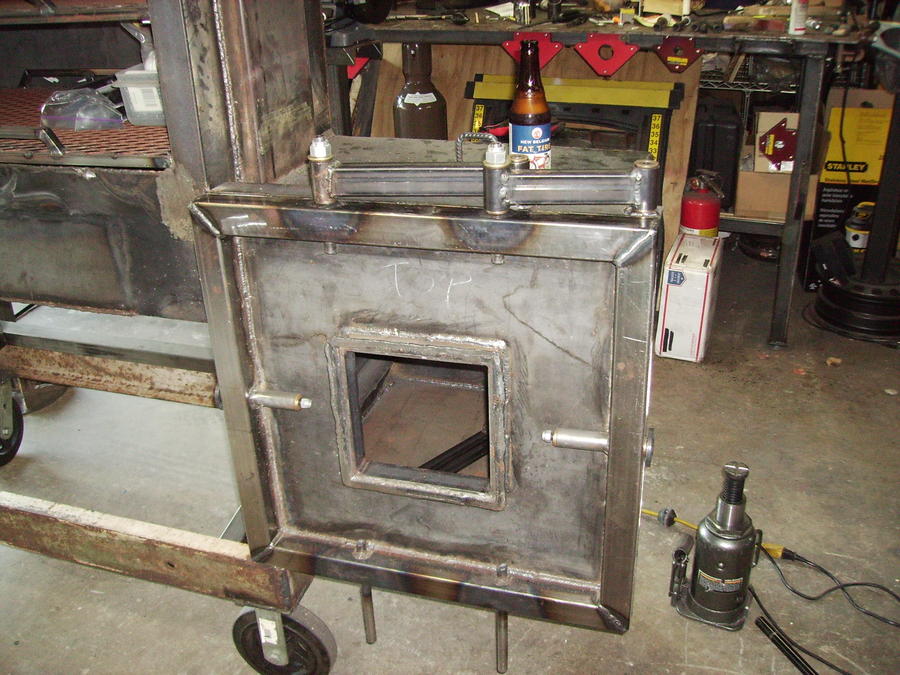

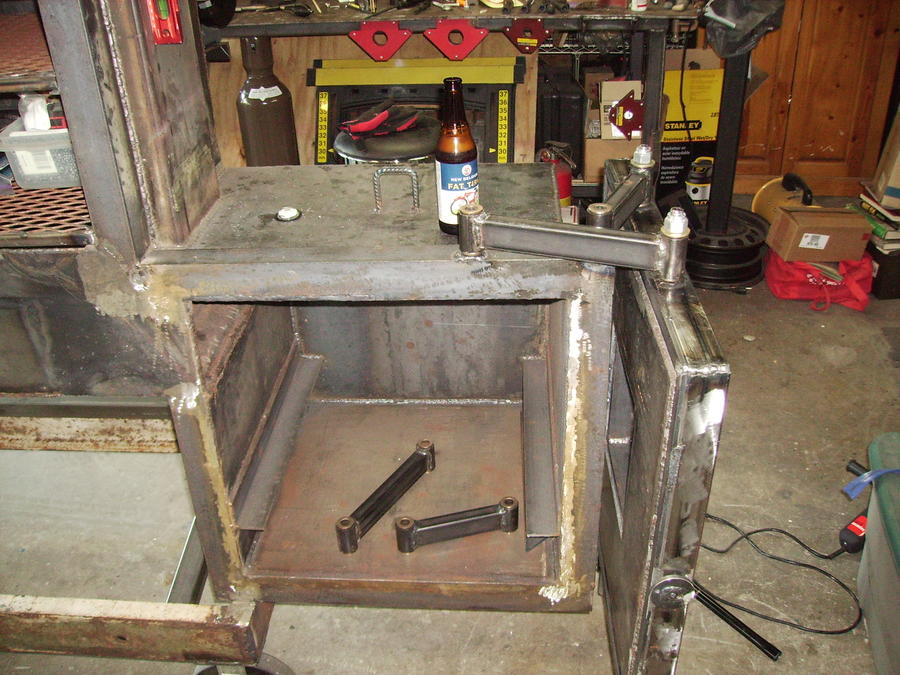

I use these the most.  I have use weld on 4" before and works great too.  I prefer to make mine as my first choice. It's made of 1/2" bar and I get the pipe as close to 1/2" ID as I can.  Make sure you get pipe so you want have the weld seam on the inside. Hope this helps and good luck on your build.



drmugato

Newbie
1
10
Joined Apr 7, 2011
Here are some other options for "smoker Hinges".  Found these on Mcfrugal.com, They also recommend Piano type hinges.  We look forward to finished pictures.





wolfmann

Smoke Blower
82
12
Joined Apr 3, 2011
I am with Randya make your own. You can go to Loewe's and check there pipe and round bar stock to what is the best fit and then make your own hinges for a much better price. I have used them for both door on the fire box and the hinges for the smoker and they work great. You can make what Randya has or you can set up the pipe the same as the smoker hinges. Your imagination is the limit.


tom37

Master of the Pit
OTBS Member
SMF Premier Member
1,649
21
Joined Sep 24, 2009
Check some of the welding supply stores nearby, most of them will have the teardrop weld on style. One of the stores I use sells a 1/2" dia for about 5 bucks a pair.

Paul, have you heard anything about the KCK store. I am hearing from alot of guys that every time they go down there he is closed.


Bearcarver

SMF Hall of Fame Pitmaster
OTBS Member
SMF Premier Member
Group Lead
37,499
10,366
Joined Sep 12, 2009
All my Son did for his cooking chamber was weld three big old butt hinges, and grind off the extra weld material.

Works fine on his 275 gallon oil tank pig smoker.

I can't find a good picture of his twin smoking box door hinges, but it's just a couple of angle irons, with holes drilled, and pins through the holes

Bear





wolfmann

Smoke Blower
82
12
Joined Apr 3, 2011
Also if you are looking for the BBQ hinges Northern tool does carry them.


beer-b-q

Epic Pitmaster
OTBS Member
10,102
39
Joined May 1, 2007
Check some of the welding supply stores nearby, most of them will have the teardrop weld on style. One of the stores I use sells a 1/2" dia for about 5 bucks a pair.

Paul, have you heard anything about the KCK store. I am hearing from alot of guys that every time they go down there he is closed.

Bobby has a lot going on with different properties and I don't know that he is around the store all the time... I think he depends a lot on online purchases.

If I think about it tomorrow or Monday I will check with him and see when he is there.


tom37

Master of the Pit
OTBS Member
SMF Premier Member
1,649
21
Joined Sep 24, 2009
Thanks Paul, I will pass the word along as soon as you find out.


hogwart

Fire Starter
51
10
Joined Jan 30, 2010
I Just went ahead and made my own on the last build I did. Doesn't take to long and with some pipe and rod you can make some good hinges yourself



grillmasters

Newbie
1
10
Joined Mar 14, 2014
I JUST BOUGHT MY FIRST WELDER AND BUILT A SMOKER OUT OF A 60 GALLON HOT WATER TANK , IT TURNED OUT VERY WELL CONSIDERING IT WAS MY FIRST TIME WELDING !!!!!!! THOSE HINGES OF YOURS ARE A GREAT IDEA , IM GONNA TRY THEM OUT MYSELF ON FUTURE BUILDS !!!!! U CAN GO TO FACEBOOK .COM / RODERICK THOMAS OR FACEBOOK.COM/  GRILLMASTERSOFMEMPHIS AND CHECK OUT PICTURES AND A FEW VIDEOS OF SMOKER !!!! PLEASE OFFER CONSTRUCTIVE CRITACISM ON SMOKER !!!!!!!


bigwheel

Smoking Fanatic
405
20
Joined Oct 31, 2009
This old farmer down in S. Texas used a segment of chain that come from the innards of a farm tractor to make hinges.  Not sure what is the official name of it but looked like a bicycle chain about an inch wide. It take 3 links and you weld the two on the end over the gap and the middle link provided the pivot point. Made more than several using the same strategy myself. Last forever and cost a buck or two for a section about 20 feet long at the farm auctions.

Last edited:
