Help!! I warped my reverse flow plate!

  • Some of the links on this forum allow SMF, at no cost to you, to earn a small commission when you click through and make a purchase. Let me know if you have any questions about this.
SMF is reader-supported. When you buy through links on our site, we may earn an affiliate commission.

SmeltshackBBQ

Smoke Blower
Original poster
Nov 15, 2015
91
119
Maine
500 gallon Cookers and Grills 12' 'restaraunt' model...

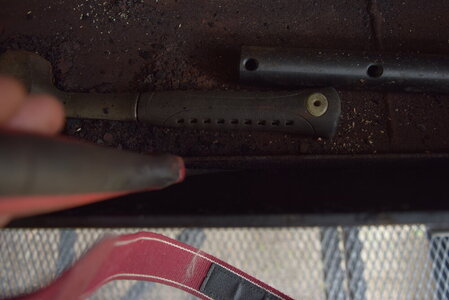

So, I'm in the process of restoring this old trailer, and have gotten to the part I dreaded the most: The reverse flow plate got warped fairly badly when I first got this thing. A hot grease fire later, and now there is a nice dome in front of the fire entrance to the cook chamber. It wouldn't be a big deal, except that this caused the plate to come away from the sides of the tank where it's domed, and now we're getting major temp spikes over there. I fixed it by stuffing wads of aluminum foil in there to make a gasket of sorts, and that was all still in there when I just cleaned the tank all out so I could try to tackle this little job.

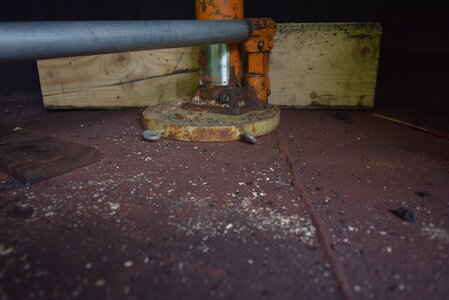

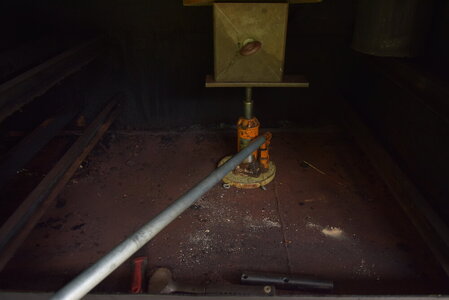

I blocked up a bottle jack just now, and got it to push the plate back to flat without too much trouble by pushing down from the top of the tank.. My brain says 'just heat it with torches while it's jacked back into place, then let it cool while you keep pressure on it'. That's great, except that my brain is forgetting that I no longer have access to torches.

I do have a 110V MIG machine here, and kinda thought about just tacking it down while it's jacked there.. It's a 6 ton bottle jack, and it's got quite a bit of pressure on it.

I don't want to do that, something tells me if I ever sell this thing, the next owner thanks me for not doing that. Especially if they ever need to replace that plate due to rust, or more major warping. It's only warped by a couple inches, but the poor person holding that grinder probably says it still hurt when it let go and cut their fingers off or something...

It seems that welding a piece of round rod, angle iron, something like that to the plate while it's jacked down there is my best option short of heat straightening this warped plate.

So, if anyone has any ideas about how to force this thing to stay straight that sounds better than adding more obstacles to the plate to scrape grease around... I'd love to hear them. And yes, I've already considered fighting grease fires with bigger grease fires, by emptying all this cleaned up grease into a pile in there, and then lighting it.

Thanks!

edit for the added pics.


Attachments

  • DSC_0553.JPG
    94.9 KB · Views: 34
  • DSC_0551.JPG
    63.5 KB · Views: 35
  • DSC_0552.JPG
    91.4 KB · Views: 34
Last edited:
Push it past where you want it and let off and see how much it comes back.
You could use some map gas in hand held torch to put some heat in it to help a BFH shrink it back. Use a wet rag to cool it.

  • Like
Reactions: civilsmoker
If it were me, I would release it from pressure and then cut a few horizonal cuts across the warped area, then put the jack on so that section can "bend" and then once back in line weld it back up..... Just "v" bevel the cut before welding back up.....

ps edit, try what JimS suggested first then angle grinder time....

  • Like
Reactions: JLeonard
Push it past where you want it and let off and see how much it comes back.
You could use some map gas in hand held torch to put some heat in it to help a BFH shrink it back. Use a wet rag to cool it.
I got a tiny bit out using the 'let's go til she don't sound good and then look away while we do two more' point.

As for the mapp, I don't think I could get the area hot enough with that, it's about an 18" by 20" section that warped. And feels like at least 1/8" plate in there if not more. It has angle bar edges, so I can't quite see the thickness.

  • Like
Reactions: JLeonard
If it were me, I would release it from pressure and then cut a few horizonal cuts across the warped area, then put the jack on so that section can "bend" and then once back in line weld it back up..... Just "v" bevel the cut before welding back up.....

ps edit, try what JimS suggested first then angle grinder time....
Yeah, that's what I was afraid of.. lol. I'll go out and look at where the cuts would need to be now, this may be a job for later.

  • Like
Reactions: JLeonard
Either of the suggestions already made might work. Another thought - have you considered just cutting the warped section of the plate out...and simply scab-welding in a new piece of plate steel? With some care and a good angle grinder, you could smooth it out where nobody would every know it was replaced.

Red

Either of the suggestions already made might work. Another thought - have you considered just cutting the warped section of the plate out...and simply scab-welding in a new piece of plate steel? With some care and a good angle grinder, you could smooth it out where nobody would every know it was replaced.

Red
18x20 and 1/8 to 3/16 this is a one and done......less than an hour.....

Either of the suggestions already made might work. Another thought - have you considered just cutting the warped section of the plate out...and simply scab-welding in a new piece of plate steel? With some care and a good angle grinder, you could smooth it out where nobody would every know it was replaced.

Red


This is what I would do as well... Just replace it

  • Like
Reactions: seenred
Well, thanks everyone! I think I'll cut it, jack it down and weld it back together. It's been done before on this one by the looks. I'll clean up that existing weld while I'm in there. I'm on the 'I don't have much money to put into this thing right now, but I have a bunch of tools and some time' team right now... lol.

I got a tiny bit out using the 'let's go til she don't sound good and then look away while we do two more' point.

As for the mapp, I don't think I could get the area hot enough with that, it's about an 18" by 20" section that warped. And feels like at least 1/8" plate in there if not more. It has angle bar edges, so I can't quite see the thickness.
Start in highest point red dot then hammer and cool. Start workin your way out. It'll draw back in place.
Old school body and paint man.

Start in highest point red dot then hammer and cool. Start workin your way out. It'll draw back in place.
Old school body and paint man.
Once we get out of this rain and cold spell, I'll give it a try before I cut anything. I think I have a can of mapp around here somewhere.
