Fully Insulated Gravity Fed Smoker

cliffy72

Newbie
28
10
Joined Jan 7, 2016
Been doing a ton of research an decided that my next smoker should be a Gravity Fed Smoker. I considered ordering a new one, completely built an ready to go. But, with the currency exchange, shipping, taxes @ the border. I decided it was a much better and cheaper option to buy some plans and have one built locally.

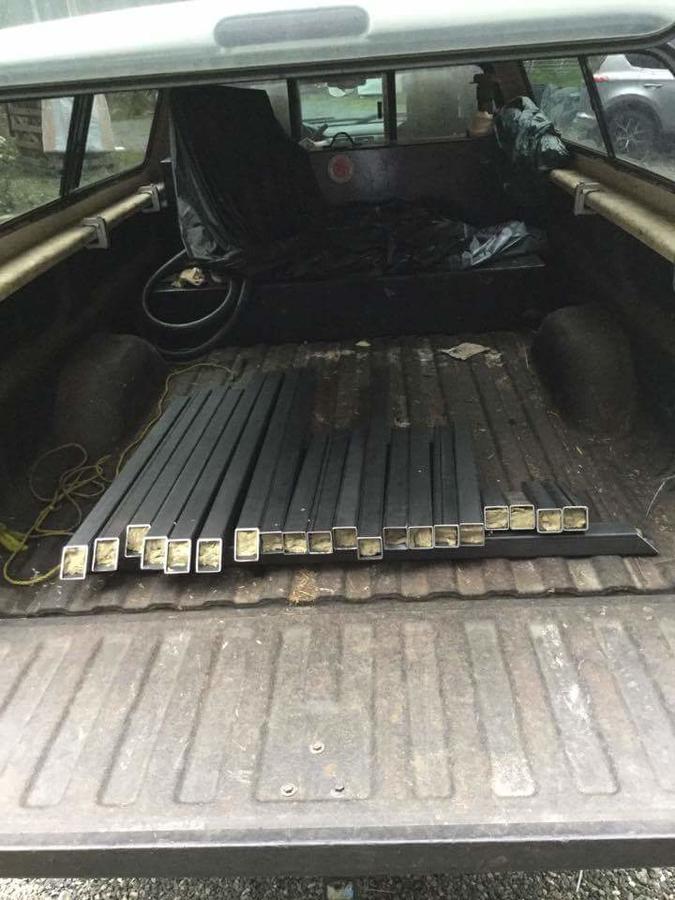

Got my first quote back, for the 82' of 2" x 2" square tubing that will be needed for the build. The metal supplier will cut, make all 35 pieces to the desired lengths, for $25. $317.44 cutting fee and taxes included. I will be getting them to cut all my sheet metal and plate steel to size. They have the fancy machines to cut everything, will make nice square cuts. That will save us alot of time and headaches throughout the build process. Then all that will be left to do is start welding and assembling :)


SmokinAl

SMF Hall of Fame Pitmaster
Staff member
Moderator
OTBS Member
★ Lifetime Premier ★
44,542
6,235
Joined Jun 22, 2009
Sounds like a great build!

You must be very talented!

Al


cliffy72

Newbie
28
10
Joined Jan 7, 2016
Al, It's been a very long time since i welded anything. I actually don't even own a welder anymore. I will get someone else to weld it all together, for me :) Shoulder be quicker and alot less grinding or fixing mistakes than if i did it lol.


jamonit72

Newbie
12
11
Joined Jul 19, 2012
Haven't been on here in a while. How did the build go?

I just finished one of these myself! WOW! I don't boast but it came out awesome and works even better.

I will post a thread this weekend and some pics of my build process!!


cliffy72

Newbie
28
10
Joined Jan 7, 2016
Just cutting the square tubing. I will try to post some pictures of the build, as we go go.


jlogo

Newbie
2
10
Joined Oct 18, 2016
Hi,

Do you have a rough total cost of materials, to build according to the plans you have.

I was thinking of purchasing those plans and having it built because i have zero experience with welding but was wondering what the cost of materials was.

Thanks


cliffy72

Newbie
28
10
Joined Jan 7, 2016
The question is are you in the US or Canada ? I am pretty sure that you will be able to get steel quite a bit cheaper than i can if you are in the US. I am in Canada. I will let you know what the steel costs, once the welder gives me the bill :)


jlogo

Newbie
2
10
Joined Oct 18, 2016
I'm in the US.

But in NYC the steel prices and labor is high compared to other city's .


ahumadora

Smoking Fanatic
559
74
Joined Aug 28, 2015
Cliffy,

The insulation on that box tube probably won't have much effect as the heat will still be conducted through the steel to the other side of the box.

lol,  Yall complaining about high steel prices.

Try living in South america where it is super difficult to source any parts or equipment.


cliffy72

Newbie
28
10
Joined Jan 7, 2016


cliffy72

Newbie
28
10
Joined Jan 7, 2016


cliffy72

Newbie
28
10
Joined Jan 7, 2016


cliffy72

Newbie
28
10
Joined Jan 7, 2016


cliffy72

Newbie
28
10
Joined Jan 7, 2016
If you click on the picture above it will take you PB. Then you can see all the pictures of the build, from start to finish.


eashea

Newbie
3
10
Joined Jun 22, 2016
How much in materials do you estimate you had into this?  I was looking at there web site and I am thinking about building this same one or maybe the smaller one?  Your build came out awesome looking!


cliffy72

Newbie
28
10
Joined Jan 7, 2016
It was about $1700 CDN in materials. Sheet metal, plate steel for FireBox, square tubing, expanded metal, angle iron, 4x casters, 1 1/2" & 2" SS Ball valves.


ab canuck

Master of the Pit
OTBS Member
★ Lifetime Premier ★
2,997
564
Joined Nov 20, 2016
  Wow that looks good... How's it work? You will have to post pics of smoked goodies....
